Draw Wire Encoders

Linear measuring system for position detection.

The right draw-wire encoder for every application. From precise to compact to robust and cost-optimized. Kübler offers a comprehensive portfolio based on different measuring lengths. In addition to all common interfaces, innovative features such as integrated inclinometers or redundant sensors make the difference. From analogue to fieldbus – draw-wire mechanisms can be combined with a wide variety of Sendix encoders according to customer requirements.
KÜBLER

Kuebler - Wire Encoders A50

  • Max measuring length 1 250 mm
  • -20 to +85 °C
  • Titanium anodized aluminum housing
  • Compact dimensions
Product has 2 variants.
Not in stock
Buy Buy
KÜBLER

Kuebler - Wire Encoders B80

  • Max measuring length 3000 mm
  • -20° to +85°C
  • Ready speeds up to 10 m / s
  • Titan-anodized aluminum housing
Product has 2 variants.
Not in stock
Buy Buy
KÜBLER

Kuebler - Wire Encoders C120

  • Measurement length 6000 mm
  • -20° to +85°C
  • Ready speeds up to 10 m / s
  • Titan-anodized aluminum housing
Product has 2 variants.
Not in stock
Buy Buy
KÜBLER

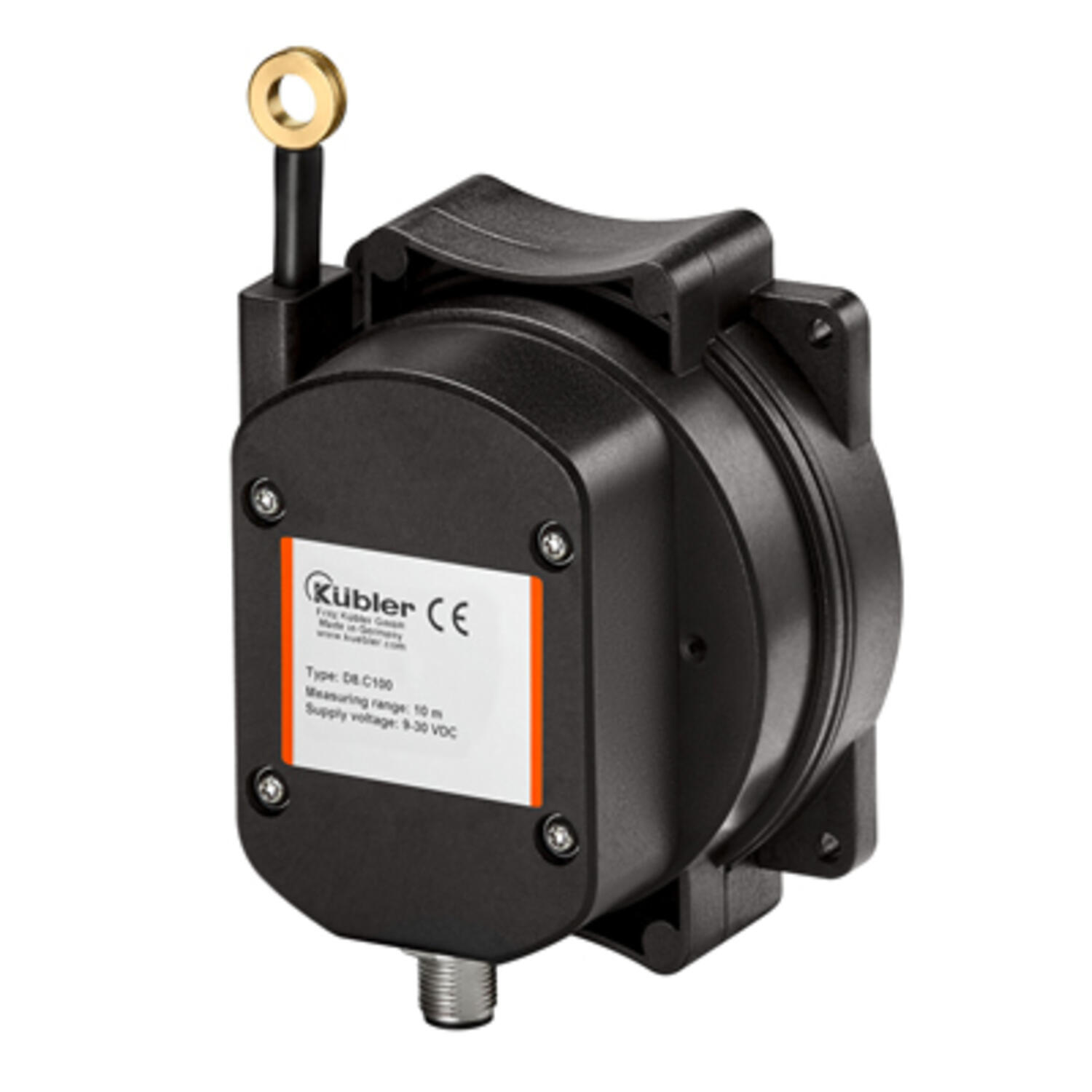

Kuebler - Wire Encoders C100

  • Robust design
  • -40 to +85°C
  • IP67 class
  • Built-in inclinometer
Product has 1 variant.
Not in stock
Buy Buy
KÜBLER

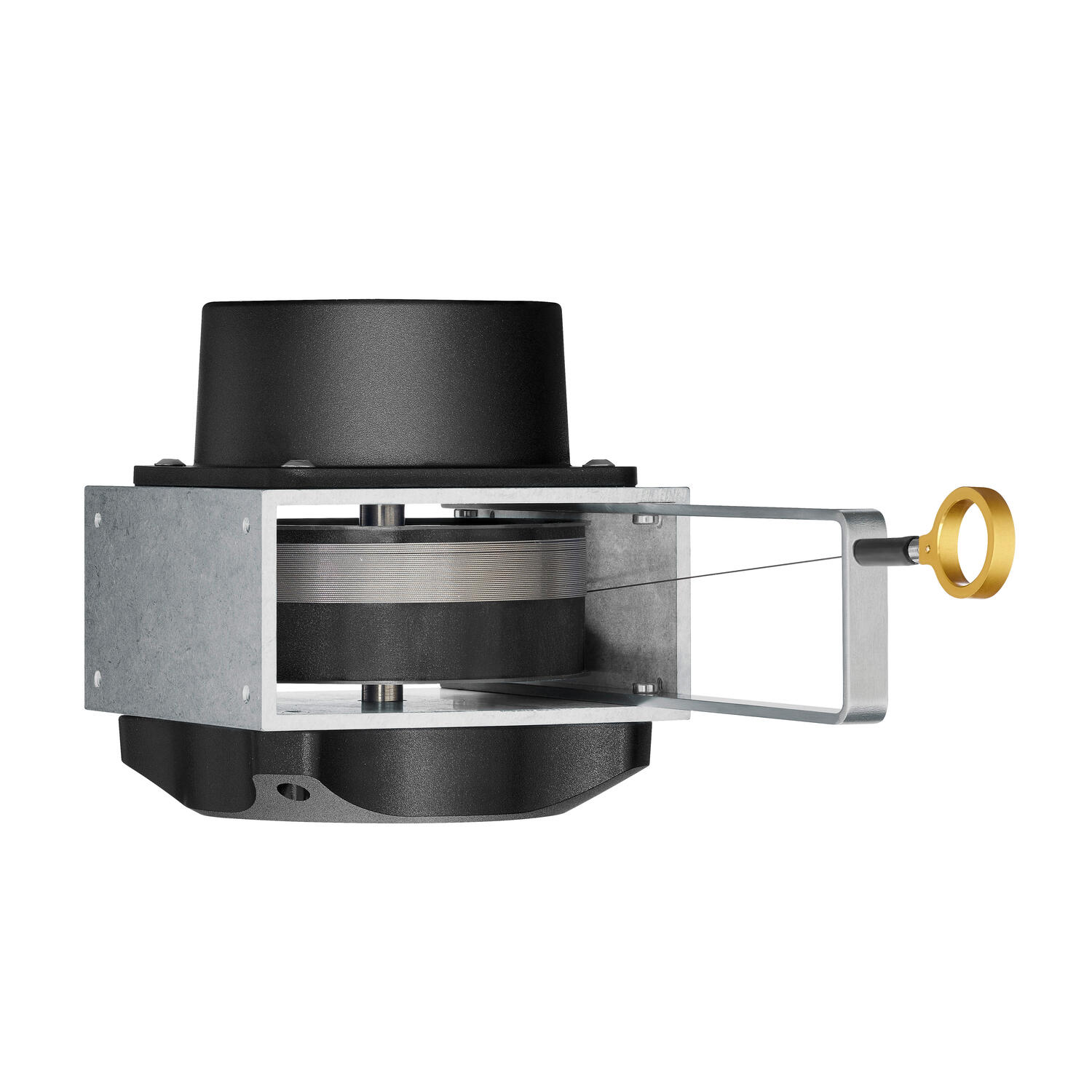

Kuebler - Wire Encoders D120

  • Max measuring length 10m
  • -40 to +85C°
  • IP rating up to IP69K
  • Open, closed or perforated house
Product has 1 variant.
Not in stock
Buy Buy
KÜBLER

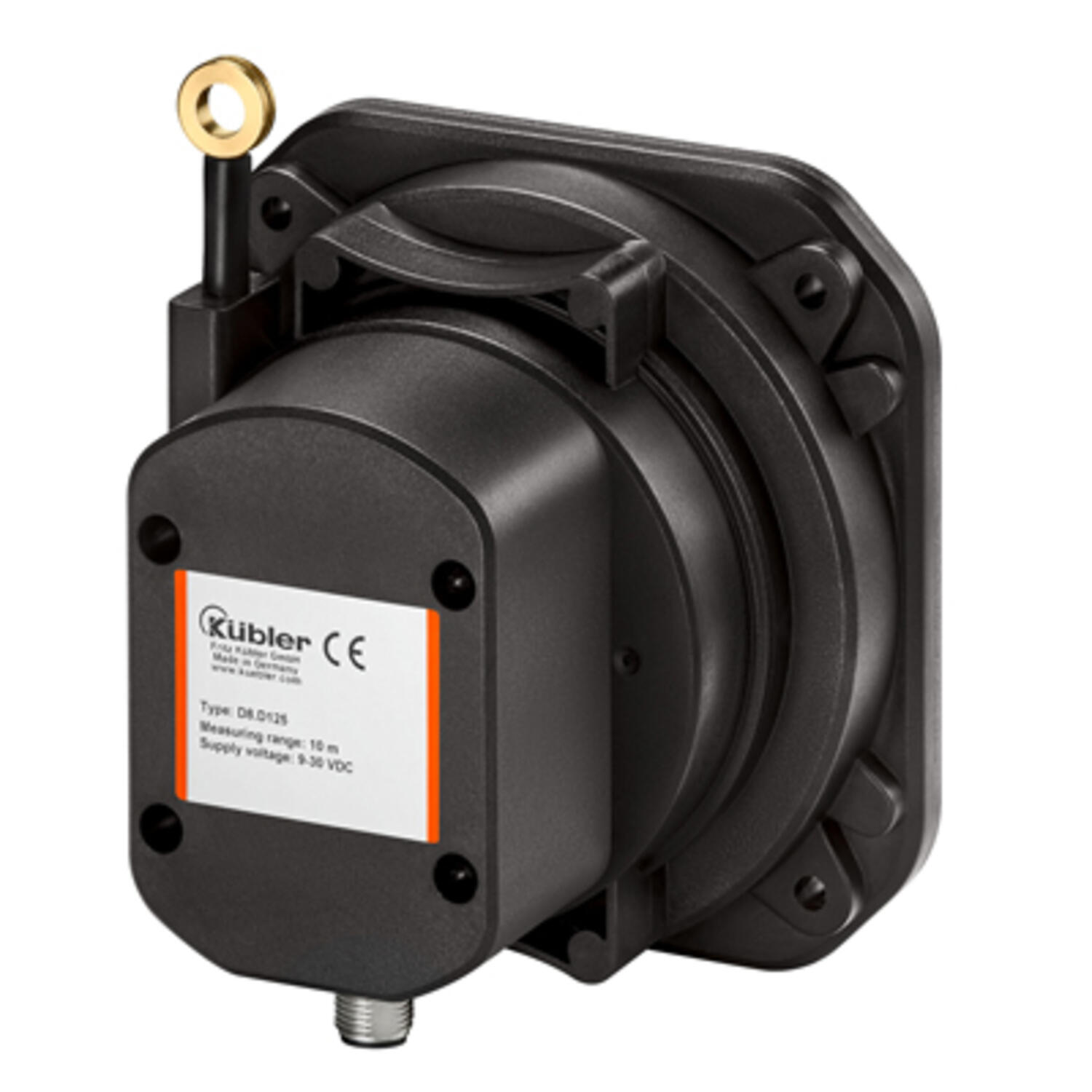

Kuebler - Wire Encoder D125

  • Measuring range 6 .... 10m
  • Integrated inclinometer
  • Can be ordered with redundancy
  • IP67
  • -40 to +85°C
Product has 1 variant.
Not in stock
Buy Buy
KÜBLER

Kuebler - Wire Encoders D135

  • Max measuring length 40000 mm
  • -20° to +85°C
  • Ready speeds up to 10 m / s
  • Titan-anodized aluminum housing
Product has 2 variants.
Not in stock
Buy Buy
KÜBLER

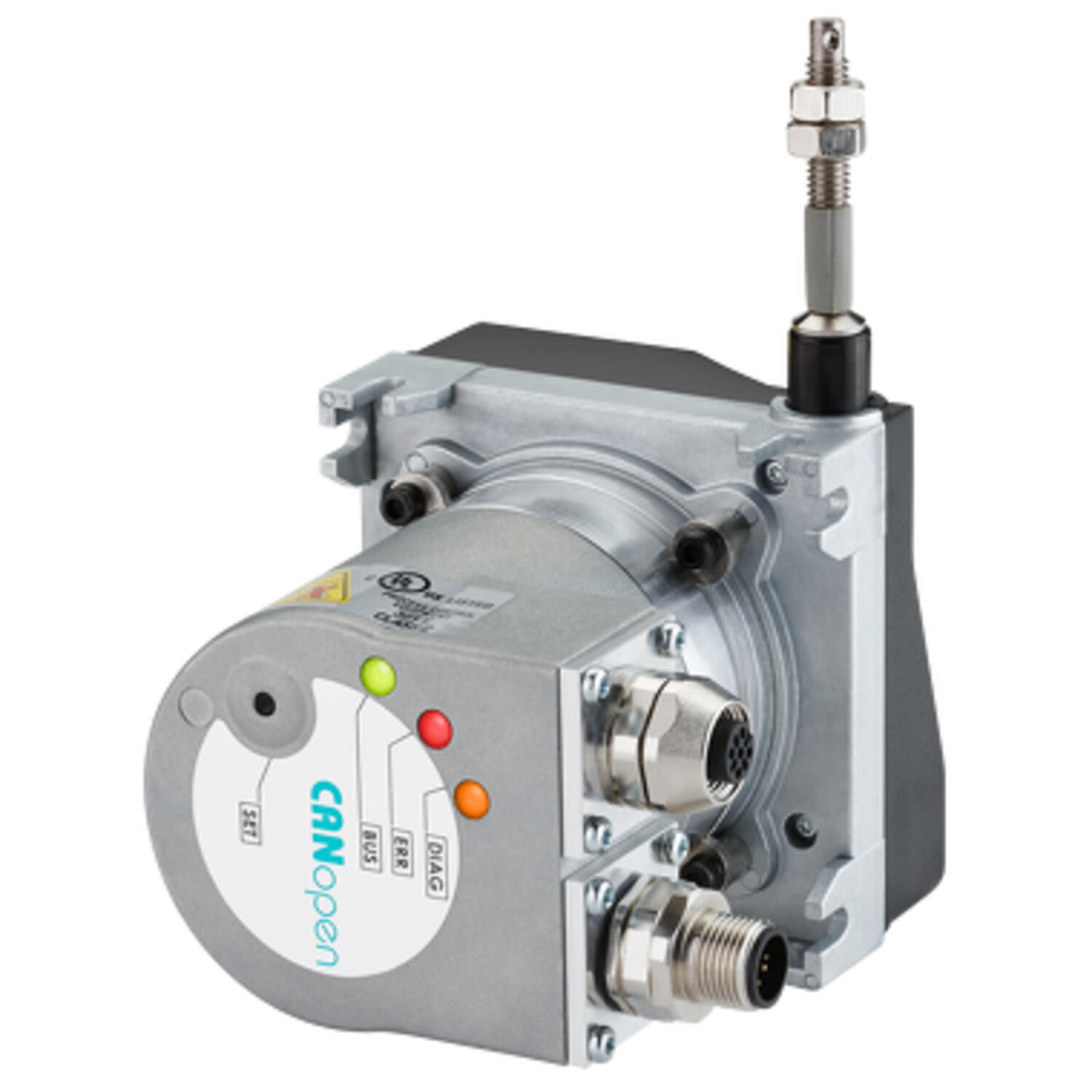

Draw-wire encoder series B75

  • Maximum linearity ±0,35%
  • Working temperature -40°C to +85°C
  • Protection level IP65
  • Mechanical speed 0,8 m/s
Product has 1 variant.
Not in stock
Buy Buy
KÜBLER

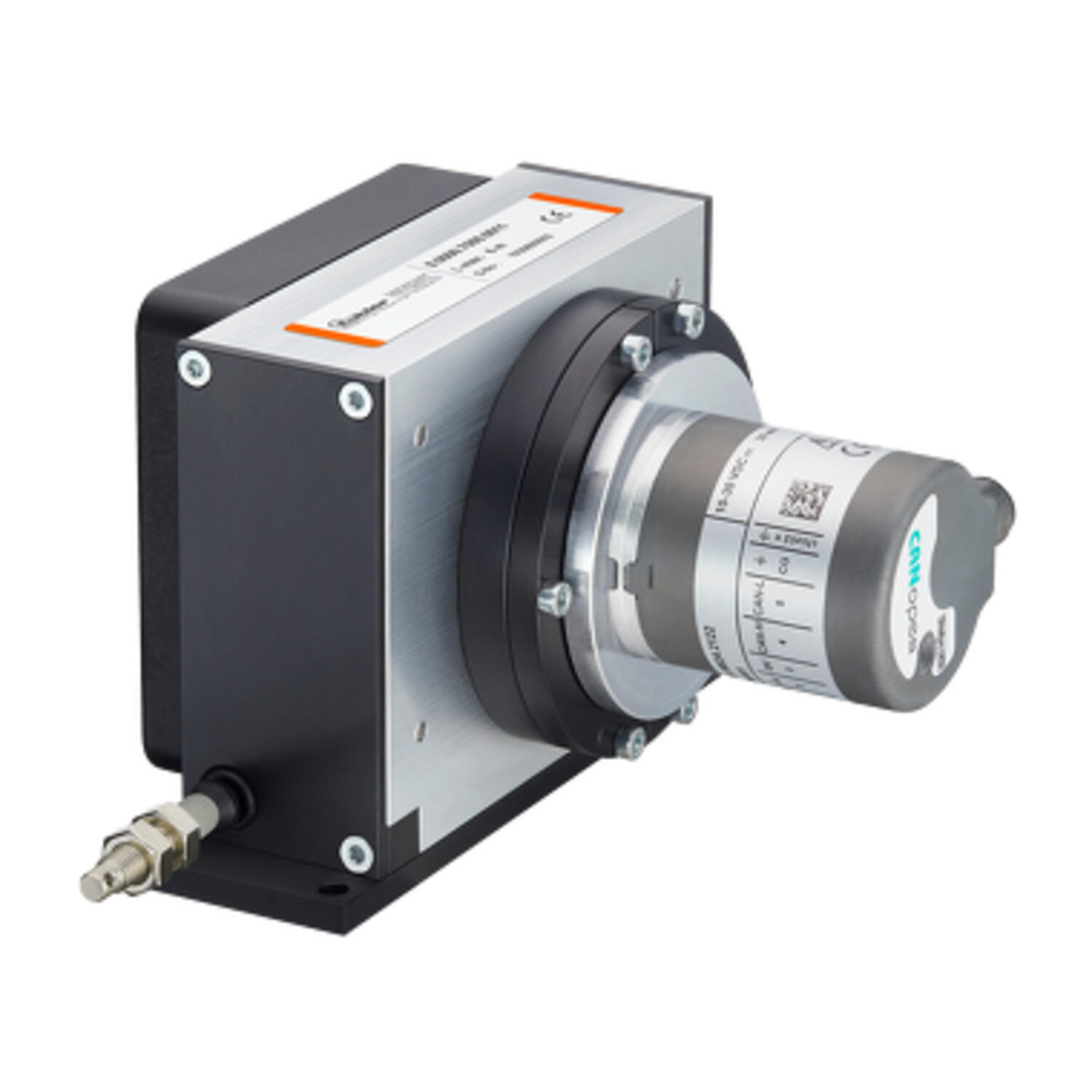

Draw-wire encoder series C105

  • Maximum linearity ±0,1 %
  • Working temperature -40°C to +80°C
  • Protection level IP65
  • Mechanical speed 3m/s
Product has 1 variant.
Not in stock
Buy Buy
