Kuebler - Wire Encoders A50

The Kübler Miniature Wire Giver A50 is designed for simpler applications with lower speeds.

The housing can be combined with digital and analogue encoder.

Maximum wire length is 1250mm.



  • Max measuring length 1 250 mm
  • -20 to +85 °C
  • Titanium anodized aluminum housing
  • Compact dimensions

Selected variant

Avaible in several variants
KUBLER.eps

Save as pdf

Technical data / Documents

Product description

Ordering information

Accessories & Related products

Selected variant

Specifications

Downloads

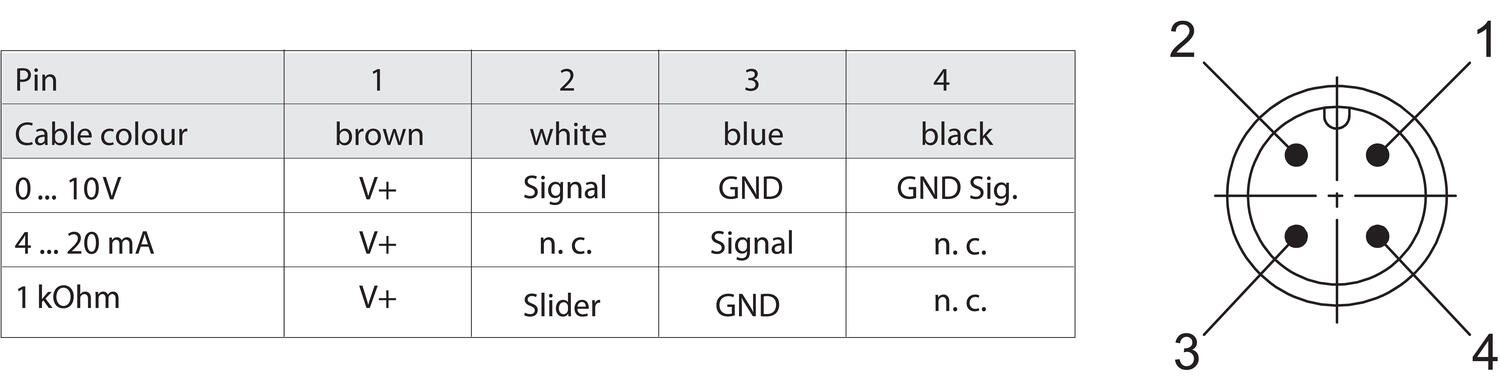

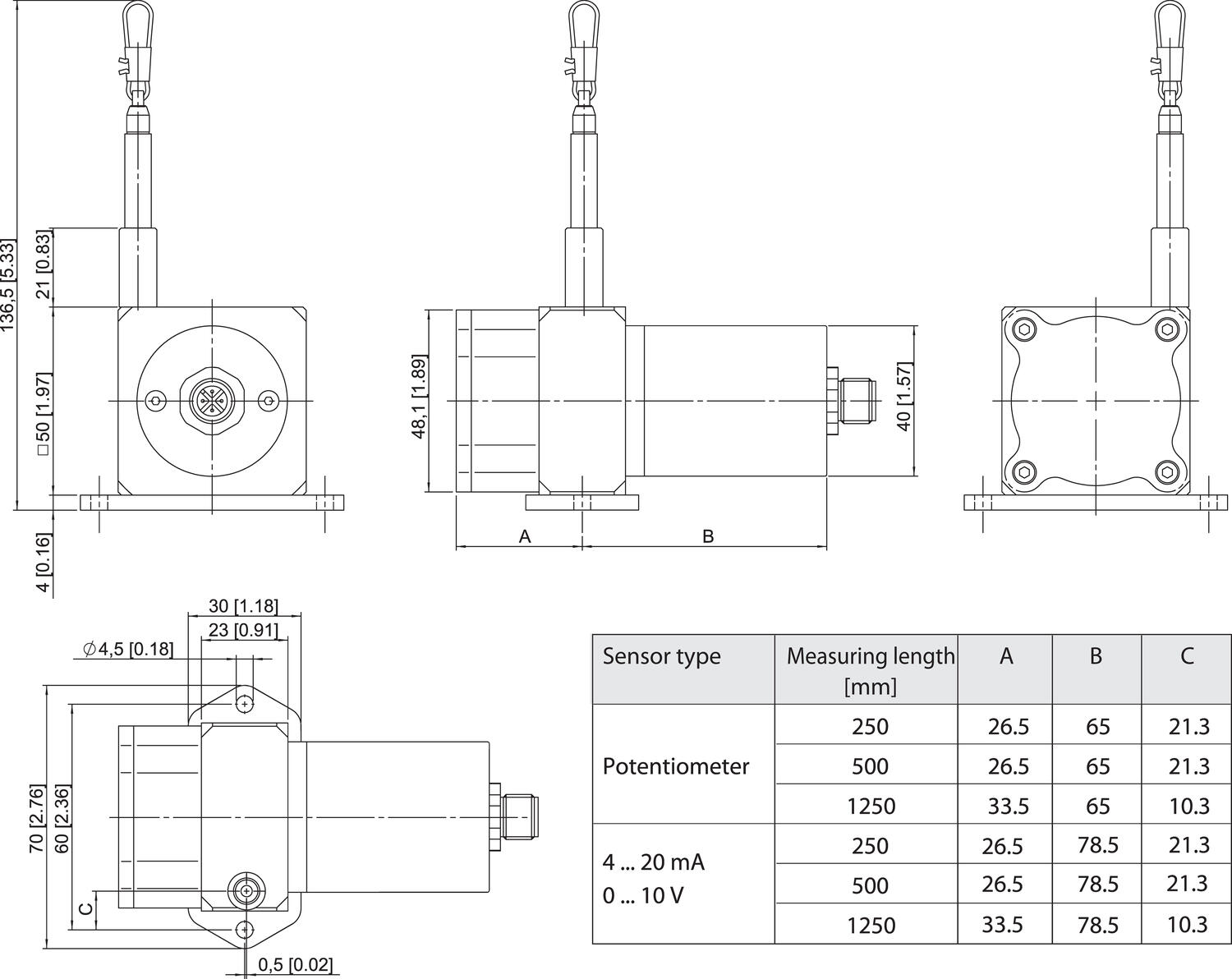

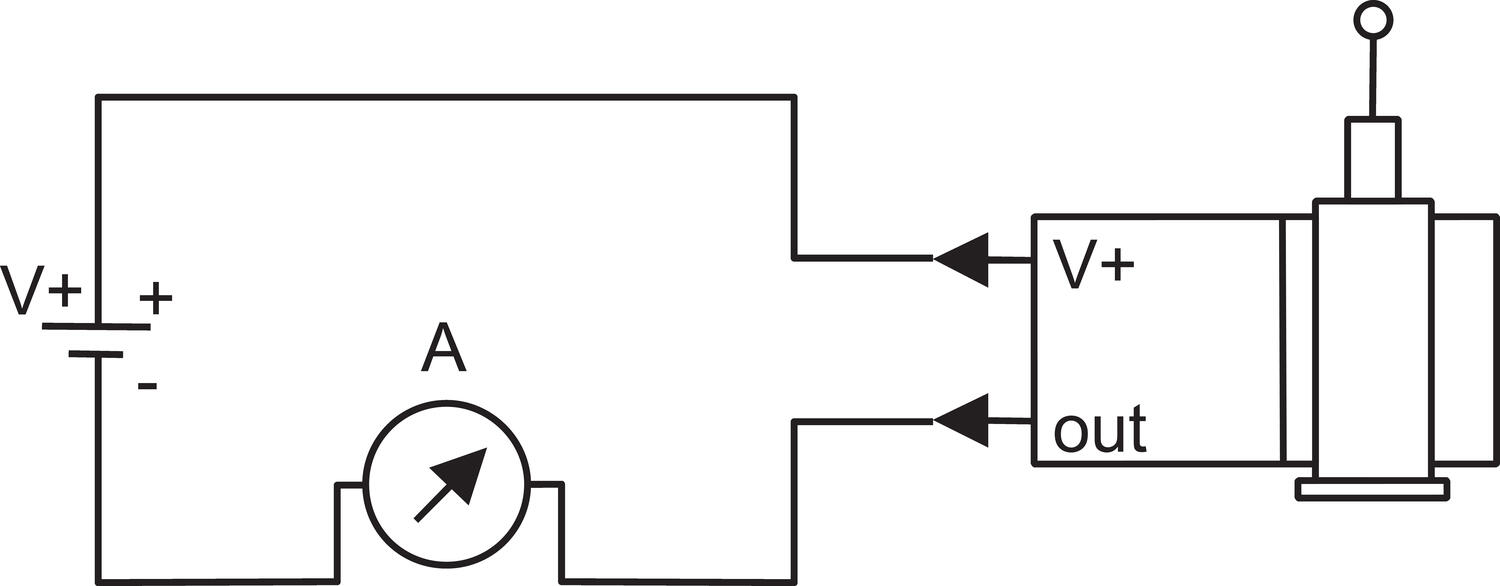

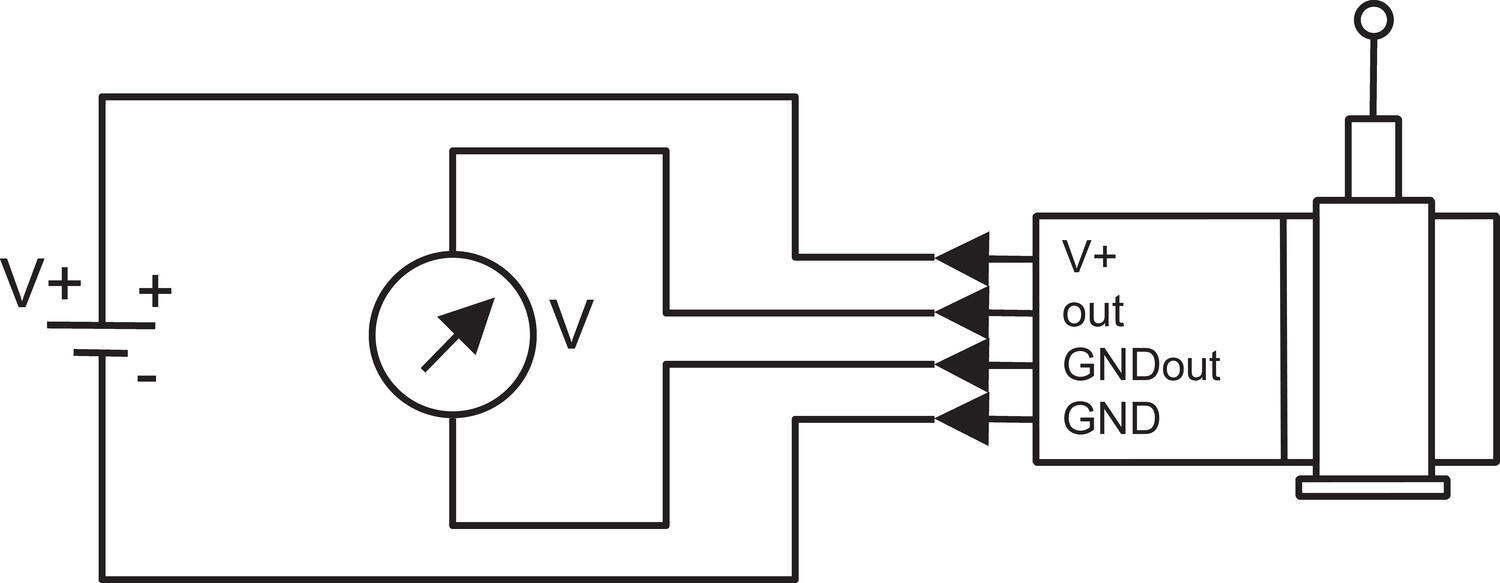

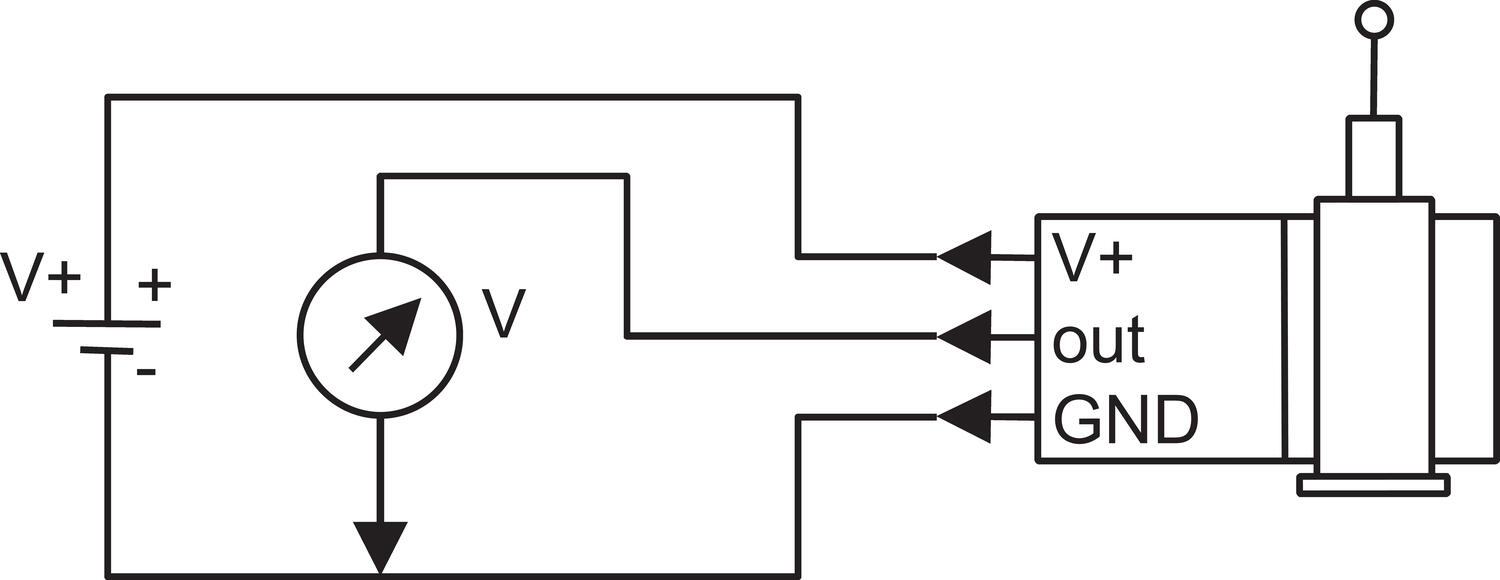

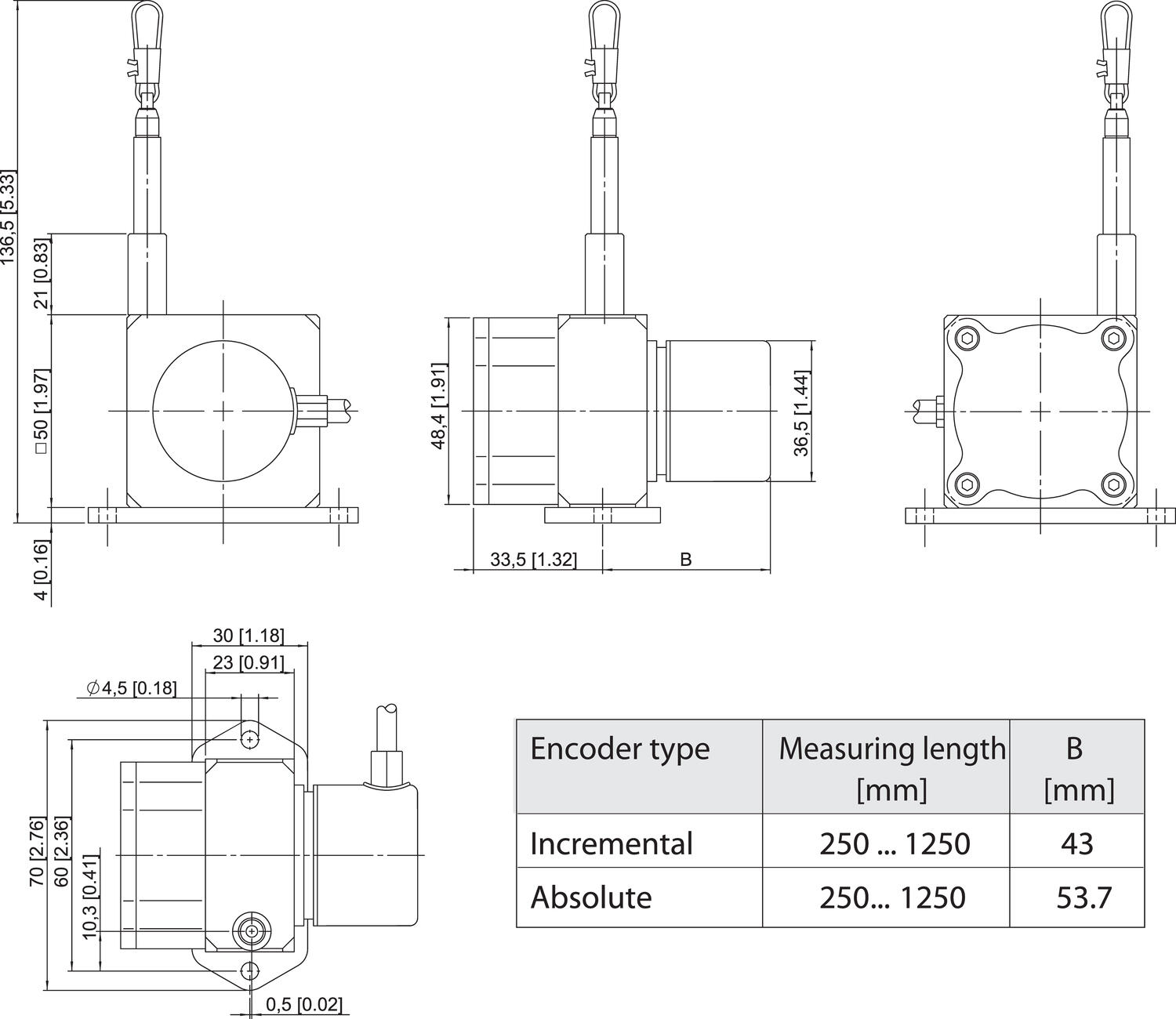

Measurements and connections

Product description

The Kübler Miniature Wire Giver A50 is designed for simpler applications with lower speeds.

The housing can be combined with digital and analogue encoder.

Maximum wire length is 1250mm.



Ordering information

Please refer to the images below for ordering information.

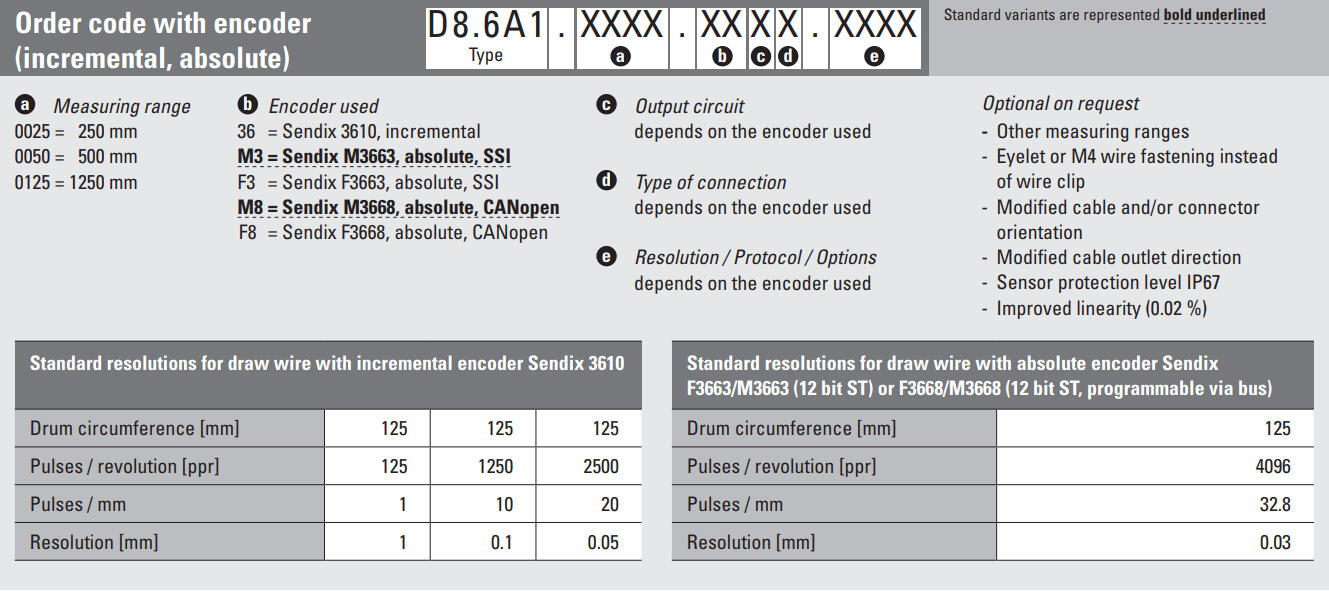

 2018-08-08 15_41_41-A50_en.pdf.png

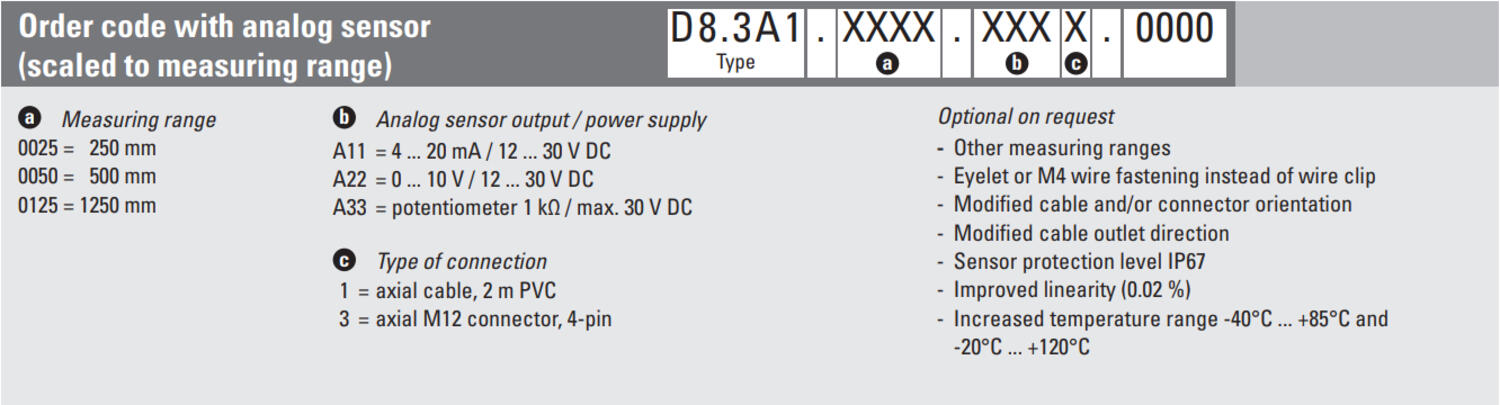

a50 1.png

Accessories

My favourites Articles Price
Art:
SERIE D8.6A1 Copied
Art:
SERIE D8.3A1 Copied
