CROUZET SWITCHES
Crouzet Switches - Microswitch, tight V3, IP67
- Nominal rated current from 0.1 A to 10 A/250 V ac
- Lowest rated current 1 mA/4 V dc

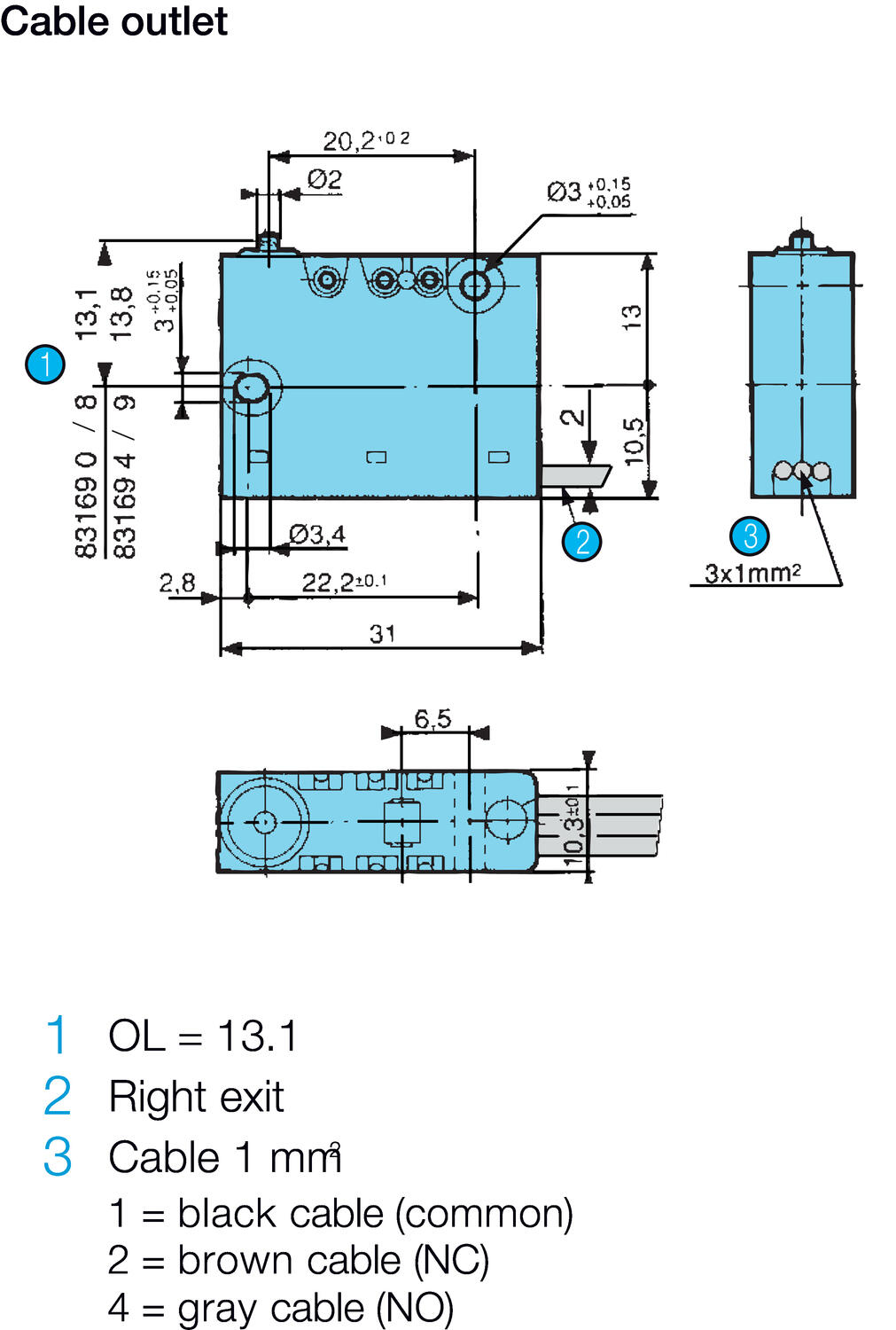

- Cable output left or right
Selected variant
Selected variant
Specifications
| Allowable Operating Force Max | 20 |
|---|---|
| Cable length | 500 |
| Connection Thread | Leader exit left |
| Contact Gap | 0,4 |

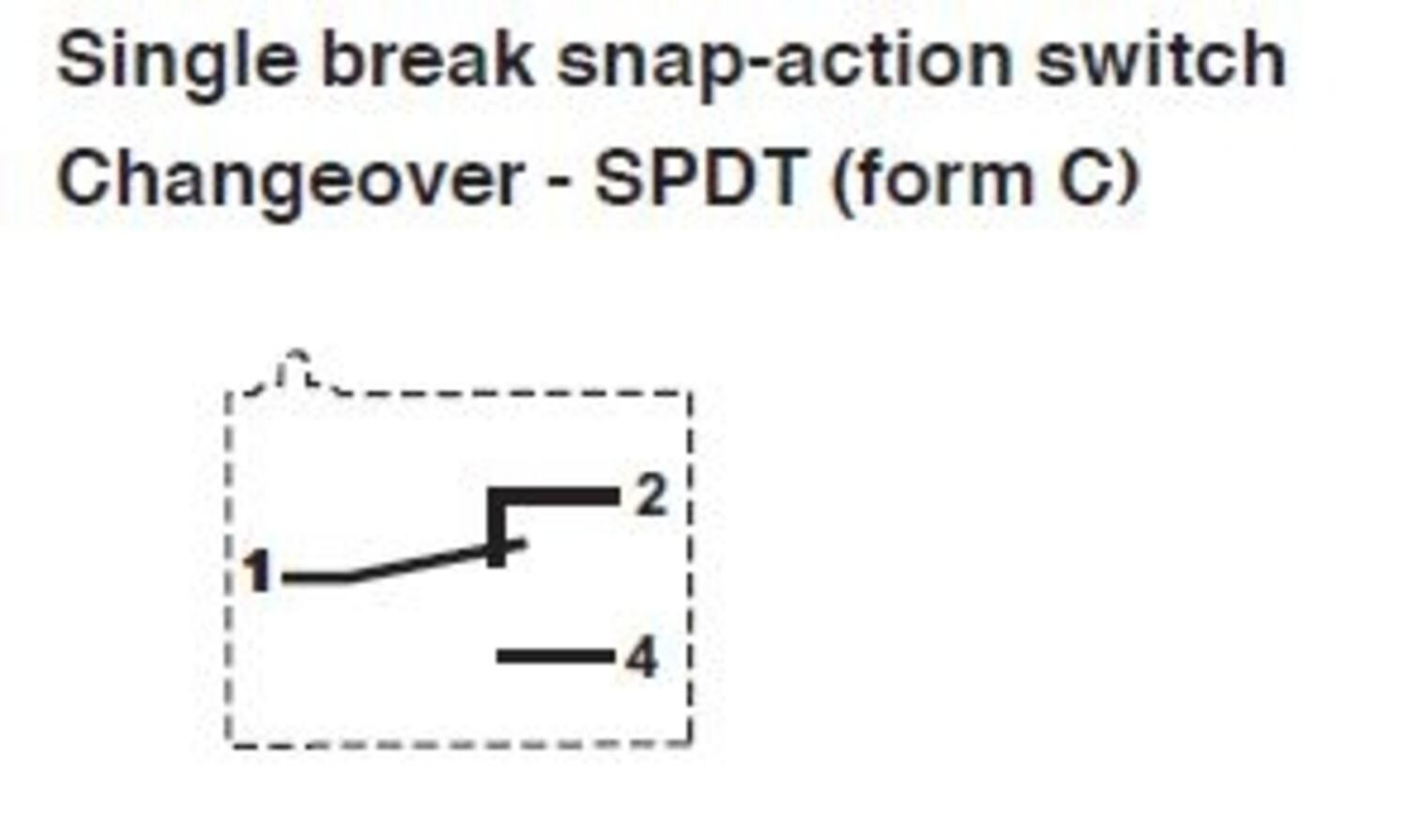

| Contact type | Changeover (SPDT) |
| Hysteresis Max | 0,35 |
| IP Class | IP67, IP69 |
| Operating Force Max | 4,5 |
| Operating Power Total Max | 8 |
| Over Movement My | 1 |
|---|---|
| Rated current at 250 V AC | 8 |
| Return Movement Force Min | 1 |
| Sleep Max | 15,9 |
| Switching Point | 14,7±0,3 mm |
| Temperature range from | -40 |
| Temperature range to | 105 |
| Thermal current at 250 V AC | 10 |
