IDEM Safety limit switch HLM-SS (stainless steel)

IDEM’s HLM range of heavy duty Stainless Steel 316 Limit Switches have been designed to be mounted for position sensing of moving applications e.g. guard doors, conveyors, machine beds and elevators. They are available with an extensive range of actuator heads and can be supplied with either slow break or snap action contacts.



Operation

Operation of IDEM Safety Limit Switches is achieved by a sliding actuation of the moving object to cause deflection of the switch plungers, rollers or levers.

For safety applications it is important that the moving object does not pass completely over the switch actuators so as to either cause damage to the actuator or allow it to return to its original position.

  • Heavy duty Stainless Steel 316 bodies
  • Positive opening NC safety contact
  • High mechanical life over 5,000,000 cycles
  • Large choice of actuator heads
  • IP69K Suitable for washdown

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Actuator Adjustable Roller Lever
Annual usage 8 cycles per hour/ 24 hours per day/365 days
Approvals ISO 14119, EN60947-5-1, EN60204-1, ISO 13849-1, EN62061, UL 508
Atex approved No
Cable entry 1x1/2"NPT
Central Material Stainless steel 316
Conductor size 1,5
Conduit entry 1/2"NPT
Connection Thread Screw terminal
Contact voltage/current min 5V, 5mA, DC
Contacts 1NC 1NO
IP Class IP67
Material of body Stainless steel 316
Maximum switching speed 250
Mechanical reliability B10d 2.5x10⁶ operations at 100mA load
Mounting M5
MTTFd 356 years
Operating temperature -25C +80C
PFHd 3.44 x 10⁻⁸
PL up to PLe acc. ISO13849-1
Rated insulation voltage 300 V AC
SIL up to SIL 3 acc. EN62061
Thermal current (lth) 10
Utilisation category AC15 A300 240V 3A
Vibration IEC 68-2-6, 10-55Hz 0,35mm
Withstand voltage 2500 V AC

Downloads

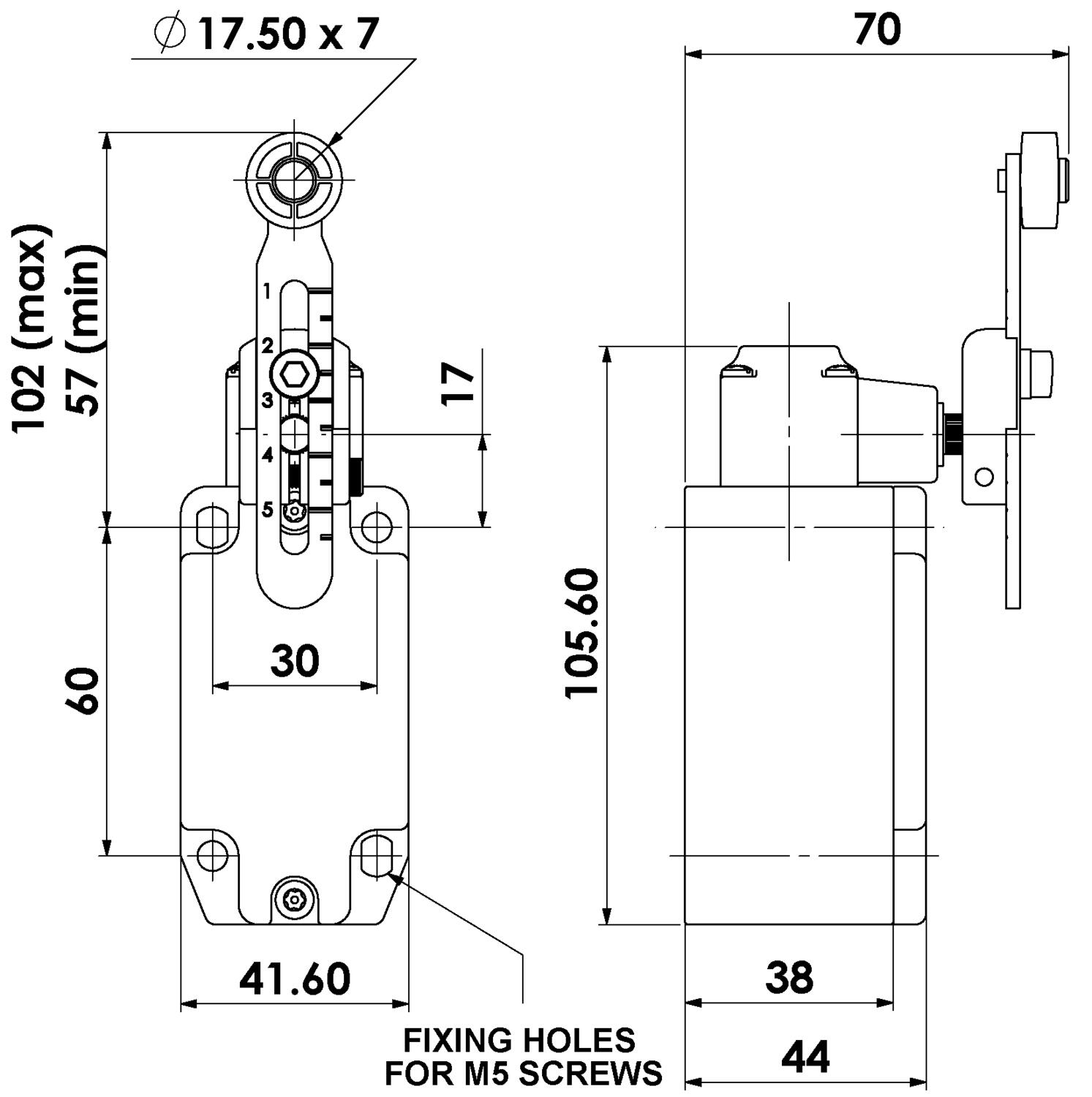

Measurements and connections

Product description

IDEM’s HLM range of heavy duty Stainless Steel 316 Limit Switches have been designed to be mounted for position sensing of moving applications e.g. guard doors, conveyors, machine beds and elevators. They are available with an extensive range of actuator heads and can be supplied with either slow break or snap action contacts.



Operation

Operation of IDEM Safety Limit Switches is achieved by a sliding actuation of the moving object to cause deflection of the switch plungers, rollers or levers.

For safety applications it is important that the moving object does not pass completely over the switch actuators so as to either cause damage to the actuator or allow it to return to its original position.

Accessories

My favourites Articles Actuator Atex approved Cable entry Conduit entry Connection Thread Contacts IP Class Price

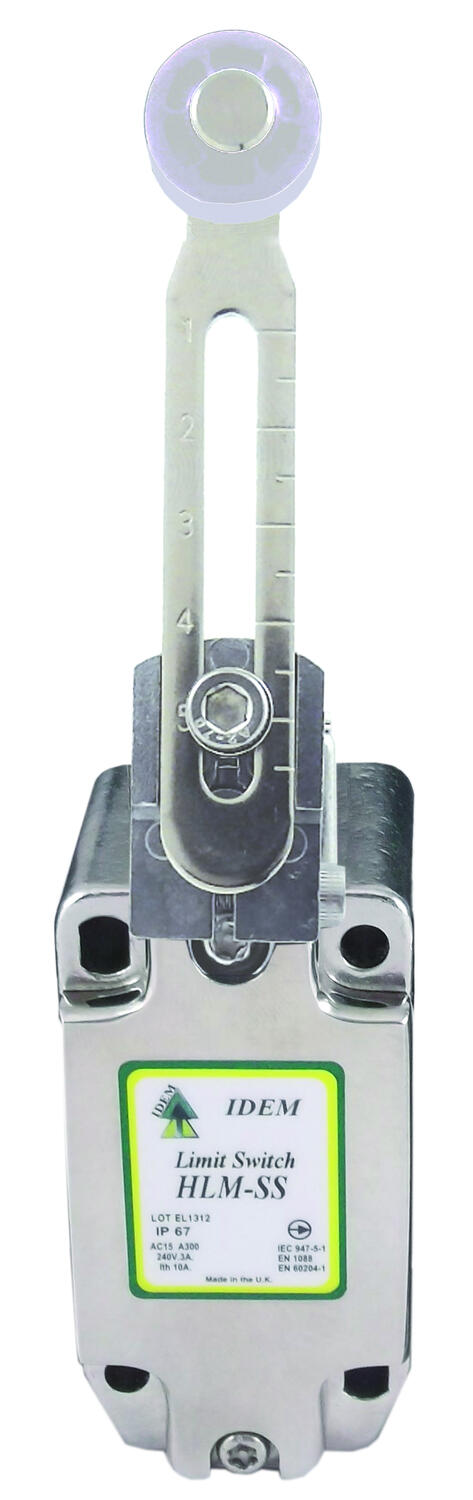

HLM-SS Adj Roller Lever ½NPT 1NC 1NO Snap
Art:
175311 Copied
Adjustable Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP67
HLM-SS Adj Roller Lever ½NPT '2NC 2NO'
Art:
175302 Copied
Adjustable Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP67
HLM-SS Adj Roller Lever ½NPT '3NC 1NO'
Art:
175305 Copied
Adjustable Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
3NC 1NO
IP67
HLM-SS Adj Roller Lever ½NPT '4NC'
Art:
175308 Copied
Adjustable Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
4NC
IP67
HLM-SS Adj Roller Lever EX '1NC 1NO'
Art:
175313 Copied
Adjustable Roller Lever
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP67
HLM-SS Adj Roller Lever EX '2NC'
Art:
175314 Copied
Adjustable Roller Lever
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP67
HLM-SS Adj Roller Lever EX '2NC 2NO'
Art:
175315 Copied
Adjustable Roller Lever
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP67
HLM-SS Adj Roller Lever M20 '1NC 1NO' Snap
Art:
175310 Copied
Adjustable Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP67
HLM-SS Adj Roller Lever M20 '2NC 2NO'
Art:
175301 Copied
Adjustable Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP67
HLM-SS Adj Roller Lever M20 '2NC 2NO'
Art:
175301-GC Copied
Adjustable Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP67
HLM-SS Adj Roller Lever M20 '3NC 1NO'
Art:
175304 Copied
Adjustable Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP67
HLM-SS Adj Roller Lever M20 '4NC'
Art:
175307 Copied
Adjustable Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP67
HLM-SS Adj Roller Lever QC-M23 '1NC 1NO' Snap
Art:
175312 Copied
Adjustable Roller Lever
No
N/A
QC M23
M23 contact
1NC 1NO
IP67
HLM-SS Adj Roller Lever QC-M23 '2NC 2NO'
Art:
175303 Copied
Adjustable Roller Lever
No
N/A
QC M23
M23 contact
2NC 2NO
IP67
HLM-SS Adj Roller Lever QC-M23 '3NC 1NO'
Art:
175306 Copied
Adjustable Roller Lever
No
N/A
QC M23
M23 contact
3NC 1NO
IP67
HLM-SS Adj Roller Lever QC-M23 4NC
Art:
175309 Copied
Adjustable Roller Lever
No
N/A
QC M23
M23 contact
4NC
IP67

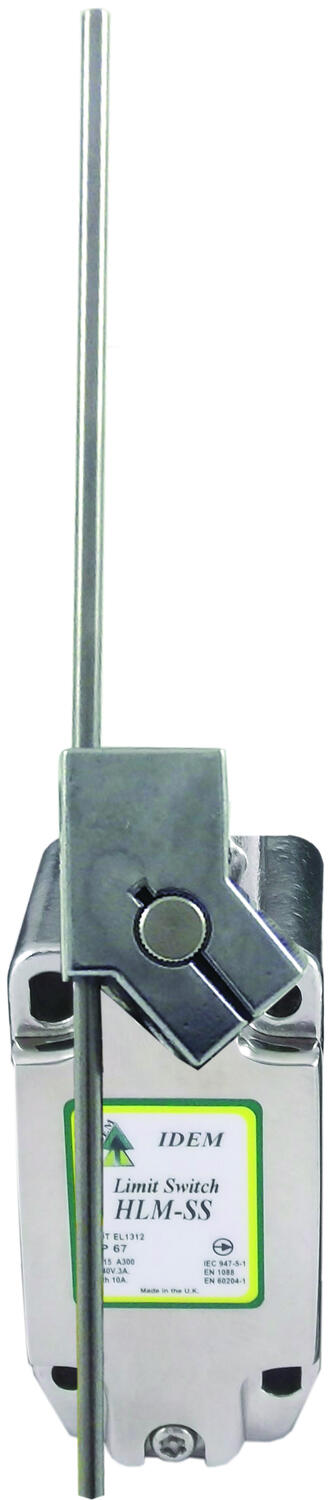

HLM-SS Lever Arm ½NPT 1NC 1NO Snap
Art:
175261 Copied
Lever Arm
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP67
HLM-SS Lever Arm ½NPT '2NC 2NO'
Art:
175252 Copied
Lever Arm
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP67
HLM-SS Lever Arm ½NPT '3NC 1NO'
Art:
175255 Copied
Lever Arm
No
1x1/2"NPT
1/2"NPT
Screw terminal
3NC 1NO
IP67
HLM-SS Lever Arm ½NPT '4NC'
Art:
175258 Copied
Lever Arm
No
1x1/2"NPT
1/2"NPT
Screw terminal
4NC
IP67
HLM-SS Lever Arm EX '1NC 1NO'
Art:
175263 Copied
Lever Arm
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP67
HLM-SS Lever Arm EX '2NC'
Art:
175264 Copied
Lever Arm
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP67
HLM-SS Lever Arm EX '2NC 2NO'
Art:
175265 Copied
Lever Arm
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP67
HLM-SS Lever Arm M20 '1NC 1NO' Snap
Art:
175260 Copied
Lever Arm
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP67
HLM-SS Lever Arm M20 '2NC 2NO'
Art:
175251 Copied
Lever Arm
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP67
HLM-SS Lever Arm M20 '3NC 1NO'
Art:
175254 Copied
Lever Arm
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP67
HLM-SS Lever Arm M20 '4NC'
Art:
175257 Copied
Lever Arm
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP67
HLM-SS Lever Arm QC-M23 '1NC 1NO' Snap
Art:
175262 Copied
Lever Arm
No
N/A
QC M23
M23 contact
1NC 1NO
IP67
HLM-SS Lever Arm QC-M23 '2NC 2NO'
Art:
175253 Copied
Lever Arm
No
N/A
QC M23
M23 contact
2NC 2NO
IP67
HLM-SS Lever Arm QC-M23 '3NC 1NO'
Art:
175256 Copied
Lever Arm
No
N/A
QC M23
M23 contact
3NC 1NO
IP67
HLM-SS Lever Arm QC-M23 4NC
Art:
175259 Copied
Lever Arm
No
N/A
QC M23
M23 contact
4NC
IP67

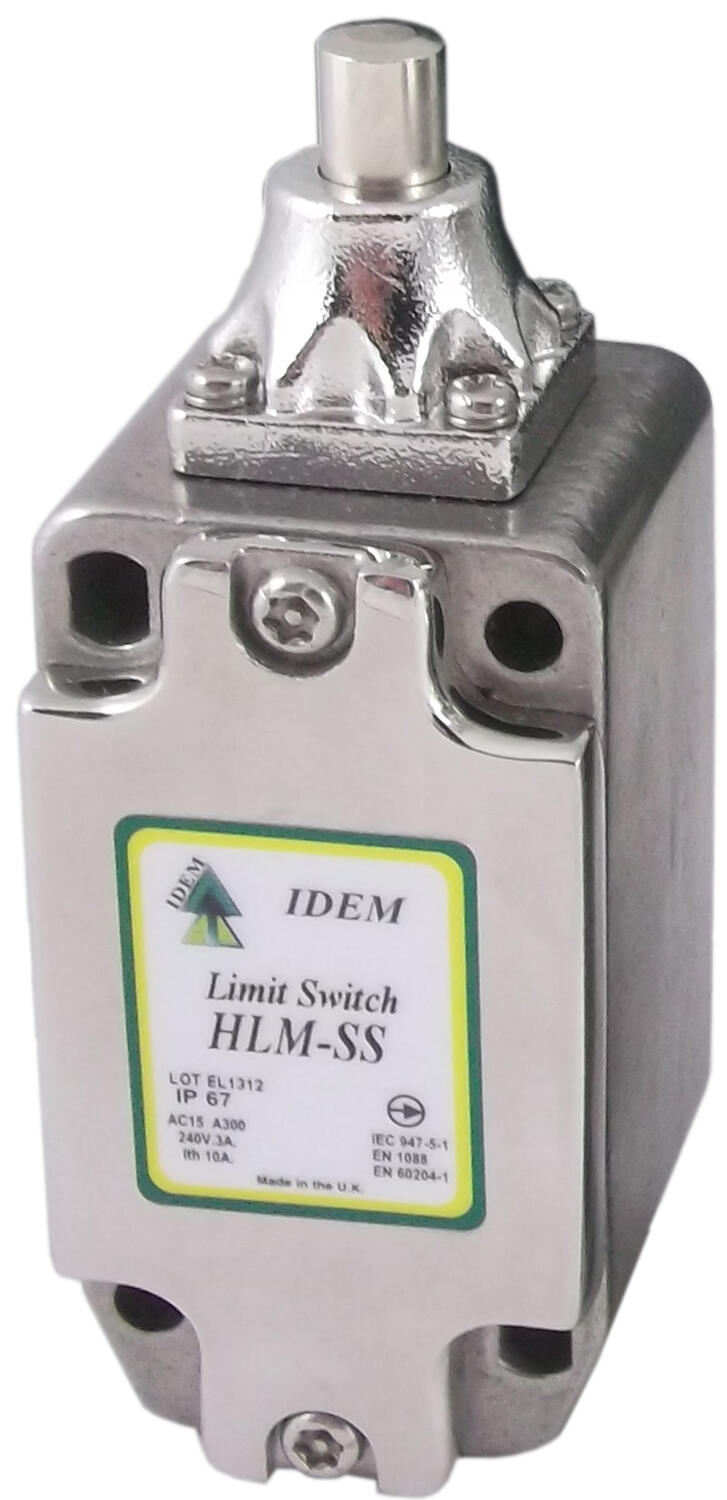

HLM-SS Pin Plunger ½NPT '1NC 1NO' snap
Art:
175111 Copied
Pin Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP69K
HLM-SS Pin Plunger ½NPT '1NC 1NO' snap c/w gold contacts
Art:
175111-GC Copied
Pin Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP69K
HLM-SS Pin Plunger ½NPT '2NC 2NO'
Art:
175102 Copied
Pin Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS Pin Plunger ½NPT '2NC 2NO' - Gold Contacts
Art:
175102-GC Copied
Pin Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS Pin Plunger ½NPT '3NC 1NO'
Art:
175105 Copied
Pin Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
3NC 1NO
IP69K
HLM-SS Pin Plunger ½NPT '4NC'
Art:
175108 Copied
Pin Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
4NC
IP69K
HLM-SS Pin Plunger EX '1NC 1NO'
Art:
175113 Copied
Pin Plunger
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP69K
HLM-SS Pin Plunger EX '2NC'
Art:
175114 Copied
Pin Plunger
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP69K
HLM-SS Pin Plunger EX '2NC 2NO'
Art:
175115 Copied
Pin Plunger
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP69K
HLM-SS Pin Plunger M20 '1NC 1NO' snap
Art:
175110 Copied
Pin Plunger
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP69K
HLM-SS Pin Plunger M20 '2NC 2NO'
Art:
175101 Copied
Pin Plunger
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP69K
HLM-SS Pin Plunger M20 '3NC 1NO'
Art:
175104 Copied
Pin Plunger
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP69K
HLM-SS Pin Plunger M20 '4NC'
Art:
175107 Copied
Pin Plunger
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP69K
HLM-SS Pin Plunger QC-M23 '1NC 1NO' snap
Art:
175112 Copied
Pin Plunger
No
N/A
QC M23
M23 contact
1NC 1NO
IP69K
HLM-SS Pin Plunger QC-M23 '2NC 2NO'
Art:
175103 Copied
Pin Plunger
No
N/A
QC M23
M23 contact
2NC 2NO
IP69K
HLM-SS Pin Plunger QC-M23 '3NC 1NO'
Art:
175106 Copied
Pin Plunger
No
N/A
QC M23
M23 contact
3NC 1NO
IP69K
HLM-SS Pin Plunger QC-M23 '4NC'
Art:
175109 Copied
Pin Plunger
No
N/A
QC M23
M23 contact
4NC
IP69K

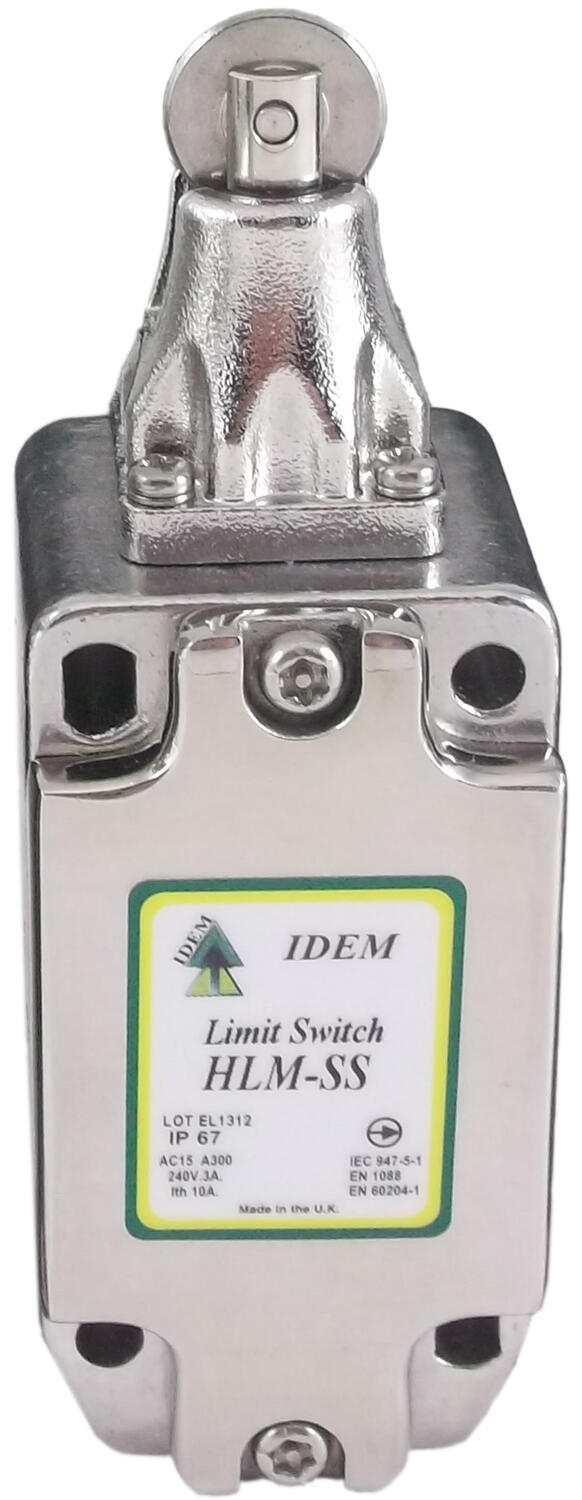

HLM-SS Roller Plunger ½NPT '1NC 1NO' Snap
Art:
175061 Copied
Roller Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP69K
HLM-SS Roller Plunger ½NPT '2NC 2NO'
Art:
175052 Copied
Roller Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS Roller Plunger ½NPT '3NC 1NO'
Art:
175055 Copied
Roller Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
3NC 1NO
IP69K
HLM-SS Roller Plunger ½NPT '4NC'
Art:
175058 Copied
Roller Plunger
No
1x1/2"NPT
1/2"NPT
Screw terminal
4NC
IP69K
HLM-SS Roller Plunger EX '1NC 1NO'
Art:
175063 Copied
Roller Plunger
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP69K
HLM-SS Roller Plunger EX '2NC'
Art:
175064 Copied
Roller Plunger
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP69K
HLM-SS Roller Plunger EX '2NC 2NO'
Art:
175065 Copied
Roller Plunger
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP69K
HLM-SS Roller Plunger M20 '1NC 1NO' Snap
Art:
175060 Copied
Roller Plunger
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP69K
HLM-SS Roller Plunger M20 '2NC 2NO'
Art:
175051 Copied
Roller Plunger
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP69K
HLM-SS Roller Plunger M20 '2NC 2NO'
Art:
175051-GC Copied
Roller Plunger
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP69K
HLM-SS Roller Plunger M20 '3NC 1NO'
Art:
175054 Copied
Roller Plunger
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP69K
HLM-SS Roller Plunger M20 '4NC'
Art:
175057 Copied
Roller Plunger
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP69K
HLM-SS Roller Plunger QC-M23 '1NC 1NO' Snap
Art:
175062 Copied
Roller Plunger
No
N/A
QC M23
M23 contact
1NC 1NO
IP69K
HLM-SS Roller Plunger QC-M23 '2NC 2NO'
Art:
175053 Copied
Roller Plunger
No
N/A
QC M23
M23 contact
2NC 2NO
IP69K
HLM-SS Roller Plunger QC-M23 '3NC 1NO'
Art:
175056 Copied
Roller Plunger
No
N/A
QC M23
M23 contact
3NC 1NO
IP69K
HLM-SS Roller Plunger QC-M23 '4NC
Art:
175059 Copied
Roller Plunger
No
N/A
QC M23
M23 contact
4NC
IP69K
HLM-SS Shorter1.tif

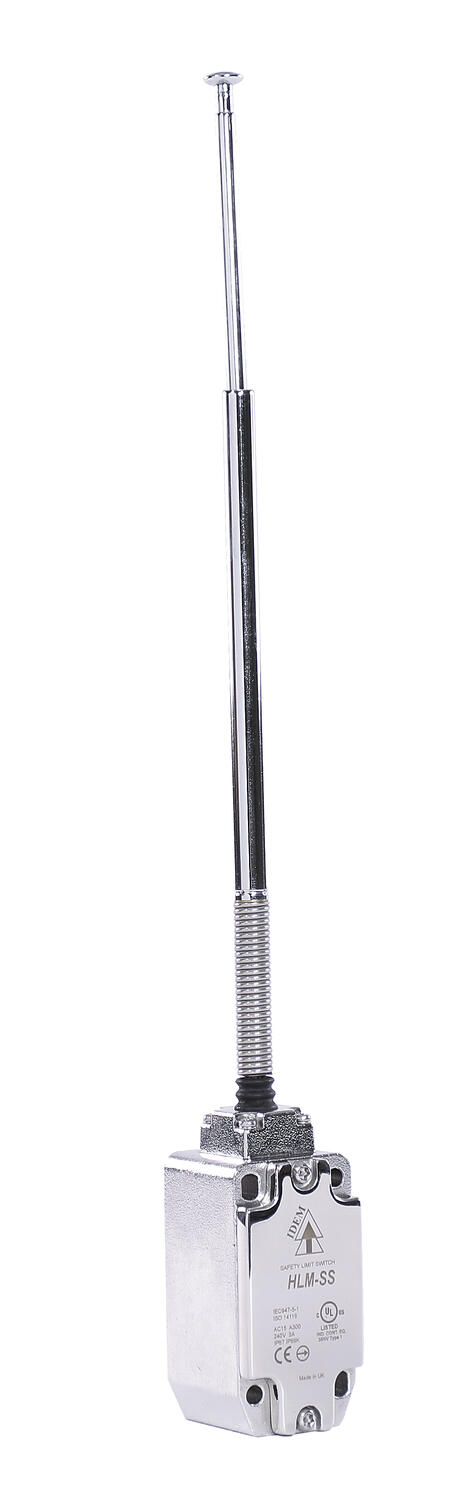

HLM-SS Spring Lever ½NPT '1NC 1NO' Snap
Art:
175161 Copied
Spring Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever ½NPT '2NC 2NO'
Art:
175152 Copied
Spring Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever ½NPT '3NC 1NO'
Art:
175155 Copied
Spring Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
3NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever ½NPT '4NC'
Art:
175158 Copied
Spring Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
4NC
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever EX '1NC 1NO'
Art:
175163 Copied
Spring Lever
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever EX '2NC'
Art:
175164 Copied
Spring Lever
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever EX '2NC 2NO'
Art:
175165 Copied
Spring Lever
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever M20 '1NC 1NO' Snap
Art:
175160 Copied
Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever M20 '2NC 2NO'
Art:
175151 Copied
Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever M20 '3NC 1NO'
Art:
175154 Copied
Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever M20 '4NC'
Art:
175157 Copied
Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever QC-M23 '1NC 1NO' Snap
Art:
175162 Copied
Spring Lever
No
N/A
QC M23
M23 contact
1NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever QC-M23 '2NC 2NO'
Art:
175153 Copied
Spring Lever
No
N/A
QC M23
M23 contact
2NC 2NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever QC-M23 '3NC 1NO'
Art:
175156 Copied
Spring Lever
No
N/A
QC M23
M23 contact
3NC 1NO
IP69K
HLM-SS Shorter1.tif
HLM-SS Spring Lever QC-M23 '4NC'
Art:
175159 Copied
Spring Lever
No
N/A
QC M23
M23 contact
4NC
IP69K

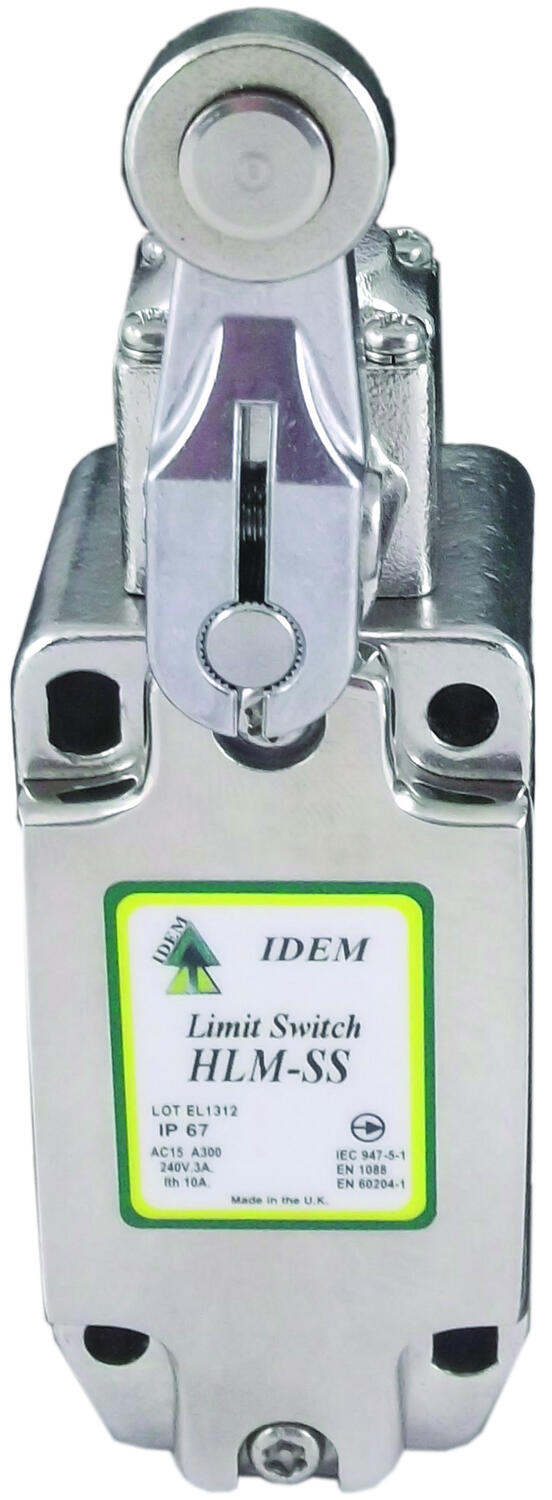

HLM-SS SRL ½NPT '1NC 1NO' snap
Art:
175011 Copied
Short Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
1NC 1NO
IP69K
HLM-SS SRL ½NPT '2NC 2NO'
Art:
175002 Copied
Short Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS SRL ½NPT '2NC 2NO' (gold contacts)
Art:
175002-GC Copied
Short Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS SRL ½NPT '3NC 1NO'
Art:
175005 Copied
Short Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
3NC 1NO
IP69K
HLM-SS SRL ½NPT '4NC'
Art:
175008 Copied
Short Roller Lever
No
1x1/2"NPT
1/2"NPT
Screw terminal
4NC
IP69K
HLM-SS SRL EX '1NC 1NO' - 3m cable pre-wired
Art:
175013 Copied
Short Roller Lever
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP69K
HLM-SS SRL EX '2NC'
Art:
175014 Copied
Short Roller Lever
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP69K
HLM-SS SRL EX '2NC 2NO'
Art:
175015 Copied
Short Roller Lever
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP69K
HLM-SS SRL M20 '1NC 1NO' snap
Art:
175010 Copied
Short Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP69K
HLM-SS SRL M20 '2NC 2NO'
Art:
175001 Copied
Short Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP69K
HLM-SS SRL M20 '3NC 1NO'
Art:
175004 Copied
Short Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP69K
HLM-SS SRL M20 '4NC'
Art:
175007 Copied
Short Roller Lever
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP69K
HLM-SS SRL QC-M23 '1NC 1NO' snap
Art:
175012 Copied
Short Roller Lever
No
N/A
QC M23
M23 contact
1NC 1NO
IP69K
HLM-SS SRL QC-M23 '2NC 2NO'
Art:
175003 Copied
Short Roller Lever
No
N/A
QC M23
M23 contact
2NC 2NO
IP69K
HLM-SS SRL QC-M23 '3NC 1NO'
Art:
175006 Copied
Short Roller Lever
No
N/A
QC M23
M23 contact
3NC 1NO
IP69K
HLM-SS SRL QC-M23 '4NC'
Art:
175009 Copied
Short Roller Lever
No
N/A
QC M23
M23 contact
4NC
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever ½NPT '1NC 1NO' Snap
Art:
175211-PL Copied
Telescopic Spring Lever
No
1/2"NPT
Screw terminal
1NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever ½NPT '2NC 2NO'
Art:
175202-PL Copied
Telescopic Spring Lever
No
1/2"NPT
Screw terminal
2NC 2NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever ½NPT '3NC 1NO'
Art:
175205-PL Copied
Telescopic Spring Lever
No
1/2"NPT
Screw terminal
3NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever ½NPT '4NC'
Art:
175208-PL Copied
Telescopic Spring Lever
No
1/2"NPT
Screw terminal
4NC
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever EX '1NC 1NO'
Art:
175213-PL Copied
Telescopic Spring Lever
Yes
N/A
3M 4 CORE EX
Cable
1NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever EX '2NC'
Art:
175214-PL Copied
Telescopic Spring Lever
Yes
N/A
3M 4 CORE EX
Cable
2NC
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever EX '2NC 2NO'
Art:
175215-PL Copied
Telescopic Spring Lever
Yes
N/A
3M 8 CORE EX
Cable
2NC 2NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever M20 '1NC 1NO' Snap
Art:
175210-PL Copied
Telescopic Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
1NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever M20 '2NC 2NO'
Art:
175201-PL Copied
Telescopic Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
2NC 2NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever M20 '3NC 1NO'
Art:
175204-PL Copied
Telescopic Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
3NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever M20 '4NC'
Art:
175207-PL Copied
Telescopic Spring Lever
No
1 x M20 x1,5
M20
Screw terminal
4NC
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever QC-M23 '1NC 1NO' Snap
Art:
175212-PL Copied
Telescopic Spring Lever
No
N/A
QC M23
M23 contact
1NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever QC-M23 '2NC 2NO'
Art:
175203-PL Copied
Telescopic Spring Lever
No
N/A
QC M23
M23 contact
2NC 2NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever QC-M23 '3NC 1NO'
Art:
175206-PL Copied
Telescopic Spring Lever
No
N/A
QC M23
M23 contact
3NC 1NO
IP69K
HLM-SS1.tif
HLM-SS Telescopic(Plated) Spring Lever QC-M23 '4NC'
Art:
175209-PL Copied
Telescopic Spring Lever
No
N/A
QC M23
M23 contact
4NC
IP69K

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account
