DUOmetric
LT Series
Non-safety light curtain
Compact and robust light curtains for object detection in industrial automation. The LT series offers fast response times, multiple beam spacings, and detection heights up to 1960 mm, ideal for positioning, counting, and presence detection.
- Beam spacing: 46 mm
- Detection height: 1794 mm
- Range: 0.7 – 5.0 m
- EN 81-20 compliant
Selected variant
Art:
Selected variant

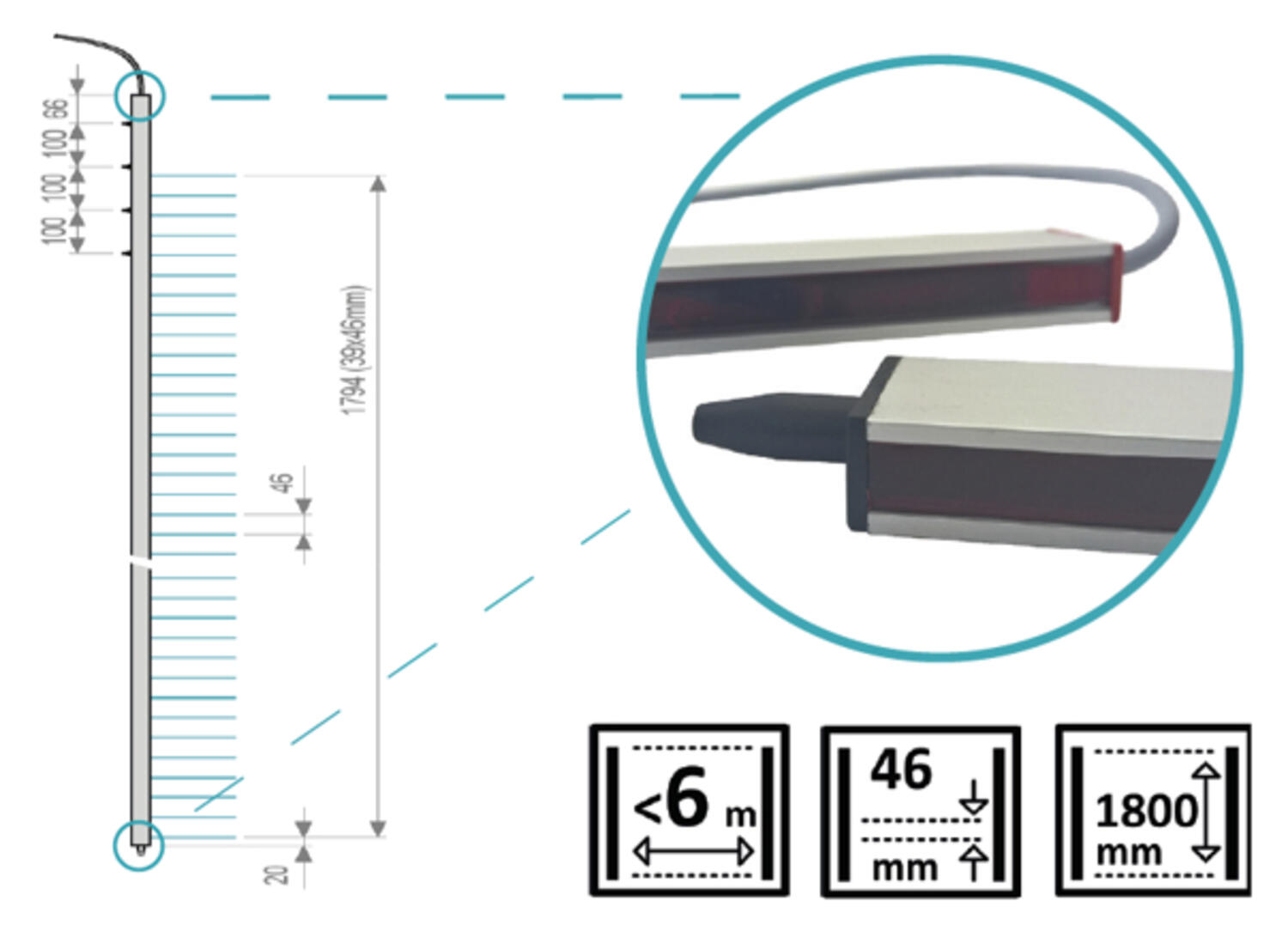

Specifications
| Base cycle time | 4 ms |
|---|---|
| Beam spacing | 46 |
| Controller | Integrated |
| Detection Height | 1794 |
| Detection Method | Parallella strålar |
| IP Class | IP54 |
| Light type | IR-LED 880 nm |
| Number of beams | 40 |
| Outputs | PNP/NPN (push-pull) |
|---|---|
| Per beam cycle time | 1 ms |
| Power Consumption | 3,1 W |
| Range Area 1 max | 5 |
| Range Area 1 min | 0,7 |
| Supply voltage | 24 VDC (18 - 30 VDC) / 10% ripple |
| Temperature range | -30 till +50°C |
Product description
Compact and robust light curtains for object detection in industrial automation. The LT series offers fast response times, multiple beam spacings, and detection heights up to 1960 mm, ideal for positioning, counting, and presence detection.
