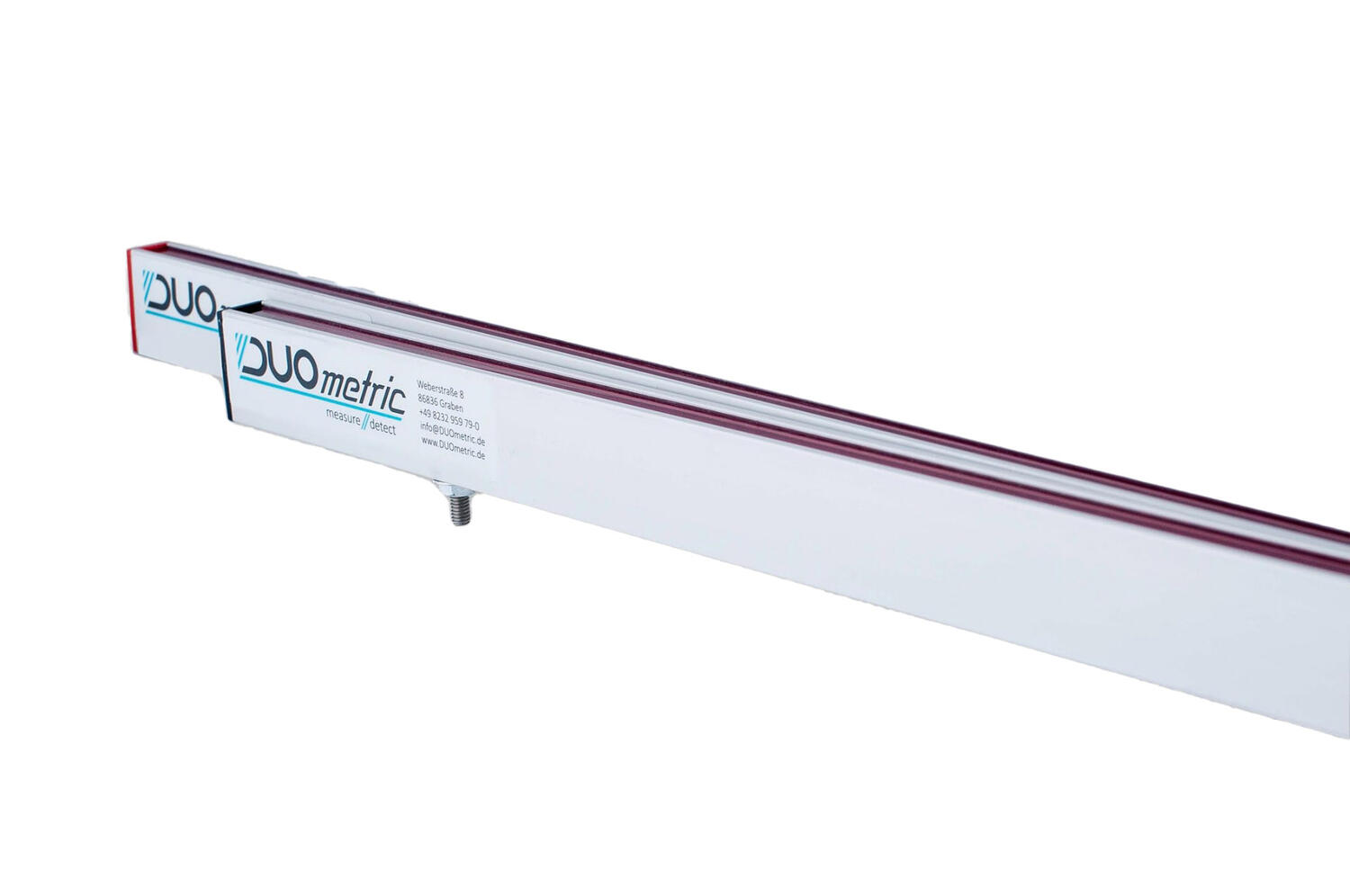

DUOmetric
LS- Series
Non-safety light curtain
The LS series offers extended monitoring ranges and minimized blind areas, making it suitable for diverse applications in logistics, mechanical engineering, and packaging technology. With compact dimensions for easy integration, it features automatic range adjustment, configurable diagonal beams for enhanced detection density, and dual push/pull outputs compatible with PNP and NPN configurations. Innovative supply voltage polarity control allows seamless switching between two device profiles, facilitating flexible operation without reconfiguration.
- Detection height 35–5800 mm
- Range 0.3–16 m
- 4–160 light beams
Selected variant
Art:
Selected variant
Specifications
| Base cycle time | 4 ms |
|---|---|
| Beam spacing max | 100 |
| Beam spacing min | 5 |
| Controller | Integrated |
| Detection Height | 5800 |
| Detection Method | Parallella / parallella och diagonala strålar |
| IP Class | IP20, IP54, IP65 |
| Light type | IR-LED 880 nm |
| Monitoring height min | 35 |
| Number of beams | 4 - 160 |

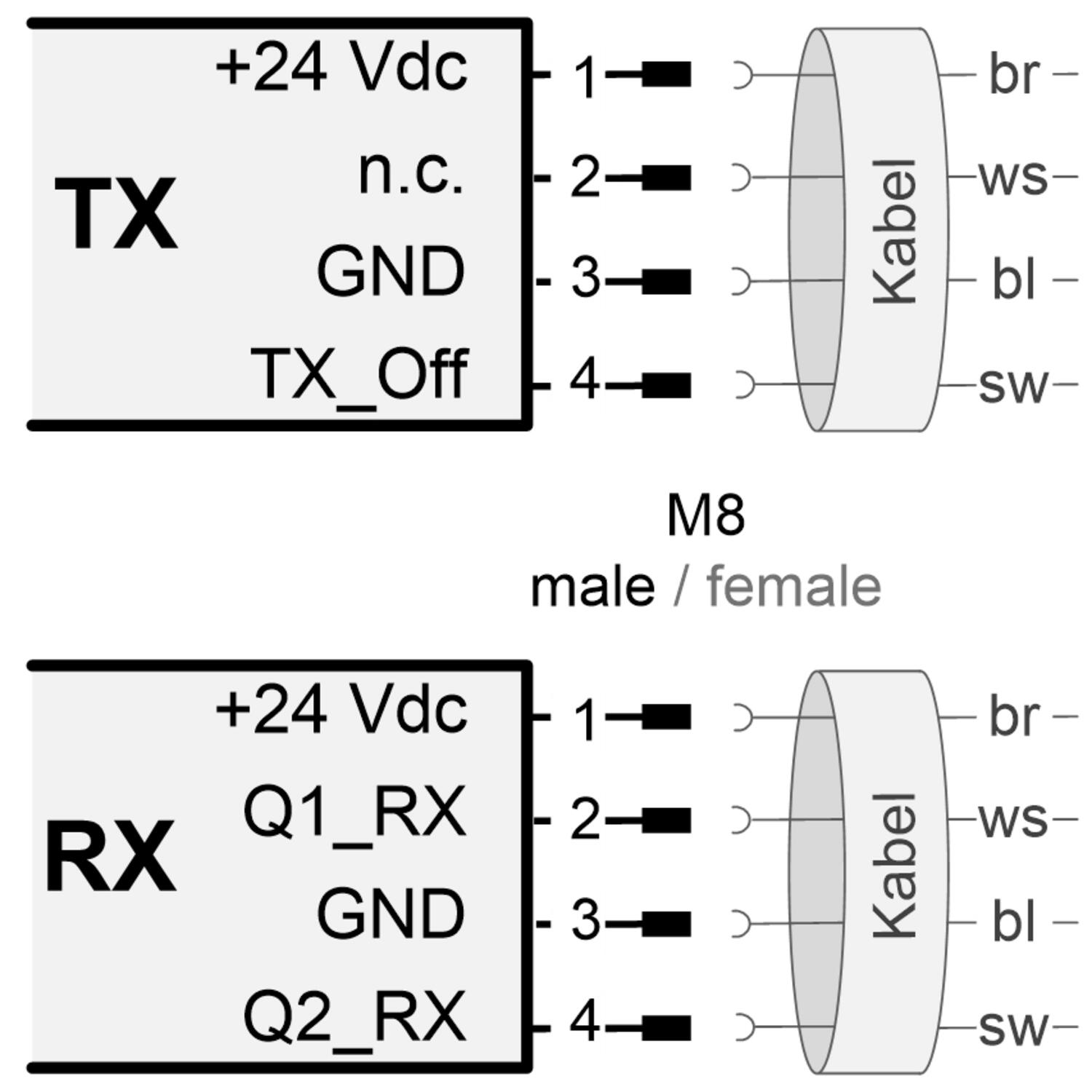

| Outputs | PNP/NPN (push-pull) |
|---|---|
| Per beam cycle time | 1 ms |
| Power Consumption | 3,1 W |
| Range Area 1 max | 5 |
| Range Area 1 min | 1 |
| Range Area 2 max | 1,3 |
| Range Area 2 min | 0,3 |
| Supply voltage | 24 VDC (18 - 30 VDC) / 10% ripple |
| Temperature range | -30 till +50°C |
Product description
The LS series offers extended monitoring ranges and minimized blind areas, making it suitable for diverse applications in logistics, mechanical engineering, and packaging technology. With compact dimensions for easy integration, it features automatic range adjustment, configurable diagonal beams for enhanced detection density, and dual push/pull outputs compatible with PNP and NPN configurations. Innovative supply voltage polarity control allows seamless switching between two device profiles, facilitating flexible operation without reconfiguration.
