DUOmetric
LI & LF Series
Non-safety light curtain

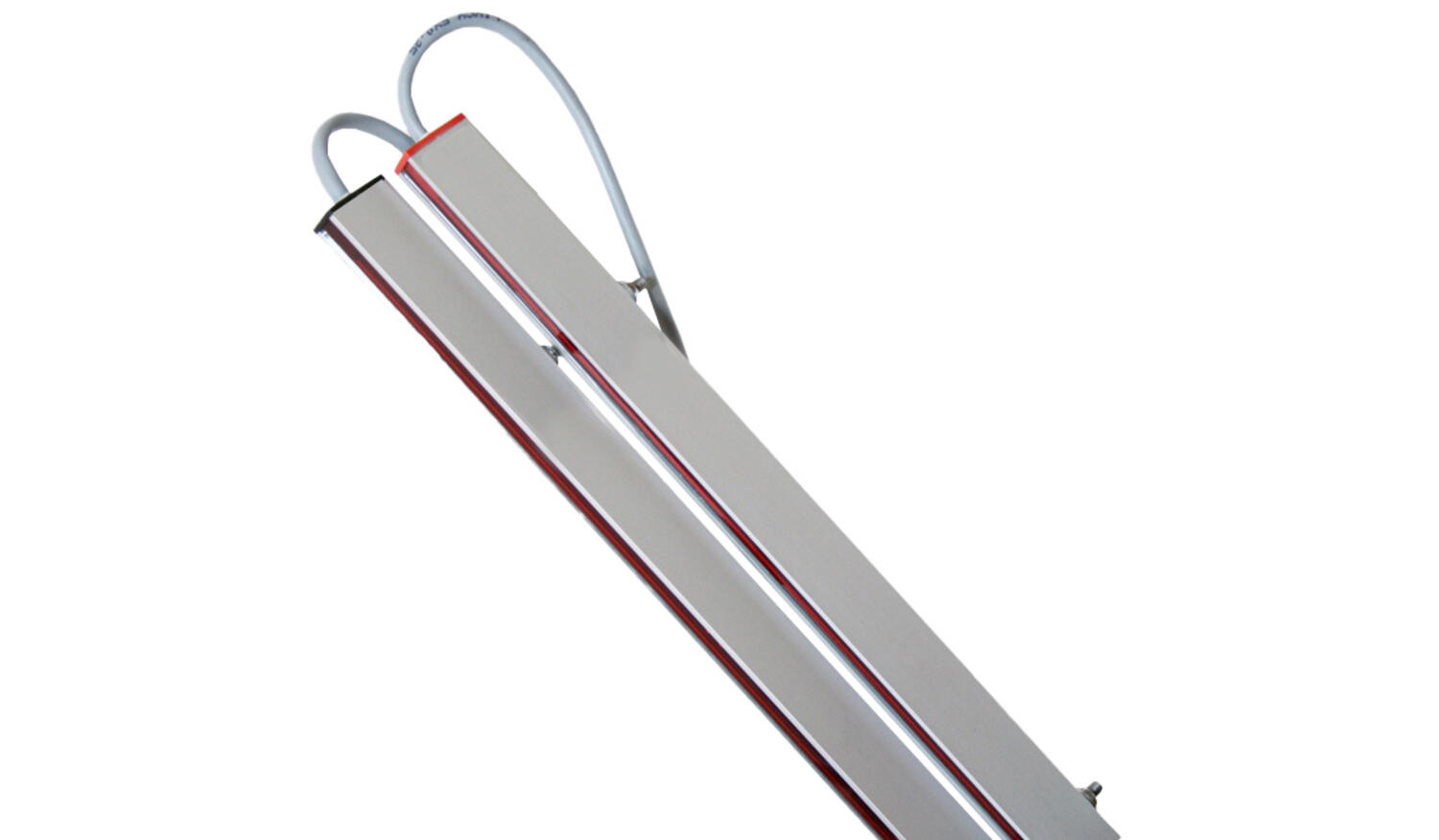

The light curtains monitor a defined area using multiple invisible infrared light beams. The curtain photoelectric sensors consist of a transmitter and a receiver housed in a slim anodized aluminum profile, along with an external control unit.
- Detection height: 35 – 5812 mm
- Range: 0.2 – 6 m
- External control unit
Selected variant
Selected variant
Specifications
| Beam spacing max | 112 |
|---|---|
| Beam spacing min | 2,5 |

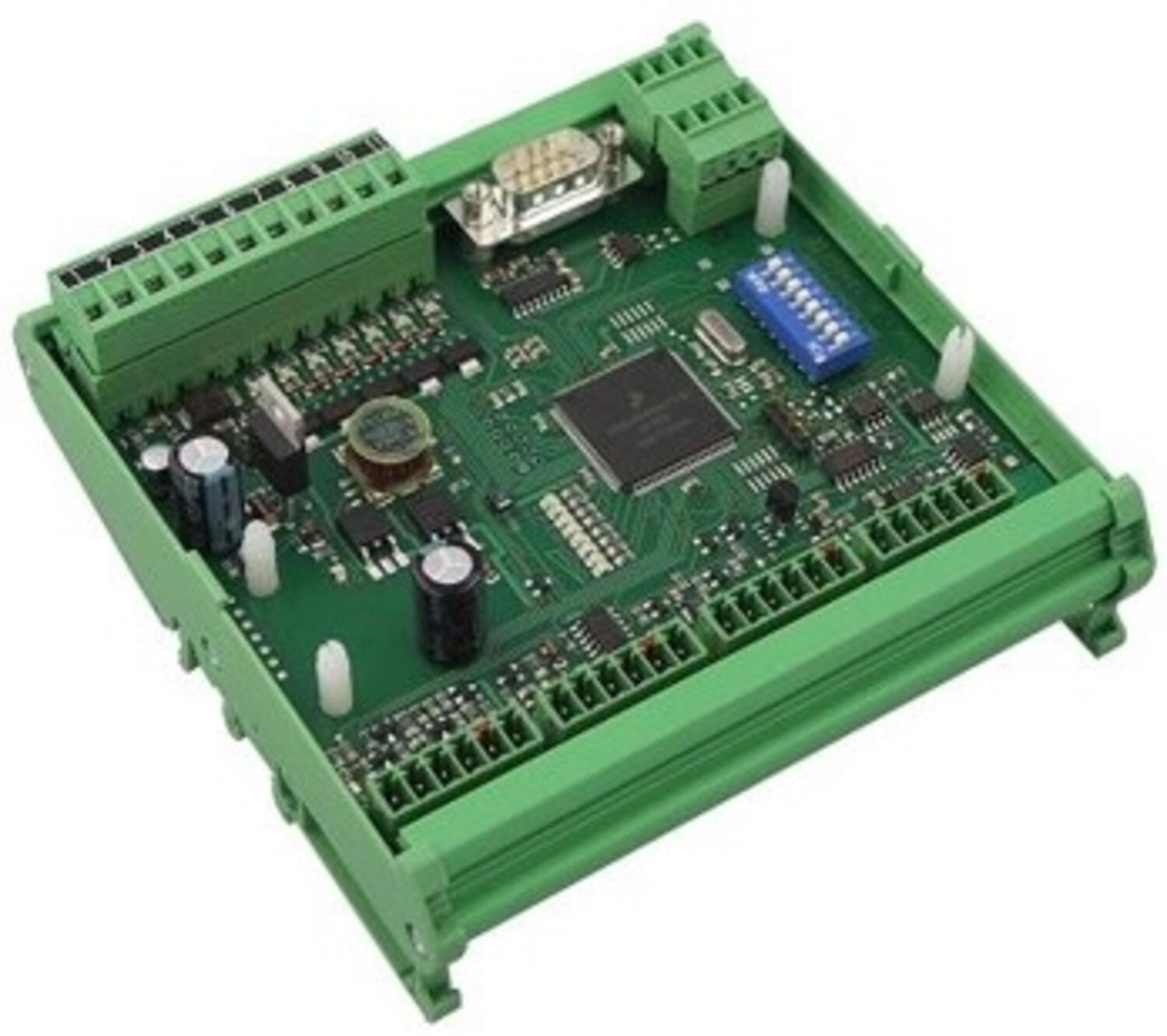

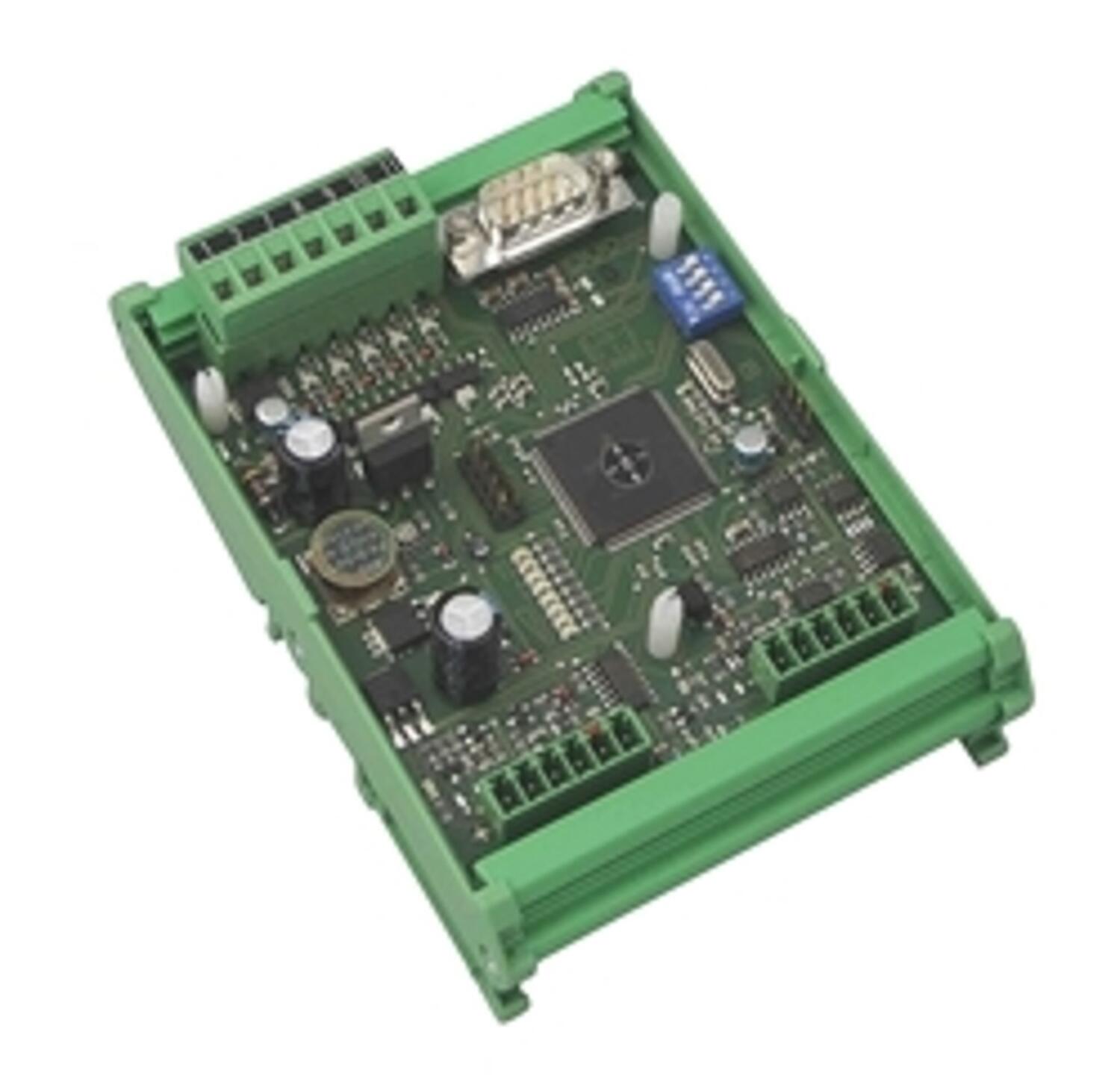

| Controller | LVB, LVE, LVX |
| Detection Height | 5812 |
| Detection Method | Parallella / parallella och diagonala strålar |
| IP Class | IP20, IP54, IP65 |
| Light type | IR-LED 880 nm |
| Monitoring height min | 35 |
|---|---|
| Power Consumption | 3,1 W |
| Range Area 1 max | 6 |
| Range Area 1 min | 0,4 |
| Temperature range | -30 till +55°C |
Product description
The light curtains monitor a defined area using multiple invisible infrared light beams. The curtain photoelectric sensors consist of a transmitter and a receiver housed in a slim anodized aluminum profile, along with an external control unit. They operate on the principle of evaluating each individual beam, with detection handled by the external control unit. This allows for complex measurement tasks, and the control unit activates the corresponding outputs as well as digital data transmission.
