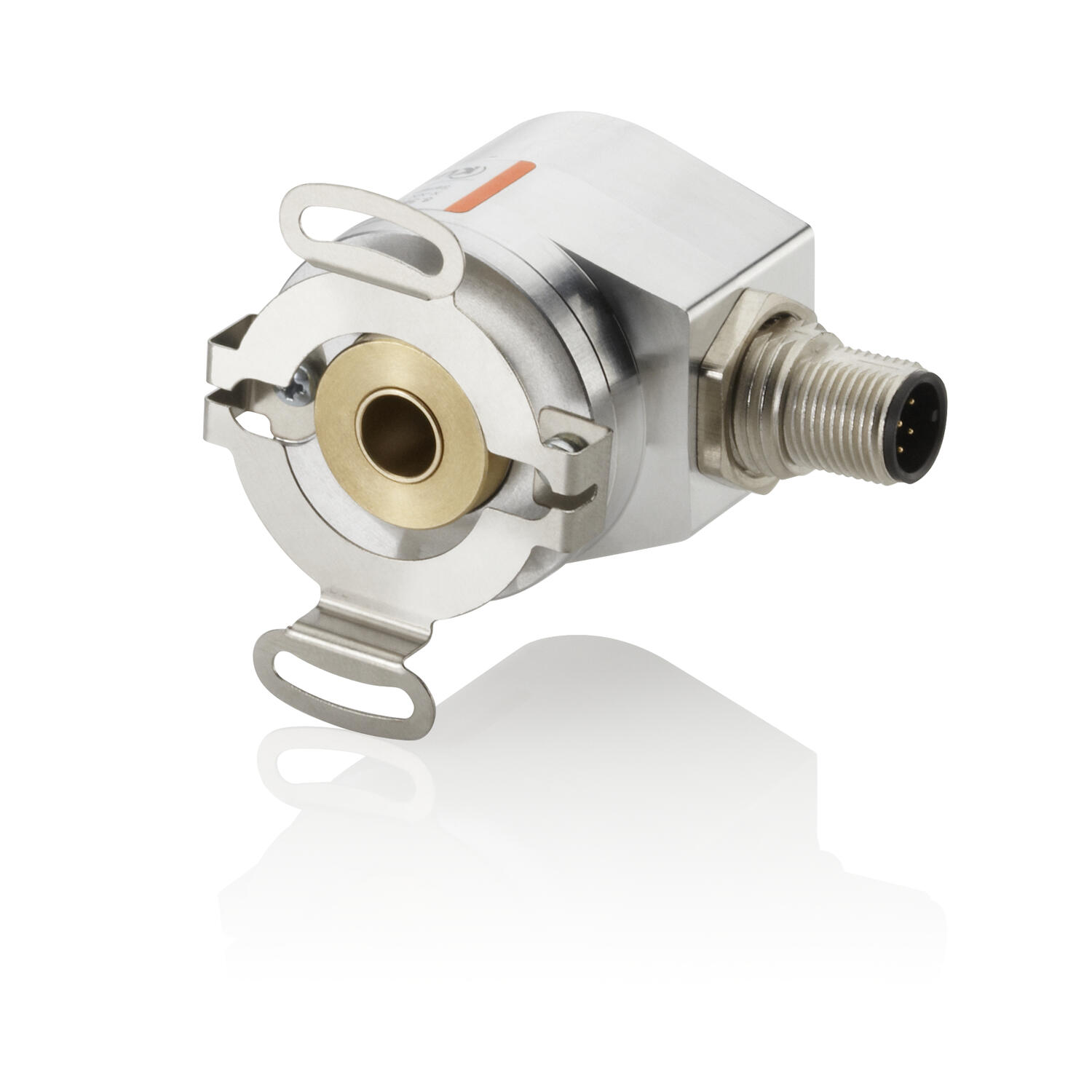

Kuebler - Incremental encoder 3610/3620
Model Series 3610/3620 is small and robust with up to 2 500 pulses per revolution.
Available in Shoulder and Hole Axle Design, with Push-Pull or RS422.
Suitable for applications where space is limited.
Different options with radial, axial cable or M12 (8 pin).
- Housing diameter Ø36 mm
- M12 connector
- 25 to 2 500 pulses per revolution
Selected variant
Art:
Selected variant
Specifications
| Connection Thread | Cable, M12 |
|---|---|
| Housing diametre | 36 |
| IP Class | IP50, IP64, IP65 |
| Mounting | Hollow shaft |
| Output | Push/Pull, RS422 |
| Pulse Max | 2500 |
| Sensor type | Incremental |
| Shaft Diameter max | 8 |
|---|---|
| Shaft Diameter min | 6 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 5 |
| Temperature range from | -20 |
| Temperature range to | 85 |
Product description
Model Series 3610/3620 is small and robust with up to 2 500 pulses per revolution.
Available in Shoulder and Hole Axle Design, with Push-Pull or RS422.
Suitable for applications where space is limited.
Different options with radial, axial cable or M12 (8 pin).

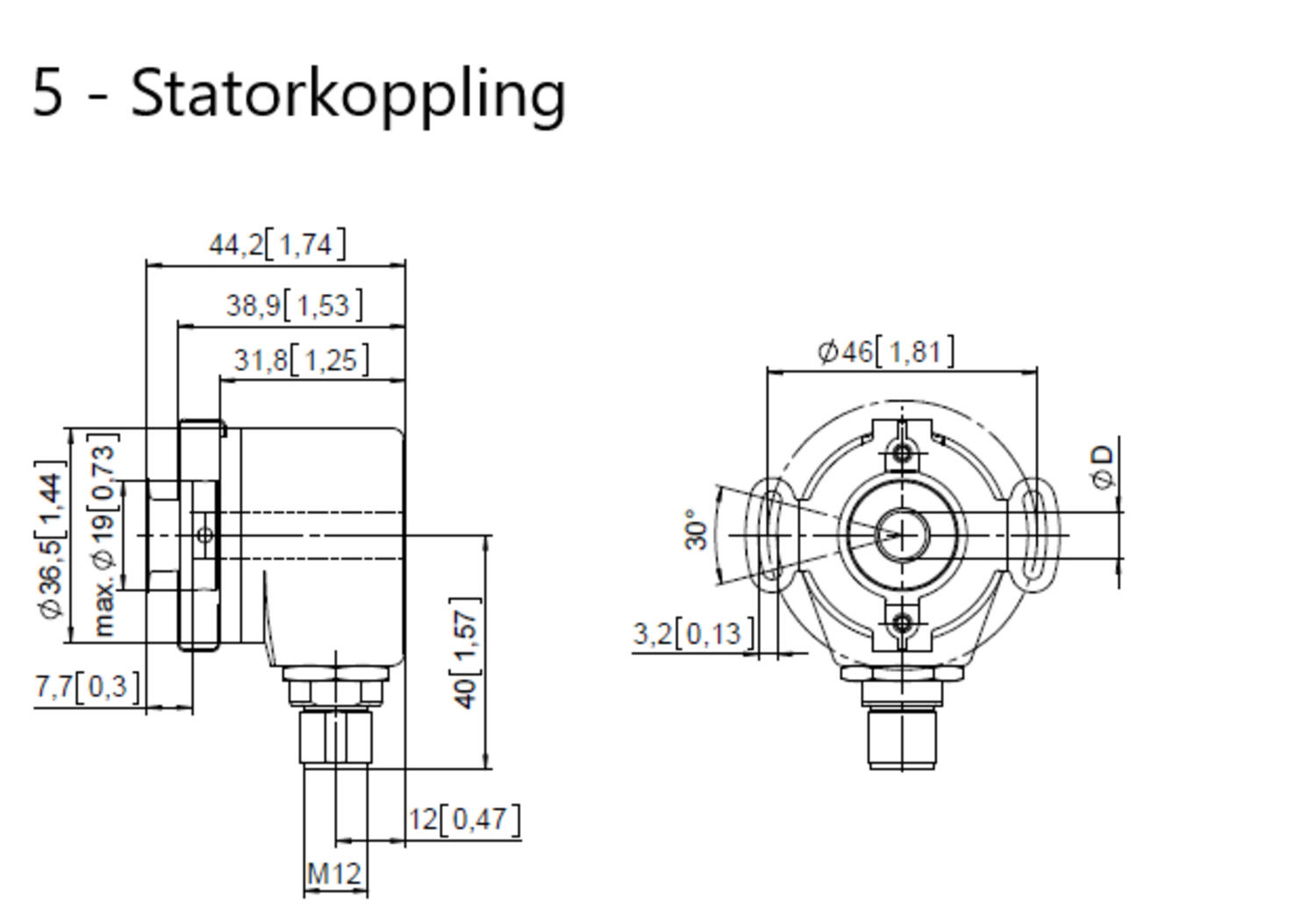

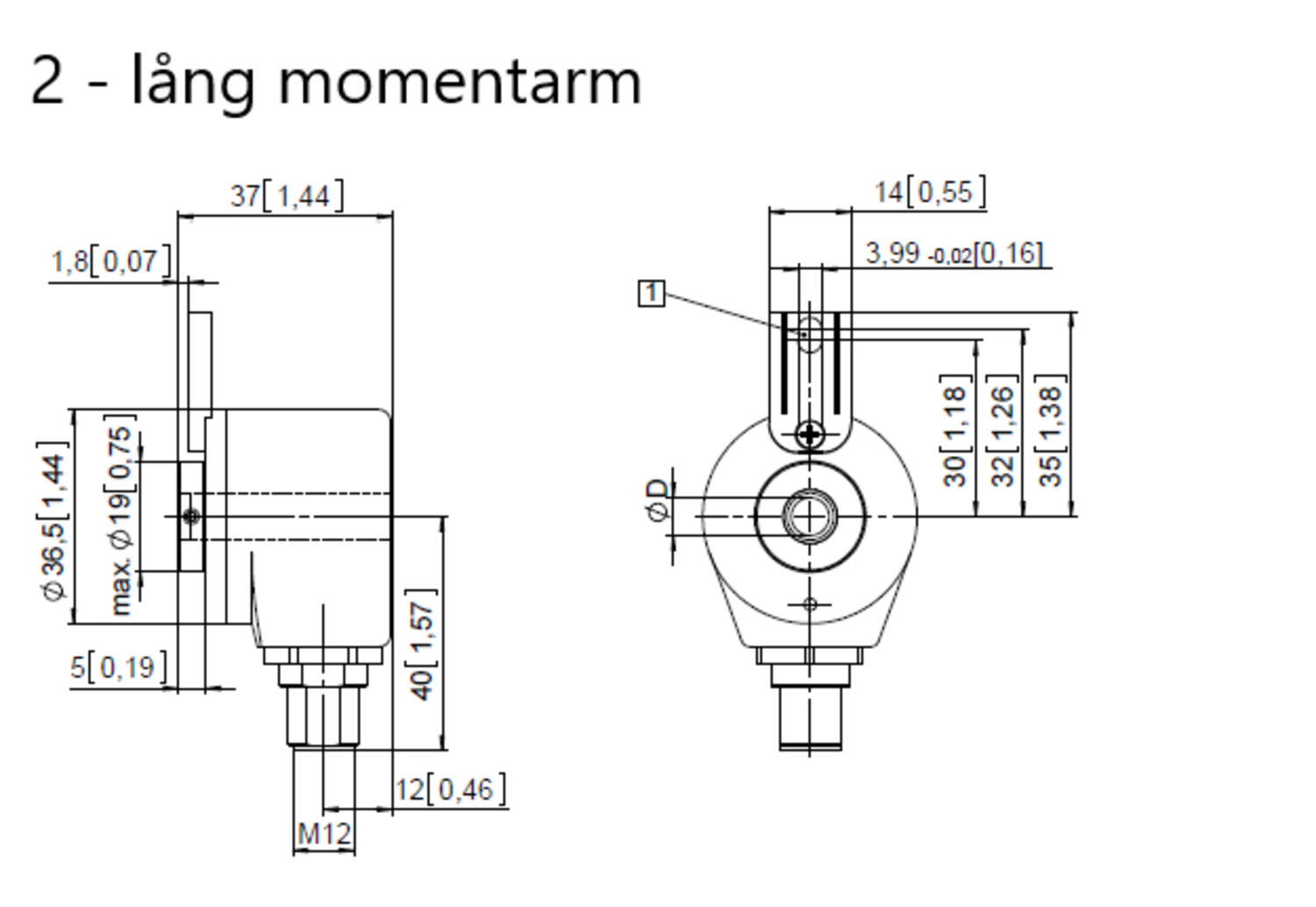

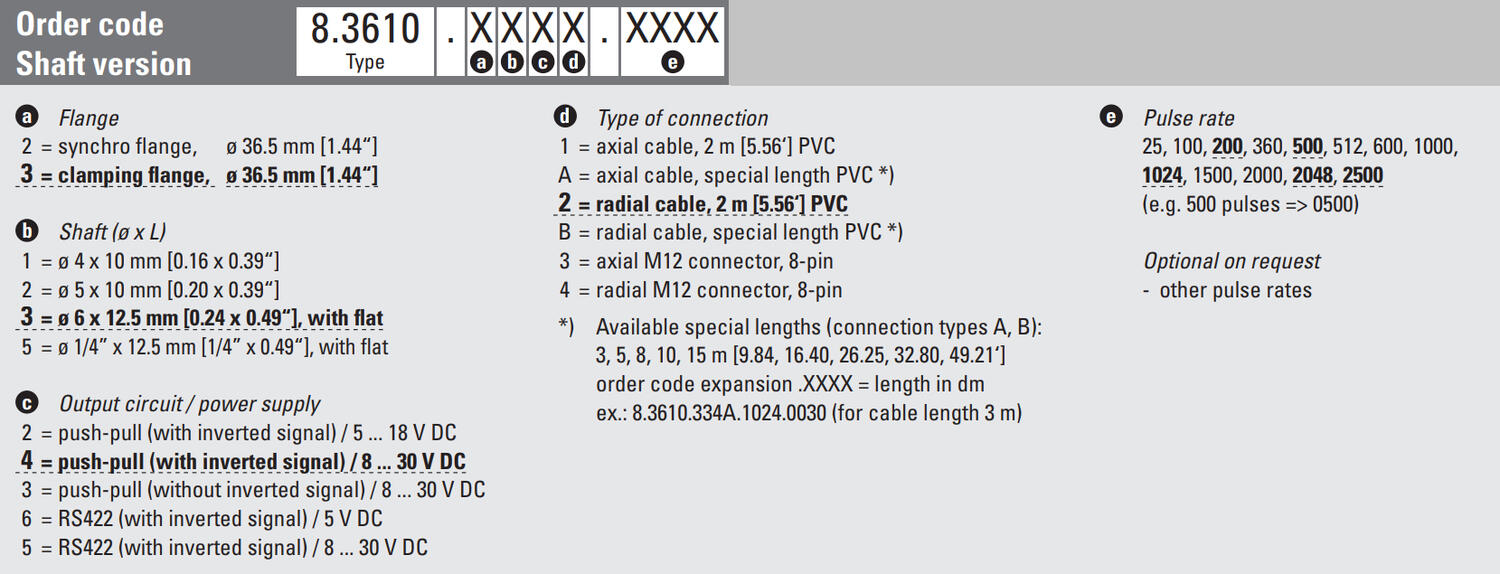

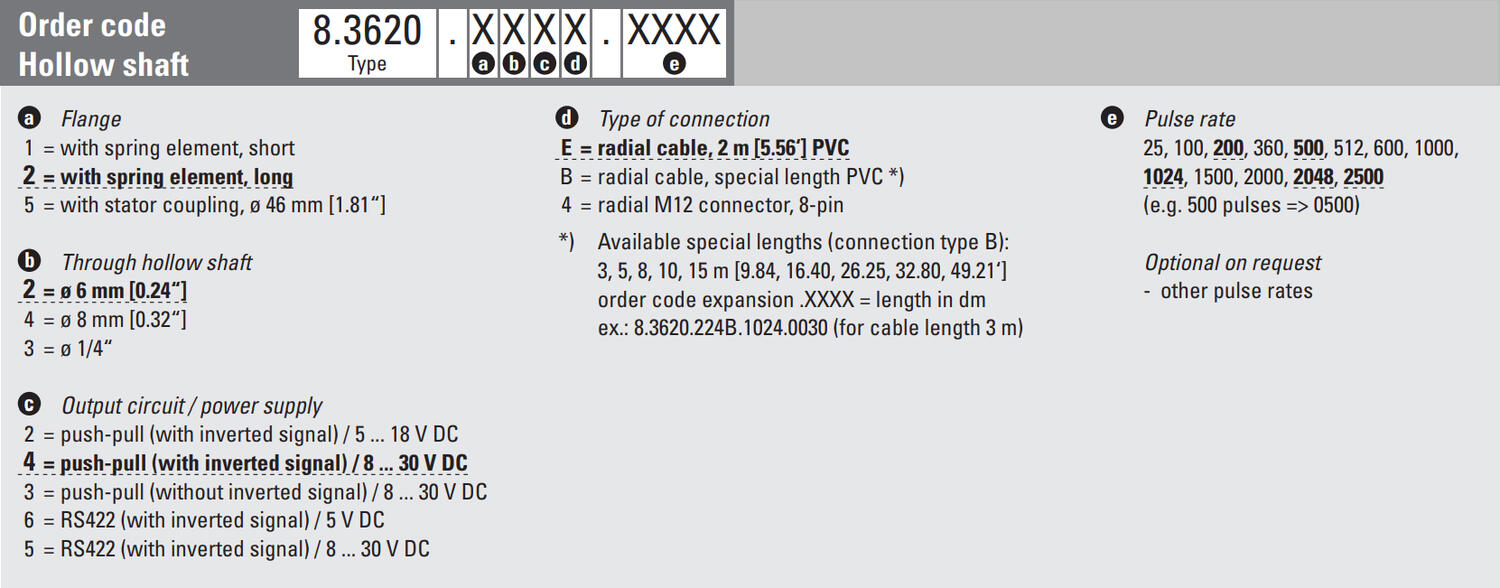

Ordering information
Please refer to the images below for ordering information.
