Kuebler - Absolute-coded Angular Transmitter Sendix M3668 / M3688, magnetic, CANopen, Ø36 mm

  • Housing diameter Ø36 mm
  • CANopen
  • New multicolor technology
  • IP67

Selected variant

Avaible in several variants
KUBLER.eps

Save as pdf

Technical data / Documents

Ordering information

Accessories & Related products

Selected variant

Specifications

Connection Thread Cable, M12
Housing diametre 36
IP Class IP65, IP67
Mounting Shoulder
Output CANopen
Resolution More Yards 24 bit
Sensor type Absolute
Shaft Diameter max 10
Shaft Diameter min 6
Supply Voltage DC Max 30
Supply Voltage DC Min 10
Temperature range from -40
Temperature range to 85
Version Multiturn

Downloads

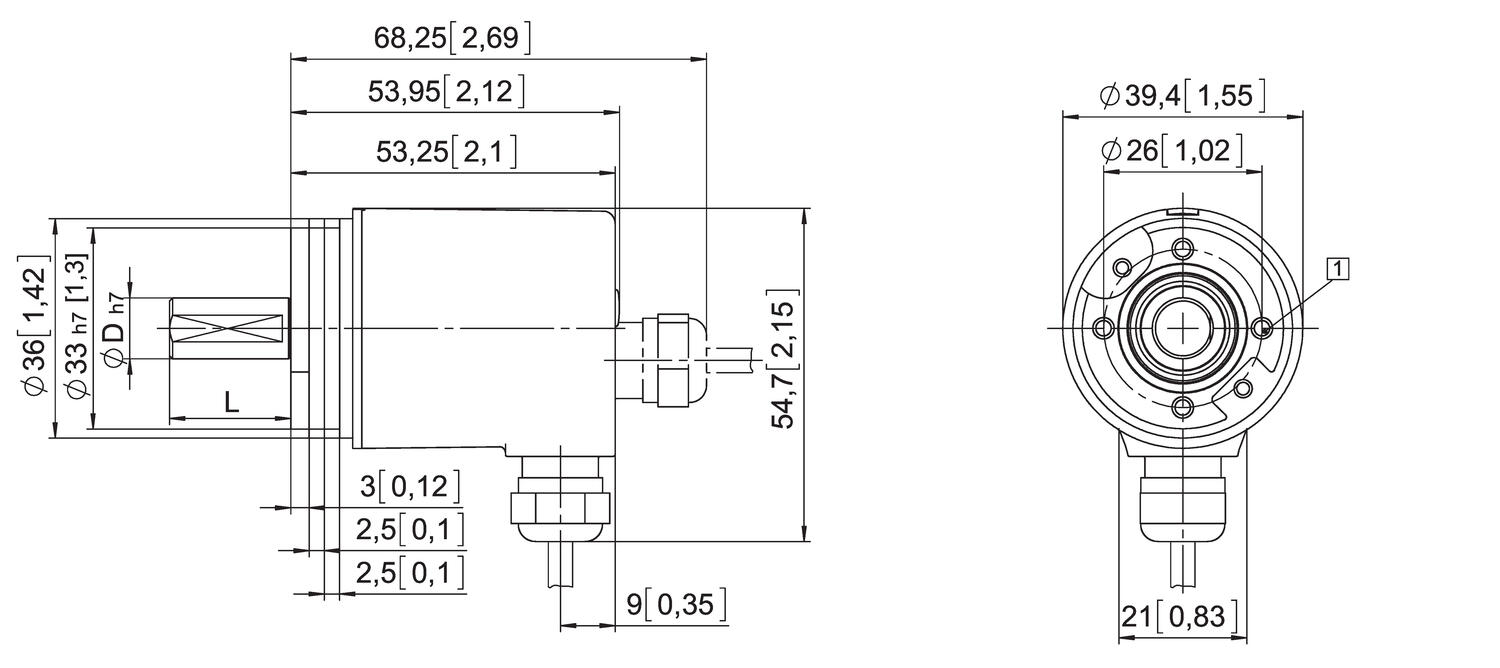

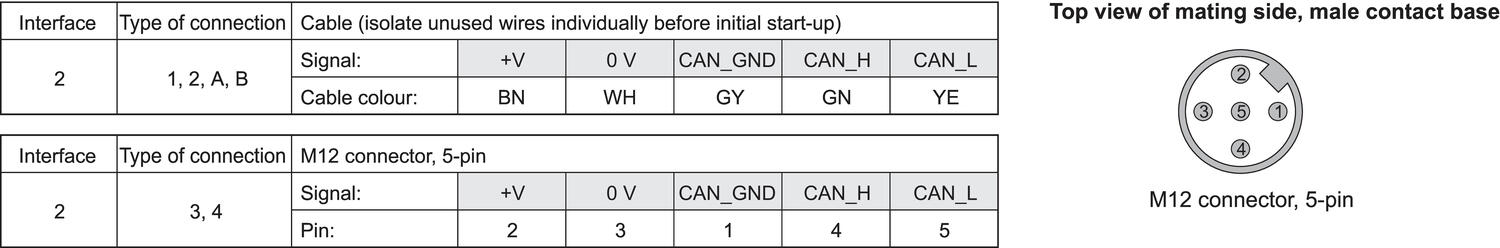

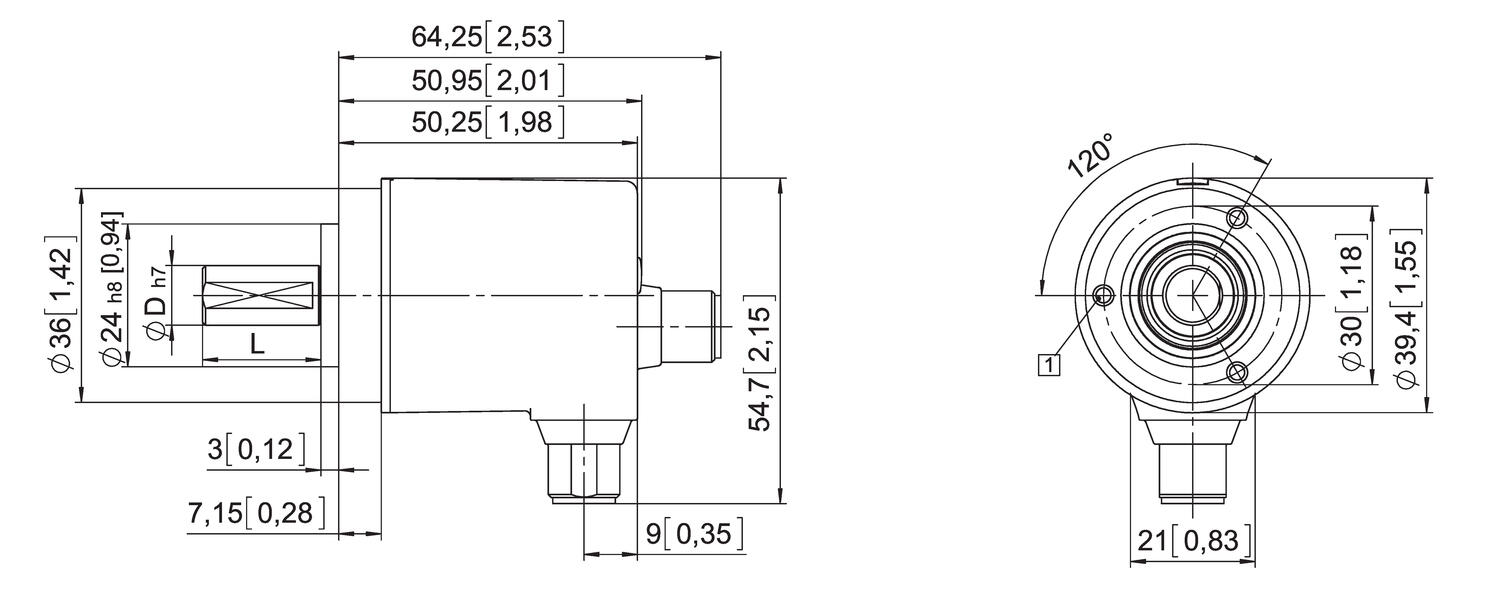

Measurements and connections

Ordering information

Please refer to the images below for ordering information.



m3668 canopen.png

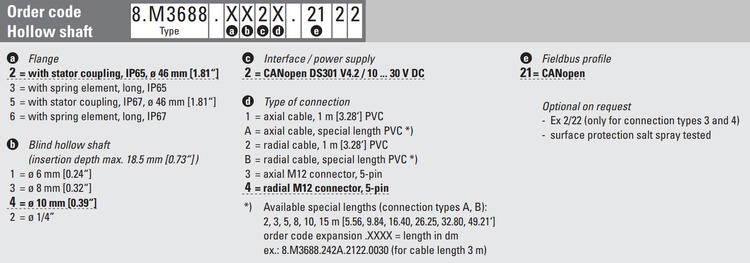

m3688 canopen.png

Accessories

My favourites Articles Mounting Price
z2077_M3668_20150308_small.tif
Art:
SERIE M3668 Copied
Shoulder
Art:
SERIE M3688 Copied
Hollow shaft

Selected variant

Select a variant in the list
