IDEM Emergency stop (E-stop) switches ESL-SS

  • Robust stainless steel emergency stop
  • IP69K
  • -25°C - 80°C
  • 3 cable connection positions

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Annual usage 8 cycles per hour/24 hours per day/365 day
Approvals EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
Atex approved No
Central Material Stainless steel 316
Conduit entry M20
Contact Type EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
Contacts 2NC 2NO
Integrated LED indication No
IP Class IP69K
Materials Contacts Silver
Mechanical reliability B10d 2.5x10⁶ operations at 100mA load
Mounting 4 x M4
MTTFd 214 years
Number of poles 4
Operating temperature -25°C +80°C
Operational rating 240v 3A
PFHd <1.0 x 10⁻⁷
Rated insulation voltage 500V
Short circuit overload protection Fuse externally 10A(FF)
Thermal current (lth) 10
Withstand voltage 2500V

Downloads

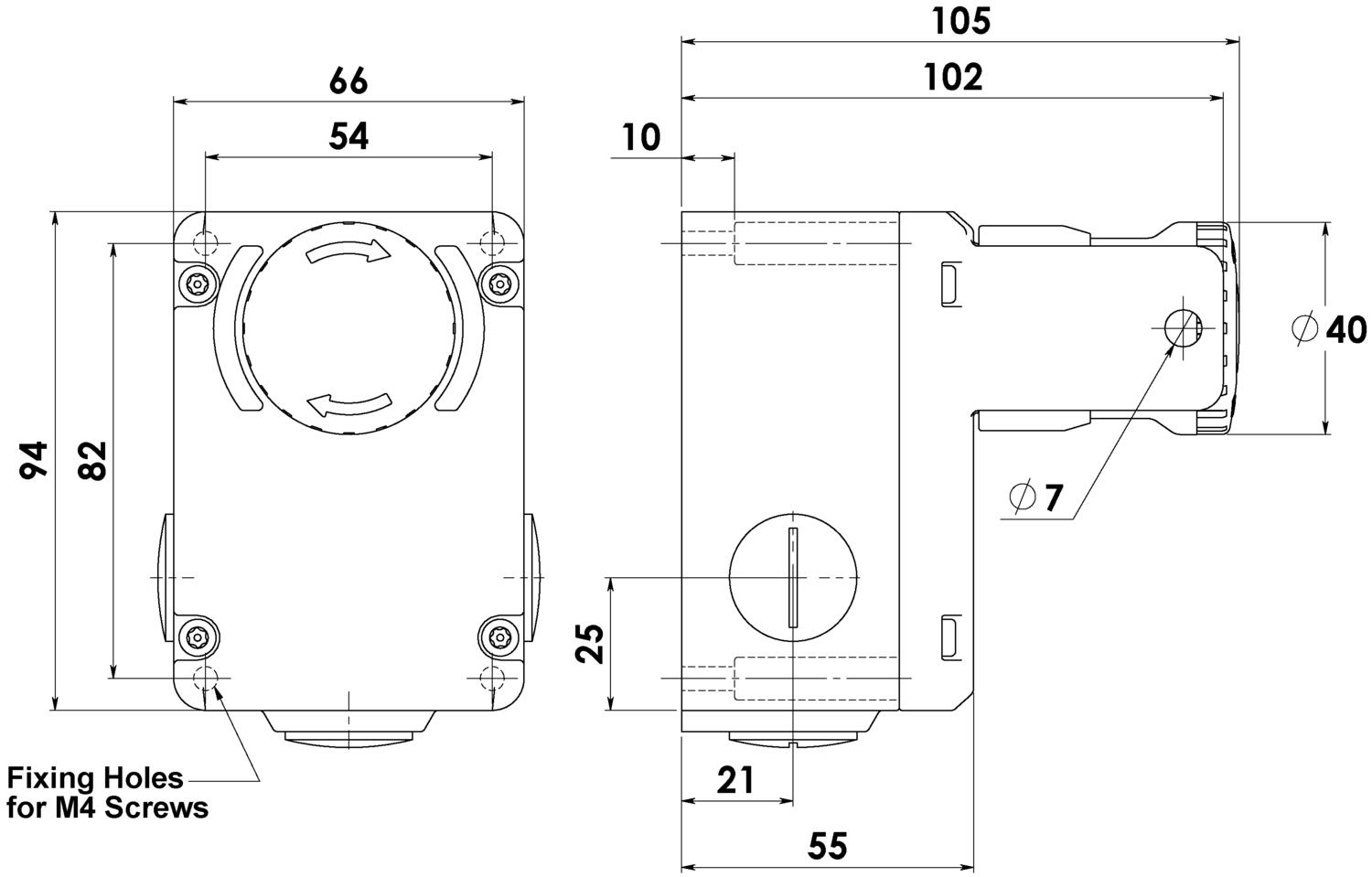

Measurements and connections

Accessories

My favourites Articles Annual usage Approvals Atex approved Central Material Conduit entry Contact Type Contacts Integrated LED indication IP Class LED Display LED supply voltage Materials Contacts Mechanical reliability B10d Mounting MTTFd Number of poles Operating temperature Operational rating PFHd Rated insulation voltage Short circuit overload protection Thermal current (lth) Withstand voltage Price

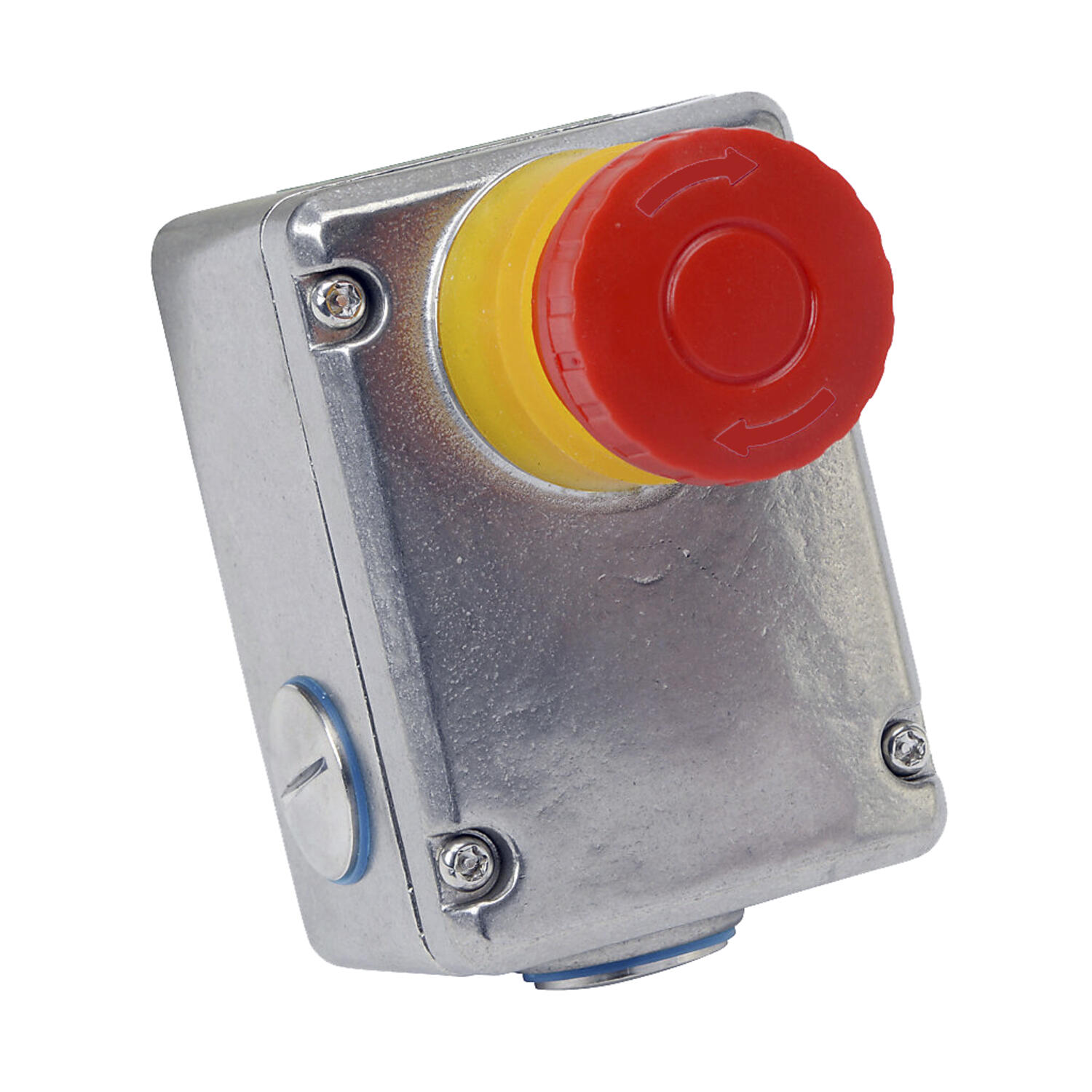

ESL-SS1.tif
ESL-SS M20 '2NC 2NO'
Art:
232001 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS ½NPT '2NC 2NO'
Art:
232002 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS ½NPT '2NC 2NO' with Gold Contacts
Art:
232002-GC Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
No
IP69K
Gold plated
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS M20 '3NC 1NO'
Art:
232003 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, UL 508
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
No
IP69K
Steady Green/Flashing Red
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS M20 '3NC 1NO' c/w GOLD CONTACTS
Art:
232003-GC Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
No
IP69K
Gold plated
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS ½NPT '3NC 1NO'
Art:
232004 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS M20 '4NC'
Art:
232005 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS1.tif
ESL-SS ½NPT '4NC'
Art:
232006 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS(P) M20 '2NC 2NO'
Art:
232009 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS(P) ½NPT '2NC 2NO'
Art:
232010 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS(P) M20 '3NC 1NO'
Art:
232011 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS(P) ½NPT '3NC 1NO'
Art:
232012 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS(P) M20 '4NC'
Art:
232013 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, UL 508
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
No
IP69K
Steady Green/Flashing Red
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS(P) ½NPT '4NC'
Art:
232014 Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
No
IP69K
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V

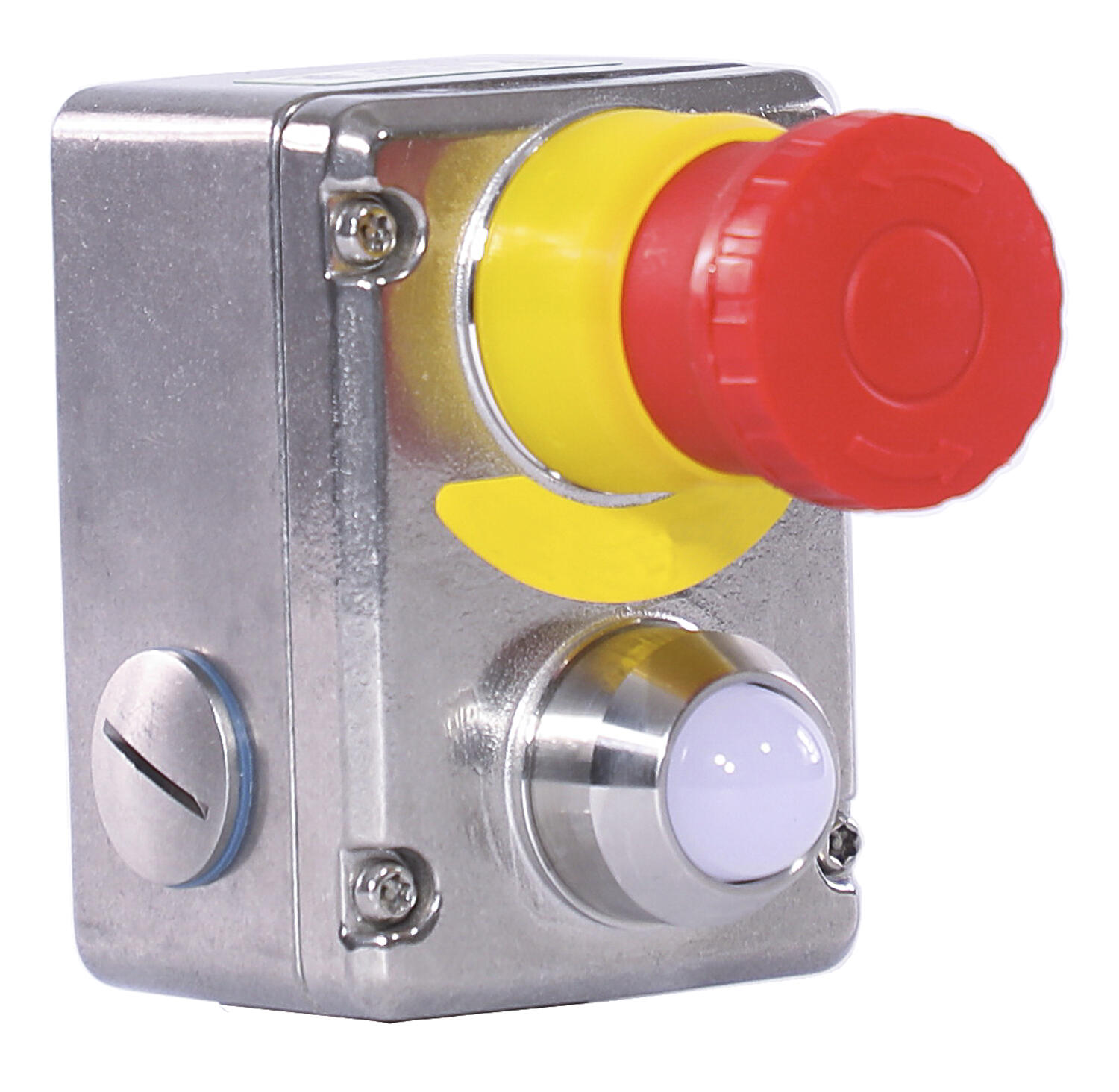

ESL-SS(L) V21.tif
ESL-SS(L) M20 '2NC 2NO' LED 24v
Art:
232017A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '2NC 2NO' LED 110V
Art:
232017B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '2NC 2NO' LED 230V
Art:
232017C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '2NC 2NO' LED 24v
Art:
232018A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '2NC 2NO' Steady LED 24v
Art:
232018-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '2NC 2NO' LED 110V
Art:
232018B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '2NC 2NO' Steady LED 110V
Art:
232018-BS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Steady Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '2NC 2NO' LED 230V
Art:
232018C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '3NC 1NO' LED 24V
Art:
232019A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, UL 508
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '3NC 1NO' Steady LED 24V
Art:
232019-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '3NC 1NO' LED 110V
Art:
232019B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '3NC 1NO' LED 230V
Art:
232019C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '3NC 1NO' LED 24v
Art:
232020A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '3NC 1NO' Steady LED 24v
Art:
232020-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '3NC 1NO' LED 110V
Art:
232020B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '3NC 1NO' Steady LED 110V
Art:
232020-BS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Steady Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '3NC 1NO' LED 230V
Art:
232020C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '4NC' LED 24V
Art:
232021A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '4NC' LED 110V
Art:
232021B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) M20 '4NC' LED 230V
Art:
232021C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '4NC' LED 24V
Art:
232022A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '4NC' LED 110V
Art:
232022B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(L) V21.tif
ESL-SS(L) ½NPT '4NC' LED 230V
Art:
232022C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '2NC 2NO' LED 24v
Art:
232023-A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '2NC 2NO' LED steady red/green 24V
Art:
232023-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '2NC 2NO' LED 110V
Art:
232023-B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP)M20 2NC 2NO LED 230 VAC
Art:
232023-C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '2NC 2NO' LED 24v
Art:
232024-A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '2NC 2NO' Steady LED 24v
Art:
232024-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '2NC 2NO' LED 110V
Art:
232024-B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '2NC 2NO' Steady LED 110V
Art:
232024-BS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Steady Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '2NC 2NO' LED 230V
Art:
232024-C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
2NC 2NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '3NC 1NO' LED 24v
Art:
232025A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '3NC 1NO' LED 24v - Gold Contacts
Art:
232025A-GC Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Gold plated
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '3NC 1NO' Steady LED 24v
Art:
232025-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '3NC 1NO' LED 110V
Art:
232025-B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '3NC 1NO' LED 230V
Art:
232025-C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '3NC 1NO' LED 24v
Art:
232026-A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '3NC 1NO' Steady LED 24v
Art:
232026-AS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Steady Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '3NC 1NO' LED 110V
Art:
232026-B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '3NC 1NO' LED Steady 110V
Art:
232026-BS Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Steady Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '3NC 1NO' LED 230V
Art:
232026-C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
3NC 1NO
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '4NC' LED 24v
Art:
232027-A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '4NC' LED 110V
Art:
232027-B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) M20 '4NC' LED 230V
Art:
232027-C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
M20
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '4NC' LED 24v
Art:
232028-A Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
24Vdc
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '4NC' LED 110V
Art:
232028-B Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
110Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(LP)1.tif
ESL-SS(LP) ½NPT '4NC' LED 230V
Art:
232028-C Copied
8 cycles per hour/24 hours per day/365 day
EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
No
Stainless steel 316
1/2"NPT
EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
4NC
Yes
IP69K
Steady Green/Flashing Red
230Vac
Silver
2.5x10⁶ operations at 100mA load
4 x M4
214 years
4
-25°C +80°C
240v 3A
<1.0 x 10⁻⁷
500V
Fuse externally 10A(FF)
10
2500V
ESL-SS(P)1.tif
ESL-SS (Encapsulated) 10M '2NC 2NO'
Art:
232040 Copied
3.44 x 10⁻⁸

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account
