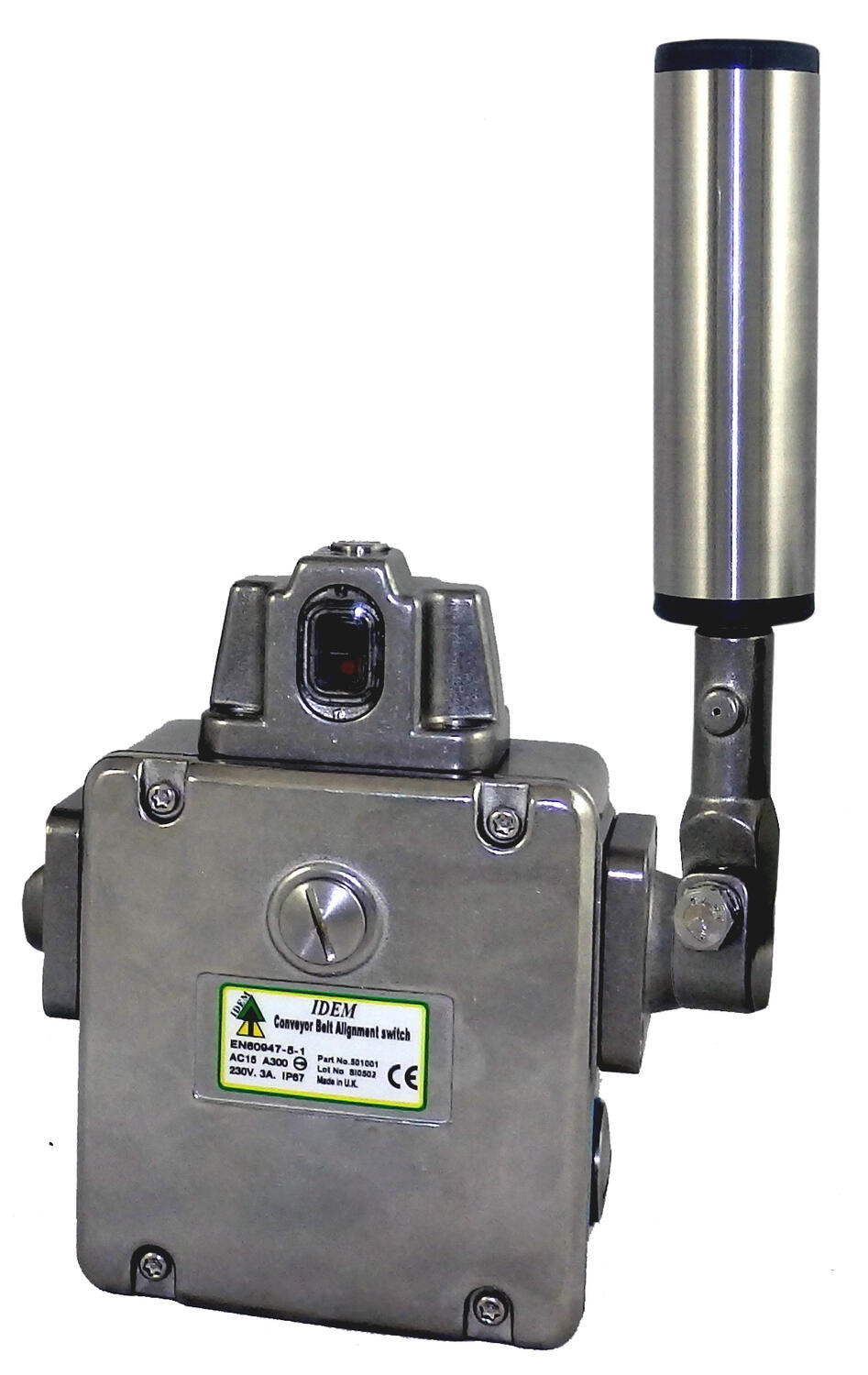

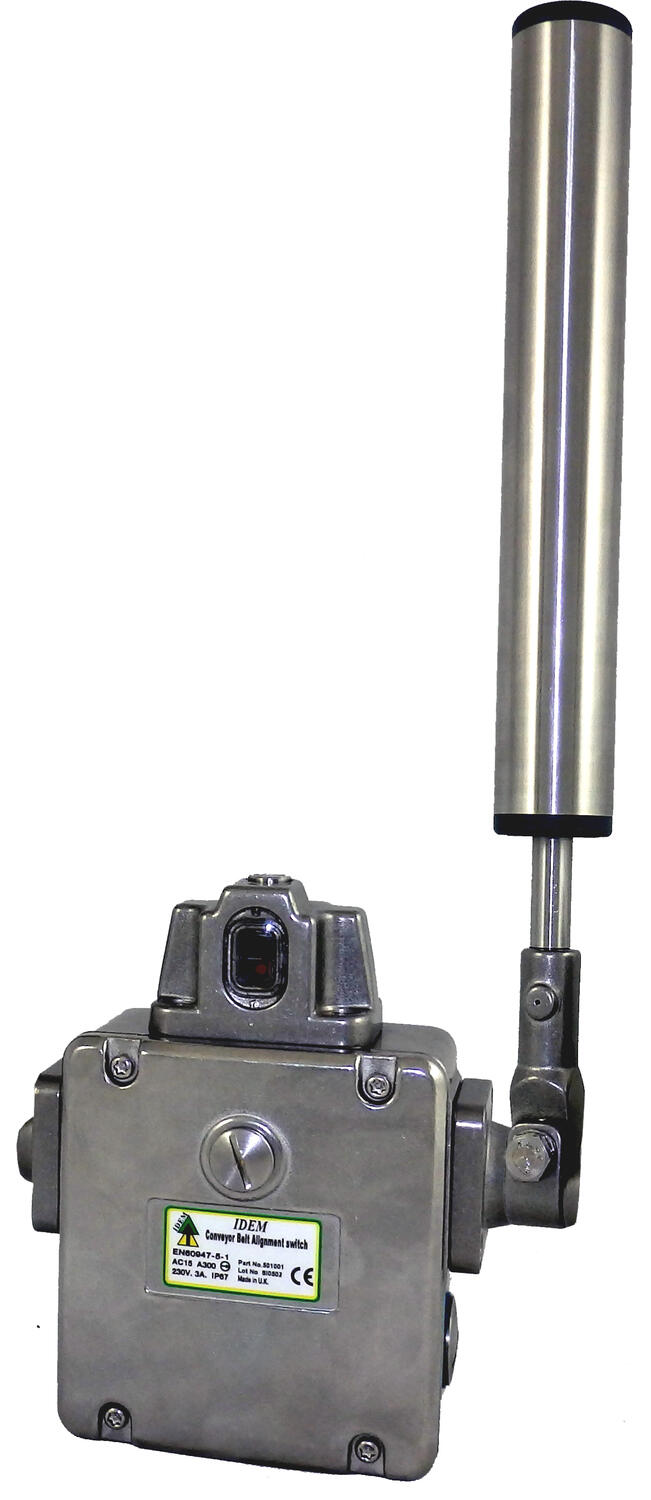

IDEM Standard / Stainless steel tape convergence sensors Explosion proof
The IDEM sensor range complements a wide range of cable switches used for emergency stop along conveyors. They are mounted along the conveyor belt and indicate the crookedness of the conveyor belt. We offer standard models (aluminum alloy) and made of stainless steel. Sensors are available with different roll diameters, thus ensuring a long service life even under severe operating conditions
- Explosion proof
- Two-step operation
- 3 types of lever rollers
- Adjustable angle of operation
- 2 independent contact blocks 1NO + 1NC
Selected variant
Selected variant
Specifications
| Approvals | IEC 60947-5-1 |
|---|---|
| Atex approved | Yes |
| Cable length | 3 |
| Central Material | Die cast metal |
| Conduit entry | Ex 3m |
| Contacts | 2NC 2NO |
| Integrated LED indication | No |
| IP Class | IP67 |
| Materials Contacts | Silver |
|---|---|
| Mounting | 4 x M5 |
| Operating temperature | -20°C...+60°C |
| Operational rating | AC15 A300 240V. 3A. / 120V. 6A. ac, 24V. 2,5A dc |
| Rated insulation voltage | 500V |
| Thermal current (lth) | 10 |
| Withstand voltage | 2500V |
Product description
The IDEM sensor range complements a wide range of cable switches used for emergency stop along conveyors. They are mounted along the conveyor belt and indicate the crookedness of the conveyor belt. We offer standard models (aluminum alloy) and made of stainless steel. Sensors are available with different roll diameters, thus ensuring a long service life even under severe operating conditions
