DATALOGIC

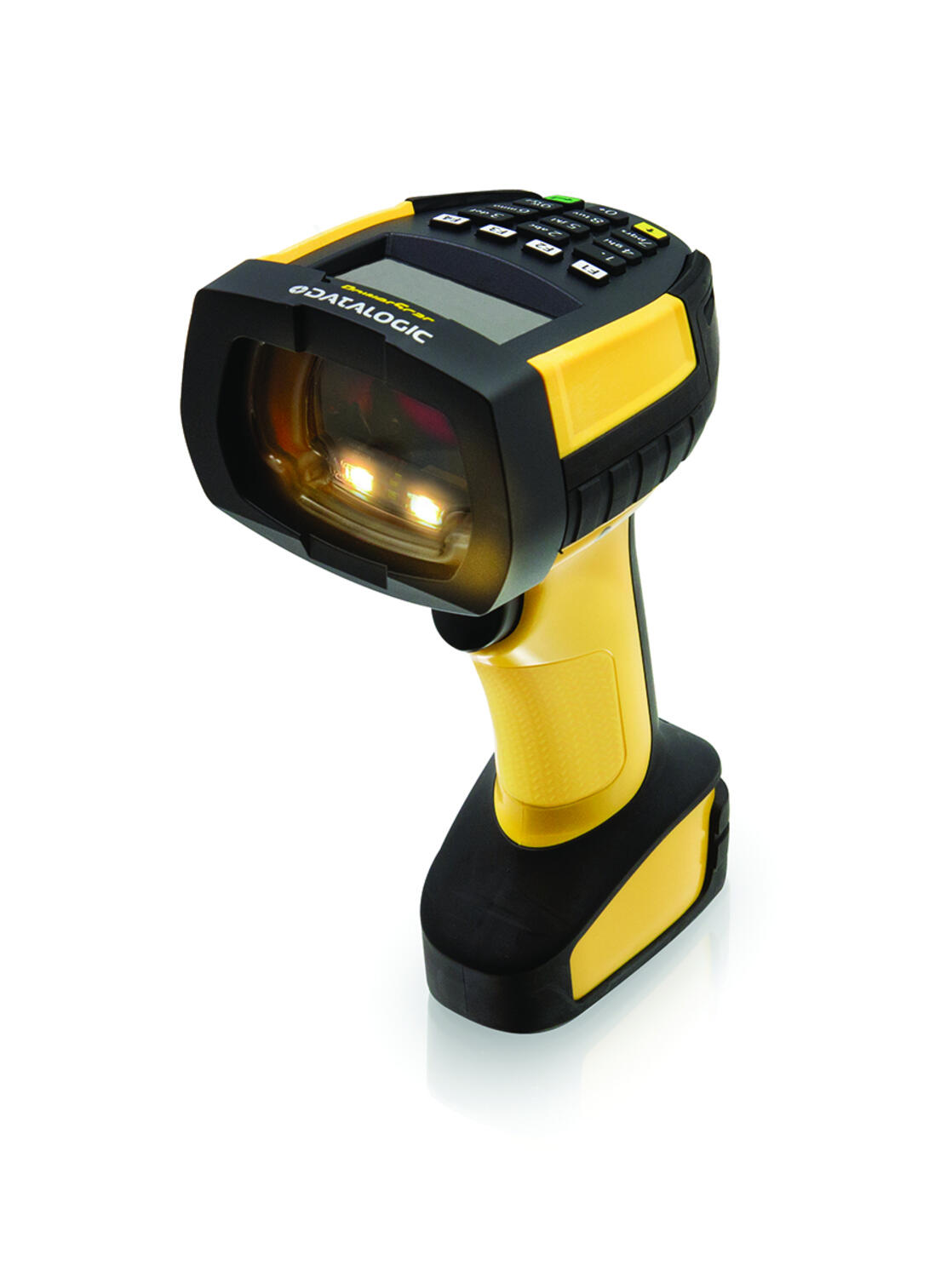

Datalogic Powerscan PM9600 Series

  • Detects 1D and 2D code types
  • Reads up to 2.5/3 mils 1D codes and 4/6 mils 2D codes
  • 80,000 reads per charge
  • Interfaces: RS-232, Keyboard wedge multi-interface, industrial and ethernet protocols

Selected variant

Avaible in several variants
DATALOGIC.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

1D Code types Auto discriminates all standard 1D codes
2D Code Types Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
Approvals RoHS
Charge time 3.2hrs @ 12VDC
Color Black/yellow
Dimension (mm) 19.8 x 14 x 7.9
Immunity To Ambient Light 0-100,000 lux
IP Class IP67, IP65
Kit No
Postal Code Types China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
Readable code types 1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking
Reads per charge 80000
Resolution 4 mils
Stacked Code Types EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
Temperature range bearing, from -40
Temperature range bearing, to 70
Temperature range from -20
Temperature range to 50
Weight 425
Wireless Yes

Downloads

Accessories

My favourites Articles Kit Resolution Price
PowerScan PM9600-HP, High Performance, 433 MHz, Removable Battery
Art:
PM9600-HP433RB Copied
No
4 mils
PowerScan PM9600-HP, 433MHz, RS232 Kit(cradle,Cable,Power Supply&Cord)
Art:
PM9600-HP433RBK20 Copied
Yes
4 mils
PowerScan PM9600-HP, 433MHz, USB Kit (cradle,Cable,Power Supply&Cord)
Art:
PM9600-HP433RBK10 Copied
Yes
4 mils
PowerScan PM9600-HP, High Performance, 910MHz, Removable Battery
Art:
PM9600-HP910RB Copied
No
4 mils
PowerScan PM9600-HP, 910MHz, RS232 Kit(cradle,Cable,Power Supply&Cord)
Art:
PM9600-HP910RBK20 Copied
Yes
4 mils
PowerScan PM9600-HP, 910MHz, USB Kit (cradle,Cable,Power Supply&Cord)
Art:
PM9600-HP910RBK10 Copied
Yes
4 mils
PowerScan PM9600-SR, Standard Range, 433 MHz, Removable Battery
Art:
PM9600-SR433RB Copied
No
6 mils
PowerScan PM9600-SR, 433MHz, RS232 Kit(cradle,Cable,Power Supply&Cord)
Art:
PM9600-SR433RBK20 Copied
Yes
6 mils
PowerScan PM9600-SR, 433MHz, USB Kit (cradle,Cable,Power Supply&Cord)
Art:
PM9600-SR433RBK10 Copied
Yes
6 mils
PowerScan PM9600-SR, Standard Range, 910MHz, Removable Battery
Art:
PM9600-SR910RB Copied
No
6 mils
PowerScan PM9600-SR, 910MHz, RS232 Kit(Cradle,Cable,Power Supply&Cord)
Art:
PM9600-SR910RBK20 Copied
Yes
6 mils
PowerScan PM9600-SR, 910MHz, USB Kit (Cradle,Cable,Power Supply&Cord)
Art:
PM9600-SR910RBK10 Copied
Yes
6 mils
