DATALOGIC

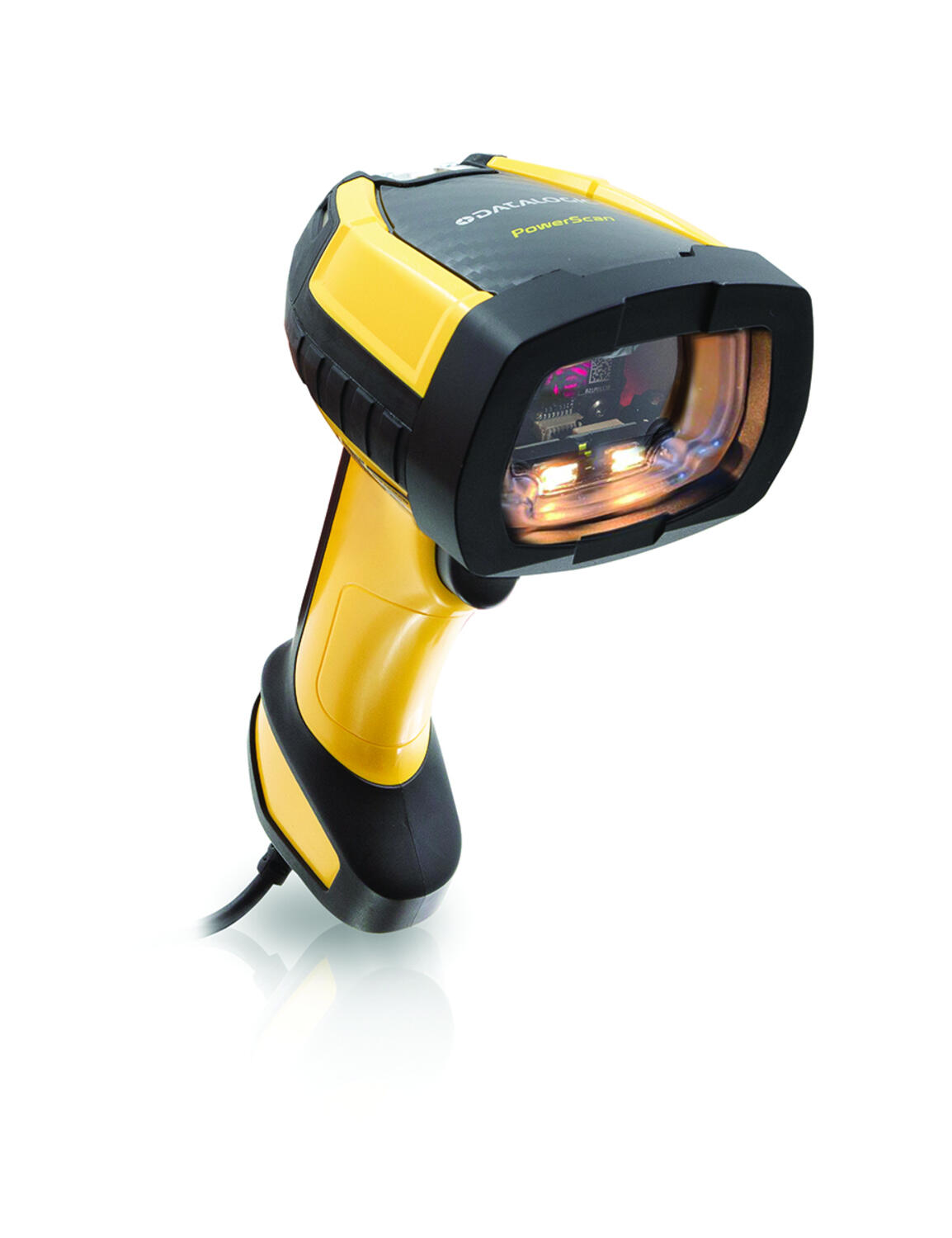

Datalogic Powerscan PD9630 Series

  • Detects 1D and 2D code types
  • Reads up to 2.5/3 mils 1D codes and 4/6 mils 2D codes
  • Datalogic’s exclusive 3 Green Lights (3GL™)
  • Interfaces: RS-232, USB

Selected variant

Avaible in several variants
DATALOGIC.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

1D Code types Auto discriminates all standard 1D codes
2D Code Types Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
Approvals RoHS
Color Black/yellow
Dimension (mm) 19 x 14 x 7.9
Immunity To Ambient Light 0 - 100,000 lux
IP Class IP67, IP65
Kit Yes
Postal Code Types China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
Readable code types 1D / Linear Codes, 2D Codes, Postal Codes, Digital Watermarking
Resolution 6 mils
Temperature range bearing, from -40
Temperature range bearing, to 70
Temperature range from -20
Temperature range to 50
Weight 318
Wireless No

Downloads

Accessories

My favourites Articles Kit Readable code types Resolution Price
PowerScan PD9630-DC, Doc Capture, Color sensor, Kit (Cable)
Art:
PD9630-DCK1 Copied
Yes
1D / Linear Codes, 2D Codes, Postal Codes, Digital Watermarking
6 mils
PowerScan PD9630-DC, Doc Capture, Color sensor, USB/RS-232 multi-int
Art:
PD9630-DC Copied
No
1D / Linear Codes, 2D Codes, Postal Codes, Digital Watermarking
6 mils
PowerScan PD9630-HP, High Performance, RS-232 Kit (Cable)
Art:
PD9630-HPK2 Copied
Yes
1D / Linear Codes, 2D Codes, Postal Codes, Digital Watermarking
4 mils
PowerScan PD9630-HP, High Performance, USB Kit (Cable)
Art:
PD9630-HPK1 Copied
Yes
1D / Linear Codes, 2D Codes, Postal Codes, Digital Watermarking
4 mils
PowerScan PD9630-HP, High Performance, USB/RS-232 multi-interface
Art:
PD9630-HP Copied
No
1D / Linear Codes, 2D Codes, Postal Codes, Digital Watermarking
4 mils
PowerScan PD9630-SR, Standard Range, RS-232 Kit (Cable)
Art:
PD9630-SRK2 Copied
Yes
1D / Linear Codes, 2D Codes, Postal Codes
6 mils
PowerScan PD9630-SR, Standard Range, USB Kit (Cable)
Art:
PD9630-SRK1 Copied
Yes
1D / Linear Codes, 2D Codes, Postal Codes
6 mils
PowerScan PD9630-SR, Standard Range, USB/RS-232 multi-interface
Art:
PD9630-SR Copied
No
1D / Linear Codes, 2D Codes, Postal Codes
6 mils
