DATALOGIC
AIM, TRIGGER, DECODE: IT’S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the
PowerScan™ 9500 family. It combines omnidirectional reading
capabilities, which is typical in all area imaging scanners, with
outstanding optical characteristics. The result is a scanner that is
able to read any kind of bar code, regardless of the orientation, from
contact to over 1.0 m / 3.3 ft, depending on the bar code resolution.
In addition, the PowerScan PD9500 area imager includes Datalogic’s
latest decoding software that guarantees snappy reading in any type
of environment. Aim, trigger, decode: it is that simple!
DEVELOPED WITH THE USER IN MIND
User comfort is guaranteed because of the scanner ergonomics,
consisting of the handle shape, a well-balanced weight and an
intuitive aiming system, allowing the highest first-pass reading rate
while reducing unnatural wrist movement or rotation which can tire
any user during long shifts. Additionally, the PowerScan 9500 area

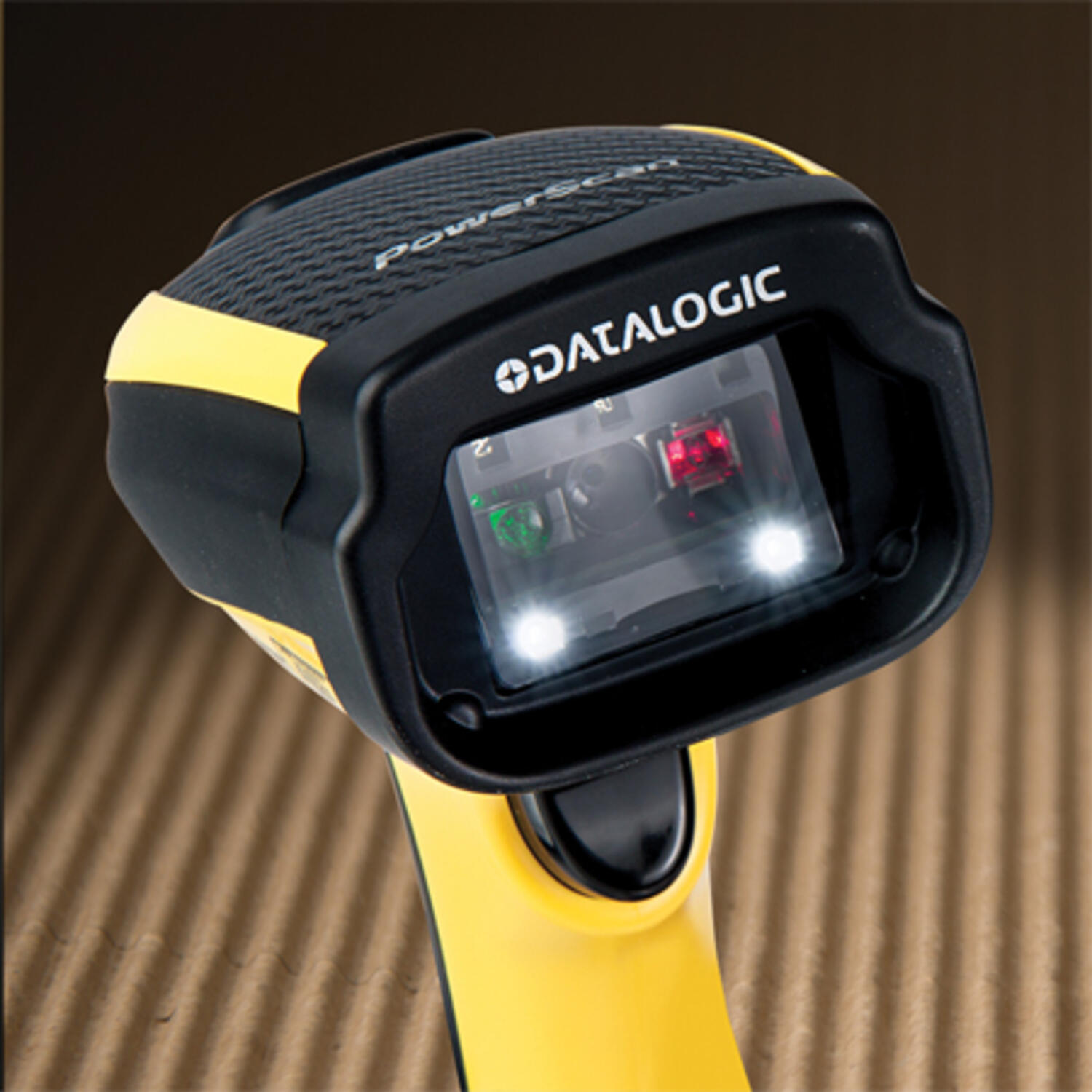

imager uses a soft-pulsed white illumination light resulting in reduced
flashes, which is very gentle on the eyes and less troublesome to the
operator during scan-intensive applications.
BUILT TO LAST
The rugged mechanics of the PowerScan family guarantee reliable
operation in the long term. Repeated shocks and indoor / outdoor
usage in the toughest environmental conditions do not modify the
scanners performance or reliability.
1D Code types | Auto discriminates all standard 1D codes |
---|---|
2D Code Types | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
Approvals | RoHS |
Color | Black/yellow |
Dimension (mm) | 212 x 110 x 74 |
Drop resistance | Withstands 50 drops from 2m / 6.6ft onto a concrete surface |
Humidity | 0-95% (Non-condensing) |
Immunity To Ambient Light | 0-100,000 lux |
IP Class | IP65 |
Kit | No |
Light Source | 630-680nm VLD White LED |
Output current | 335 mA |
Postal Code Types | China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post |
---|---|
Readable code types | 1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes |
Reading Angle Window | Pitch: +/-40°; Roll (Tilt): 360°; Scew (Yaw): +/-40° |
Resolution | 7.5 mils |
Stacked Code Types | EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites |
Temperature range bearing, from | -40 |
Temperature range bearing, to | 70 |
Temperature range from | -20 |
Temperature range to | 50 |
Weight | 330 |
AIM, TRIGGER, DECODE: IT’S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the
PowerScan™ 9500 family. It combines omnidirectional reading
capabilities, which is typical in all area imaging scanners, with
outstanding optical characteristics. The result is a scanner that is
able to read any kind of bar code, regardless of the orientation, from
contact to over 1.0 m / 3.3 ft, depending on the bar code resolution.
In addition, the PowerScan PD9500 area imager includes Datalogic’s
latest decoding software that guarantees snappy reading in any type
of environment. Aim, trigger, decode: it is that simple!
DEVELOPED WITH THE USER IN MIND
User comfort is guaranteed because of the scanner ergonomics,
consisting of the handle shape, a well-balanced weight and an
intuitive aiming system, allowing the highest first-pass reading rate
while reducing unnatural wrist movement or rotation which can tire
any user during long shifts. Additionally, the PowerScan 9500 area
imager uses a soft-pulsed white illumination light resulting in reduced
flashes, which is very gentle on the eyes and less troublesome to the
operator during scan-intensive applications.
BUILT TO LAST
The rugged mechanics of the PowerScan family guarantee reliable
operation in the long term. Repeated shocks and indoor / outdoor
usage in the toughest environmental conditions do not modify the
scanners performance or reliability.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | 1D Code types | 2D Code Types | Approvals | Color | Contrast Ratio Min | Dimension (mm) | Distance Max | Drop resistance | Extra Features | Humidity | Immunity To Ambient Light | Interface | Kit | Light Source | Output current | Postal Code Types | Power consumption max | Read Ranges Min | Readable code types | Reading Angle Window | Resolution | Stacked Code Types | Viewing angle | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
PowerScan PD9531 Standard 5VDC
Art:
PD9531
Copied
|
Auto discriminates all standard 1D codes
|
Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
|
RoHS
|
Black/yellow
|
|
212 x 110 x 74
|
|
Withstands 50 drops from 2m / 6.6ft onto a concrete surface
|
|
0-95% (Non-condensing)
|
0-100,000 lux
|
|
No
|
630-680nm VLD White LED
|
335 mA
|
China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
|
|
|
1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
|
Pitch: +/-40°; Roll (Tilt): 360°; Scew (Yaw): +/-40°
|
7.5 mils
|
EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
|
|
| ||
![]()
PowerScan PD9531 Standard 5VDC, USB Kit (Cable CAB-550)
Art:
PD9531-K1
Copied
|
|
|
|
|
15
|
|
0,85
|
|
|
|
0-100 000 lux
|
|
|
|
|
|
0,3
|
0,04
|
|
|
864x544
|
|
Pitch: +/-40°, Roll: 360°, Skew: +/-40°
|
| ||
![]()
PowerScan PD9531 Standard 5VDC, RS-232 Kit (Cable CAB-434)
Art:
PD9531-K2
Copied
|
|
|
|
|
15
|
|
0,85
|
|
|
|
0-100 000 lux
|
|
|
|
|
|
0,3
|
0,04
|
|
|
864x544
|
|
Pitch: +/-40°, Roll: 360°, Skew: +/-40°
|
| ||
![]()
PowerScan PD9531 High Performance 5VDC
Art:
PD9531-HP
Copied
|
Auto discriminates all standard 1D codes
|
Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
|
RoHS
|
Black/yellow
|
|
212 x 110 x 74
|
|
Withstands 50 drops from 2m / 6.6ft onto a concrete surface
|
|
0-95% (Non-condensing)
|
0-100,000 lux
|
|
No
|
630-680nm VLD White LED
|
335 mA
|
China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
|
|
|
1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
|
Pitch: +/-40°; Roll (Tilt): 360°; Scew (Yaw): +/-40°
|
7.5 mils
|
EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
|
|
| ||
![]()
PowerScan PD9531 HP 5VDC, USB Kit (Cable CAB-550)
Art:
PD9531-HPK1
Copied
|
Auto discriminates all standard 1D codes
|
Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
|
RoHS
|
Black/yellow
|
|
212 x 110 x 74
|
|
Withstands 50 drops from 2m / 6.6ft onto a concrete surface
|
Kit includes: scanner and Cable CAB-550
|
0-95% (Non-condensing)
|
0-100,000 lux
|
USB
|
Yes
|
630-680nm VLD White LED
|
335 mA
|
China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
|
|
|
1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
|
Pitch: +/-40°; Roll (Tilt): 360°; Scew (Yaw): +/-40°
|
7.5 mils
|
EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
|
|
| ||
![]()
PowerScan PD9531 HP 5VDC, RS-232 Kit (Cable CAB-434)
Art:
PD9531-HPK2
Copied
|
|
|
|
|
15
|
|
1,1
|
|
|
|
0-100 000 lux
|
|
|
|
|
|
0,135
|
0,02
|
|
|
1280x1024
|
|
Pitch: +/-40°, Roll: 360°, Skew: +/-40°
|
| ||
![]()
PowerScan PD9531 High Performance 10-30VDC
Art:
PD9531-HPE
Copied
|
Auto discriminates all standard 1D codes
|
Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
|
RoHS
|
Black/yellow
|
|
212 x 110 x 74
|
|
Withstands 50 drops from 2m / 6.6ft onto a concrete surface
|
|
0-95% (Non-condensing)
|
0-100,000 lux
|
|
No
|
630-680nm VLD White LED
|
335 mA
|
China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
|
|
|
1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
|
Pitch: +/-40°; Roll (Tilt): 360°; Scew (Yaw): +/-40°
|
7.5 mils
|
EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
|
|
| ||
![]()
PowerScan PD9531 HP 10-30VDC, RS-232 Kit (Cable CAB-434)
Art:
PD9531-HPEK2
Copied
|
Auto discriminates all standard 1D codes
|
Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
|
RoHS
|
Black/yellow
|
|
212 x 110 x 74
|
|
Withstands 50 drops from 2m / 6.6ft onto a concrete surface
|
Kit includes: scanner and Cable CAB-434
|
0-95% (Non-condensing)
|
0-100,000 lux
|
RS-232
|
Yes
|
630-680nm VLD White LED
|
335 mA
|
China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Australia Postal, Japan Postal, Portuguese Post, Swedish Post
|
|
|
1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
|
Pitch: +/-40°; Roll (Tilt): 360°; Scew (Yaw): +/-40°
|
7.5 mils
|
EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
|
|
|
Select a variant in the list
