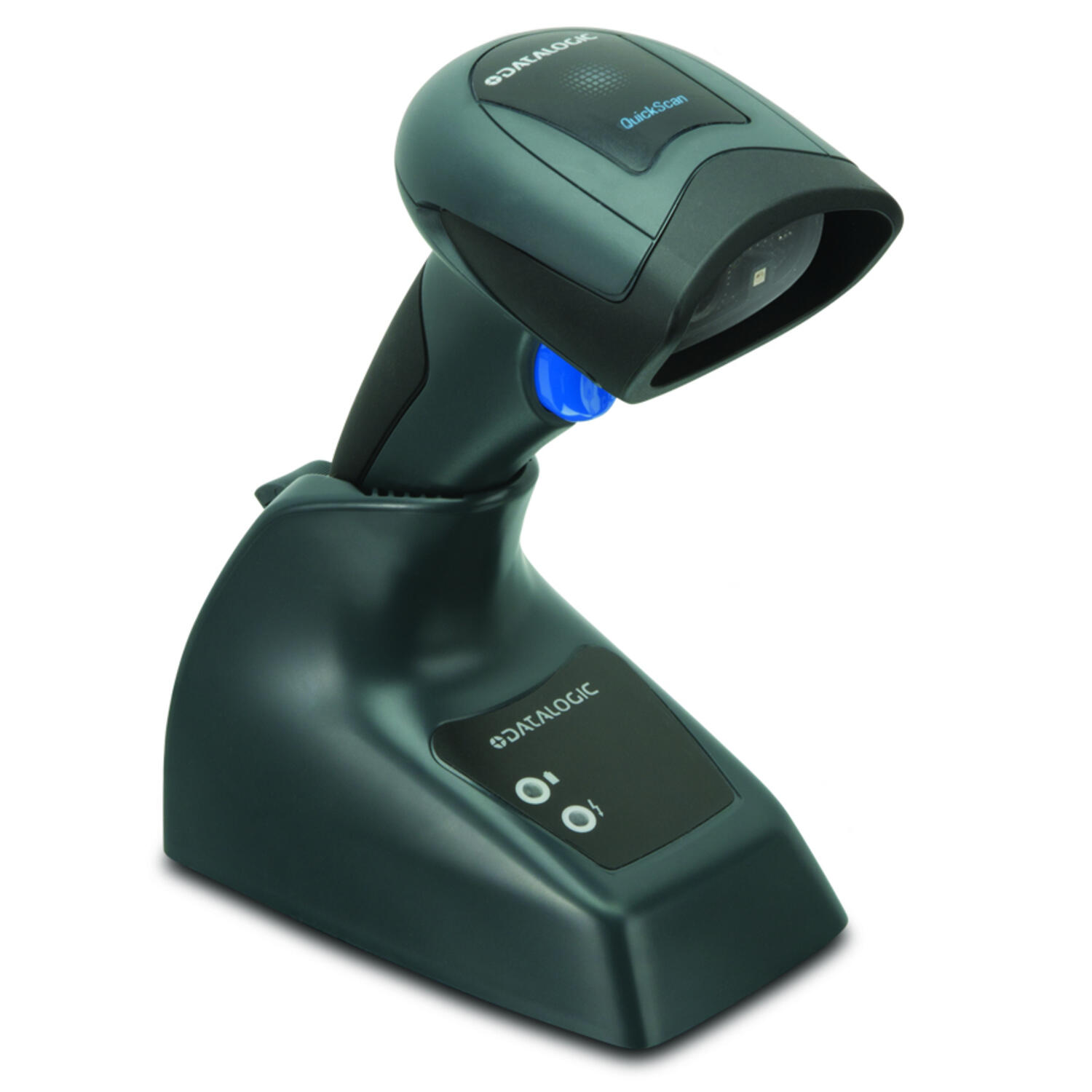

Datalogic QuickScan I GBT/GM2400 QBT2430-BK

1D Code types	Auto discriminates all standard 1D codes
2D Code Types	Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Aztec Mesas
Approvals	RoHS
Battery	Lithium-ion: 1400 mAh
Charge time	<4hrs @ 12VDC
Color	Black
Dimension (mm)	163 x 91 x 41
Drop resistance	Withstands repeated drops from 5ft onto concrete surface
Extra Features	Kit includes: Scanner and Base Station
Humidity	5-95% (Non-condensing)
Immunity To Ambient Light	0 - 100,000 lux
Interface	Keyboard wedge, OEM (IBM) USB, RS-232, USB
IP Class	IP42
Kit	Yes
Light Source	Red LED 610-650 nm

1D Code types

Auto discriminates all standard 1D codes

2D Code Types

Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Aztec Mesas

Approvals

RoHS

Battery

Lithium-ion: 1400 mAh

Charge time

<4hrs @ 12VDC

Color

Black

Dimension (mm)

163 x 91 x 41

Drop resistance

Withstands repeated drops from 5ft onto concrete surface

Extra Features

Kit includes: Scanner and Base Station

Humidity

5-95% (Non-condensing)

Immunity To Ambient Light

0 - 100,000 lux

Interface

Keyboard wedge, OEM (IBM) USB, RS-232, USB

IP Class

IP42

Kit

Yes

Light Source

Red LED 610-650 nm

Postal Code Types	China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), UK Postal, Australia Postal, Japan Postal, Canadian Post
Readable code types	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
Reading Angle Window	Pitch:+/-65°; Tilt: 360°; Skew: +/-60°
Reads per charge	30000
Resolution	0.102 mm / 4mils
Sensor type	Wide VGA: 752 x 480 pixels
Stacked Code Types	EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
Temperature range bearing, from	-40
Temperature range bearing, to	70
Temperature range from	0
Temperature range to	50
Weight	200
Wireless	Yes
Wireless Technology	Bluetooth Wireless Communication

Postal Code Types

China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), UK Postal, Australia Postal, Japan Postal, Canadian Post

Readable code types

1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes

Reading Angle Window

Pitch:+/-65°; Tilt: 360°; Skew: +/-60°

Reads per charge

30000

Resolution

0.102 mm / 4mils

Sensor type

Wide VGA: 752 x 480 pixels

Stacked Code Types

EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites

Temperature range bearing, from

-40

Temperature range bearing, to

Temperature range from

Temperature range to

Weight

200

Wireless

Yes

Wireless Technology

Bluetooth Wireless Communication

Articles	Color	Extra Features	Wireless Technology
QuickScan QBT2430, BT, 2D kit, Black (Scanner, Charger) Art: QBT2430-BK Copied	Black	Kit includes: Scanner and Base Station	Bluetooth Wireless Communication

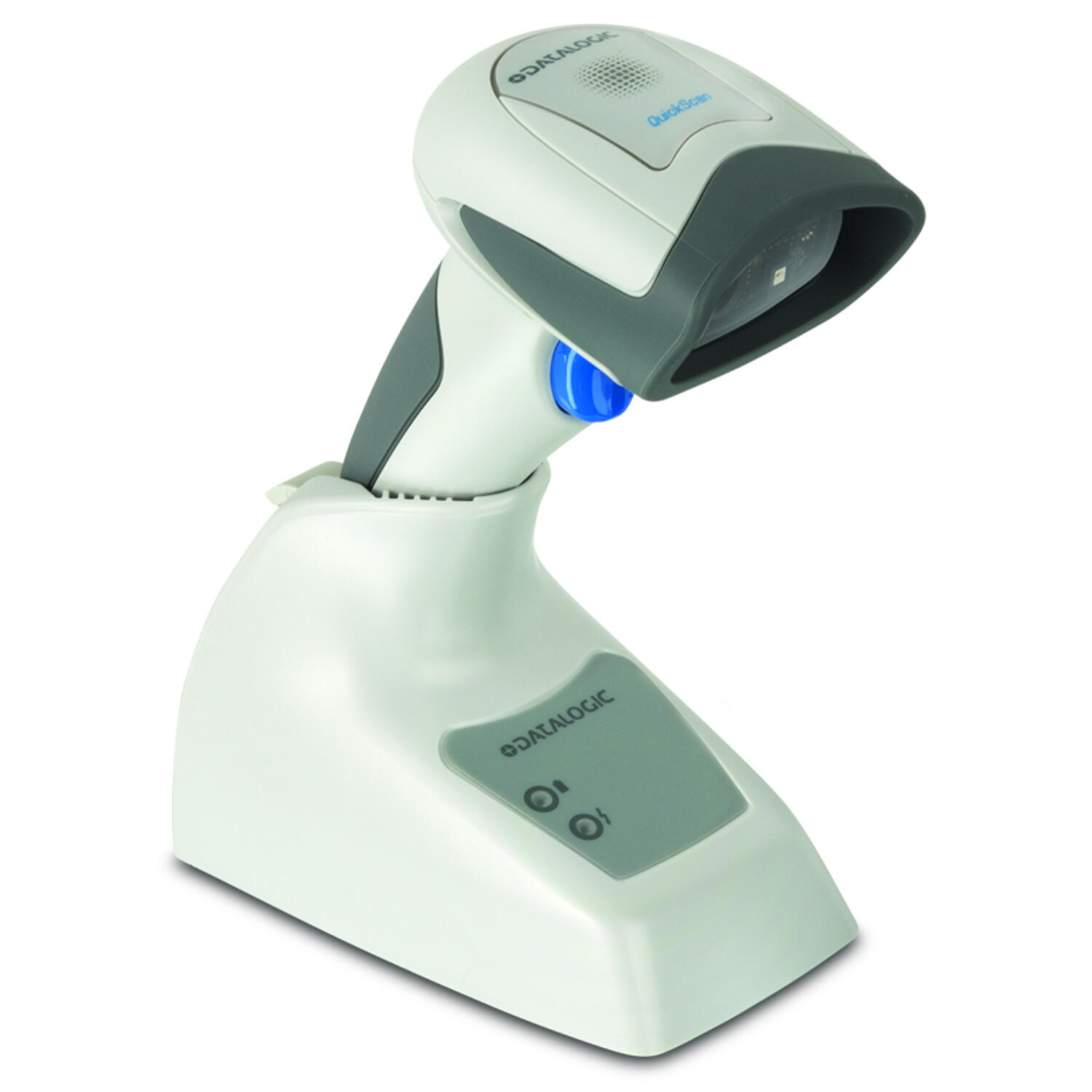

QuickScan QBT2430, BT, 2D kit, White (Scanner, Charger) Art: QBT2430-WH Copied	White	Kit includes: Scanner and Base Station	Bluetooth Wireless Communication
QuickScan QM2430, 433 MHz, 2D kit, Black (Scanner, Charger) Art: QM2430-BK-433 Copied	Black	Kit includes: Scanner and Base Station	Datalogic STAR Cordless System
QuickScan QM2430, 433 MHz, 2D kit, White (Scanner, Charger) Art: QM2430-WH-433 Copied	White	Kit includes: Scanner and Base Station	Datalogic STAR Cordless System
QuickScan QM2430, 433 MHz, USB, 2D kit, Black (Scanner, Charger, Cable) Art: QM2430-BK-433K1 Copied	Black	Kit includes: Scanner, Base Station and USB Cable	Datalogic STAR Cordless System
QuickScanQM2430, 433MHz,RS-232, 2Dkit, Black (Charger,Cable,Power,LineCord) Art: QM2430-BK-433K2 Copied	Black	Kit includes: Scanner, Base Station, 90G000008 Cable, 8-0935 Power Supply and 6003-0940 Line Cord	Datalogic STAR Cordless System

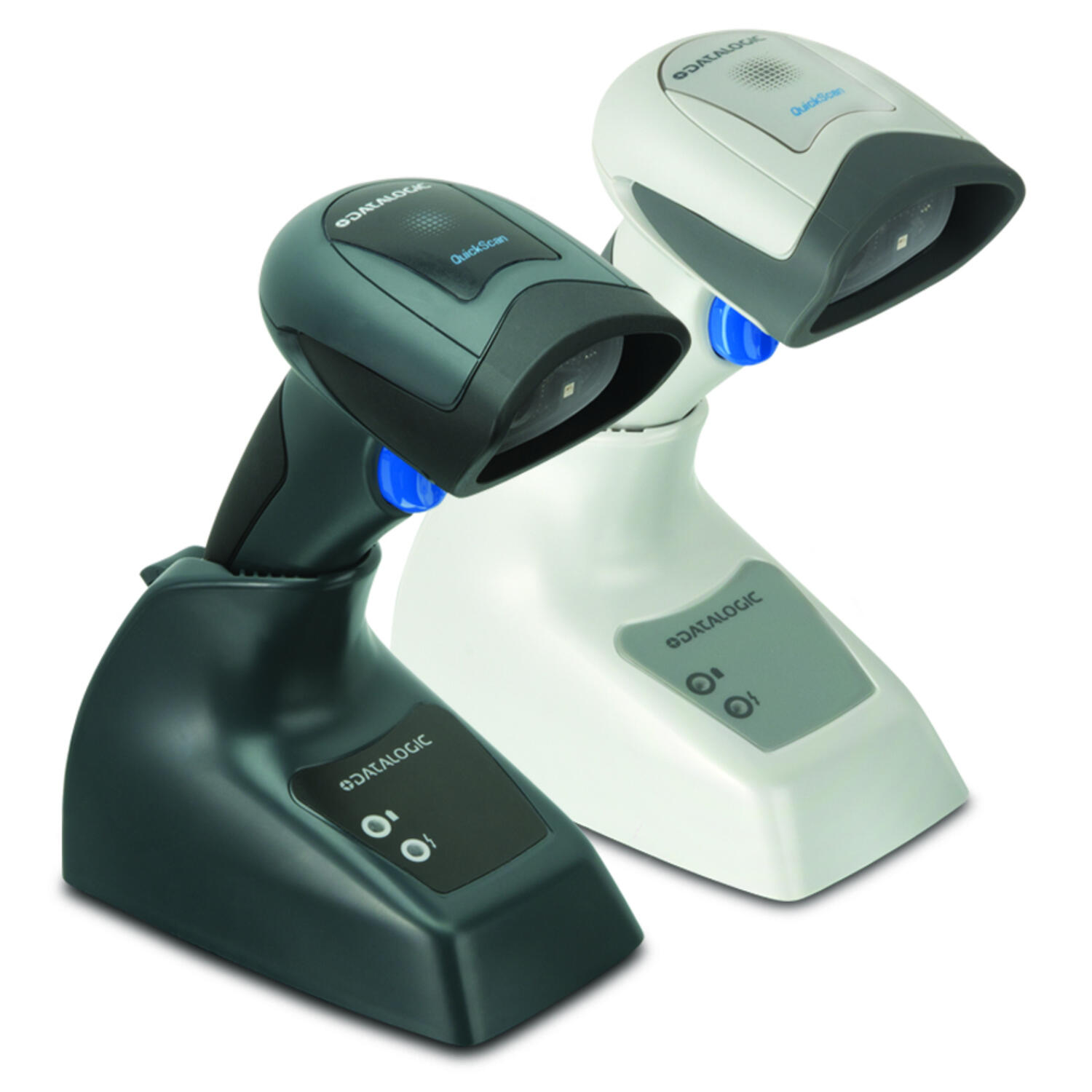

QuickScan QBT2400, BT, USB, 2D kit, Black (Scanner, Micro Cable) Art: QBT2400-BK-BTK+ Copied	Black	Kit includes: Scanner and USB Micro Cable	Bluetooth Wireless Communication
QuickScan QBT2400, BT, USB, 2D kit, White (Scanner, Micro Cable) Art: QBT2400-WH-BTK+ Copied	White	Kit includes: Scanner and USB Micro Cable	Bluetooth Wireless Communication
QuickScanQBT2430, BT,RS-232, 2Dkit, Black(Scanner,Charger,Cable,Power,LineCord) Art: QBT2430-BK-BTK2 Copied	Black	Kit includes: Scanner, Base Station, 90G000008 RS-232 Cable, 8-0935 Power Supply and 6003-0940 EU Line Cord	Bluetooth Wireless Communication
QuickScan QBT2430, BT, USB, 2D kit, Black (Scanner, Charger, Cable) Art: QBT2430-BK-BTK1 Copied	Black	Kit includes: Scanner, Base Station and USB Cable	Bluetooth Wireless Communication
