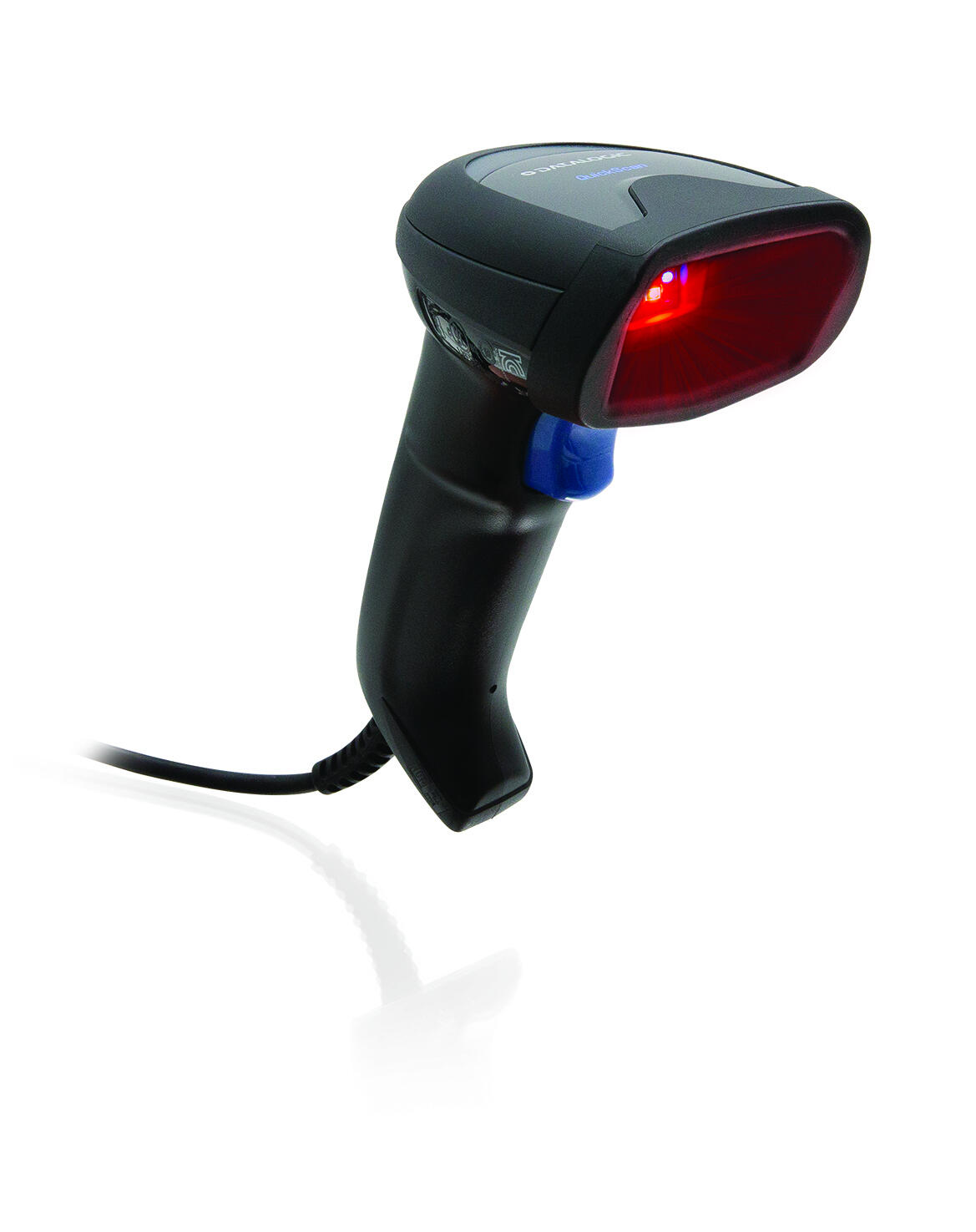

Datalogic QuickScan 2500 Series QD2590-BK

1D Code types	Auto discriminates all standard 1D codes
2D Code Types	Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
Approvals	RoHS
Color	Black
Dimension (mm)	148 x 68 x 126
Drop resistance	Withstands repeated drops from 5ft onto concrete surface
Humidity	0-95% (Non-condensing)
Immunity To Ambient Light	0-110,000 lux
Interface	RS-232, USB, Keyboard wedge multi interface
IP Class	IP52
Kit	No
Light Source	Red LED emmission 624nm
Postal Code Types	China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), UK Postal, Australia Postal, Japan Postal

1D Code types

Auto discriminates all standard 1D codes

2D Code Types

Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code

Approvals

RoHS

Color

Black

Dimension (mm)

148 x 68 x 126

Drop resistance

Withstands repeated drops from 5ft onto concrete surface

Humidity

0-95% (Non-condensing)

Immunity To Ambient Light

0-110,000 lux

Interface

RS-232, USB, Keyboard wedge multi interface

IP Class

IP52

Kit

Light Source

Red LED emmission 624nm

Postal Code Types

China Post, IMB, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), UK Postal, Australia Postal, Japan Postal

Readable code types	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking
Reading Angle Window	Pitch:+/-65°; Tilt: +/- 360°; Skew: +/-65°
Resolution	0.077mm / 3 mils
Sensor type	1 Megapixel: 1280 x 800 pixels
Stacked Code Types	EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites
Temperature range bearing, from	-40
Temperature range bearing, to	70
Temperature range from	0
Temperature range to	50
Weight	145
Wireless	No

Readable code types

1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking

Reading Angle Window

Pitch:+/-65°; Tilt: +/- 360°; Skew: +/-65°

Resolution

0.077mm / 3 mils

Sensor type

1 Megapixel: 1280 x 800 pixels

Stacked Code Types

EAN/JAN Composites, GS1 Databar Composites, GS1 Databar Expanded Stacked, GS1 Databar Stacked, GS1 Databar Stacked Omnidirectional, Macro PDF, Micro PDF 417, PDF 417, UPC A/E Composites

Temperature range bearing, from

-40

Temperature range bearing, to

Temperature range from

Temperature range to

Weight

145

Wireless

Articles	Color	Extra Features	Interface	Kit	Readable code types	Sensor type
QuickScan QD2590, 2D Mpixel Imager, USB/RS-232/Wedge, Black Art: QD2590-BK Copied	Black		RS-232, USB, Keyboard wedge multi interface	No	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking	1 Megapixel: 1280 x 800 pixels

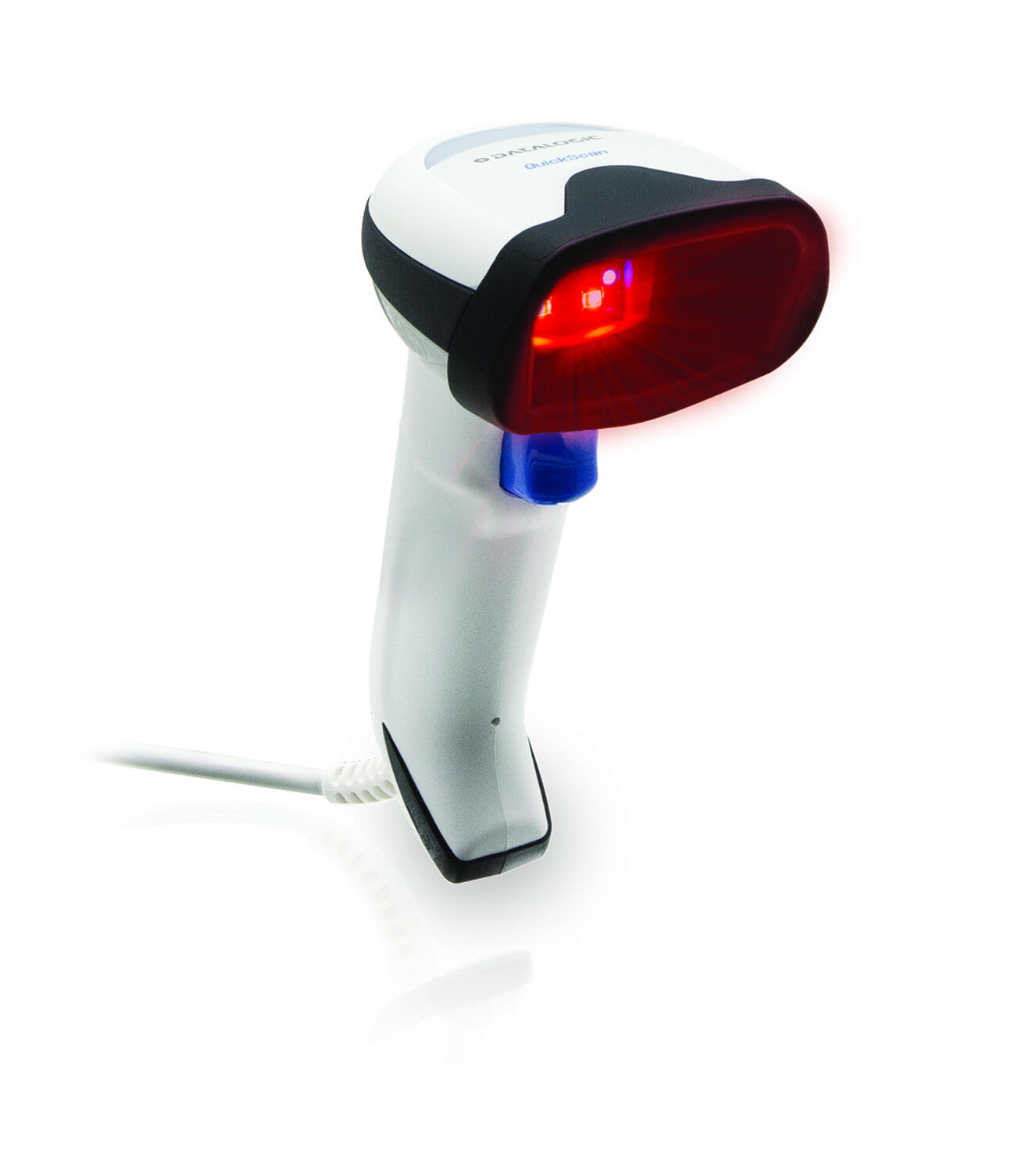

QuickScan QD2590, 2D Mpixel Imager, USB/RS-232/Wedge, White Art: QD2590-WH Copied	White		RS-232, USB, Keyboard wedge multi interface	No	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking	1 Megapixel: 1280 x 800 pixels
QuickScan QD2590 Kit 2D Mpixel, USB/RS-232/Wedge, Black (Cable) Art: QD2590-BKK1 Copied	Black	Kit includes: Scanner and USB Cable 90A052258	RS-232, USB, Keyboard wedge multi interface	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking	1 Megapixel: 1280 x 800 pixels
QuickScan QD2590 Kit 2D Mpixel, USB/RS-232/Wedge, Black (Cable, Stand) Art: QD2590-BKK1S Copied	Black	Kit includes: Scanner, USB Cable 90A052258 and Stand STD-AUTFLX-QD25-BK	RS-232, USB, Keyboard wedge multi interface	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking	1 Megapixel: 1280 x 800 pixels
QuickScan QD2590 Kit 2D Mpixel, USB/RS-232/Wedge, Black (Cable, Stand) Art: QD2590-BKK1B Copied	Black	Kit includes: Scanner, USB Cable 90A052258 and Stand STD-AUTO-QD25-BK	RS-232, USB, Keyboard wedge multi interface	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking	1 Megapixel: 1280 x 800 pixels
QuickScan QD2590 Kit, 2D Mpixel, USB/RS-232/Wedge, White (Cable) Art: QD2590-WHK1 Copied	White	Kit includes: Scanner and USB Cable 90A052278	RS-232, USB, Keyboard wedge multi interface	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking	1 Megapixel: 1280 x 800 pixels

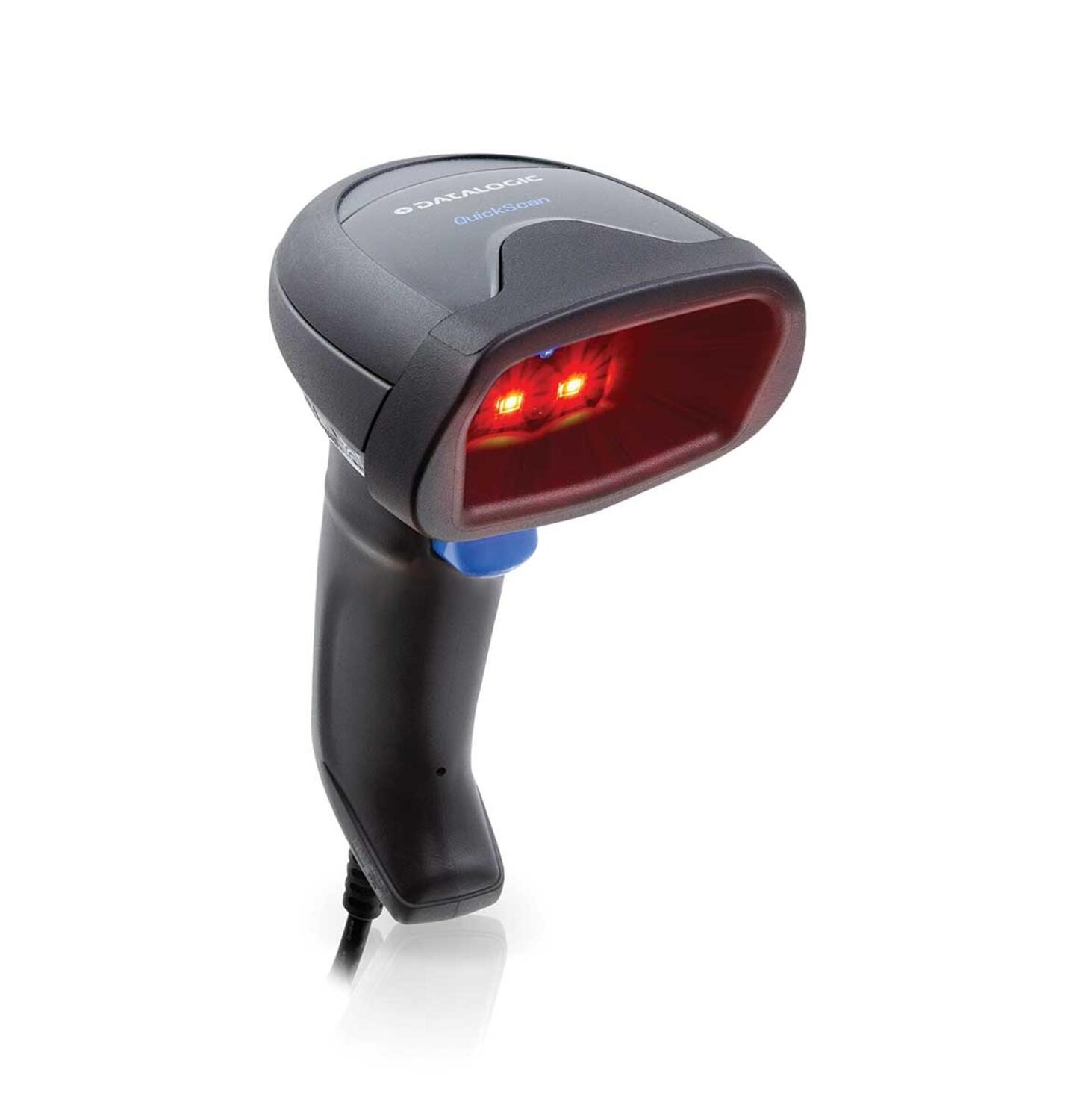

QuickScan QW2520, 2D VGA Imager, USB Interface, Black Art: QW2520-BK Copied	Black		USB only	No	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes	VGA (640 x 480 pixels)
QuickScan QW2520, 2D VGA, USB Interface, Black (Cable) Art: QW2520-BKK1 Copied	Black	Kit includes: Scanner and USB Cable 90A052258	USB only	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes	VGA (640 x 480 pixels)
QuickScan QW2520, 2D VGA Kit, USB Interface, Black (Cable,Stand) Art: QW2520-BKK1S Copied	Black	Kit includes: Scanner, USB Cable 90A052258 and Stand STD-QW25-BK	USB only	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes	VGA (640 x 480 pixels)
QuickScan QW2520, 2D VGA Kit, USB Interface, Black (Cable,Stand) Art: QW2520-BKK11S Copied	Black	Kit includes: Scanner, USB coiled Cable 90A052285 and Stand STD-QW25-BK	USB only	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes	VGA (640 x 480 pixels)
QuickScan QW2520, 2D VGA Kit, USB Interface, Black (Cable) Art: QW2520-BKK11 Copied	Black	Kit includes: Scanner and USB coiled Cable 90A052285	USB only	Yes	1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes	VGA (640 x 480 pixels)

Selected variant

Select a variant in the list

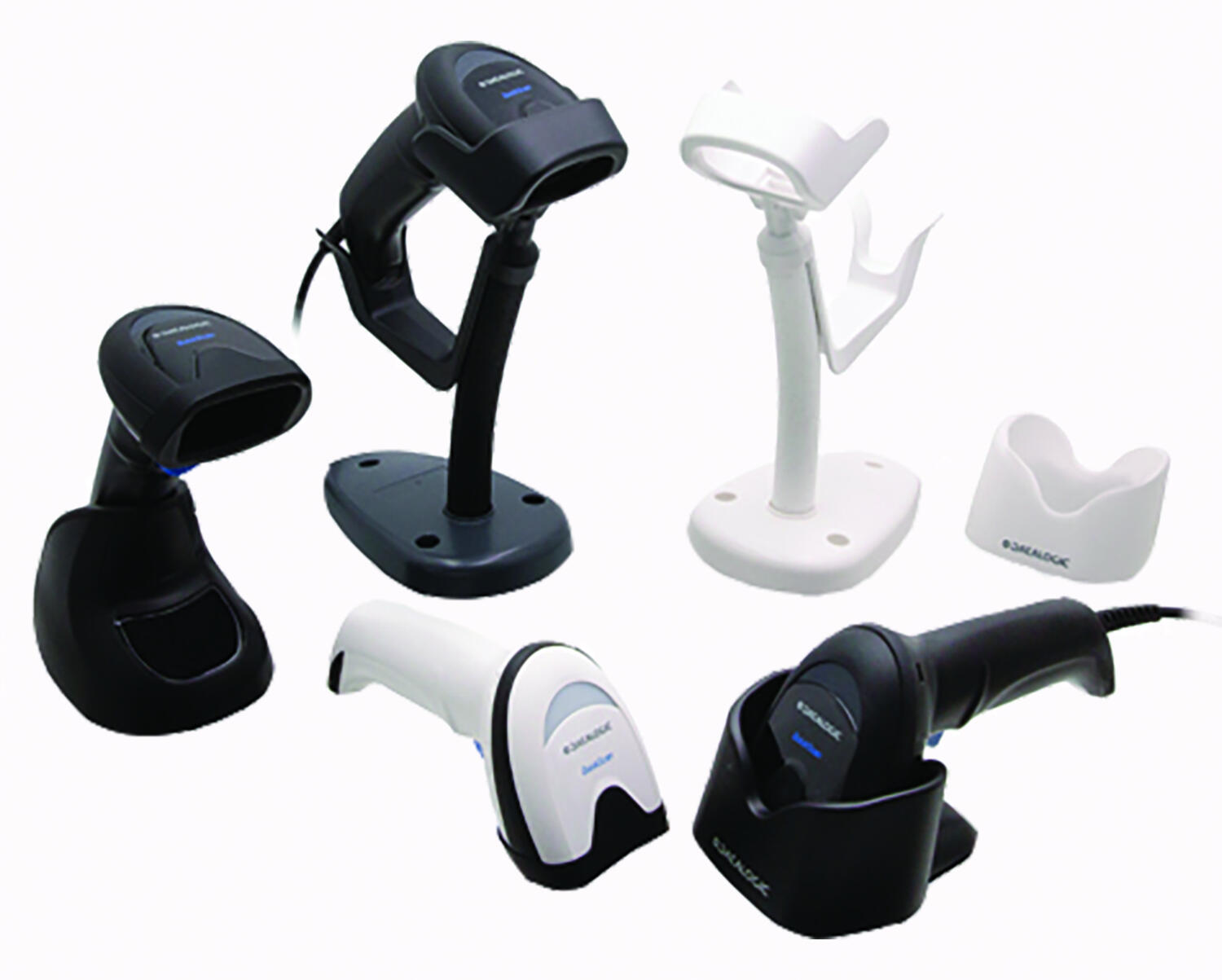

Datalogic QuickScan 2500 Series
