DATALOGIC

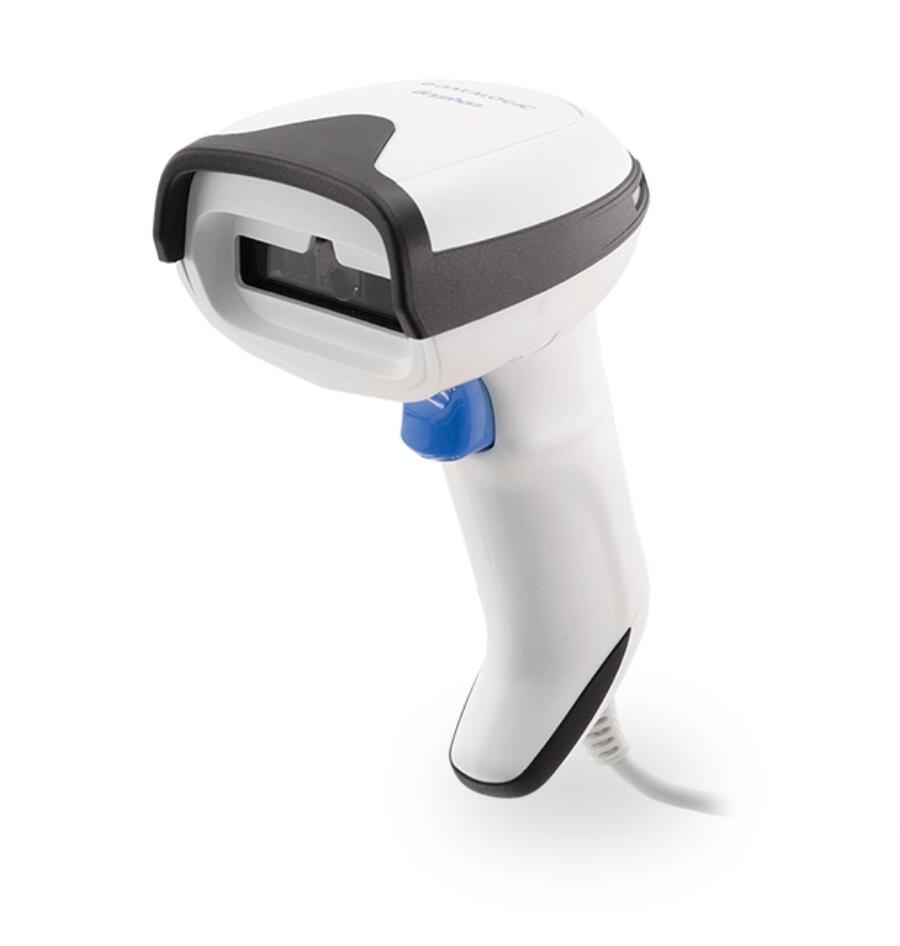

Datalogic Gryphon I GD4200

Detects all standard 1D codes
Image sensor: CCD solid-state
1,000,000 pixels/sec
Interfaces: USB type C, USB, RS-232, multi interface

Selected variant

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

1D Code types	Auto discriminates all standard 1D codes
Approvals	RoHS
Color	Black
Dimension (mm)	166 x 68 x 109
Drop resistance	Withstands repeated drops from 6ft on concrete surface
Humidity	0-95% (Non-condensing)
Immunity To Ambient Light	0 - 130,000 lux
Interface	USB type C, USB, RS-232, Keyboard wedge multi interface
IP Class	IP52
Kit	No
Light Source	Dual LED array: 612 - 630nm
Output current	<350mA@5V, <150mA@12V

Readable code types	1D / Linear Codes
Reading Angle Window	Pitch:+/-65°; Tilt: +/- 45°; Skew: +/-65°
Reading Speed	1,000,000 pixel/sec (400 reads/sec)
Resolution	0.077 mm / 3 mils
Sensor type	CCD
Temperature range bearing, from	-40
Temperature range bearing, to	70
Temperature range from	0
Temperature range to	50
Weight	163
Wireless	No

Downloads

Gryphon 4200 Corded Data Sheet _ English.pdf

Accessories

Related products

My favourites	Articles	Color	Extra Features	Interface	Kit	Price
	Gryphon I GD4290, Linear Imager, USB/RS-232/Wedge Multi-Interface, Black Art: GD4290-BK Copied	Black		USB type C, USB, RS-232, Keyboard wedge multi interface	No
	Gryphon I GD4290, Linear Imager, USB/RS-232/Wedge Multi-Interface, White Art: GD4290-WH Copied	White		USB type C, USB, RS-232, Keyboard wedge multi interface	No
	Gryphon I GD4220 Kit, Linear Imager, USB, Black (Scanner and USB Cable) Art: GD4220-BKK1 Copied	Black	Kit includes: Scanner and USB Cable 90A052258	USB type C, USB only	Yes
	Gryphon I GD4220 Kit, Linear Imager, USB, White (Scanner and USB Cable) Art: GD4220-WHK1 Copied	Black	Kit includes: Scanner and USB Cable 90A052278	USB type C, USB only	Yes
