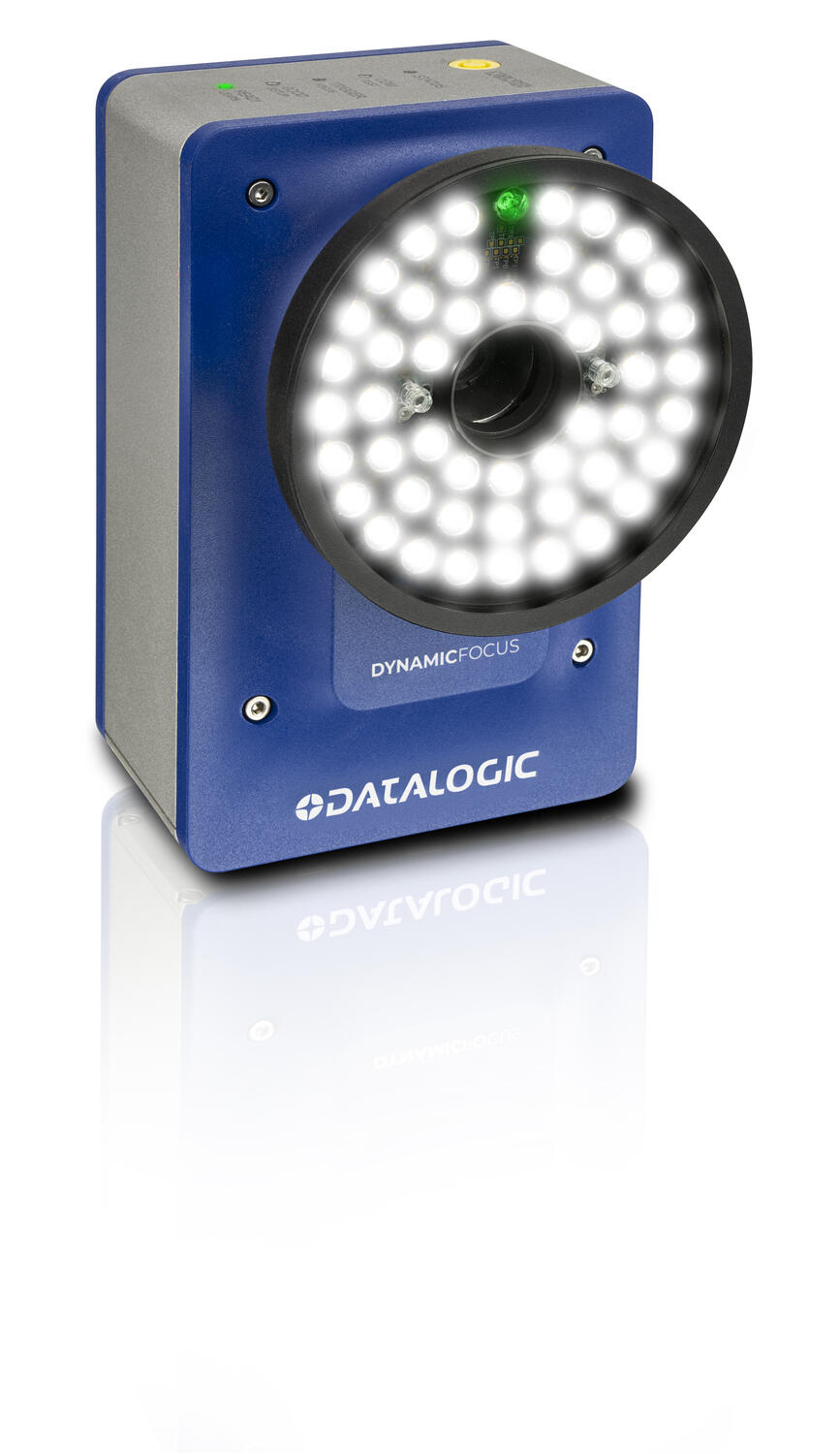

Datalogic AV500/900 series

  • 5MP or 9MP resolution
  • Detects 1D and 2D code types
  • Up to 32 fps
  • Integrated communication via Ethernet TCP/IP, Serial

Selected variant

Avaible in several variants
DATALOGIC17.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

1D Code types Code 39, Code 93, Code 128, Codabar, Pharmacode, Code 32, GS1-128, MSI, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Matrix 2/5
2D Code Types Data Matrix, MaxiCode, Micro QR Code, QR Code
Colour LED White
Dimension (mm) 200 x 126 x 130
Frame Rate Max 32
Integrated Communication Interface Ethernet TCP/IP, Serial
IP Class IP65
Material of body Die cast aluminium
Postal Code Types Aztec Code, KIX Post, Planet Code, Postnet, Swedish Post, Australia Postal, Japan Postal, Royal Mail 4 State Customer, Postnet (+BB), Intelligent Mail
Programming Options e-GENIUS multi-language, browser based, on board HTML web server interface
Readable code types 1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes
Resolution 5 MP
Sensor type CMOS
Stacked Code Types Micro PDF 417, PDF 417, EAN 8-13 - UPC-A/E (Including Addon 2 and 5), GS1 Databar Family
Supply voltage 24 V DC
Temperature range bearing, from -20
Temperature range bearing, to 70
Temperature range from 0
Temperature range to 50
Type of lens 16mm C-Mount
Weight 2900

Downloads

Accessories

My favourites Articles Colour LED Resolution Type of lens Price
938000007, 16mm, f/6, White LED
Art:
AV500166W Copied
White
5 MP
16mm C-Mount
938000005, 25mm, f/7, White LED
Art:
AV500257W Copied
White
5 MP
25mm C-Mount
938000006, 25mm, f/8, White LED
Art:
AV500258W Copied
White
5 MP
25mm C-Mount
938000001, 35mm, f/7, White LED
Art:
AV500357W Copied
White
5 MP
35mm C-Mount
938000002, 35mm, f/8, White LED
Art:
AV500358W Copied
White
5 MP
35mm C-Mount
938000017, 16mm, f/6, Red LED
Art:
AV500166R Copied
Red
5 MP
16mm C-Mount
938000015, 25mm, f/7, Red LED
Art:
AV500257R Copied
Red
5 MP
25mm C-Mount
938000016, 25mm, f/8, Red LED
Art:
AV500258R Copied
Red
5 MP
25mm C-Mount
938000011, 35mm, f/7, Red LED
Art:
AV500357R Copied
Red
5 MP
35mm C-Mount
938000012, 35mm, f/8, Red LED
Art:
AV500358R Copied
Red
5 MP
35mm C-Mount
938000105, 25mm, f/7, White LED
Art:
AV900257W Copied
White
9 MP
25mm C-Mount
938000115, 25mm, f/7, Red LED
Art:
AV900257R Copied
Red
9 MP
25mm C-Mount
938000102, 35mm, f/8, White LED
Art:
AV900358W Copied
White
9 MP
35mm C-Mount
938000112, 35mm, f/8, Red LED
Art:
AV900358R Copied
Red
9 MP
35mm C-Mount

Selected variant

Select a variant in the list
