Thanks to its high-performance CCD sensor, combined with built-in technology for reconstruction of codes, TC1200 can permit fast, correct reading even when the code is damaged or of poor quality. The reader's high immunity to ambient light and its excellent read capacity allows it to be installed in all environments. As a CCD sensor has no moving parts, TC1200 is extremely reliable. The optional mirror, angled 80°, for side installation allows this device to be installed even in enclosed spaces.
1D Code types | Code 39, Code 93, Code 128, Codabar, ISBT128, Code 32, GS1-128, ABC Codabar, Code 11, MSI, GS1 Databar Expanded Stacked, GS1 Databar Stacked Omnidirectional, UPC/EAN, Interleaved 2/5, Standard 2/5 |
---|---|
2D Code resolution Max | 0,1 |
Depth-Max | 0,41 |
Digital Inputs | 1 |
Digital Outputs | 2 |
Dimension (mm) | 50 x 20.8 x 43 |
Immunity To Ambient Light | 100.000 LUX |
Integrated Communication Interface | RS232, USB |
Interface | RS232 |
IP Class | IP64 |
Power Consumption | 1,75 |
Read Speed | 320 |
Readable code types | 1D / Linear Codes |
---|---|
Reading Distance | 460 |
Resolution | 0.10mm |
Supply voltage | 5 V DC ± 5% |
Temperature range bearing, from | -20 |
Temperature range bearing, to | 70 |
Temperature range from | 0 |
Temperature range to | 50 |
User Interface | 3 LEDs 'Power', 'Good read', 'Trigger' 1 Button for manual triggering |
Weight | 30 |
Thanks to its high-performance CCD sensor, combined with built-in technology for reconstruction of codes, TC1200 can permit fast, correct reading even when the code is damaged or of poor quality. The reader's high immunity to ambient light and its excellent read capacity allows it to be installed in all environments. As a CCD sensor has no moving parts, TC1200 is extremely reliable. The optional mirror, angled 80°, for side installation allows this device to be installed even in enclosed spaces.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Dimension (mm) | Interface | Material of body | User Interface | Weight | Price | |
---|---|---|---|---|---|---|---|---|
![]()
939501110, Scan Engine, CCD reader, RS232
Art:
TC1200-0000
Copied
|
50 x 20.8 x 43
|
RS232
|
|
3 LEDs 'Power', 'Good read', 'Trigger' 1 Button for manual triggering
|
30
|
| ||
![]()
939501111, Scan Engine, CCD Reader, USB
Art:
TC1200-0100
Copied
|
50 x 20.8 x 43
|
USB
|
|
3 LEDs 'Power', 'Good read', 'Trigger' 1 Button for manual triggering
|
30
|
| ||
![]()
939501108, CCD reader, RS232
Art:
TC1200-1000
Copied
|

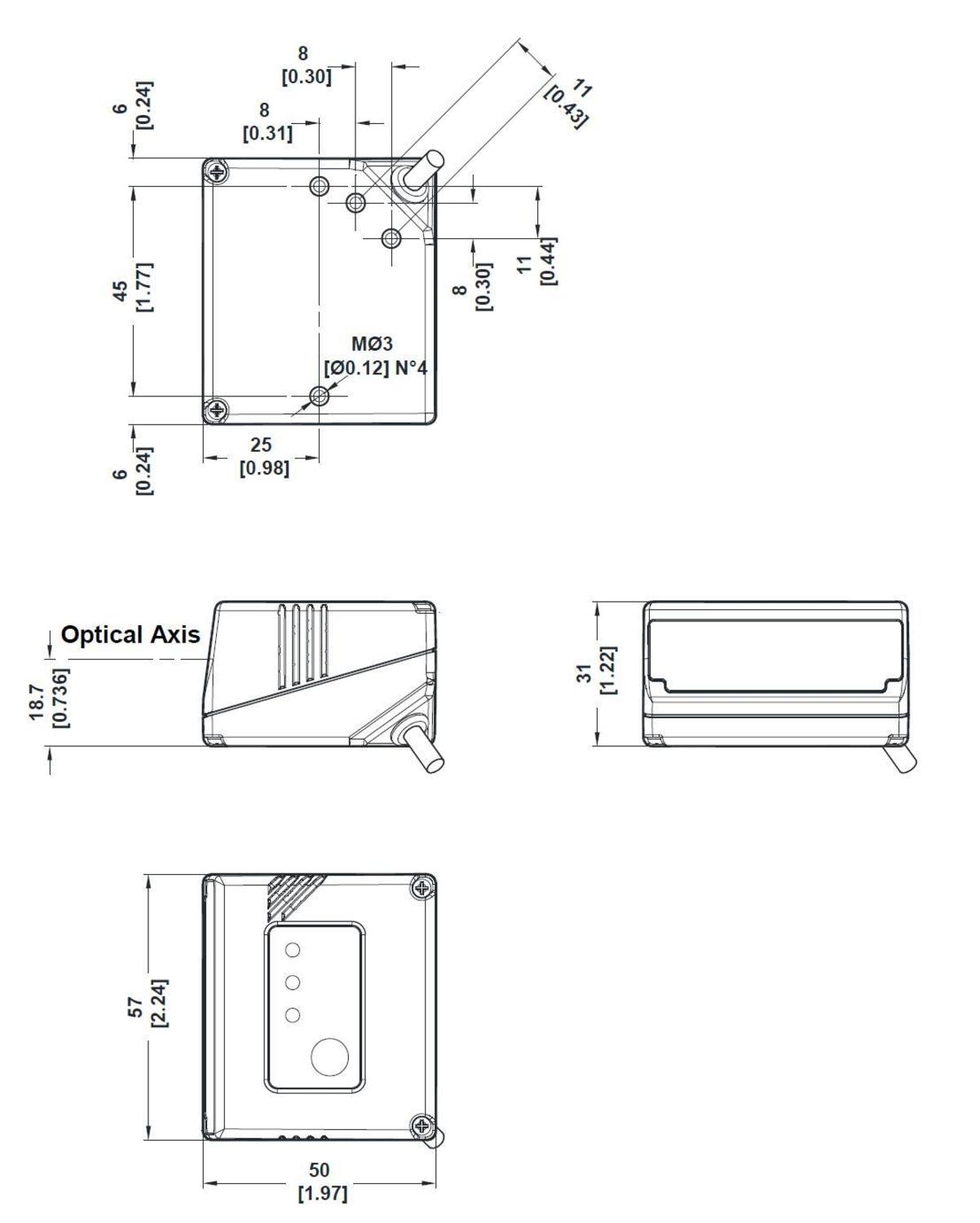

57 x 31 x 50
|
RS232
|
ABS plastic
|
3 LEDs 'Power', 'Good Read', 'Trigger' 1 Button for manual triggering
|
120
|
| ||
![]()
939501109, CCD Reader, USB
Art:
TC1200-1100
Copied
|
57 x 31 x 50
|
USB
|
ABS plastic
|
3 LEDs 'Power', 'Good Read', 'Trigger' 1 Button for manual triggering
|
105
|
|
