Coil Material | Epoxy |
---|---|
Connection Thread | 3/8 BSP |
Differential Pressure Max | 9 |
Differential Pressure Min | 0 |
Flow Factor / Flow Coefficient | 2,4 |
Flow Max l/min Double | 40 |

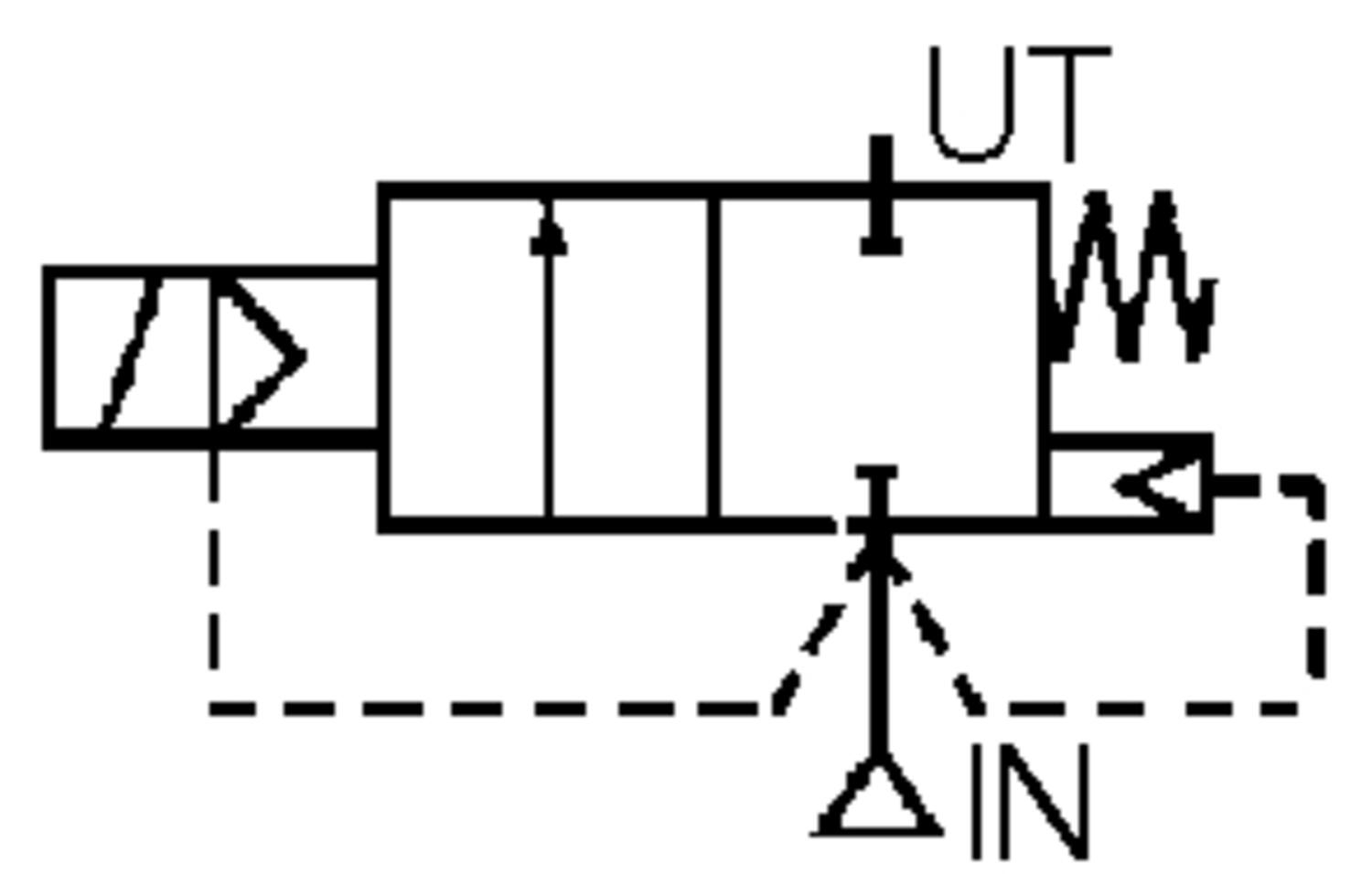

Function 1 | 2/2 |
Function 2 | Normally Closed (SPST) |
IP Class | IP65 |
Material Body | Brass |
Material Bolt | Brass |
Material of seals | PTFE |
Material piston ring | PTFE flask filled |
Material Plunger | Stainless steel |
Material Short Call | Copper |
Materials Seat | Brass |
---|---|
Materials Spring | Stainless steel |
Max. pressure | 10 |
Power Consumption | 16,7 |
Response Closing | 75 |
Response From Stroke | 100 |
Temperature range from | -20 |
Temperature range of media from | -20 |
Temperature range of media to | 184 |
Temperature range to | 40 |
Throughput | 16 |
Type of valve | Solenoid valve |
Weight | 1,3 |
Voltage AC | 230 |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Connection Thread | Flow Factor / Flow Coefficient | Flow Max l/min Double | Mounting | Throughput | Weight | Price | |
---|---|---|---|---|---|---|---|---|---|
![]()
Solenoid valve 2/2 NC 3/8" 230/50
Art:
SCE222D001
Copied
|
3/8 BSP
|
2,4
|
40
|
|
16
|
1,3
|
| ||
![]()
Solenoid valve 2/2 NC 1/2" 230/50
Art:
SCE222D002
Copied
|
1/2 BSP
|
3,3
|
55
|
|
16
|
1,3
|
| ||
![]()
Solenoid valve 2/2 NC 3/4" 230/50
Art:
SCE222E003
Copied
|
3/4 BSP
|
5,1
|
85
|
Vertical
|
19
|
2
|
|
Select a variant in the list
