ASCO

ASCO - 2/2 Steam valve 3/8"-2"

  • Normally closed
  • Media temperature up to +185 °C
  • Working pressure 0.35 to 10 bar steam
  • Housing in brass

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Coil Material Epoxy
Connection Thread 3/8 BSP
Differential Pressure Air Max 10
Differential Pressure Max 10
Differential Pressure Min 0,35
Differential Pressure Water Max 10
Flow Max l/min Double 43
Function 1 2/2
Function 2 Normally Closed (SPST)
IP Class IP65
Material Body Brass
Material of seals EPDM
Material Plunger Stainless steel
Material Short Call Copper
Materials Seat Brass
Materials Seat Seal PTFE
Materials Spring Stainless steel
Max. pressure 10
Power Consumption 10,5
Response Closing 40
Response From Stroke 120
Temperature range from -20
Temperature range of media from -20
Temperature range of media to 184
Temperature range to 40
Throughput 16
Type of valve Solenoid valve
Voltage AC 230

Downloads

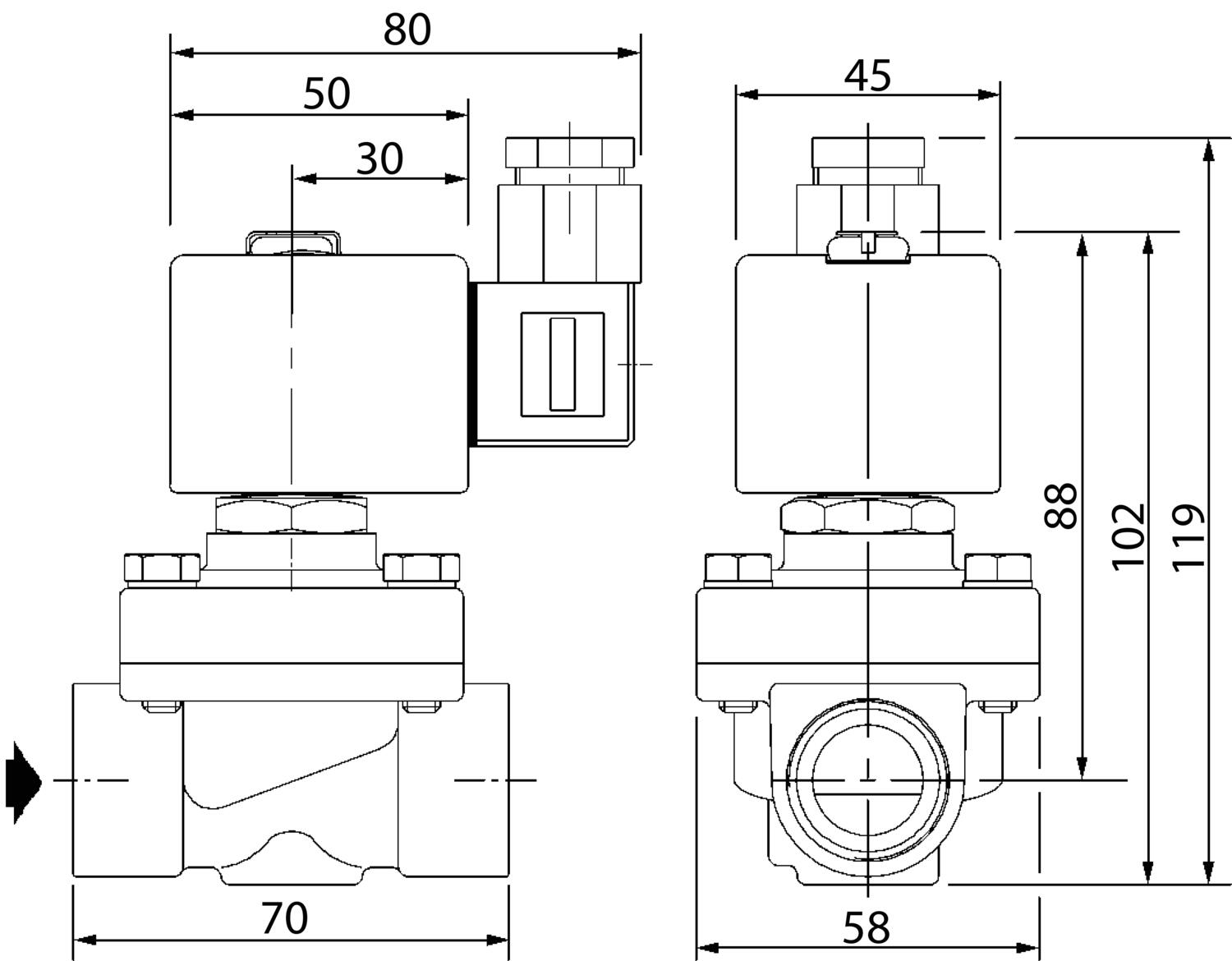

Measurements and connections

Accessories

My favourites Articles Connection Thread Flow Max l/min Double Throughput Price
139246_812.tif
Solenoid valve 2/2 NC 3/8" 230/50
Art:
SCE220A019 Copied
3/8 BSP
43
16
139246_812.tif
Solenoid valve 2/2 NC 1/2" 230/50Hz
Art:
SCE220A021 Copied
1/2 BSP
58
16
139246_812.tif
Solenoid valve 2/2 NC 3/4" 230/50
Art:
SCE220A023 Copied
3/4 BSP
72
19
139246_812.tif
Solenoid valve 2/2 NC 1" 230VAC
Art:
SCE220025 Copied
G1
193
25
139251_812.tif
Solenoid valve 2/2 NC 11/4" 230VAC
Art:
SCE220027 Copied
1 1/4 BSP
213
28
139251_812.tif
Solenoid valve 2/2 NC 11/2" 230VAC
Art:
SCE220029 Copied
1 1/2 BSP
325
32
139251_812.tif
Solenoid valve 2/2 NC 2" 230VAC
Art:
SCE220031 Copied
G2
617
44

Selected variant

Select a variant in the list
