ASCO
Air controlled slide valve for 1/4" connection or NAMUR. The 1/4" valve can be ordered in an environmental protection version, whereas it is standard with the NAMUR valve. Environmental protection means that all the internal parts of the valve are totally sealed against fluids, dust, corrosive substances etc. that may be present in the surroundings.
The 1/4" valve is ordered in 3/2 or 5/2 versions and can be single or manifold mounted for common supply. The NAMUR valve is delivered with two adapter plates as standard. The valve can then be adapted to 3/2 or 5/2 function by fitting the relevant plate.
Approvals | IEC, TÜV |
---|---|

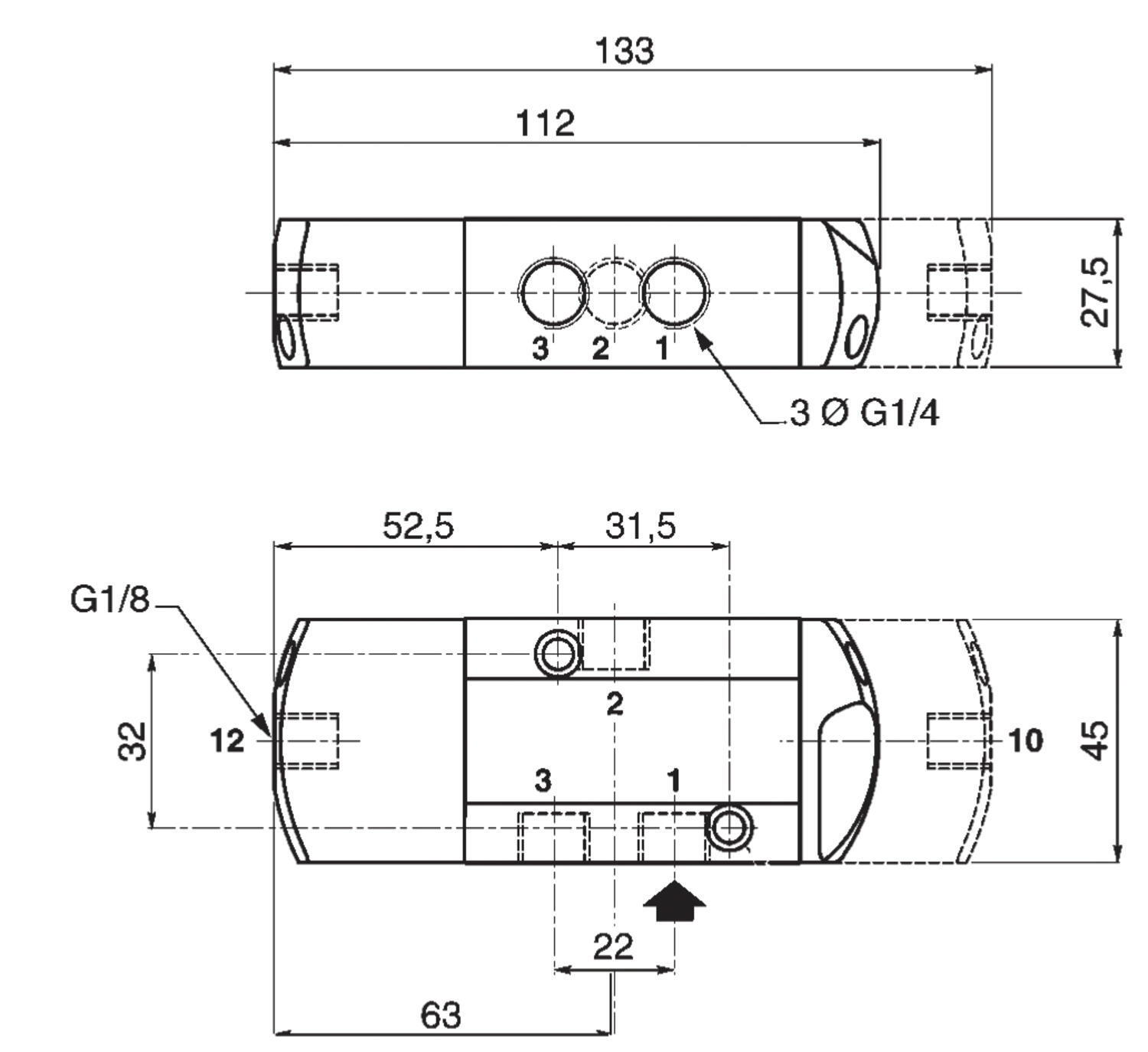

Connection Air | G1/8 |
Connection Thread | G1/4 |
Differential Pressure Max | 10 |
Differential Pressure Min | 0 |
Flow Max l/min Double | 860 |

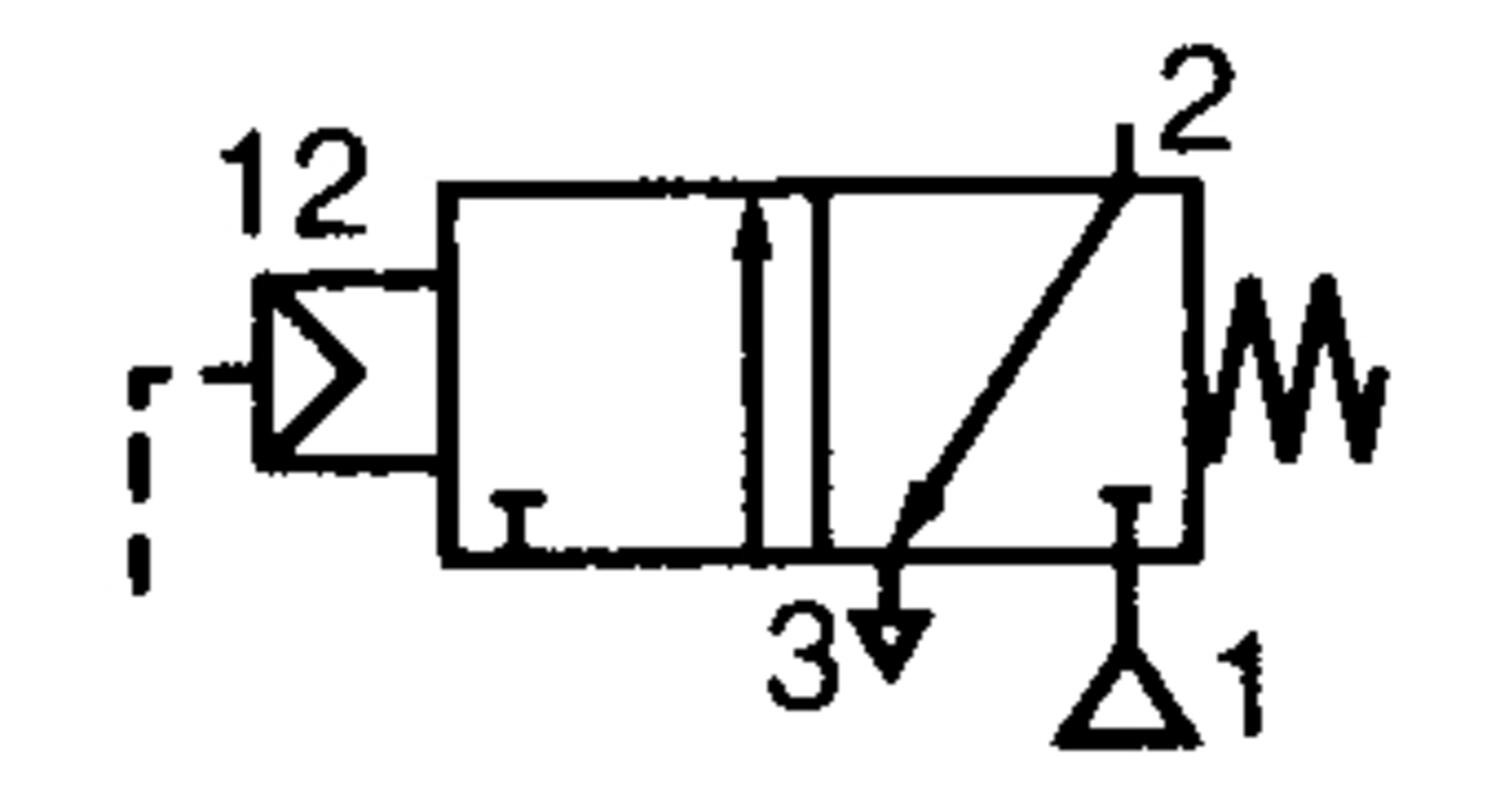

Function | 3/2, Air-controlled with spring return, Normally Closed (SPST) |
IP Class | IP65 |
Manual operation | No |
Material of body | Anodised aluminum |
Material of seals | NBR, PUR |
Materials Internal Parts | Aluminium, POM, Stainless steel |
---|---|
Max. pressure | 10 |
Mounting | Independent |
Pilot Pressure Max | 10 |
Pilot Pressure Min | 2 |
Short Circuit Protection | No |
Temperature range from | -25 |
Temperature range to | 60 |
Type of valve | Air controlled |
Weight | 0,43 |
Air controlled slide valve for 1/4" connection or NAMUR. The 1/4" valve can be ordered in an environmental protection version, whereas it is standard with the NAMUR valve. Environmental protection means that all the internal parts of the valve are totally sealed against fluids, dust, corrosive substances etc. that may be present in the surroundings.
The 1/4" valve is ordered in 3/2 or 5/2 versions and can be single or manifold mounted for common supply. The NAMUR valve is delivered with two adapter plates as standard. The valve can then be adapted to 3/2 or 5/2 function by fitting the relevant plate.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Flow Max l/min Double | Function | Mounting | Price | |
---|---|---|---|---|---|---|
![]()
Valve 3/2. Air-monost. G1/4"
Art:
G551A105
Copied
|
860
|
3/2, Air-controlled with spring return, Normally Closed (SPST)
|
Independent
|
| ||
![]()
Valve 3/2. Air-monost. G1/4"
Art:
G551A106
Copied
|
860
|
3/2, air operated, Normally Closed (SPST)
|
Independent
|
| ||
![]()
Valve 5/2 Air-spr. Flow 860 l/min G1/4
Art:
G551A117
Copied
|
860
|
5/2, Air-controlled with spring return
|
Independent
|
| ||
![]()
Valve 5/2 Air-air. Flow 860 l/min G 1/4
Art:
G551A118
Copied
|
860
|
5/2, air operated
|
Independent
|
| ||
![]()
Valve NAMUR. Air-spring return
Art:
G551A101
Copied
|
700
|
3/2-5/2, Air-controlled with spring return, NAMUR, Normally Closed (SPST)
|
NAMUR standard
|
| ||
![]()
Valve NAMUR. Air-air (bistable)
Art:
G551A102
Copied
|
700
|
3/2-5/2, air operated, NAMUR
|
NAMUR standard
|
|
Select a variant in the list
