ASCO

ASCO - 210 Series Pilot Operated

2/2

  • Normally closed or normally open
  • 3/8" up to 1 1/2" pipe size
  • Air, inert gas, water & oil
  • Housing in brass or stainless steel
  • Flow rates from 2.6 up to 19.3 m3/h

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Coil Material Epoxy
Connection Thread 3/8 BSP
Differential Pressure Air Max 14
Differential Pressure Max 14
Differential Pressure Min 0,35
Differential Pressure Oil Max 10
Differential Pressure Water Max 10
Flow Factor / Flow Coefficient 2,6
Flow Max l/min Double 43
Function 1 2/2
Function 2 Normally Closed (SPST)
Material Body Brass
Material of seals NBR
Material Plunger Stainless steel
Material Short Call Copper
Materials Seat Brass
Materials Spring Stainless steel
Max. pressure 20
Membrane Material NBR
Power Consumption 6
Response Closing 15
Response From Stroke 60
Temperature range from -20
Temperature range of media from -20
Temperature range of media to 85
Temperature range to 75
Throughput 16
Type of valve Solenoid valve
Weight 0,8
Viscosity Max 65
Voltage AC 230

Downloads

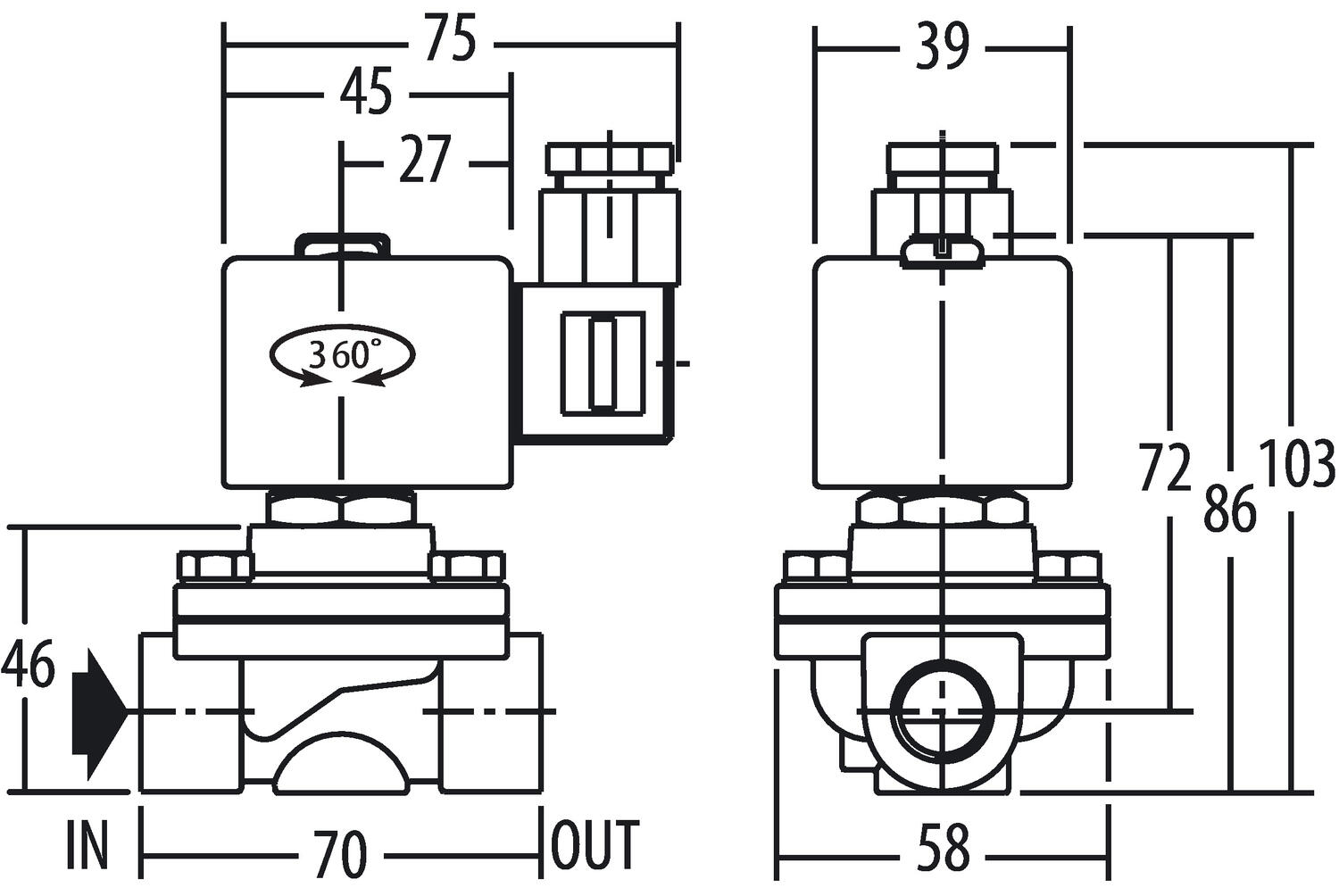

Measurements and connections

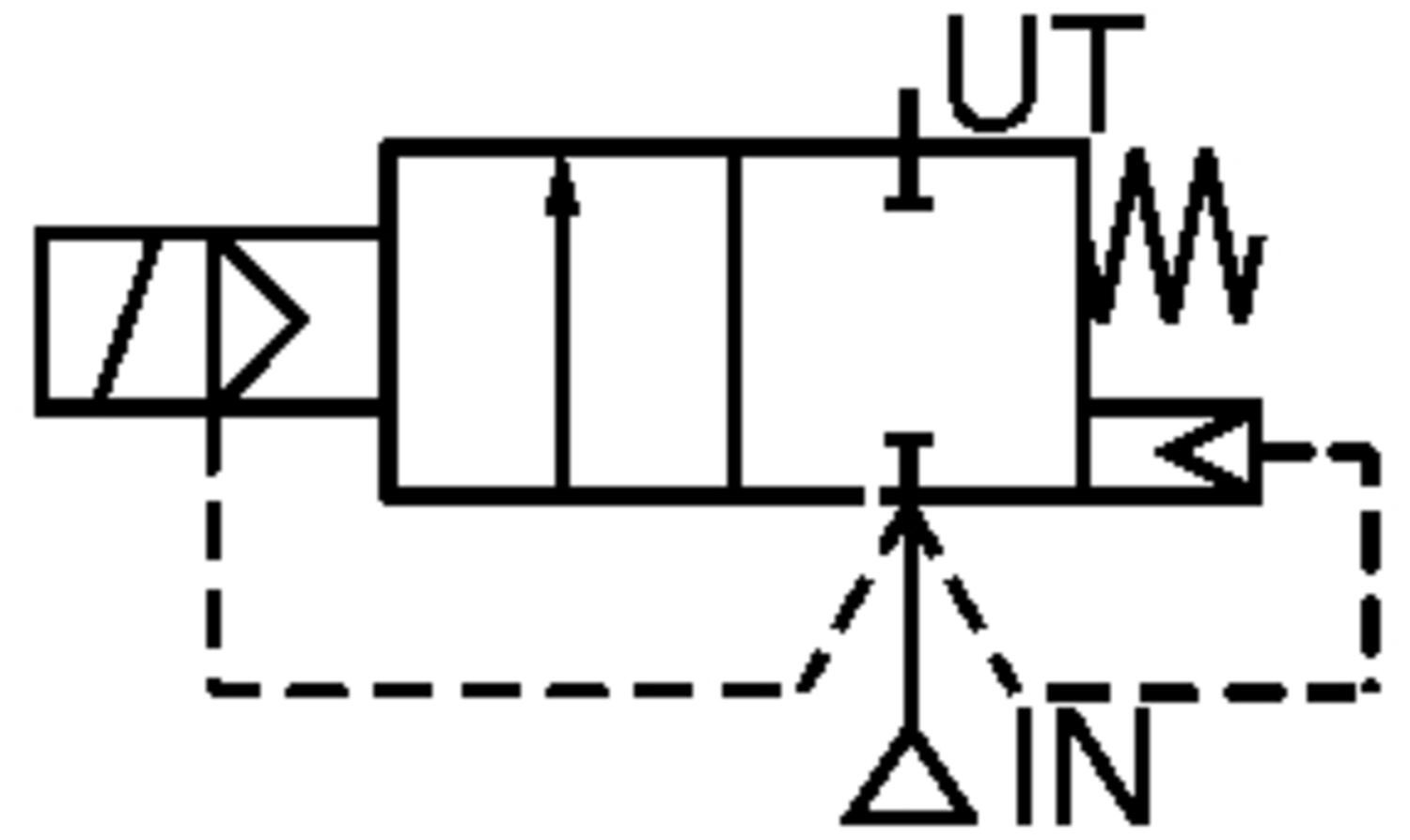

Technical illustrations

Accessories

Related products

My favourites Articles Connection Thread Differential Pressure Air Max Differential Pressure Max Differential Pressure Oil Max Differential Pressure Water Max Flow Factor / Flow Coefficient Flow Max l/min Double Function 2 Max. pressure Power Consumption Response Closing Response From Stroke Throughput Weight Price
139344_812.tif
Solenoid valve 2/2 NC 3/8" 230/50
Art:
SCE210D001 Copied
3/8 BSP
14
14
10
10
2,6
43
Normally Closed (SPST)
20
6
15
60
16
0,8
139344_812.tif
Solenoid valve 2/2 NC 1/2"" 230/50
Art:
SCE210D002 Copied
1/2 BSP
14
14
10
10
3,4
57
Normally Closed (SPST)
20
6
15
60
16
0,8
139344_812.tif
Solenoid valve 2/2 NC 3/4 230/50
Art:
SCE210D009 Copied
3/4 BSP
9
9
9
9
4,3
72
Normally Closed (SPST)
20
6
15
60
19
0,8

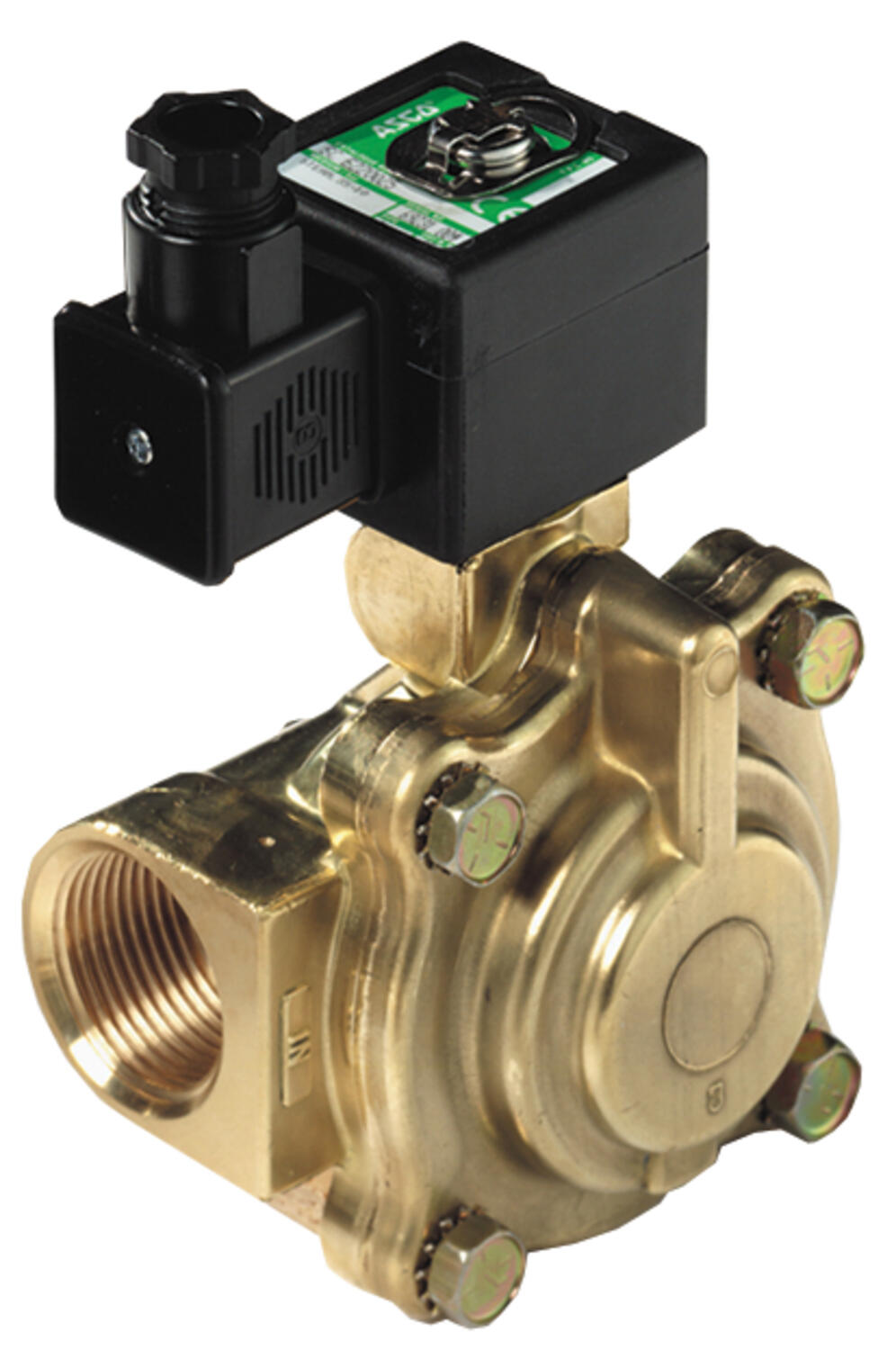

139393_812.tif
Solenoid valve 2/2 NC 1" 230/50
Art:
SCE210D004 Copied
G1
9
9
9
9
11,1
185
Normally Closed (SPST)
20
6
40
120
25
1,8
139393_812.tif
Solenoid valve 2/2 NO 1" 230/50
Art:
SCE210D014 Copied
G1
9
9
9
9
11,1
185
Normally open (SPST)
18
15,4
40
120
25
2,1
