ASCO - 2/2 Seat valve air controlled 1/2"-2"
- Normally closed, normally open
- Working pressure 0 to 40 bar
- For temperatures up to +250 °C
- For viscosity up to 5,000 cSt
Selected variant
Selected variant
Specifications
| Connection Air | 1/8 BSP |
|---|---|
| Connection Thread | 1/2 BSP |
| Differential Pressure Air Max | 40 |
| Differential Pressure Max | 40 |
| Differential Pressure Min | 0 |
| Differential Pressure Oil Max | 40 |
| Differential Pressure Water Max | 40 |
| Differential steam pressure max | 40 |

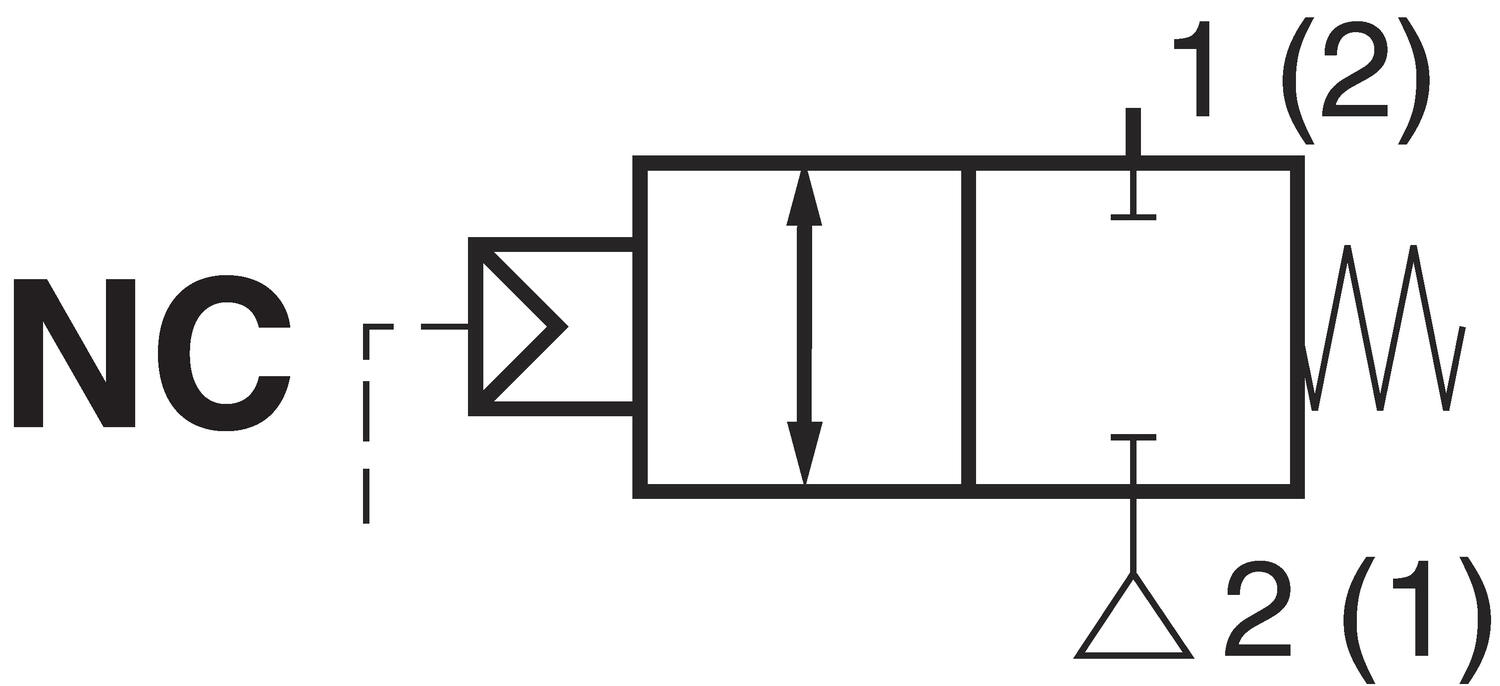

| Function 1 | 2/2 |
| Function 2 | Normally Closed (SPST) |
| Material Body | Stainless steel 316L |
| Material of seals | Graphite |
| Material Operator | Nickel plated aluminum |
| Material Rod | Stainless steel |
| Materials Gland | PTFE flask filled |
|---|---|
| Materials Piston Seal | Bronze, PTFE |
| Packing Materials | Stainless steel |

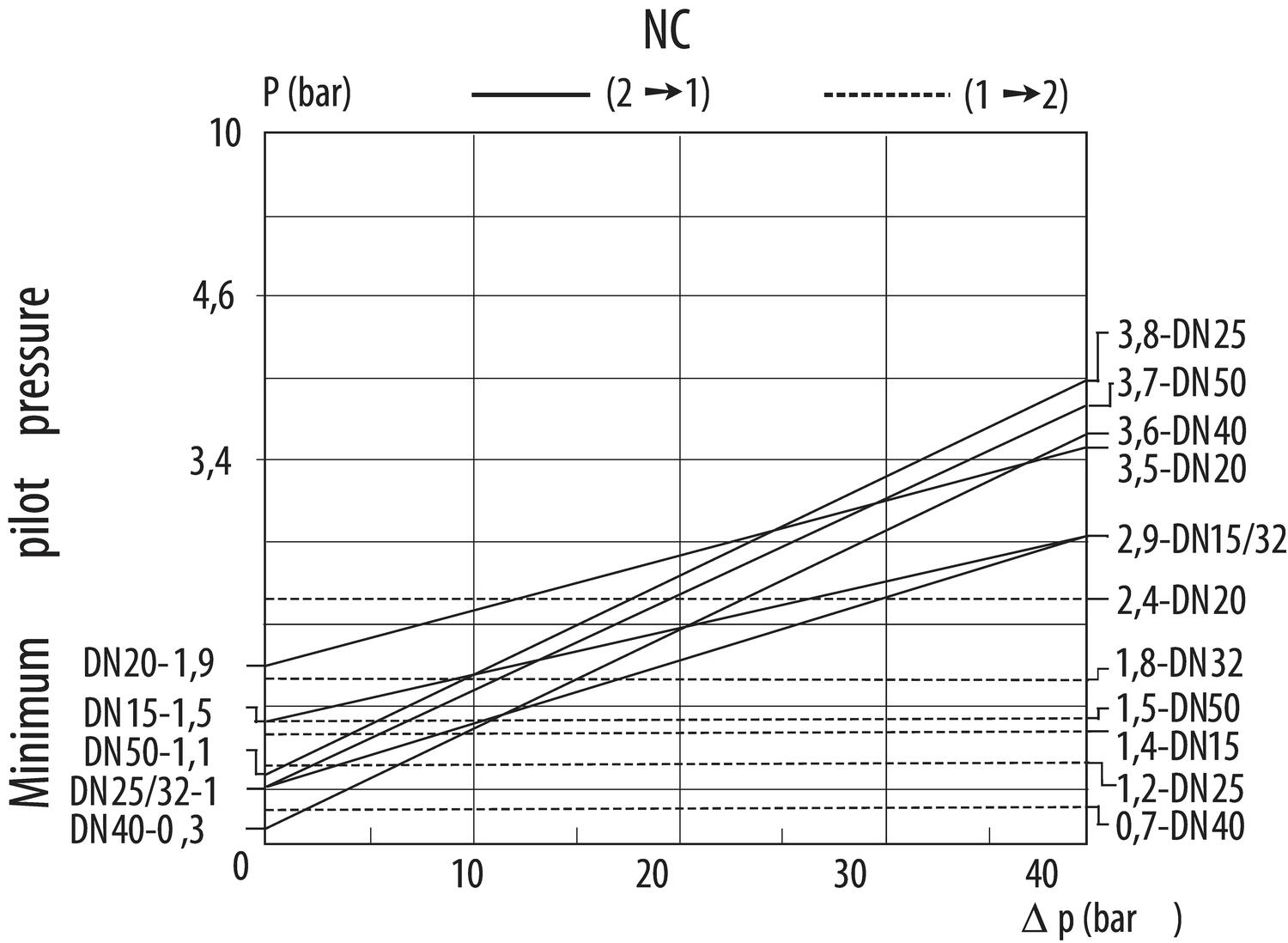

| Pilot Pressure Max | 10 |
| Temperature range from | -25 |
| Temperature range of media from | -10 |
| Temperature range of media to | 250 |
| Temperature range to | 180 |
| Throughput | 15 |
| Type of valve | Seat valve |
| Weight | 1,82 |
| Viscosity Max | 5000 |
