Coil Material | Epoxy |
---|---|
Connection Thread | 3/4 BSP |
Differential Pressure Air Max | 8,5 |
Differential Pressure Min | 0,35 |
Flow Factor / Flow Coefficient | 14 |
Flow Max l/min Double | 233 |
Function 1 | 2/2 |
Function 2 | Normally Closed (SPST) |
IP Class | IP65 |
Material Body | Aluminium |
Material of seals | NBR |
Material Plunger | Stainless steel |
Material Short Call | Copper |
Materials Spring | Stainless steel |
---|---|
Max. pressure | 10 |
Membrane Material | TPE |
Power Consumption | 6 |
Temperature range from | -20 |
Temperature range of media from | -20 |
Temperature range of media to | 85 |
Temperature range to | 85 |
Throughput | 25 |
Weight | 0,7 |
Voltage AC | 230 |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Connection Thread | Differential Pressure Air Max | Differential Pressure Max | Differential Pressure Min | Flow Factor / Flow Coefficient | Flow Max l/min Double | Membrane Material | Power Consumption | Throughput | Weight | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Solenoid pulse valve 2/2 NC 3/4" 230VAC Thread
Art:
SCG353A043
Copied
|
3/4 BSP
|
8,5
|
|
0,35
|
14
|
233
|
TPE
|
6
|
25
|
0,7
|
| ||
![]()
Solenoid pulse valve 2/2 NC 1" 230VAC Thread
Art:
SCG353A044
Copied
|
G1
|
8,5
|
|
0,35
|
17
|
283
|
TPE
|
6
|
25
|
0,65
|
| ||
![]()
Solenoid pulse valve 2/2 NC 1.1/2" 230VAC Thread
Art:
SCG353A047
Copied
|
1 1/2 BSP
|
8,5
|
|
0,35
|
44
|
733
|
Neoprene
|
10,5
|
50
|
1,4
|
| ||
![]()

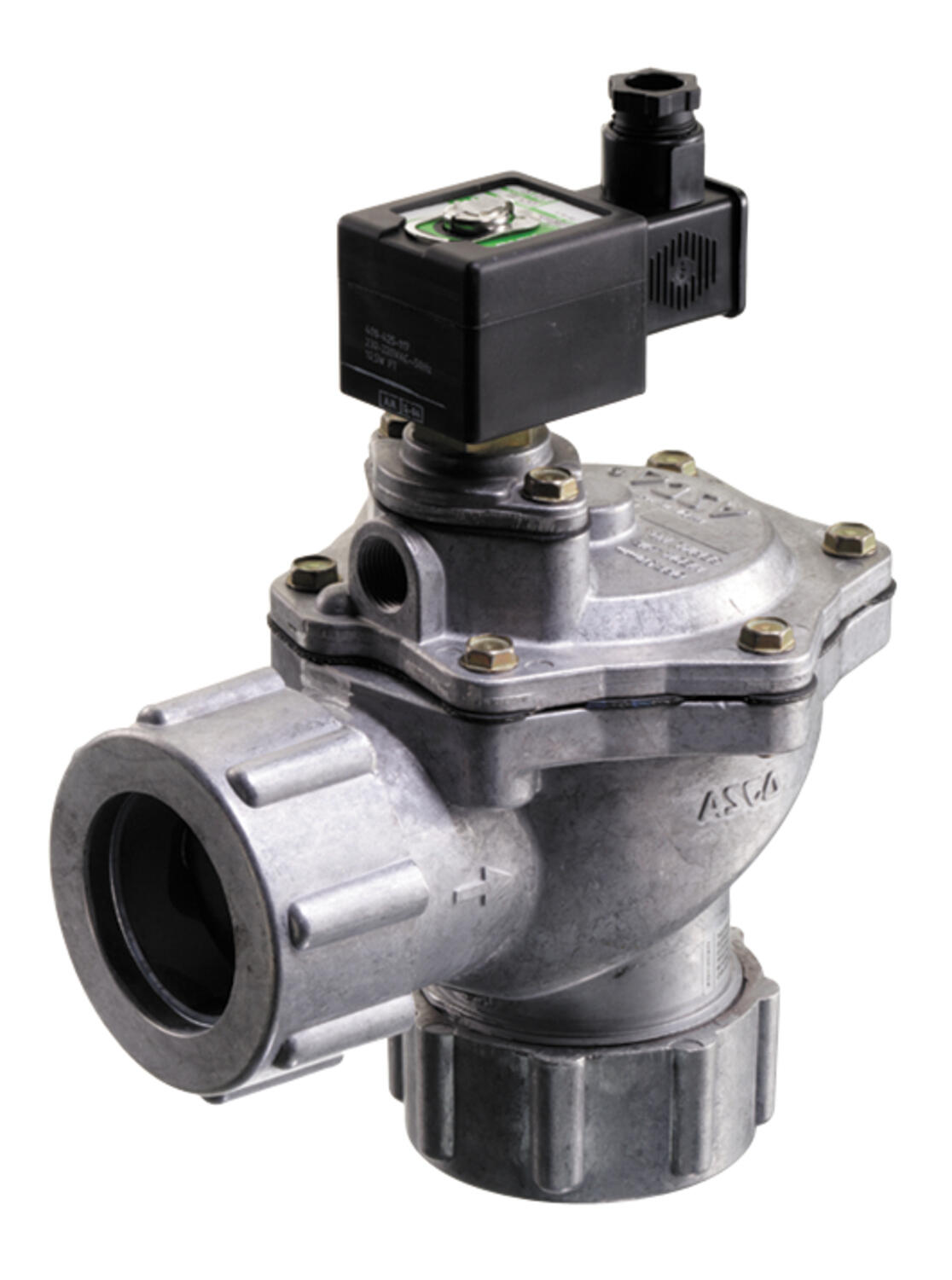

Solenoid pulse valve 2/2 NC 3/4" 230/50 quick con
Art:
SCG353052
Copied
|
3/4 BSP, Compression fittings
|
8,5
|
|
0,35
|
14
|
233
|
TPE
|
6
|
25
|
0,85
|
| ||
![]()
Solenoid pulse valve 2/2 NC 1" 230/50 quick con
Art:
SCG353053
Copied
|
G1, Compression fittings
|
8,5
|
|
0,35
|
14
|
233
|
TPE
|
6
|
25
|
0,7
|
| ||
![]()
Solenoid pulse valve 2/2 NC 2" 230/50 thread
Art:
SCG353050
Copied
|
G2
|
8,5
|
|
0,35
|
77
|
1290
|
Neoprene
|
10,5
|
66
|
2,9
|
| ||
![]()
Solenoid pulse valve 2/2 NC 2.1/2" 230/50 thread
Art:
SCG353051
Copied
|
2 1/2 BSP
|
8,5
|
|
0,35
|
92
|
1540
|
Neoprene
|
10,5
|
66
|
2,6
|
| ||
![]()
Solenoid pulse valve 2/2 NC 3" 230/50 thread
Art:
SCG353060
Copied
|
G3
|
6
|
6
|
1
|
170
|
2833
|
Neoprene
|
10,5
|
76
|
4,1
|
|
Select a variant in the list
