ASCO

ASCO - 2/2 Pulse valve 3/4"-1 1/2"

  • Currentless closed
  • Thread or quick coupling
  • Electric/Air controlled
  • Housing in aluminium

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Coil Material Epoxy
Connection Thread 3/4 BSP
Differential Pressure Air Max 8,5
Differential Pressure Max 8,5
Differential Pressure Min 0,3
Flow Factor / Flow Coefficient 14
Flow Max l/min Double 233
Function 1 2/2
Function 2 Normally Closed (SPST)
IP Class IP65
Material Body Aluminium
Material Bolt POM
Material of seals NBR
Material Plunger Stainless steel
Material Short Call Copper
Materials Spring Stainless steel
Max. pressure 10
Power Consumption 6,3
Temperature range from -20
Temperature range of media from -20
Temperature range of media to 85
Temperature range to 85
Throughput 20
Weight 0,52
Voltage AC 230

Downloads

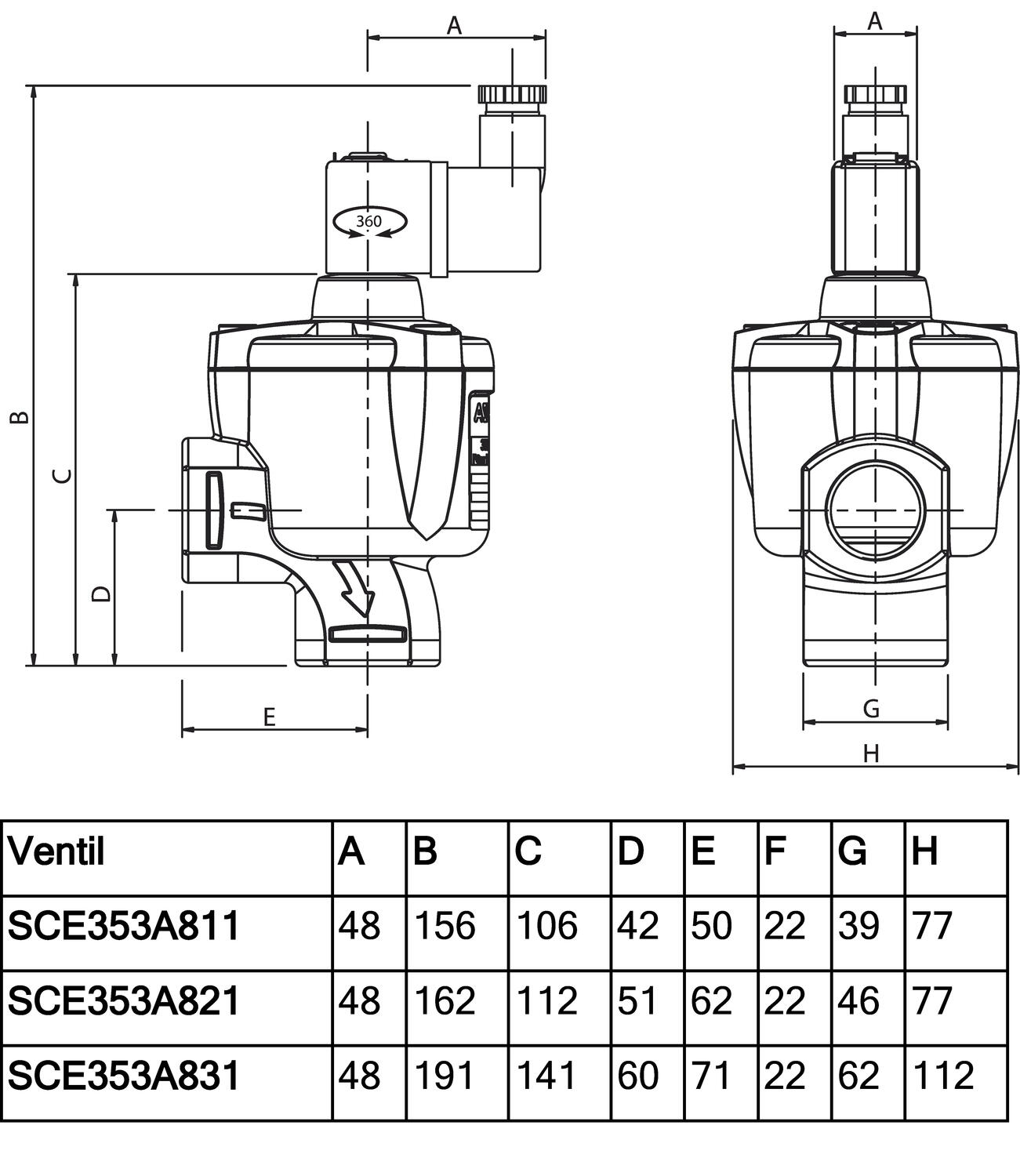

Measurements and connections

Accessories

My favourites Articles Connection Thread Flow Factor / Flow Coefficient Flow Max l/min Double Throughput Weight Price
139406_812.eps

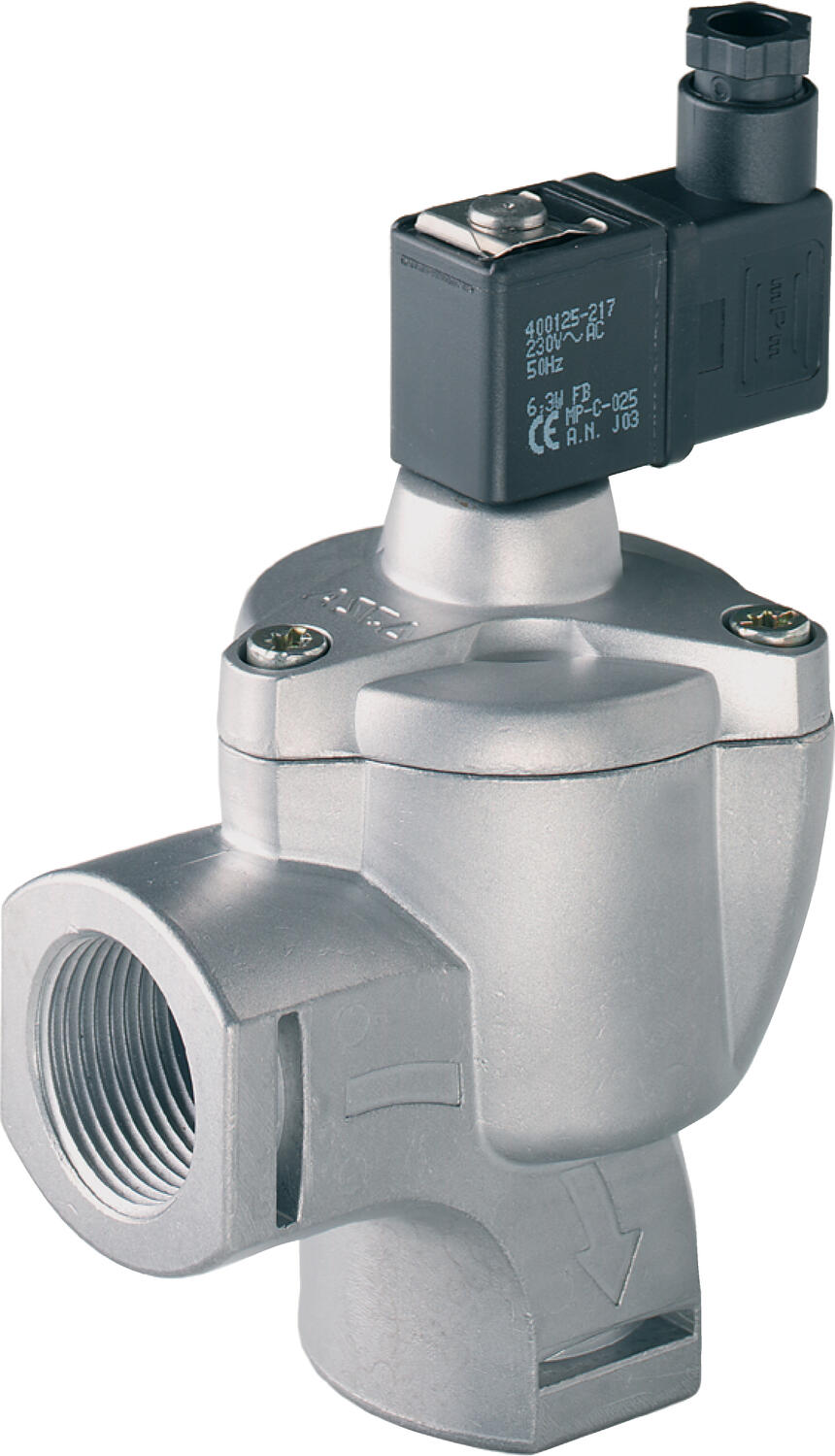

Solenoid pulse valve 2/2 NC 3/4" 230/50
Art:
SCE353A811 Copied
3/4 BSP
14
233
20
0,52
139406_812.eps
Solenoid pulse valve 2/2 NC 1" 230/50
Art:
SCE353A821 Copied
G1
23
383
25
0,63
139404_812.eps
Solenoid valve 2/2 NC 3/4" 230/50
Art:
SCS353A811 Copied
3/4 BSP
14
233
20
0,52
139404_812.eps
Solenoid valve 2/2 NC 1 230/50
Art:
SCS353A821 Copied
G1
23
383
25
0,63
