ASCO

ASCO - 2/2 Servo-controlled 1/4"-3/4"

  • Normally closed
  • For high pressure
  • Standard working pressure 0.7 bar to 100 bar
  • Housing in brass or stainless

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Coil Material Epoxy
Connection Thread 1/4 BSP
Differential Pressure Air Max 100
Differential Pressure Max 100
Differential Pressure Min 0,7
Differential Pressure Oil Max 100
Differential Pressure Water Max 100
Flow Factor / Flow Coefficient 1,3
Flow Max l/min Double 21,7
Function 1 2/2
Function 2 Normally Closed (SPST)
IP Class IP65
Material Body Brass
Material Bolt Stainless steel
Material of seals NBR
Material Plunger Stainless steel
Material Short Call Copper
Material Slide Ring PTFE
Materials Piston Seal PTFE
Materials Seat Brass
Materials Seat Seal Urethane
Max. pressure 100
Power Consumption 16,7
Response Closing 15
Response From Stroke 60
Temperature range from -20
Temperature range of media from -20
Temperature range of media to 90
Temperature range to 50
Throughput 8
Type of valve Solenoid valve
Weight 0,7
Viscosity Max 65
Voltage AC 230

Downloads

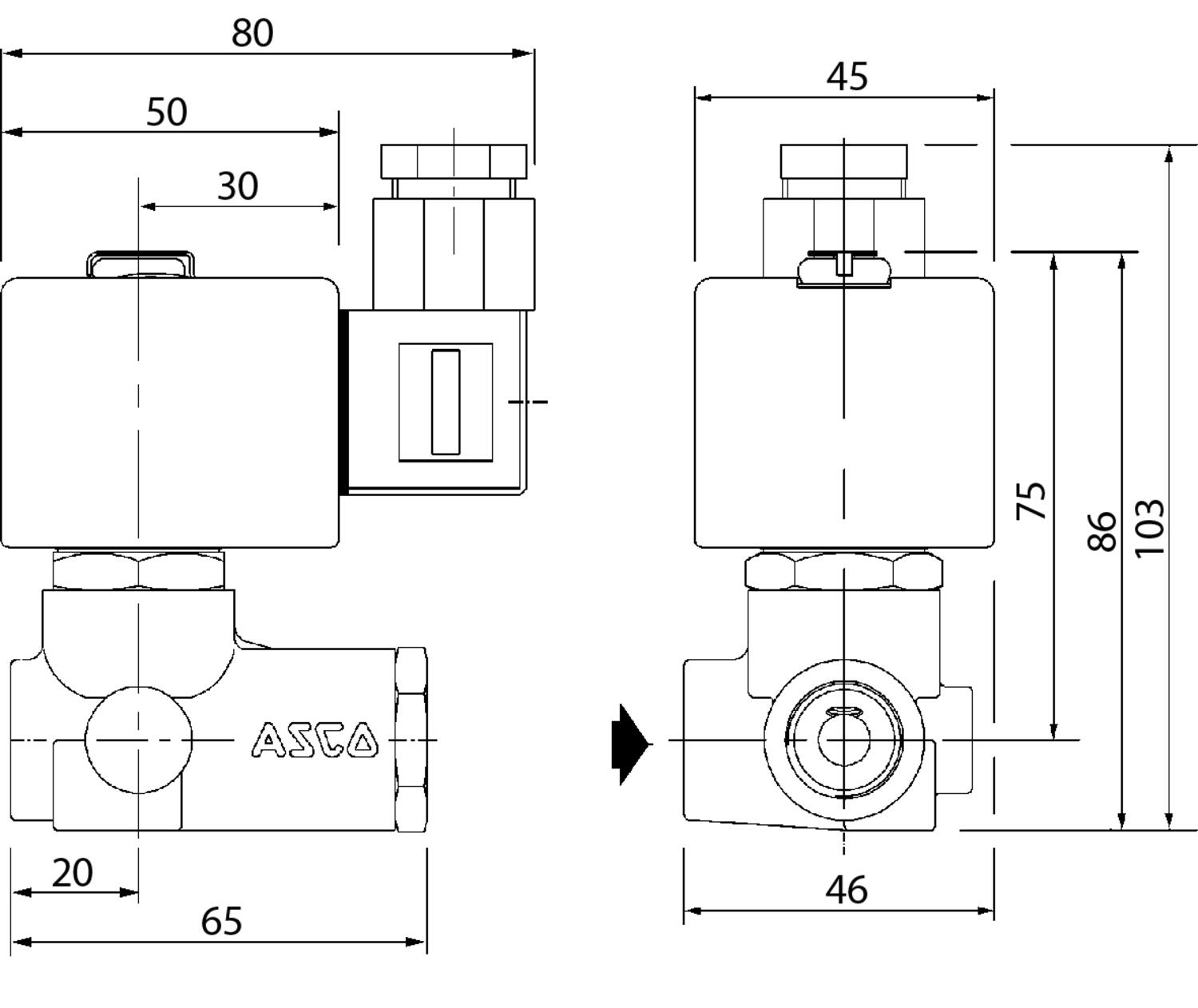

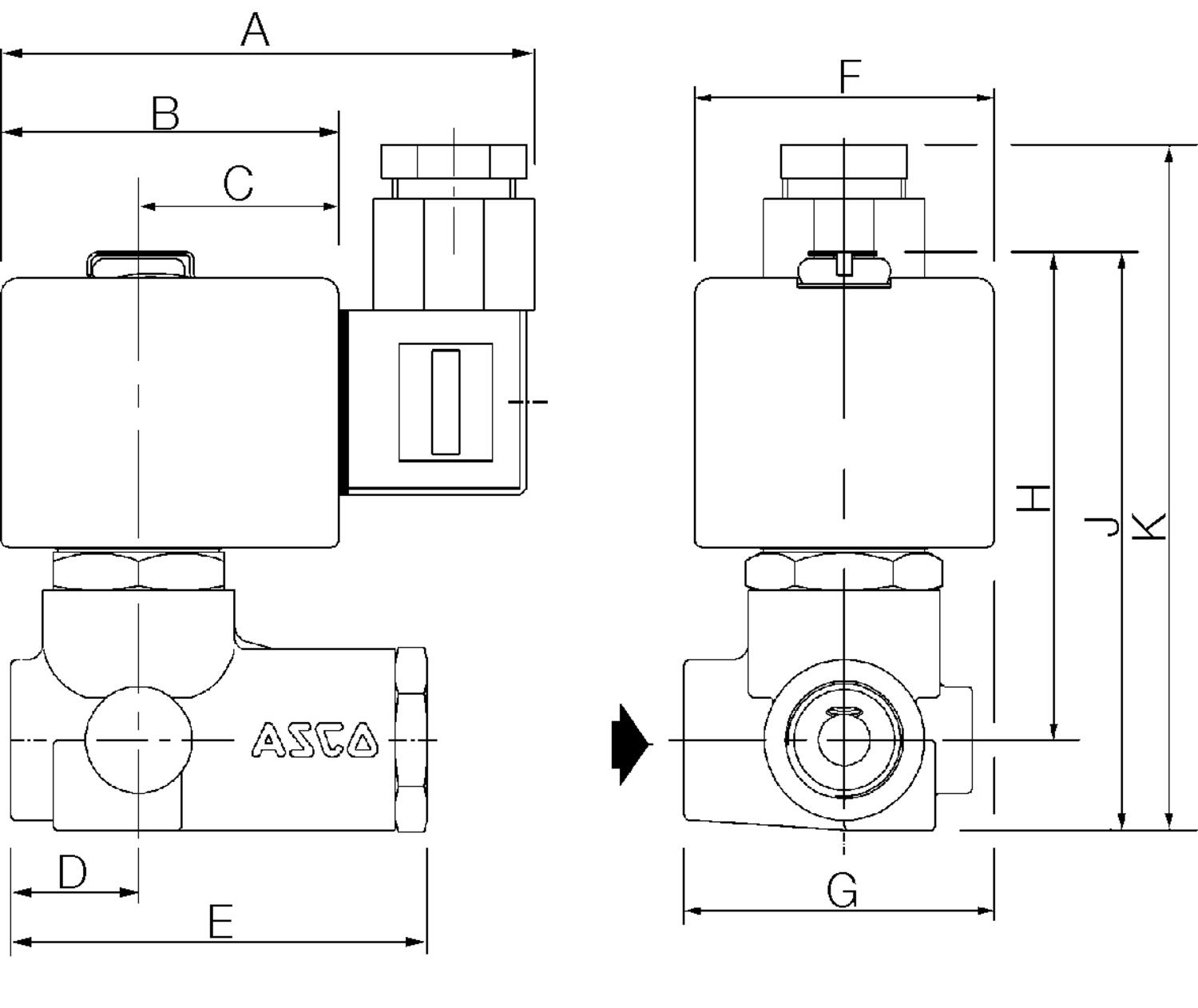

Measurements and connections

Accessories

My favourites Articles Coil Material Connection Thread Differential Pressure Air Max Differential Pressure Max Differential Pressure Min Differential Pressure Oil Max Differential Pressure Water Max Flow Factor / Flow Coefficient Flow Max l/min Double Material Body Material Bolt Material of seals Material Plunger Material Short Call Material Slide Ring Materials Piston Seal Materials Seat Materials Seat Seal Max. pressure Power Consumption Response Closing Response From Stroke Temperature range from Temperature range to Throughput Type of valve Weight Viscosity Max Price
139388_812.tif
Solenoid valve 2/2 NC 1/4" 230/50
Art:
SCB223A125 Copied
Epoxy
1/4 BSP
100
100
0,7
100
100
1,3
21,7
Brass
Stainless steel
NBR
Stainless steel
Copper
PTFE
PTFE
Brass
Urethane
100
16,7
15
60
-20
50
8
Solenoid valve
0,7
65
139388_812.tif
Solenoid valve 2/2 NC 3/8" 230/50
Art:
SCB223A127 Copied
Epoxy
3/8 BSP
100
100
0,7
100
100
1,3
21,7
Brass
Stainless steel
NBR
Stainless steel
Copper
PTFE
PTFE
Brass
Urethane
100
16,7
15
60
-20
50
8
Solenoid valve
0,7
65
139388_812.tif
Solenoid valve 2/2 NC 1/2" 230/50
Art:
SCB223A103 Copied
Epoxy
1/2 BSP
100
100
1,8
100
100
2,7
45
Brass
Stainless steel
NBR
Stainless steel
Copper
PTFE
PTFE
Brass
Urethane
100
16,7
15
60
-20
50
9
Solenoid valve
0,9
65
Solenoid valve. Stainless steel. 2/2 NC 1/2" 230/50
Art:
SCB223A010 Copied
1/2 BSP
100
100
1,8
100
100
45
Stainless steel AISI 304
9
139388_812.tif
Solenoid valve 2/2 NC 3/4" 230/50
Art:
SCB223B005 Copied
Epoxy
3/4 BSP
50
50
1,8
50
50
6,7
112
Brass
Stainless steel
NBR
Stainless steel
Copper
PTFE
PTFE
Brass
Urethane
100
16,7
15
60
-20
50
19
Solenoid valve
1,5
65
Solenoid valve. Stainless steel. 2/2 NC 3/4" 230/50
Art:
SCB223A012 Copied
3/4 BSP
50
50
1,8
50
50
112
Stainless steel AISI 304
19
