Coil Material | Epoxy |
---|---|
Connection Port 1-2 | G1/4 |
Connection Port 3 | G1/4 |
Differential Pressure Air Max | 10 |
Differential Pressure Max | 10 |
Differential Pressure Min | 0 |
Differential Pressure Water Max | 10 |
Flow Factor / Flow Coefficient | 0,45 |
Flow Max l/min Double | 7,5 |

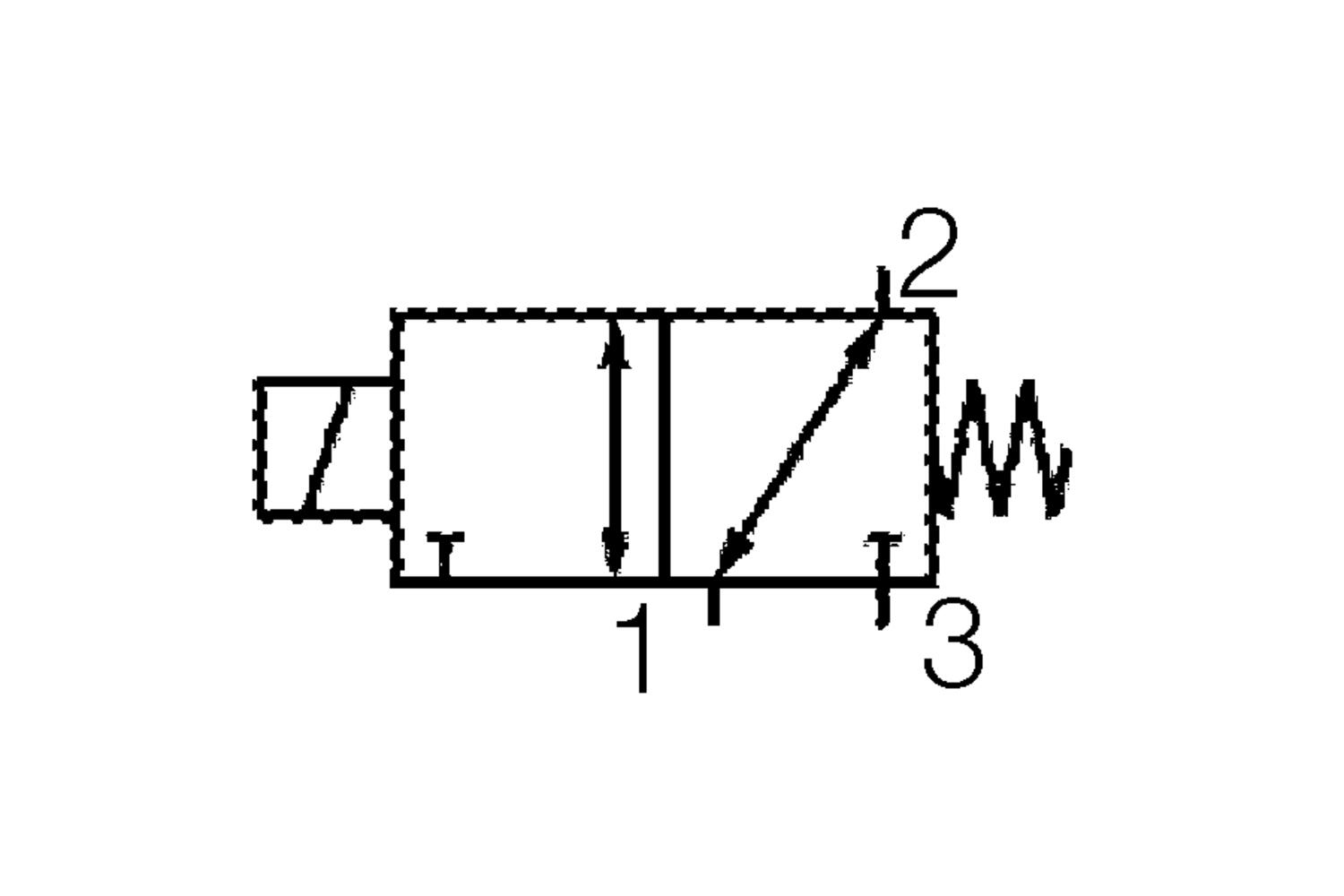

Function 1 | 3/2 |
Function 2 | Universal |
IP Class | IP65 |
Material Body | Brass |
Material of seals | FPM |
Material Plunger | Stainless steel |
Material Slide Ring | PTFE |
---|---|
Materials Seat Seal | FPM |
Materials Spring | Stainless steel |
Power Consumption | 10 |
Response Time | 100 |
Temperature range from | -40 |
Temperature range of media from | -20 |
Temperature range of media to | 120 |
Temperature range to | 55 |
Throughput | 5,7 |
Type of valve | Solenoid valve |
Weight | 0,95 |
Viscosity Max | 65 |
Voltage AC | 230 |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Connection Port 1-2 | Connection Port 3 | Differential Pressure Max | Differential Pressure Water Max | Flow Factor / Flow Coefficient | Flow Max l/min Double | Material Body | Material of seals | Materials Seat Seal | Temperature range of media from | Temperature range of media to | Temperature range to | Throughput | Weight | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

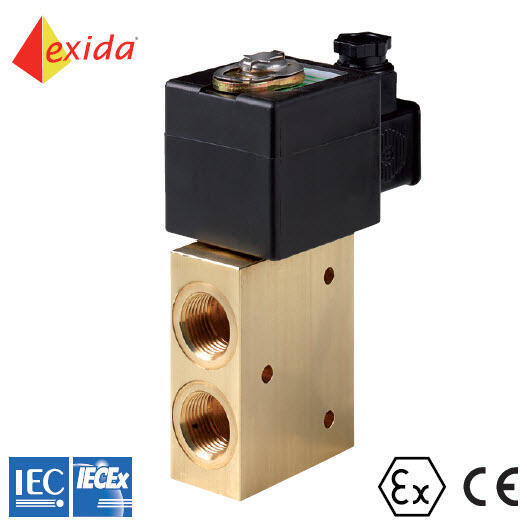

Solenoid valve 3/2 U 1/4" 230/50
Art:
SCG327B001
Copied
|
G1/4
|
G1/4
|
10
|
10
|
0,45
|
7,5
|
Brass
|
FPM
|
FPM
|
-20
|
120
|
55
|
5,7
|
0,95
|
| ||
![]()
Solenoid valve. Stainless steel 3/2 U 1/4" 230/50
Art:
SCG327B002
Copied
|
G1/4
|
G1/4
|
10
|
10
|
0,45
|
7,5
|
Stainless steel 316L
|
FPM
|
FPM
|
-20
|
120
|
55
|
5,7
|
0,95
|
| ||
![]()
Solenoid valve 3/2 U 1/4" 230/50
Art:
SCG327A647
Copied
|
G1/4
|
G1/4
|
10
|
|
1,5
|
25
|
Brass
|
NBR
|
NBR
|
-25
|
60
|
60
|
12
|
1,6
|
| ||
![]()
Solenoid valve. Stainless steel 3/2 U 1/4" 230/50
Art:
SCG327A648
Copied
|
G1/4
|
G1/4
|
10
|
|
1,5
|
25
|
Stainless steel 316L
|
NBR
|
NBR
|
-25
|
60
|
60
|
12
|
1,6
|
| ||
![]()
Solenoid valve 3/2 U 1/2" 230/50
Art:
SCG327A607
Copied
|
G1/2
|
G1/2
|
|
|
1,5
|
25
|
Brass
|
NBR
|
NBR
|
-25
|
60
|
60
|
12
|
1,6
|
| ||
![]()
Solenoid valve. Stainless steel 3/2 U 1/4" 230/50
Art:
SCG327A608
Copied
|
G1/2
|
G1/2
|
|
|
1,5
|
25
|
Stainless steel 316L
|
NBR
|
NBR
|
-25
|
60
|
60
|
12
|
1,6
|
|
Select a variant in the list
