ASCO - Coaxial valves

Coaxial valves are used in applications for high pressure and high flows. The coaxial valve can accomodate flow in both dircetions. Coaxial valves are available in electrically controlled versions and pressure controlled namur versions.

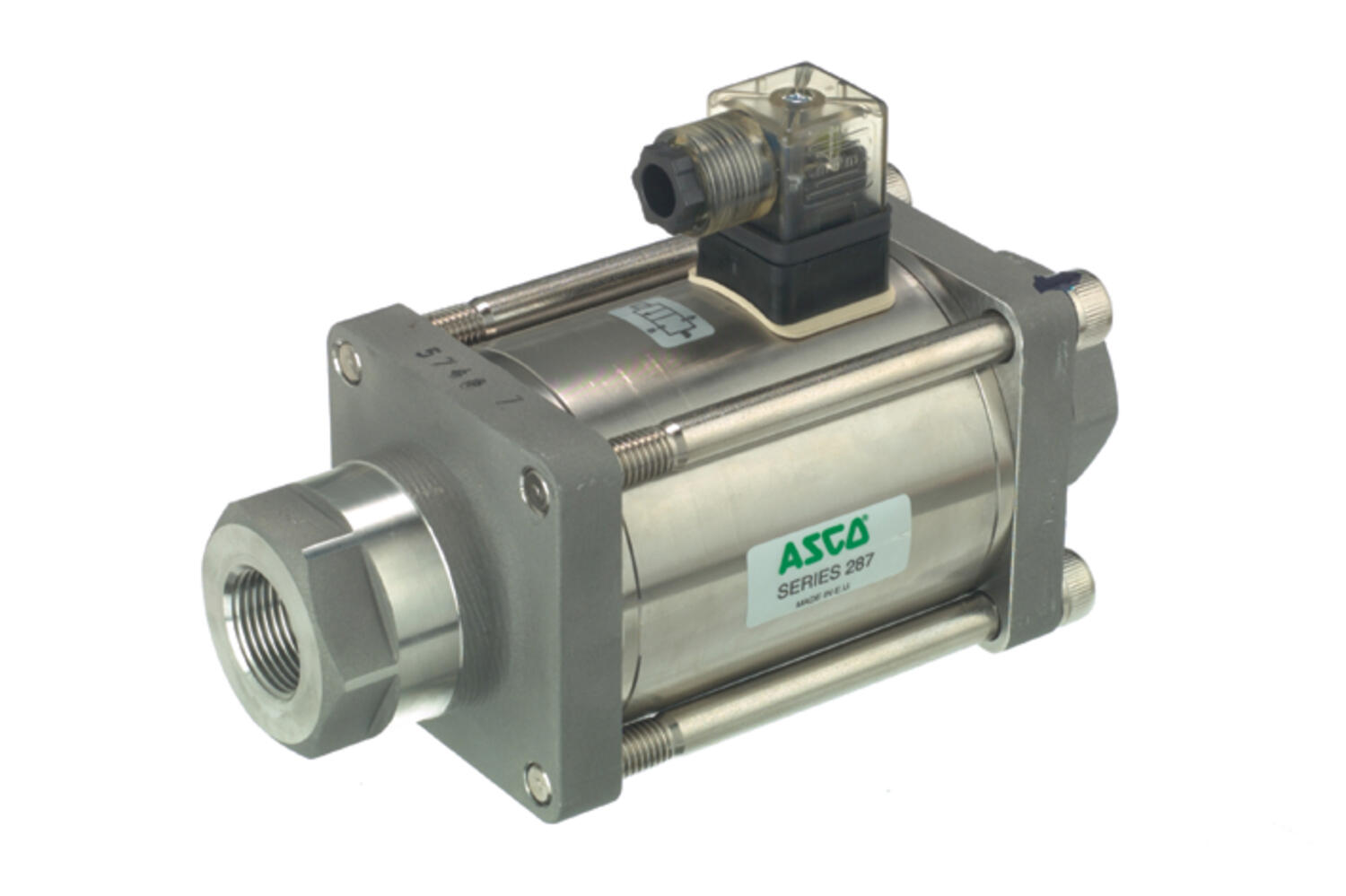

Model SCG287

Function

139012_555.tif

  • Brass/stainless
  • 2/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-2,031 l/min.


Model SCG387

Function

139011_555.tif

  • Brass/stainless
  • 3/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.


Model G287/Namur

Function

139010_555.tif

  • Brass/stainless
  • 2/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.


Model G387/Namur

Function

139009_555.tif

  • Brass/stainless
  • 3/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.



For more information contact OEM Automatic, product area Pressure & Flow and order a separate catalogue.

  • G3/8 - G1
  • Temperature -20 to 100 ° C
  • Pressure 0 to 40 bar
  • Medium water, oil, gases
  • Brass or stainless steel body

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Connection Thread 3/8 BSP
Differential Pressure Air Max 40
Differential Pressure Max 40
Differential Pressure Min 0
Differential Pressure Oil Max 40
Differential Pressure Water Max 40
Flow Max l/min Double 36,6
Function 1 2/2
Function 2 Normally Closed (SPST)
Material Body Brass
Temperature range of media from -20
Temperature range of media to 100
Throughput 10
Voltage AC 230

Downloads

Product description

Coaxial valves are used in applications for high pressure and high flows. The coaxial valve can accomodate flow in both dircetions. Coaxial valves are available in electrically controlled versions and pressure controlled namur versions.

Model SCG287

Function

139012_555.tif

  • Brass/stainless
  • 2/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-2,031 l/min.


Model SCG387

Function

139011_555.tif

  • Brass/stainless
  • 3/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.


Model G287/Namur

Function

139010_555.tif

  • Brass/stainless
  • 2/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.


Model G387/Namur

Function

139009_555.tif

  • Brass/stainless
  • 3/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.



For more information contact OEM Automatic, product area Pressure & Flow and order a separate catalogue.

Accessories

My favourites Articles Connection Thread Differential Pressure Max Flow Max l/min Double Function 2 Material Body Throughput Price

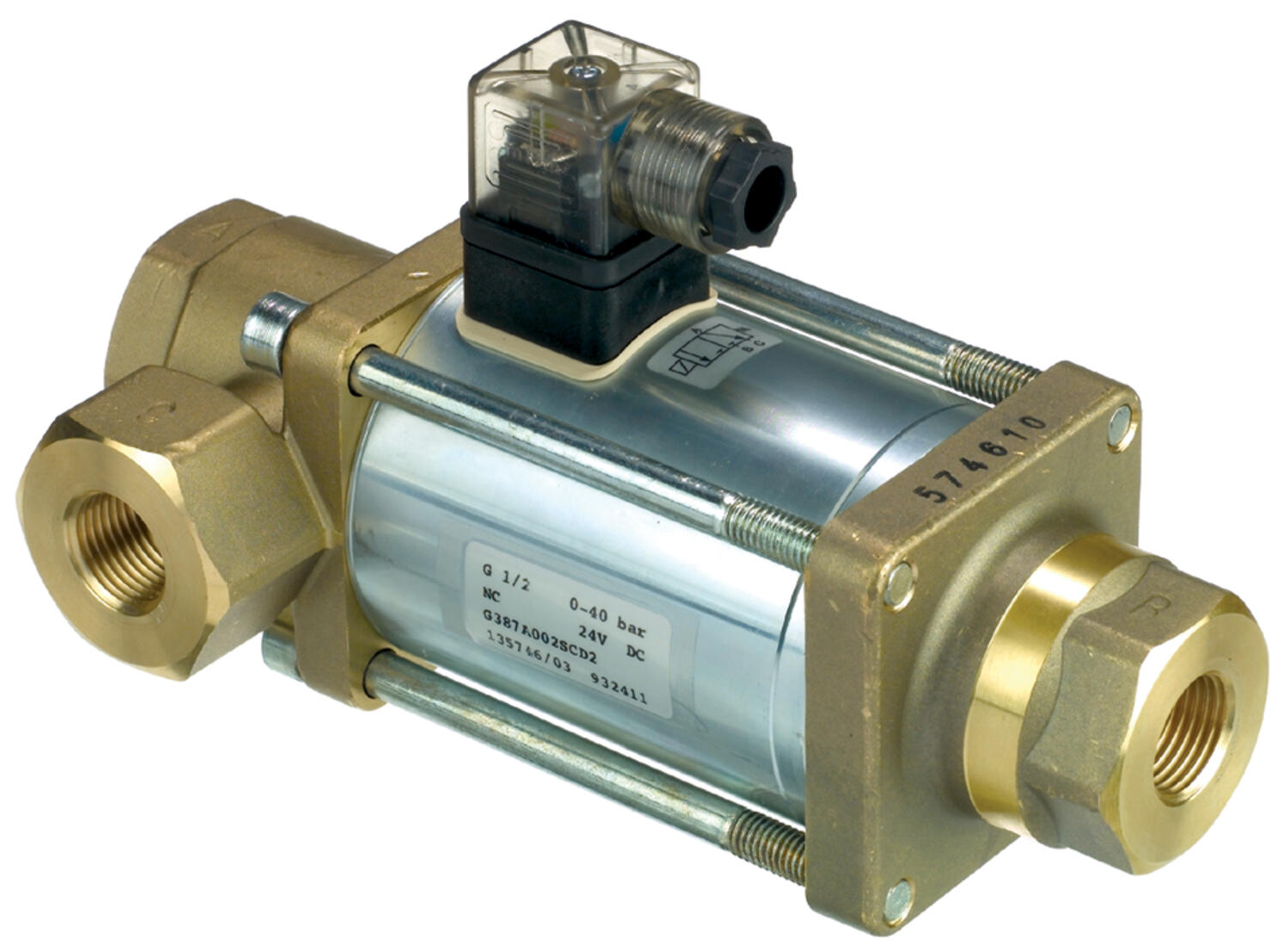

139011_812.tif
Art:
SCG287A001 Copied
3/8 BSP
40
36,6
Normally Closed (SPST)
Brass
10
139012_555.tif
Art:
SCG287A009 Copied
3/8 BSP
36,6
Normally Closed (SPST)
Stainless steel
10
139011_812.tif
Art:
SCG287A002 Copied
1/2 BSP
40
86,6
Normally Closed (SPST)
Brass
15
139012_555.tif
Art:
SCG287A010 Copied
1/2 BSP
86,6
Normally Closed (SPST)
Stainless steel
15
139011_812.tif
Art:
SCG287A003 Copied
3/4 BSP
40
125
Normally Closed (SPST)
Brass
20
139012_555.tif
Art:
SCG287A011 Copied
3/4 BSP
125
Normally Closed (SPST)
Stainless steel
20
139011_812.tif
Art:
SCG287A004 Copied
3/4 BSP
40
203,3
Normally Closed (SPST)
Brass
20
139012_555.tif
Art:
SCG287A012 Copied
G1
203,3
Normally Closed (SPST)
Stainless steel
20
139011_812.tif
Art:
SCG287A005 Copied
3/8 BSP
36,6
Normally open (SPST)
Brass
10
139012_555.tif
Art:
SCG287A013 Copied
3/8 BSP
36,6
Normally open (SPST)
Stainless steel
10
139011_812.tif
Art:
SCG287A006 Copied
1/2 BSP
86,6
Normally open (SPST)
Brass
15
139012_555.tif
Art:
SCG287A014 Copied
1/2 BSP
86,6
Normally open (SPST)
Stainless steel
15
139011_812.tif
Art:
SCG287A007 Copied
3/4 BSP
125
Normally open (SPST)
Brass
20
139012_555.tif
Art:
SCG287A015 Copied
3/4 BSP
125
Normally open (SPST)
Stainless steel
20
139011_812.tif
Art:
SCG287A008 Copied
G1
203,3
Normally open (SPST)
Brass
20
139012_812.tif
Art:
SCG287A016 Copied
G1
40
203,3
Normally open (SPST)
Stainless steel
20
