ASCO - 3/2 Angle-seat valve 1/2"-2"

  • Normally closed/open
  • Working pressure 0 to 16 bar
  • Housing in bronze
  • Non-sensitive to dirt

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals SIL2
Connection Air 1/8 BSP
Connection Thread 1/2 BSP
Differential Pressure Air Max 16
Differential Pressure Min 0
Differential Pressure Oil Max 16
Differential Pressure Water Max 16
Differential steam pressure max 10

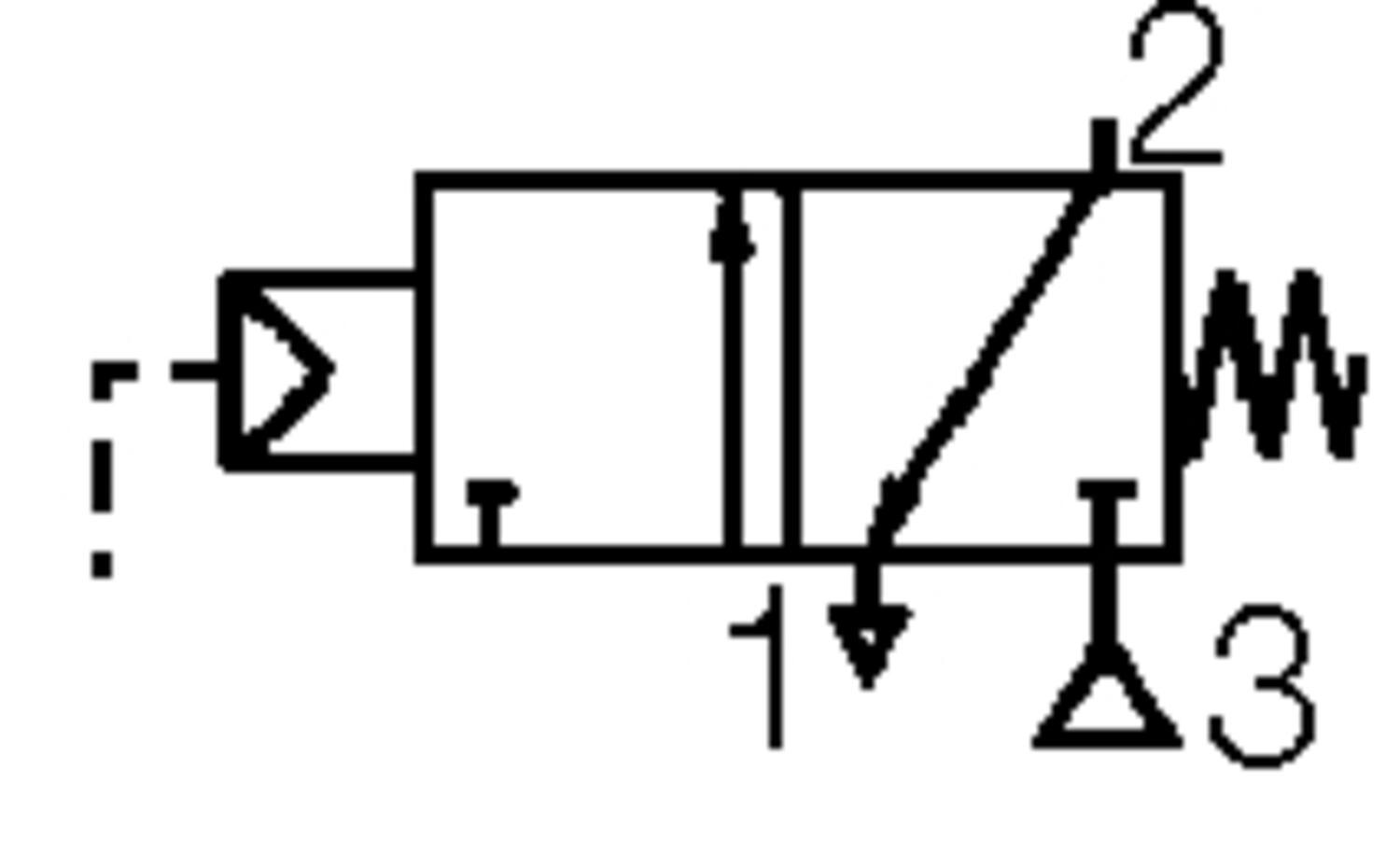

Function 1 3/2
Function 2 Normally Closed (SPST)
Material Body Bronze
Material of seals PTFE
Material Operator Fiberglass reinforced polyamide
Material Rod Stainless steel
Materials Avskrapningstätning FPM
Materials Gland PTFE flask filled
Materials Piston Rod Seal Stainless steel
Materials Piston Seal PTFE
Packing Materials Brass

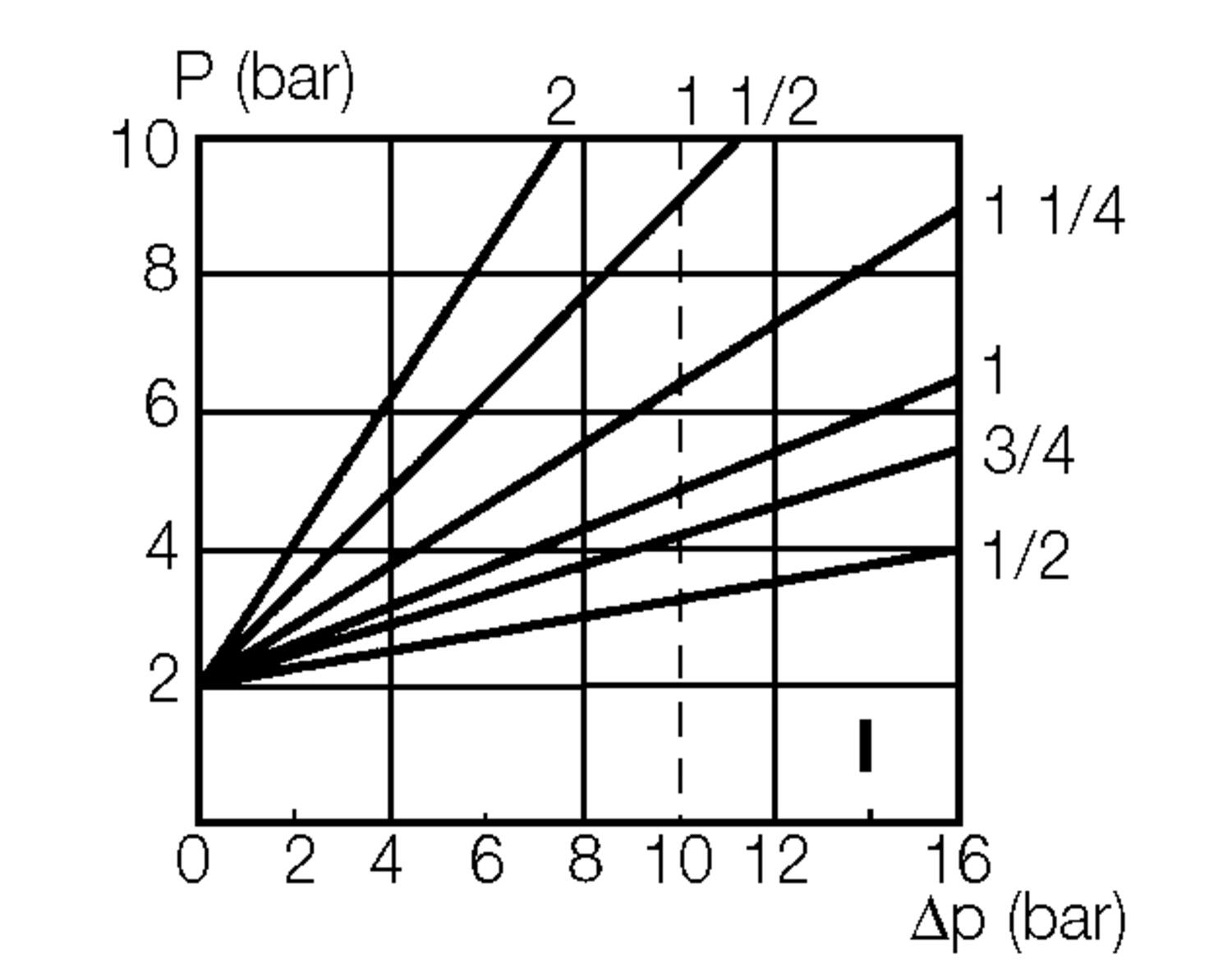

Pilot Pressure Max 10
Pilot Pressure Min 3
Temperature range from -10
Temperature range of media from -10
Temperature range of media to 184
Temperature range to 60
Throughput 15
Type of valve Seat valve
Weight 1,6
Viscosity Max 600

Downloads

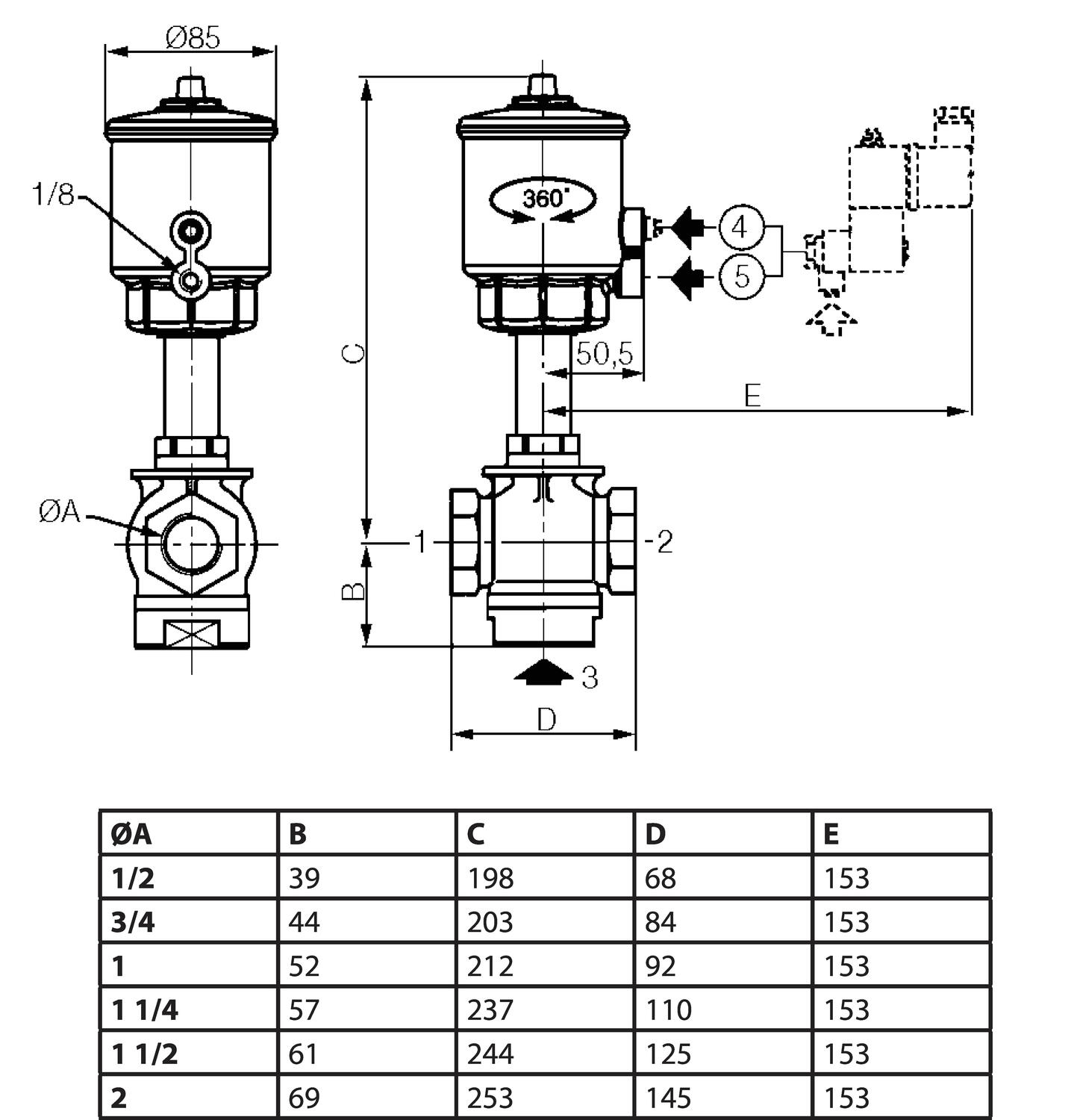

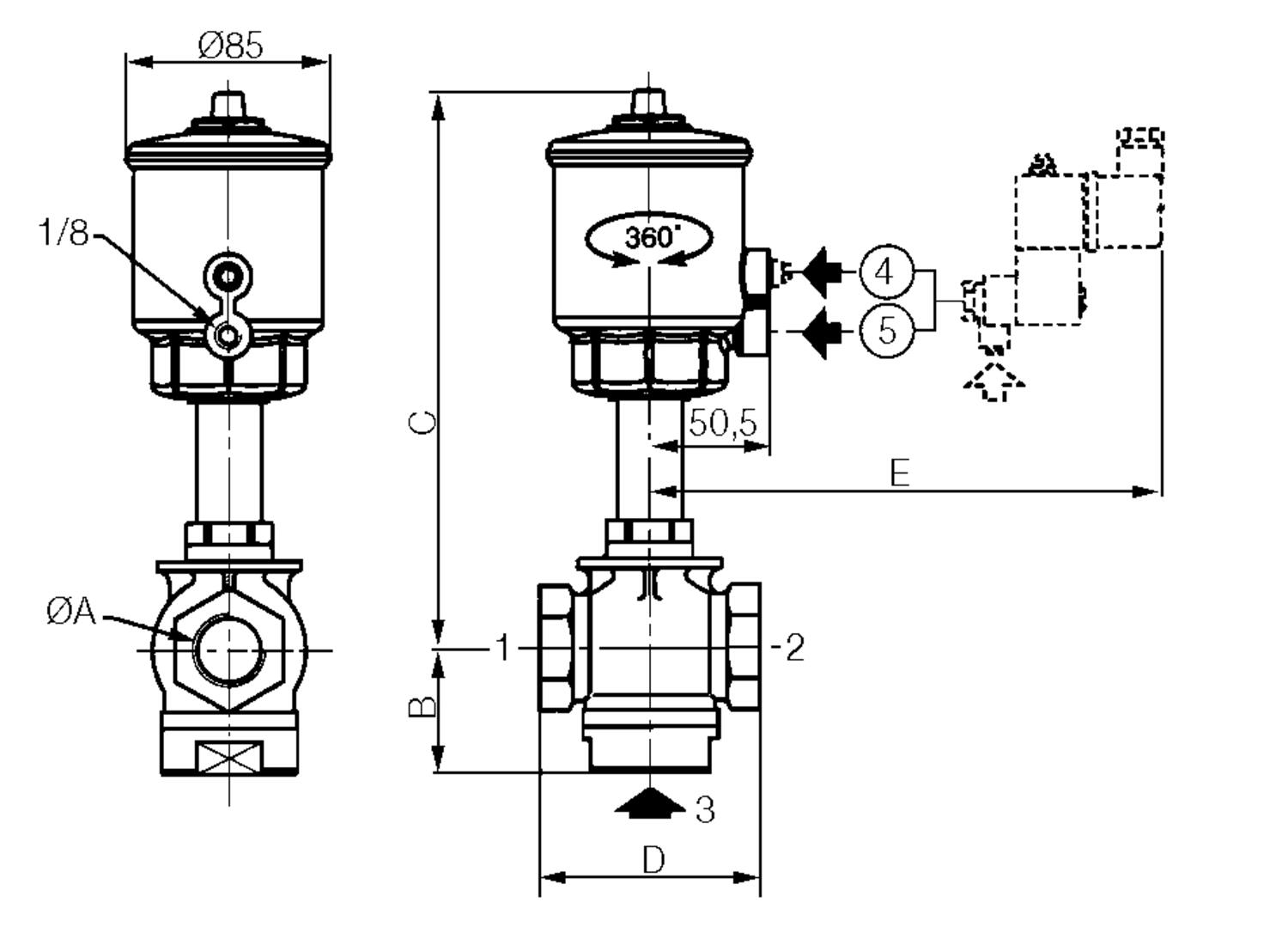

Measurements and connections

Technical illustrations

Accessories

Related products

My favourites Articles Connection Air Connection Thread Differential Pressure Air Max Differential Pressure Oil Max Differential Pressure Water Max Function 2 Pilot Pressure Min Throughput Weight Price
139105_812.tif
Angle seat valve 1/2" NC 3/2
Art:
E390B002 Copied
1/8 BSP
1/2 BSP
16
16
16
Normally Closed (SPST)
3
15
1,6
139105_812.tif
Angle seat valve 3/4" NC 3/2
Art:
E390B005 Copied
1/8 BSP
3/4 BSP
16
16
16
Normally Closed (SPST)
5
20
1,9
139105_812.tif
Angle seat valve 1" NC 3/2
Art:
E390B010 Copied
1/8 BSP
G1
10
10
10
Normally Closed (SPST)
5
25
2,6
139105_812.tif
Angle seat valve 1" NC 3/2
Art:
E390B011 Copied
1/4 BSP
G1
16
16
16
Normally Closed (SPST)
5
25
3,2
139105_812.tif
Angle seat valve 1/2" NO 3/2
Art:
E390B026 Copied
1/8 BSP
1/2 BSP
16
16
16
Normally open (SPST)
15
1,6
139105_812.tif
Angle seat valve 3/4" NO 3/2
Art:
E390B027 Copied
1/8 BSP
3/4 BSP
16
16
16
Normally open (SPST)
20
1,9
139105_812.tif
Angle seat valve 1" NO 3/2
Art:
E390B028 Copied
1/8 BSP
G1
16
16
16
Normally open (SPST)
25
2,6

Selected variant

Select a variant in the list
