ASCO

ASCO - 2/2 Angle-seat valve air controlled 3/8"-3/4"

  • Normally closed, normally open
  • Extremely compact version
  • Working pressure 0 bar to 16 bar
  • Housing in stainless

Selected variant

Avaible in several variants
ASCO_produktniva.tif

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Connection Air 1/8 BSP
Connection Thread 3/8 BSP
Differential Pressure Air Max 16
Differential Pressure Max 16
Differential Pressure Min 0
Differential Pressure Oil Max 16
Differential Pressure Water Max 16
Differential steam pressure max 10
Flow Factor / Flow Coefficient 2,8
Flow Max l/min Double 47

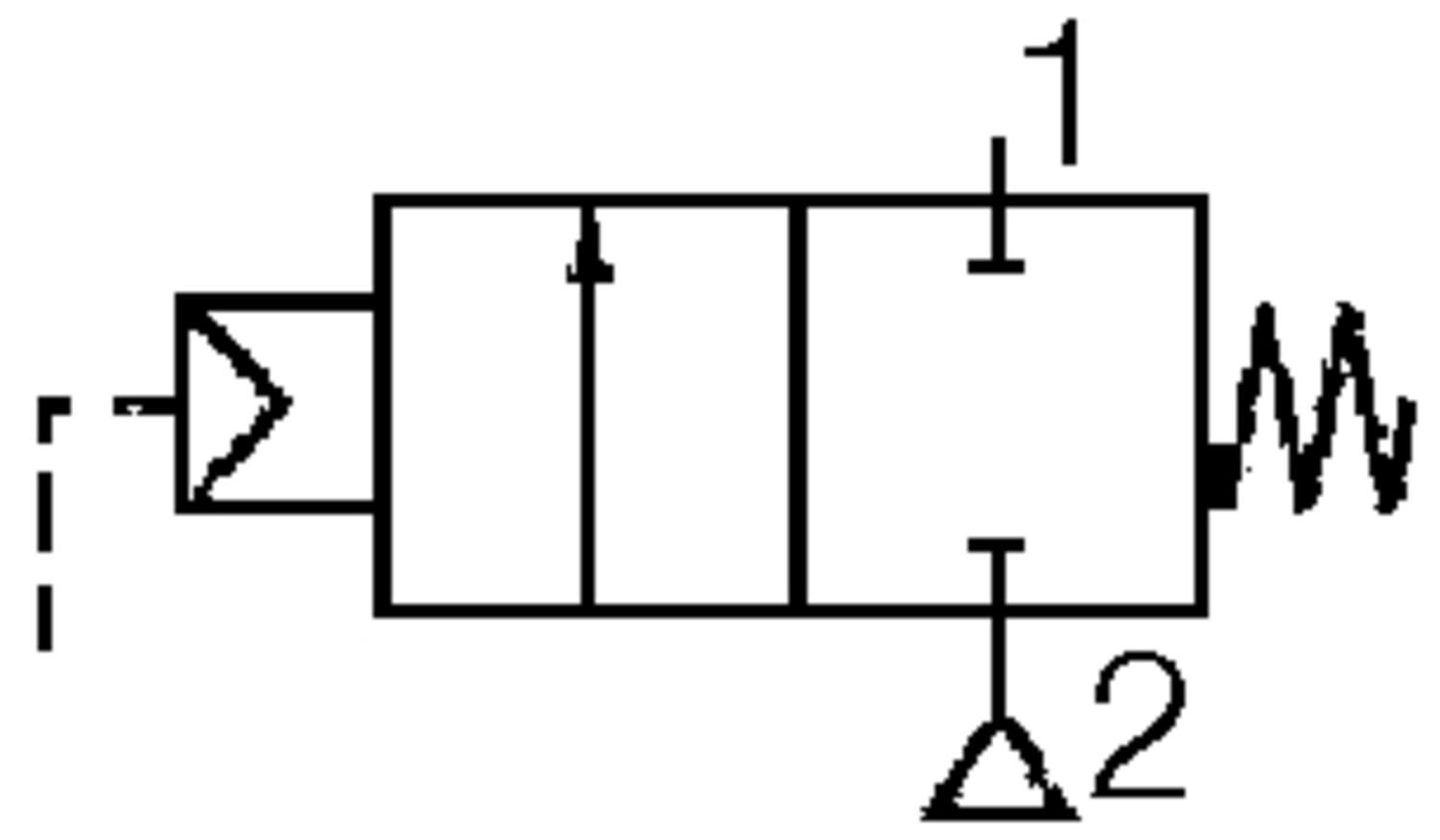

Function 1 2/2
Function 2 Normally Closed (SPST)
Material Body Stainless steel 316L
Material of body Stainless steel 316L
Material of seals PTFE
Material Operator Fiberglass reinforced polyamide
Material Rod Stainless steel
Materials Avskrapningstätning FPM
Materials Gland PTFE
Materials Piston Rod Seal Stainless steel 303
Materials Piston Seal PTFE
Max. pressure 16
Packing Materials Stainless steel
Pilot Pressure Max 10
Pilot Pressure Min 4
Temperature range from -10
Temperature range of media from -10
Temperature range of media to 184
Temperature range to 60
Throughput 10
Weight 0,35
Viscosity Max 600

Downloads

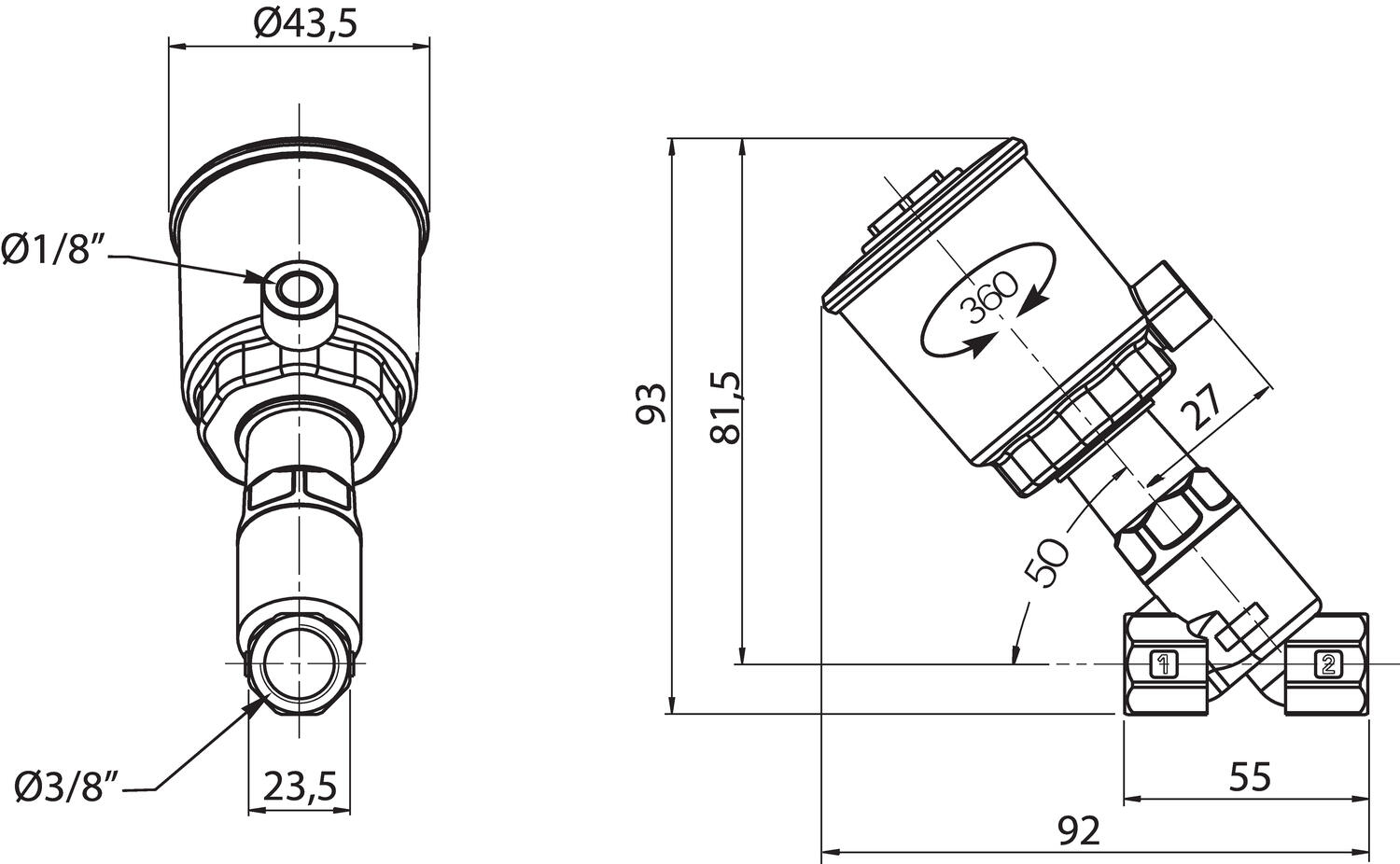

Measurements and connections

Technical illustrations

Accessories

My favourites Articles Connection Thread Differential Pressure Air Max Differential Pressure Max Differential Pressure Oil Max Differential Pressure Water Max Differential steam pressure max Flow Factor / Flow Coefficient Flow Max l/min Double Material of body Throughput Weight Price
139291_812.tif
Angle seat valve 3/8" NC "MINI"
Art:
E290A791VI Copied
3/8 BSP
16
16
16
16
10
2,8
47
Stainless steel 316L
10
0,35
139291_812.tif
Angle seat valve 1/2 NC MINI
Art:
E290A792VI Copied
1/2 BSP
12
12
12
12
10
4,1
68
15
0,4
139291_812.tif
Angle seat valve 3/4" NC "MINI"
Art:
E290A793VI Copied
3/4 BSP
6
6
6
6
6
6,5
108
20
0,45

Selected variant

Select a variant in the list
