Suco 0H86/0H87 Hydrogen Pressure Switch

Diaphragm (0H86) / Piston (0H87) Switch

  • Suitable for hydrogen applications
  • Up to 250V
  • Adjustment ranges up to 200 bar
  • Up to 700 bar overpressure safety
  • Changeover (SPDT)

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Adjustment range max 5
Adjustment range min 0,5
Approvals RoHS 3, CE
Deviation max ±0.3
Electrical connection Spade (AMP 6,3x0,8 mm)
Function Changeover (SPDT)
Material of body Stainless steel 316L
Max. pressure 400
Membrane Material EPDM
Process connection G1/4-E
Voltage Max 250

Downloads

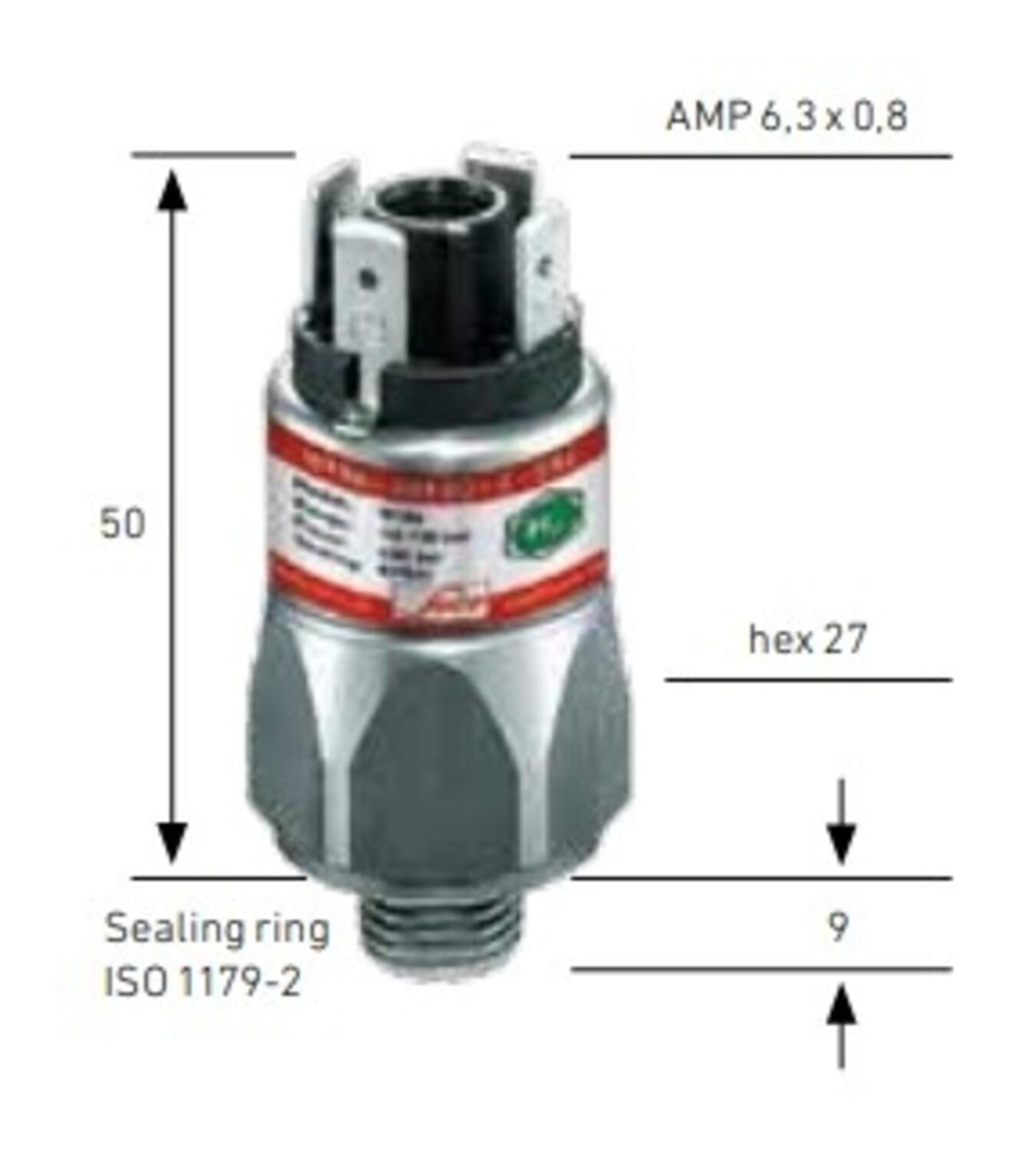

Measurements and connections

Accessories

My favourites Articles Adjustment range max Adjustment range min Deviation max Max. pressure Price

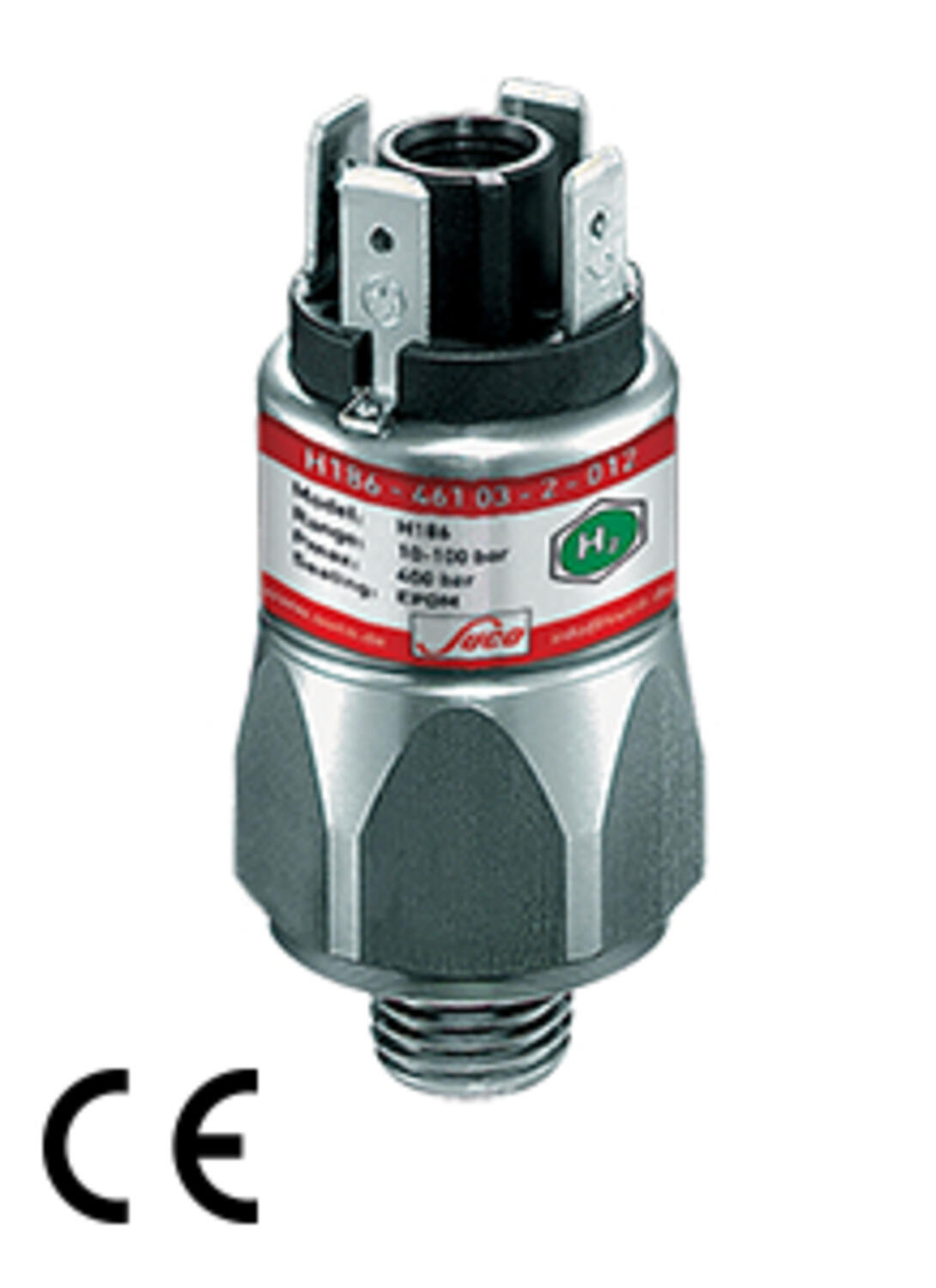

SUCO 0H86.png
0H86, 0.5 … 5 bar, G1/4-E, CO, EPDM, Spade, Hydrogen
Art:
0H86-45741-2-080 Copied
5
0,5
±0.3
400
SUCO 0H86.png
0H86, 1 … 10 bar, G1/4-E, CO, EPDM, Spade, Hydrogen
Art:
0H86-45841-2-080 Copied
10
1
±0.5
400
SUCO 0H86.png
0H86, 10 … 50 bar, G1/4-E, CO, EPDM, Spade, Hydrogen
Art:
0H86-45941-2-080 Copied
50
10
±3.0
400
SUCO 0H86.png
0H86, 10 … 100 bar, G1/4-E, CO, EPDM, Spade, Hydrogen
Art:
0H86-46141-2-080 Copied
100
10
±3.0-5.0
400
SUCO 0H86.png
0H87, 50 … 200 bar, G1/4-E, CO, EPDM, Spade, Hydrogen
Art:
0H87-46041-2-080 Copied
200
50
±0.5
700

Selected variant

Select a variant in the list
