SUCO

Suco 0H83 Hydrogen Pressure Switch

Piston Switch

  • Suitable for hydrogen applications
  • Up to 250V
  • Adjustment ranges up to 400 bar
  • Up to 600 bar overpressure safety
  • Changeover (SPDT)

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Adjustment range max 300
Adjustment range min 100
Approvals RoHS 3, CE
Deviation max ±10.0
Electrical connection Spade (AMP 6,3x0,8 mm)
Function Changeover (SPDT)
Material of body Stainless steel 316L
Max. pressure 600
Membrane Material EPDM
Process connection M14x1.5
Voltage Max 250

Downloads

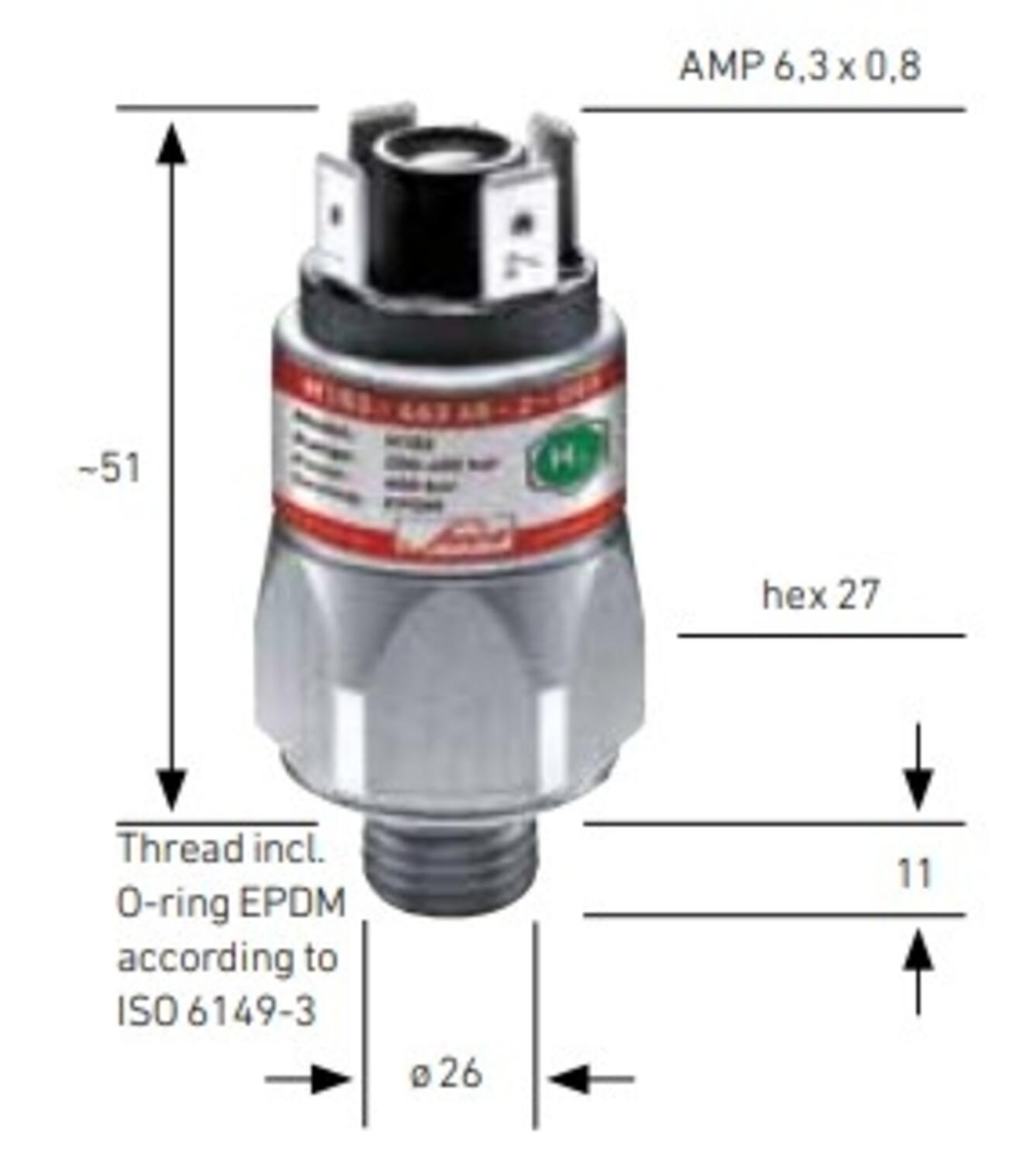

Measurements and connections

Accessories

My favourites Articles Adjustment range max Adjustment range min Price
SUCO 0H83.png
0H83, 100 … 300 bar, M14x1.5, CO, EPDM, Spade, Hydrogen
Art:
0H83-46245-2-080 Copied
300
100
SUCO 0H83.png
0H83, 200 … 400 bar, M14x1.5, CO, EPDM, Spade, Hydrogen
Art:
0H83-46345-2-080 Copied
400
200
