Suco 0H64/0H69 Hydrogen Pressure Switch Diaphragm (0H64) / Piston (0H69) Switch 0H64-40341-2-080

Adjustment range max

Adjustment range min

0,1

Approvals

RoHS 3

Deviation max

±0.2

Electrical connection

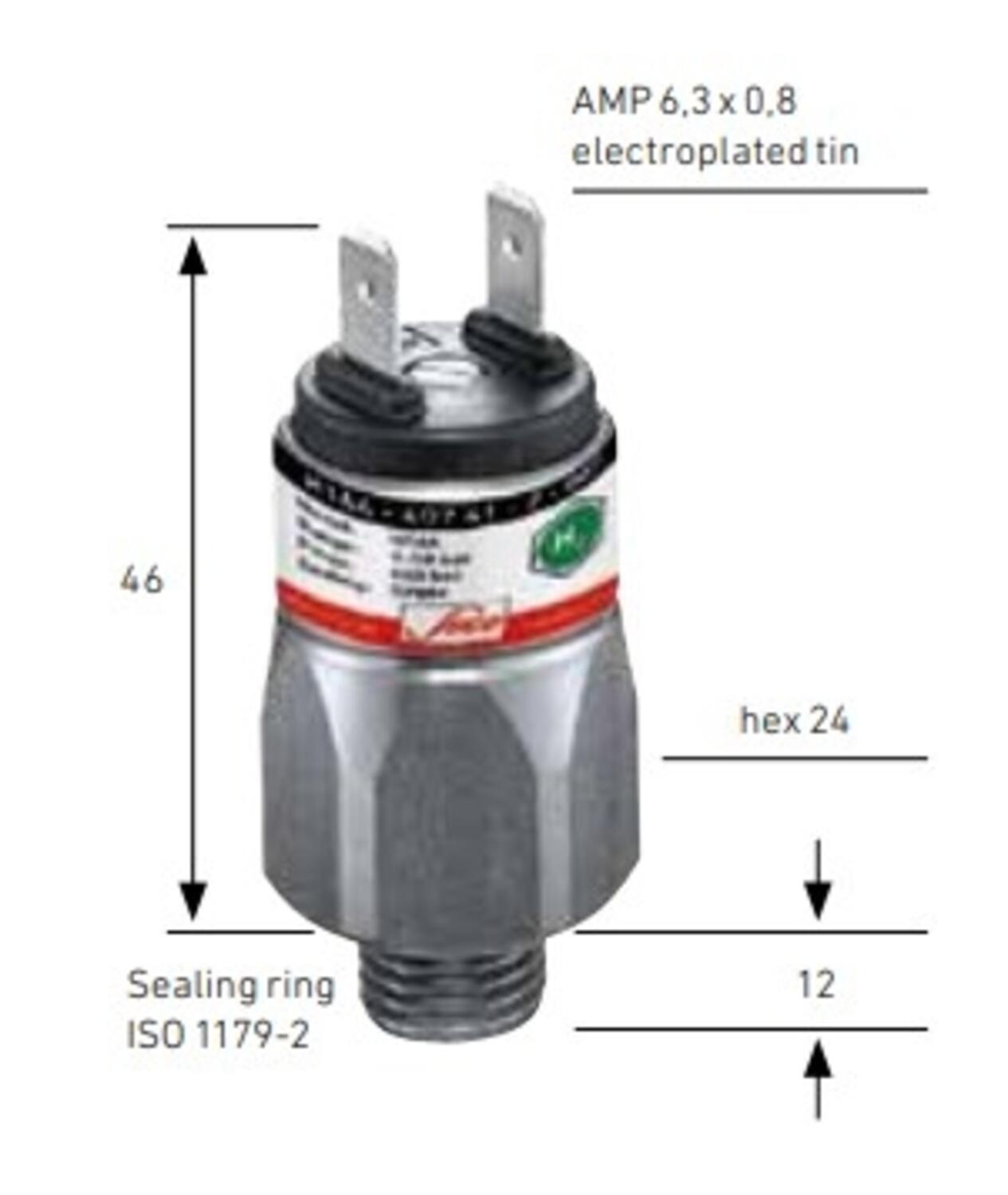

Spade (AMP 6,3x0,8 mm)

Function

Normally open (SPST)

Material of body

Stainless steel 316L

Max. pressure

600

Membrane Material

EPDM

Process connection

G1/4-E

Voltage Max

Articles	Adjustment range max	Adjustment range min	Deviation max	Function
0H64, 0.1 … 1 bar, G1/4-E, NO, EPDM, Spade, Hydrogen Art: 0H64-40341-2-080 Copied	1	0,1	±0.2	Normally open (SPST)
0H64, 0.1 … 1 bar, G1/4-E, NC, EPDM, Spade, Hydrogen Art: 0H64-40441-2-080 Copied	1	0,1	±0.2	Normally Closed (SPST)
0H64, 0.5 … 3 bar, G1/4-E, NO, EPDM, Spade, Hydrogen Art: 0H64-42341-2-080 Copied	3	0,5	±0.3	Normally open (SPST)
0H64, 0.5 … 3 bar, G1/4-E, NC, EPDM, Spade, Hydrogen Art: 0H64-42441-2-080 Copied	3	0,5	±0.3	Normally Closed (SPST)
0H64, 1 … 10 bar, G1/4-E, NO, EPDM, Spade, Hydrogen Art: 0H64-40741-2-080 Copied	10	1	±0.5	Normally open (SPST)
0H64, 1 … 10 bar, G1/4-E, NC, EPDM, Spade, Hydrogen Art: 0H64-40841-2-080 Copied	10	1	±0.5	Normally Closed (SPST)
0H64, 10 … 20 bar, G1/4-E, NO, EPDM, Spade, Hydrogen Art: 0H64-41141-2-080 Copied	20	10	±1.0	Normally open (SPST)
0H64, 10 … 20 bar, G1/4-E, NC, EPDM, Spade, Hydrogen Art: 0H64-41241-2-080 Copied	20	10	±1.0	Normally Closed (SPST)
0H64, 20 … 50 bar, G1/4-E, NO, EPDM, Spade, Hydrogen Art: 0H64-41541-2-080 Copied	50	20	±2.0	Normally open (SPST)
0H64, 20 … 50 bar, G1/4-E, NC, EPDM, Spade, Hydrogen Art: 0H64-41641-2-080 Copied	50	20	±2.0	Normally Closed (SPST)
0H69, 50 … 150 bar, G1/4-E, NO, EPDM, Spade, Hydrogen Art: 0H69-41941-2-080 Copied	150	50	±5.0	Normally open (SPST)
0H69, 50 … 150 bar, G1/4-E, NC, EPDM, Spade, Hydrogen Art: 0H69-42041-2-080 Copied	150	50	±5.0	Normally Closed (SPST)

Select a variant in the list

Suco 0H64/0H69 Hydrogen Pressure Switch
