Suco 0H44/0H45 Atex Hydrogen Pressure Switch

Diaphragm (0H44) / Piston (0H45) Switch

  • Suitable for hydrogen applications
  • Up to 250V
  • Adjustment ranges up to 150 bar
  • Up to 600 bar overpressure safety
  • Changeover (SPDT)

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Adjustment range max 1,5
Adjustment range min 0,3
Approvals IEC, IECEx, RoHS 3, EX, CE
Deviation max ±0.2
Electrical connection Adjusting screw hexagon socket Hex 3
Function Changeover (SPDT)
Material of body Stainless steel 316L
Max. pressure 300
Membrane Material EPDM
Process connection G1/4-E
Voltage Max 250

Downloads

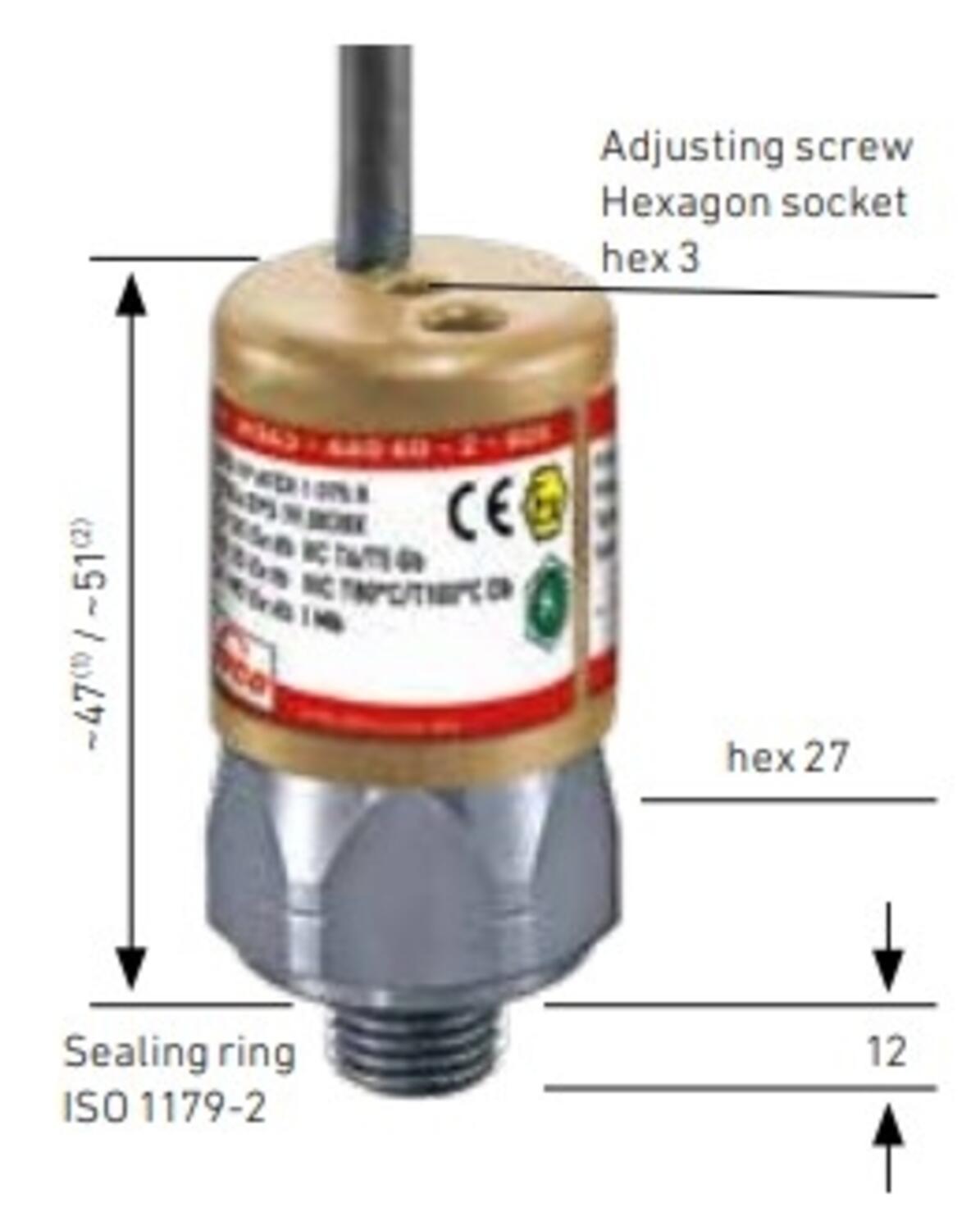

Measurements and connections

Accessories

My favourites Articles Adjustment range max Adjustment range min Deviation max Max. pressure Price
SUCO 0H44 0H45.png
0H44, 0.3 … 1.5 bar, G1/4-E, CO, EPDM, Screw, Hydrogen, ATEX
Art:
0H44-45741-2-020 Copied
1,5
0,3
±0.2
300
SUCO 0H44 0H45.png
0H44, 1 … 10 bar, G1/4-E, CO, EPDM, Screw, Hydrogen, ATEX
Art:
0H44-45841-2-020 Copied
10
1
±0.5-1.0
300
SUCO 0H44 0H45.png
0H44, 10 … 20 bar, G1/4-E, CO, EPDM, Screw, Hydrogen, ATEX
Art:
0H44-45941-2-020 Copied
20
10
±1.0
300
SUCO 0H44 0H45.png
0H44, 20 … 50 bar, G1/4-E, CO, EPDM, Screw, Hydrogen, ATEX
Art:
0H44-46141-2-020 Copied
50
20
±2.0
300
SUCO 0H44 0H45.png
0H45, 50 … 150 bar, G1/4-E, CO, EPDM, Screw, Hydrogen, ATEX
Art:
0H45-46041-2-020 Copied
150
50
±5.0
600
