Suco - 0184/0185 Pressure Switch

IP65

The 0184/0185 series is part of the changeover contact range from SUCO with an integrated plastic body and connector. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.

  • Up to 250 V
  • Connector included (DIN 43650/Form A)
  • Five adjustment ranges from 0,3..1,5 bar to 50..200 bar
  • Changeover (SPDT)
  • Over pressure safety from 100 bar up to 600 bar

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Adjustment range max 1,5
Adjustment range min 0,3
Approvals CSA US, RoHS II
Contact load max ac 4
Contact load max dc 0,25
Deviation max ±0,2
Electrical connection DIN EN 175301-803-A

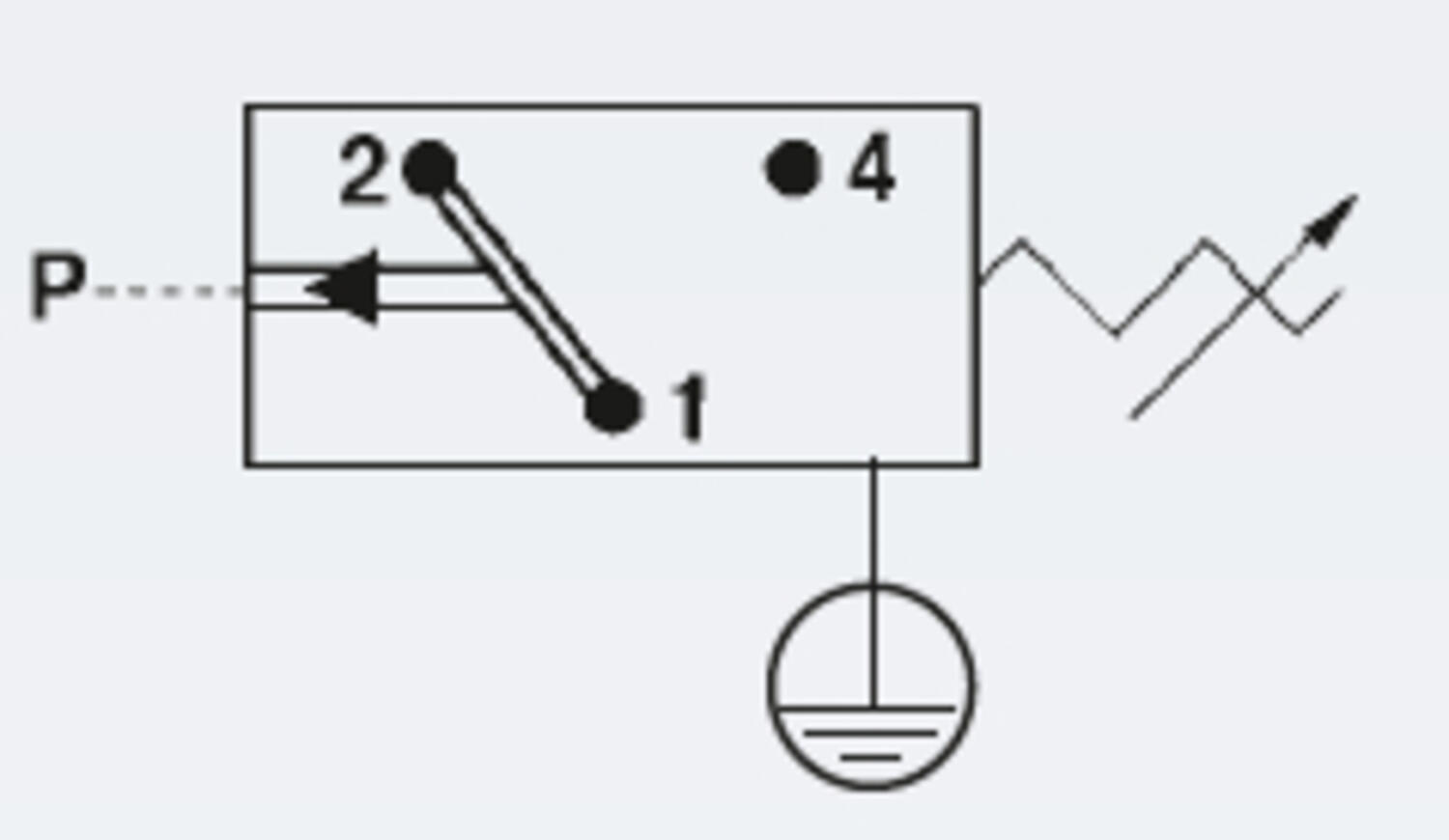

Function Changeover (SPDT)
IP Class IP65
Material of body Galvanized steel
Materials Wetted Parts Galvanized steel, NBR
Max switching frequency/min 200
Max. pressure 100
Membrane Material NBR
Pressure Range Max 1,5
Pressure Range Min 0,3
Pressure type Relativt tryck
Process connection 1/4 BSP
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -30
Temperature range of media to 100
Type Pressure Switch High accuracy
Weight 130
Voltage AC / DC Max 250
Voltage AC / DC Min 10

Downloads

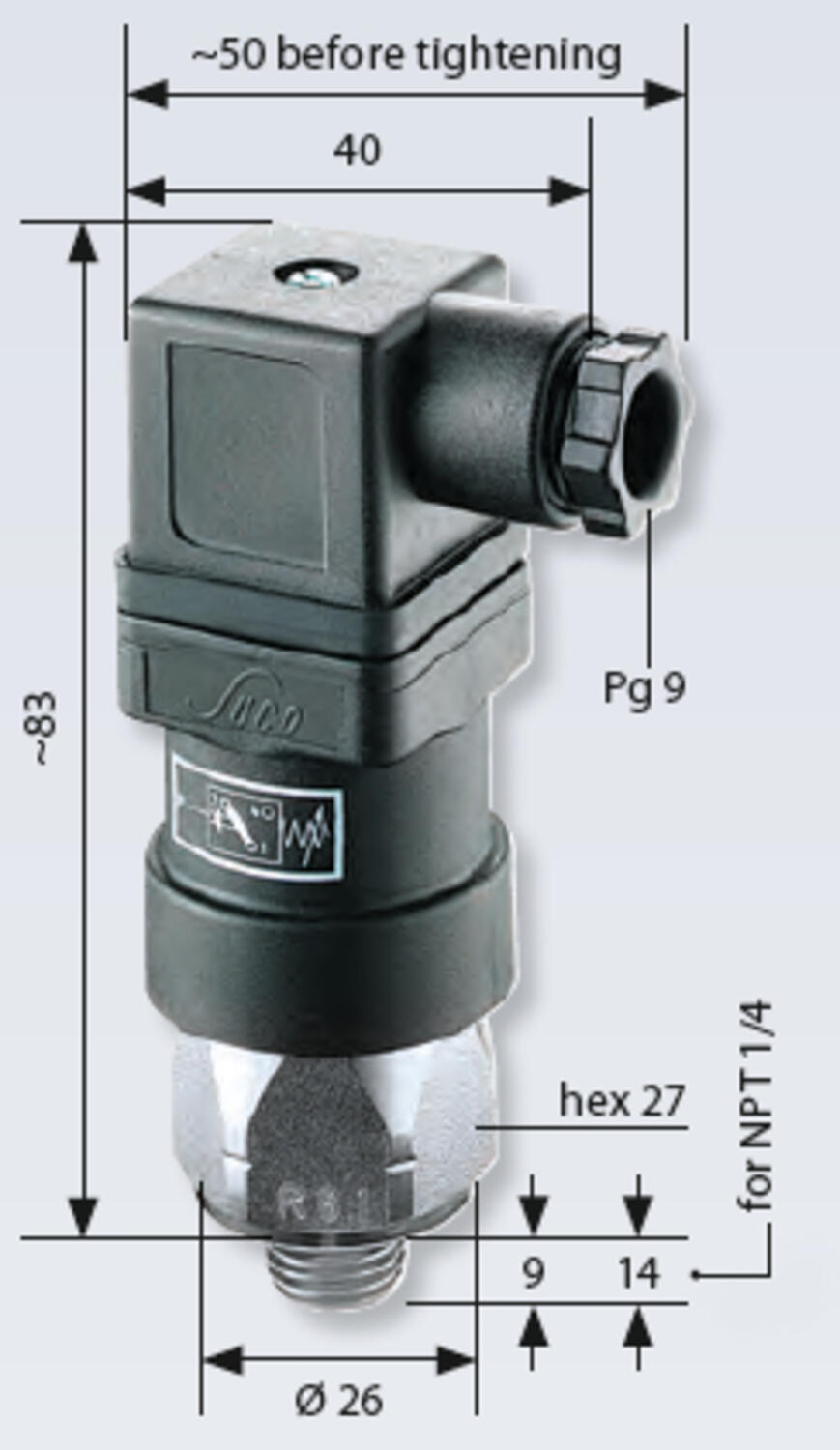

Measurements and connections

Product description

The 0184/0185 series is part of the changeover contact range from SUCO with an integrated plastic body and connector. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.

Accessories

My favourites Articles Adjustment range max Adjustment range min Deviation max Materials Wetted Parts Max. pressure Membrane Material Pressure Range Max Pressure Range Min Pressure type Temperature range of media from Temperature range of media to Type Pressure Switch Price

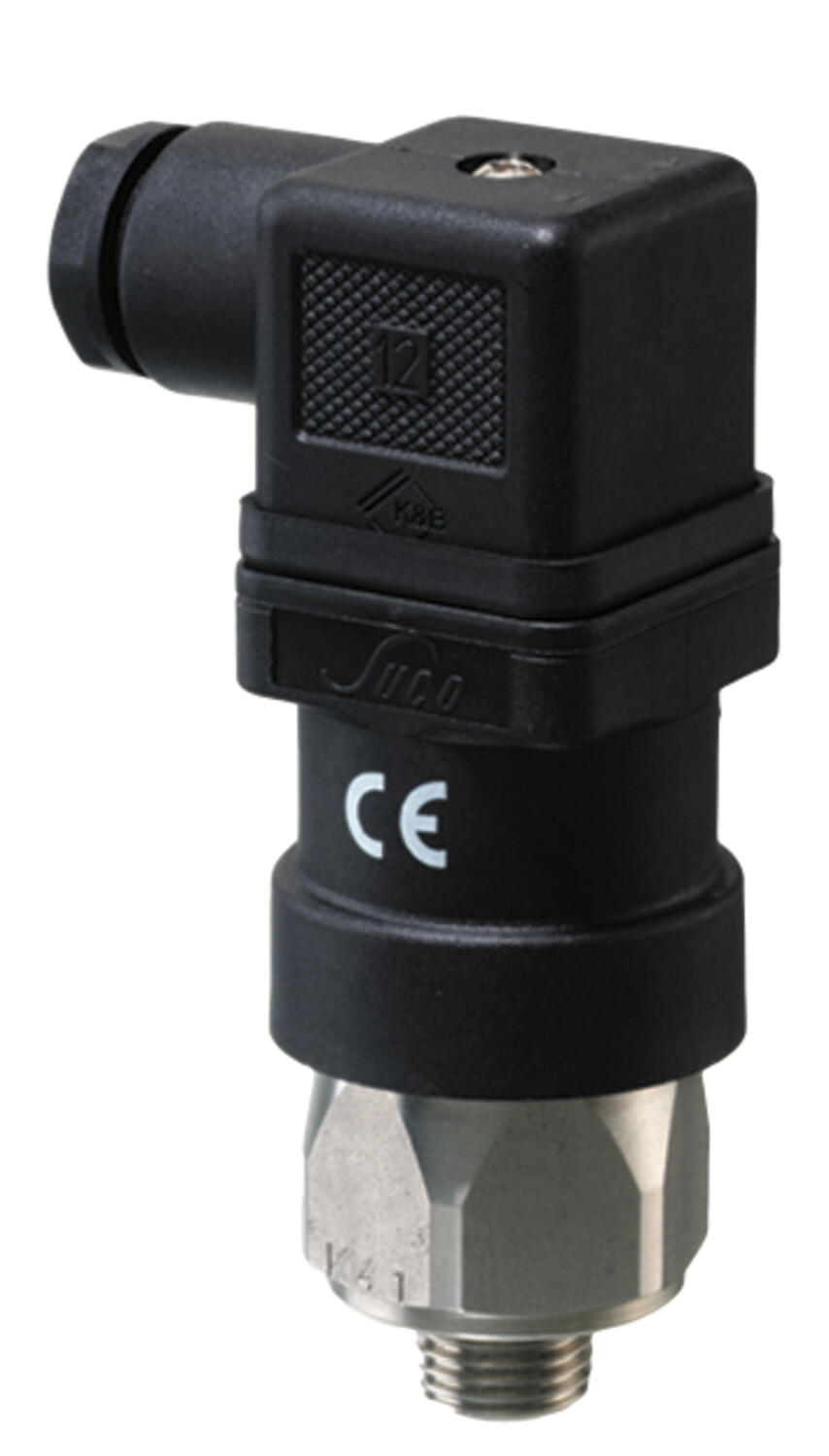

137194_812.tif
0,3..1,5 bar, G1/4, CO, NBR, DIN
Art:
0184457031003 Copied
1,5
0,3
±0,2
Galvanized steel, NBR
100
NBR
1,5
0,3
Relativt tryck
-30
100
High accuracy
137194_812.tif
0,3..1,5 bar, G1/4, CO, EPDM, DIN
Art:
0184457032003 Copied
1,5
0,3
±0,2
Galvanized steel, EPDM
100
EPDM
-30
120
137194_812.tif
0,3..1,5 bar, G1/4, CO, FKM, DIN
Art:
0184457033003 Copied
1,5
0,3
±0,2
Galvanized steel, FKM
100
FKM
-5
120
137194_812.tif
1..10 bar, G1/4, CO, NBR, DIN
Art:
0184458031042 Copied
10
1
±0,5
Galvanized steel, NBR
300
NBR
10
1
Relativt tryck
-40
100
High accuracy
137194_812.tif
1..10 bar, G1/4, CO, EPDM, DIN
Art:
0184458032042 Copied
10
1
±0,5
Galvanized steel, EPDM
300
EPDM
-30
120
High accuracy
137194_812.tif
1..10 bar, G1/4, CO, FKM, DIN
Art:
0184458033042 Copied
10
1
±0,5
Galvanized steel, FKM
300
FKM
-5
120
High accuracy
137194_812.tif
10..50 bar, G1/4, CO, NBR, DIN
Art:
0184459031009 Copied
50
10
±3,0
Galvanized steel, NBR
300
NBR
50
10
Relativt tryck
-40
100
High accuracy
137194_812.tif
10..50 bar, G1/4, CO, EPDM, DIN
Art:
0184459032009 Copied
50
10
±3,0
Galvanized steel, EPDM
300
EPDM
-30
120
137194_812.tif
10..50 bar, G1/4, CO, FKM, DIN
Art:
0184459033009 Copied
50
10
±3,0
Galvanized steel, FKM
300
FKM
-5
120
137194_812.tif
10..100 bar, G1/4, CO, NBR, DIN
Art:
0184461031012 Copied
100
10
±3,0-5,0
Galvanized steel, NBR
300
NBR
100
10
Relativt tryck
-40
100
High accuracy
137194_812.tif
10..100 bar, G1/4, CO, EPDM, DIN
Art:
0184461032012 Copied
100
10
±3,0-5,0
Galvanized steel, EPDM
300
EPDM
-30
120
137194_812.tif
10..100 bar, G1/4, CO, FKM, DIN
Art:
0184461033012 Copied
100
10
±3,0-5,0
Galvanized steel, FKM
300
FKM
-5
120
High accuracy
137194_812.tif
50..200 bar, G1/4, CO, NBR, DIN
Art:
0185460031003 Copied
200
50
±5,0
Galvanized steel, NBR
600
NBR
200
50
Relativt tryck
-40
100
High accuracy
137194_812.tif
50..200 bar, G1/4, CO, EPDM, DIN
Art:
0185460032003 Copied
200
50
±5,0
Galvanized steel, EPDM
600
EPDM
-30
120
137194_812.tif
50..200 bar, G1/4, CO, FKM, DIN
Art:
0185460033003 Copied
200
50
±5,0
Galvanized steel, FKM
600
FKM
-15
120
High accuracy
