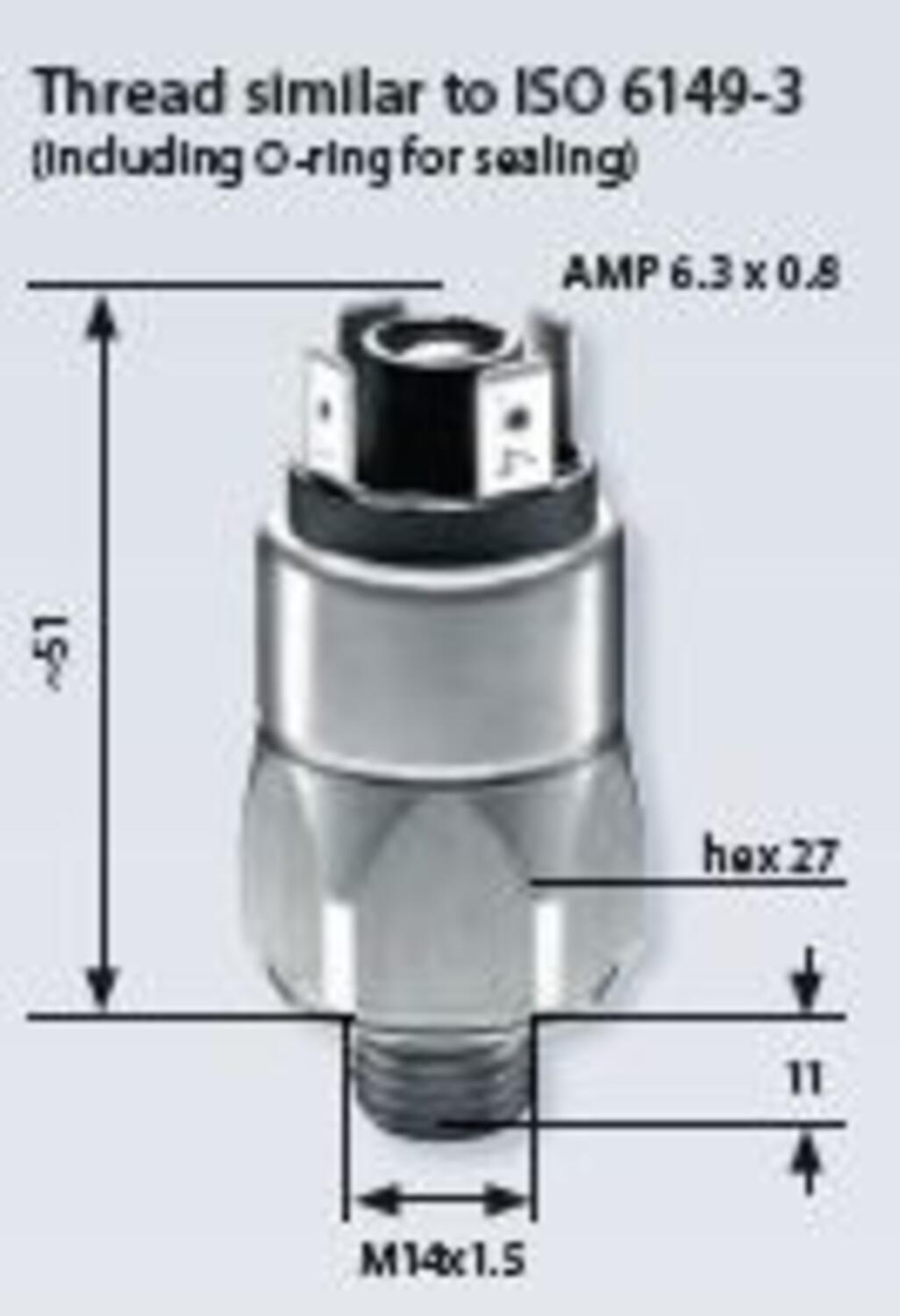

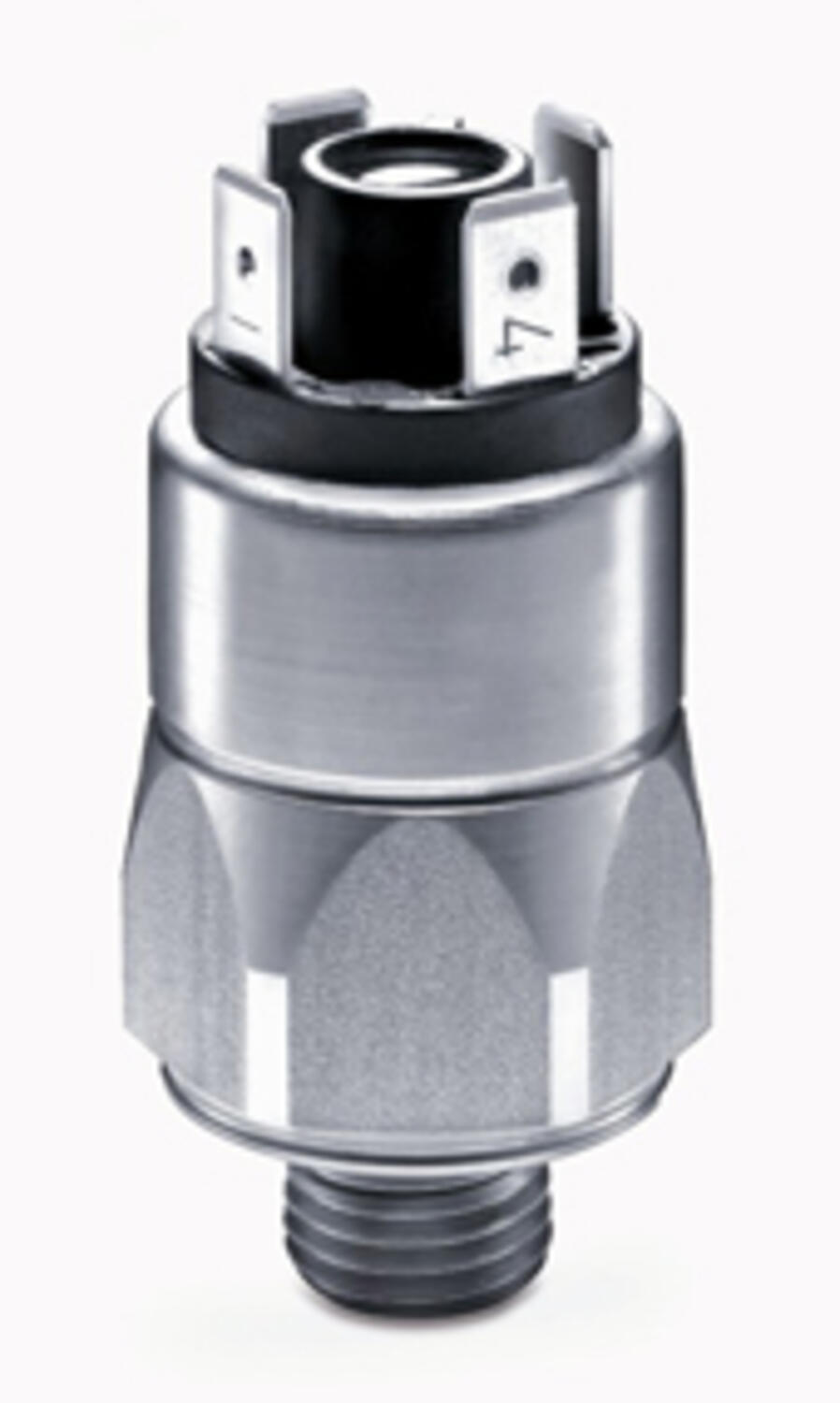

The 0183 series is a high pressure version pressureswitch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs, mobile hydraulics, water systems and high pressure systems.
Adjustment range max | 300 |
---|---|
Adjustment range min | 100 |
Approvals | CSA US, RoHS II |
Contact load max ac | 4 |
Contact load max dc | 0,25 |
Deviation max | ±10,0 |
Electrical connection | Spade (AMP 6,3x0,8 mm) |

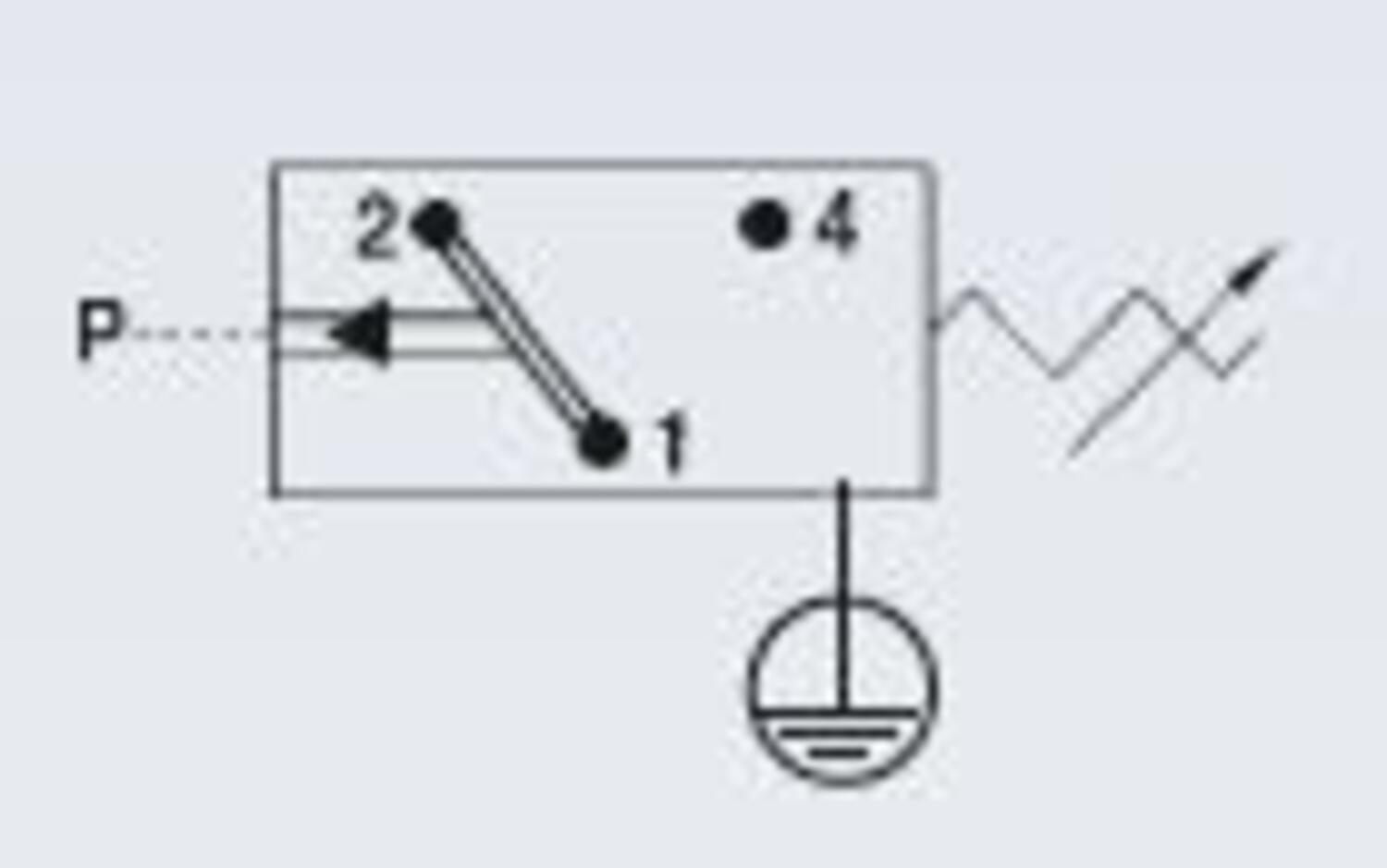

Function | Changeover (SPDT) |
Hysteresis | 10-30% depending on set value |
IP Class | IP00 |
Lifespan Mechanical | 1 million exchanges |
Material of body | Zinc-plated steel |
Materials Wetted Parts | Zinc-plated steel, NBR |
Max switching frequency/min | 200 |
---|---|
Max. pressure | 600 |
Membrane Material | NBR |
Process connection | M14x1.5 |
Temperature ambient from | -20 |
Temperature ambient to | 80 |
Temperature range of media from | -40 |
Temperature range of media to | 100 |
Weight | 100 |
Voltage AC / DC Max | 250 |
Voltage AC / DC Min | 10 |
The 0183 series is a high pressure version pressureswitch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include power packs, mobile hydraulics, water systems and high pressure systems.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Adjustment range max | Adjustment range min | Materials Wetted Parts | Membrane Material | Temperature range of media from | Temperature range of media to | Price | |
---|---|---|---|---|---|---|---|---|---|
![]()
100..300 bar, M14x1.5, CO, NBR, Spade
Art:
0183462451051
Copied
|
300
|
100
|
Zinc-plated steel, NBR
|
NBR
|
-40
|
100
|
| ||
![]()
100..300 bar, M14x1.5, CO, EPDM, Spade
Art:
0183462452051
Copied
|
300
|
100
|
EPDM, Zinc-plated steel
|
EPDM
|
-30
|
120
|
| ||
![]()
100..300 bar, M14x1.5, CO, FKM, Spade
Art:
0183462453051
Copied
|
300
|
100
|
FKM, Zinc-plated steel
|
FKM
|
-15
|
120
|
| ||
![]()
200..400 bar, M14x1.5, CO, NBR, Spade
Art:
0183463451061
Copied
|
400
|
200
|
Zinc-plated steel, NBR
|
NBR
|
-40
|
100
|
| ||
![]()
200..400 bar, M14x1.5, CO, EPDM, Spade
Art:
0183463452061
Copied
|
400
|
200
|
EPDM, Zinc-plated steel
|
EPDM
|
-30
|
120
|
| ||
![]()
200..400 bar, M14x1.5, CO, FKM, Spade
Art:
0183463453061
Copied
|
400
|
200
|
FKM, Zinc-plated steel
|
FKM
|
-15
|
120
|
|
Select a variant in the list
