Suco - 0165 ATEX Pressure Switch

ATEX rated

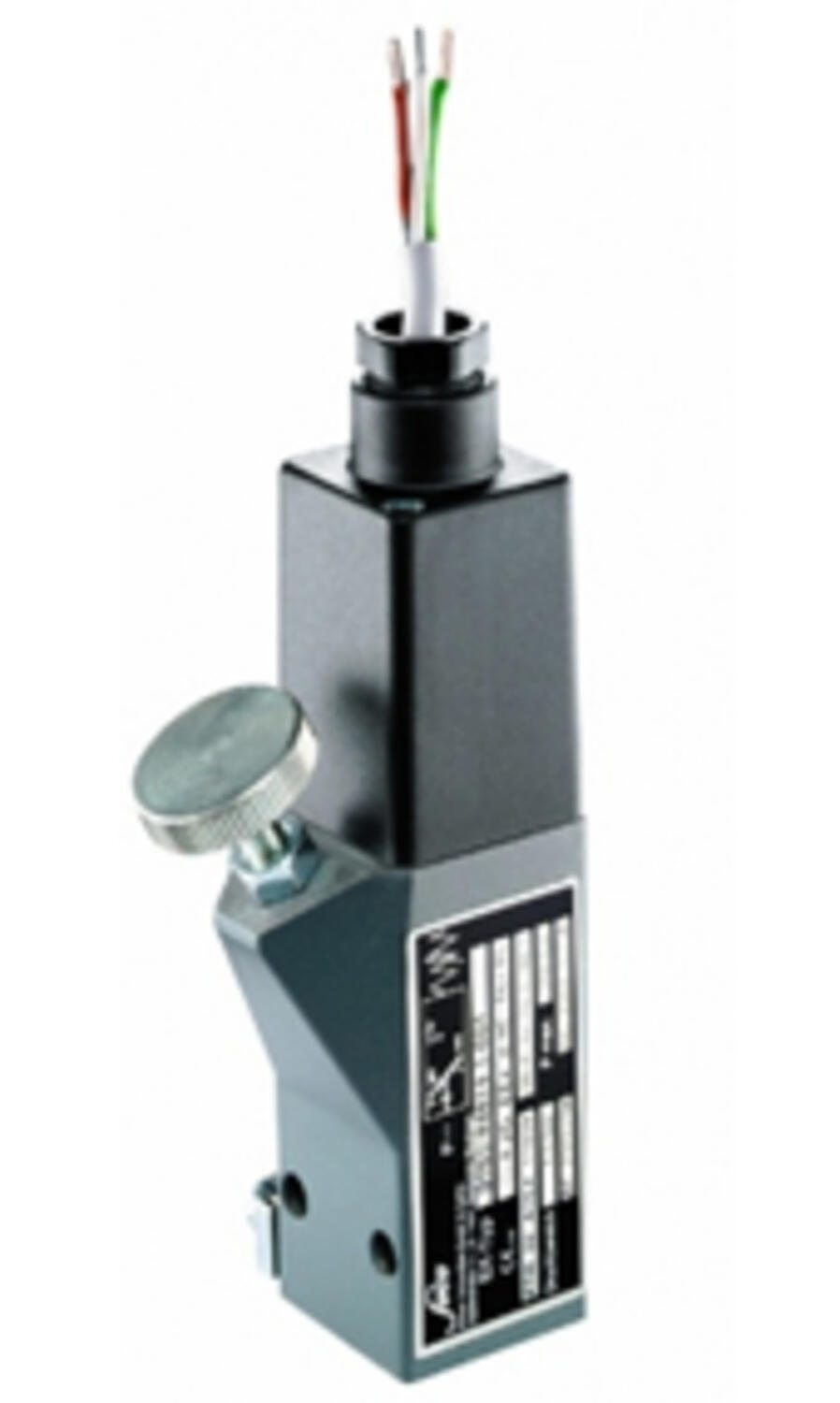

The 0165 series pressure switch is part of the ATEX range from SUCO for gas zones 1 and 2 offering adjustment while in operation. Pg9 cable gland connector and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F alumimium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and can come pre-set.





Common applications include oil & gas, mills, foundries, chemical and process industries.

  • Gas protected zones 1 and 2
  • Up to 250 V
  • Five adjustment ranges from 1..6 bar to 100..400 bar
  • Changeover (SPDT)
  • Over pressure safety from 200 bar up to 600 bar

Selected variant

Avaible in several variants

Selected variant

Specifications

Adjustment range max 6
Adjustment range min 1
Approvals CSA US, Ex-d
Contact load max ac 1
Contact load max dc 0,25
Deviation max ±0,5
Electrical connection Embedded 2m cable

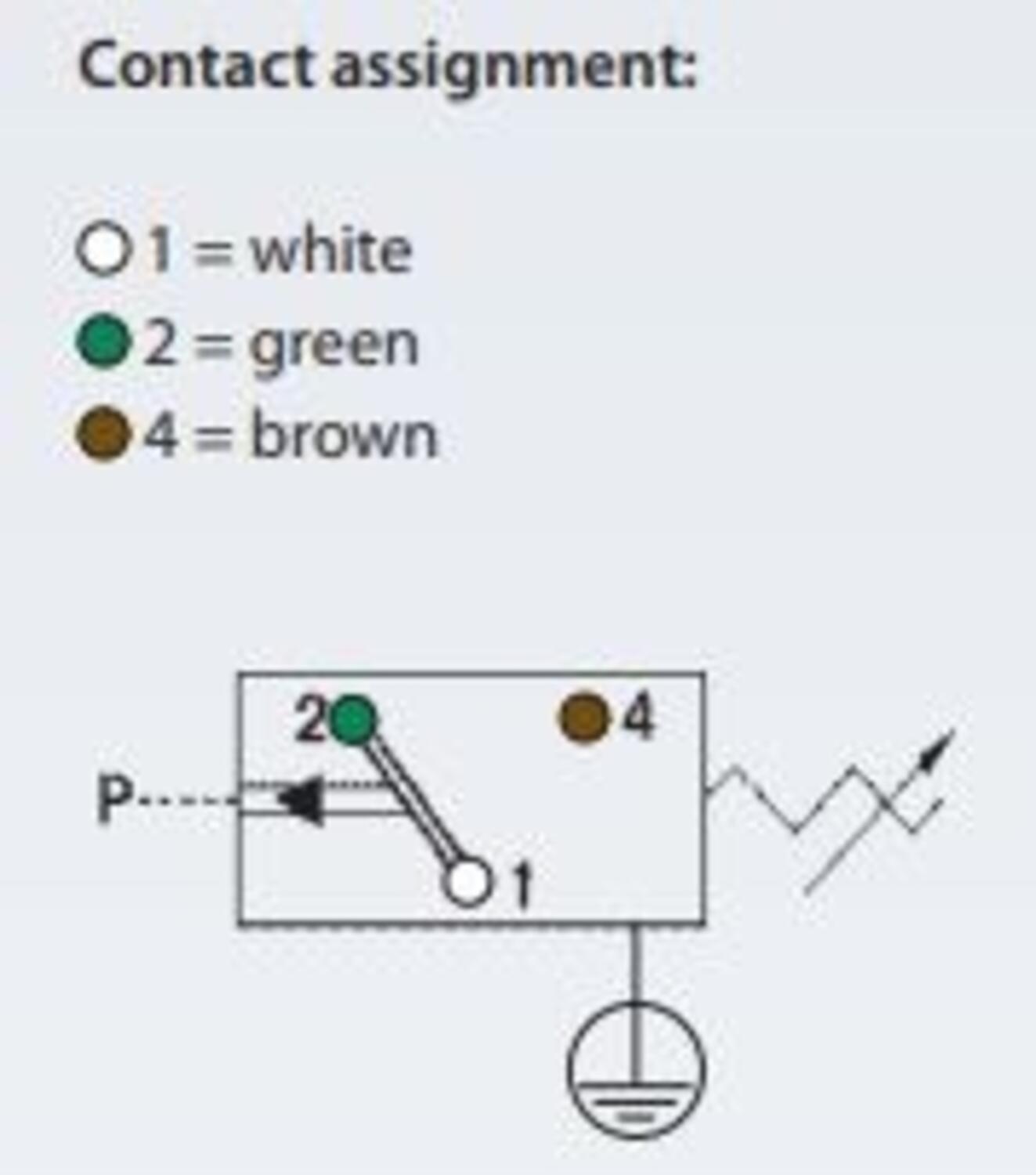

Function Changeover (SPDT)
IP Class IP65
Material of body Aluminium
Materials Wetted Parts Aluminium, NBR
Max switching frequency/min 200
Max. pressure 200
Membrane Material NBR
Pressure Range Max 6
Pressure Range Min 1
Process connection G1/4 female
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -20
Temperature range of media to 80
Type Pressure Switch ATEX
Weight 380
Voltage AC / DC Max 250
Voltage AC / DC Min 10

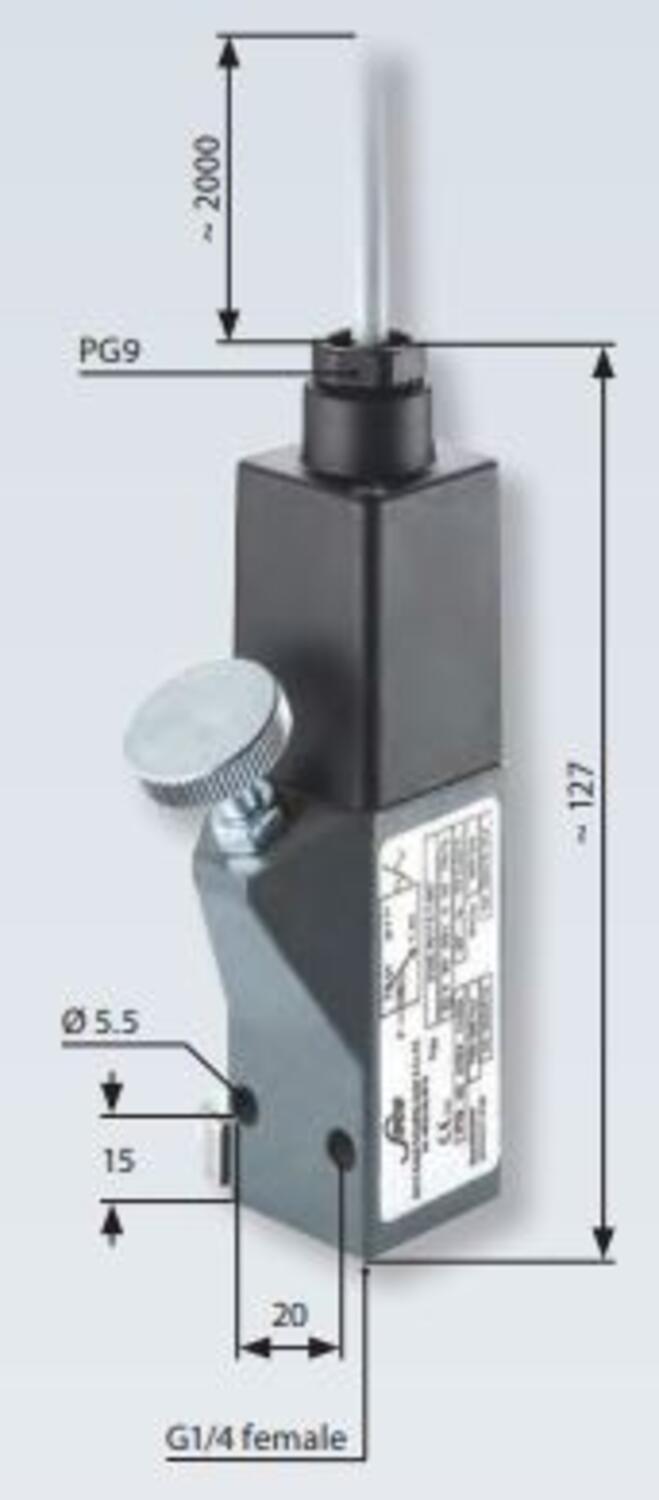

Measurements and connections

Product description

The 0165 series pressure switch is part of the ATEX range from SUCO for gas zones 1 and 2 offering adjustment while in operation. Pg9 cable gland connector and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F alumimium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and can come pre-set.





Common applications include oil & gas, mills, foundries, chemical and process industries.

Accessories

My favourites Articles Adjustment range max Adjustment range min Approvals Deviation max Materials Wetted Parts Max. pressure Membrane Material Pressure Range Max Pressure Range Min Temperature range of media from Type Pressure Switch Price
6
1
CSA US, Ex-d
±0,5
Aluminium, NBR
200
NBR
6
1
-20
ATEX
6
1
ATEX, CSA US
±0,5
Aluminium, EPDM
200
EPDM
-20
ATEX
6
1
ATEX, CE, CSA US, RoHS II
±0,5
Aluminium, FKM
200
FKM
-5
50
5
CSA US, Ex-d
±3,0
Aluminium, NBR
200
NBR
50
5
-20
ATEX
50
5
ATEX, CE, CSA US, RoHS II
±3,0
Aluminium, EPDM
200
EPDM
-20
ATEX
50
5
ATEX, CE, CSA US, RoHS II
±3,0
Aluminium, FKM
200
FKM
-5
100
20
CSA US, Ex-d
±3,0-5,0
Aluminium, NBR
600
NBR
100
20
-20
ATEX
250
25
CSA US
±5,0-7,0
Aluminium, NBR
600
NBR
-20
100
20
ATEX, CE, CSA US, RoHS II
±3,0-5,0
Aluminium, EPDM
600
EPDM
-20
100
20
ATEX, CE, CSA US, RoHS II
±3,0-5,0
Aluminium, FKM
600
FKM
-15
400
100
CSA US, Ex-d
±5,0-9,0
Aluminium, NBR
600
NBR
400
100
-20
ATEX
400
100
ATEX, CE, CSA US, RoHS II
±5,0-9,0
Aluminium, EPDM
600
EPDM
-20
400
100
ATEX, CE, CSA US, RoHS II
±5,0-9,0
Aluminium, FKM
600
FKM
-15
250
25
ATEX, CE, CSA US, RoHS II
±5,0-7,0
Aluminium, EPDM
600
EPDM
-20
250
25
ATEX, CE, CSA US, RoHS II
±5,0-7,0
Aluminium, FKM
600
FKM
-15
