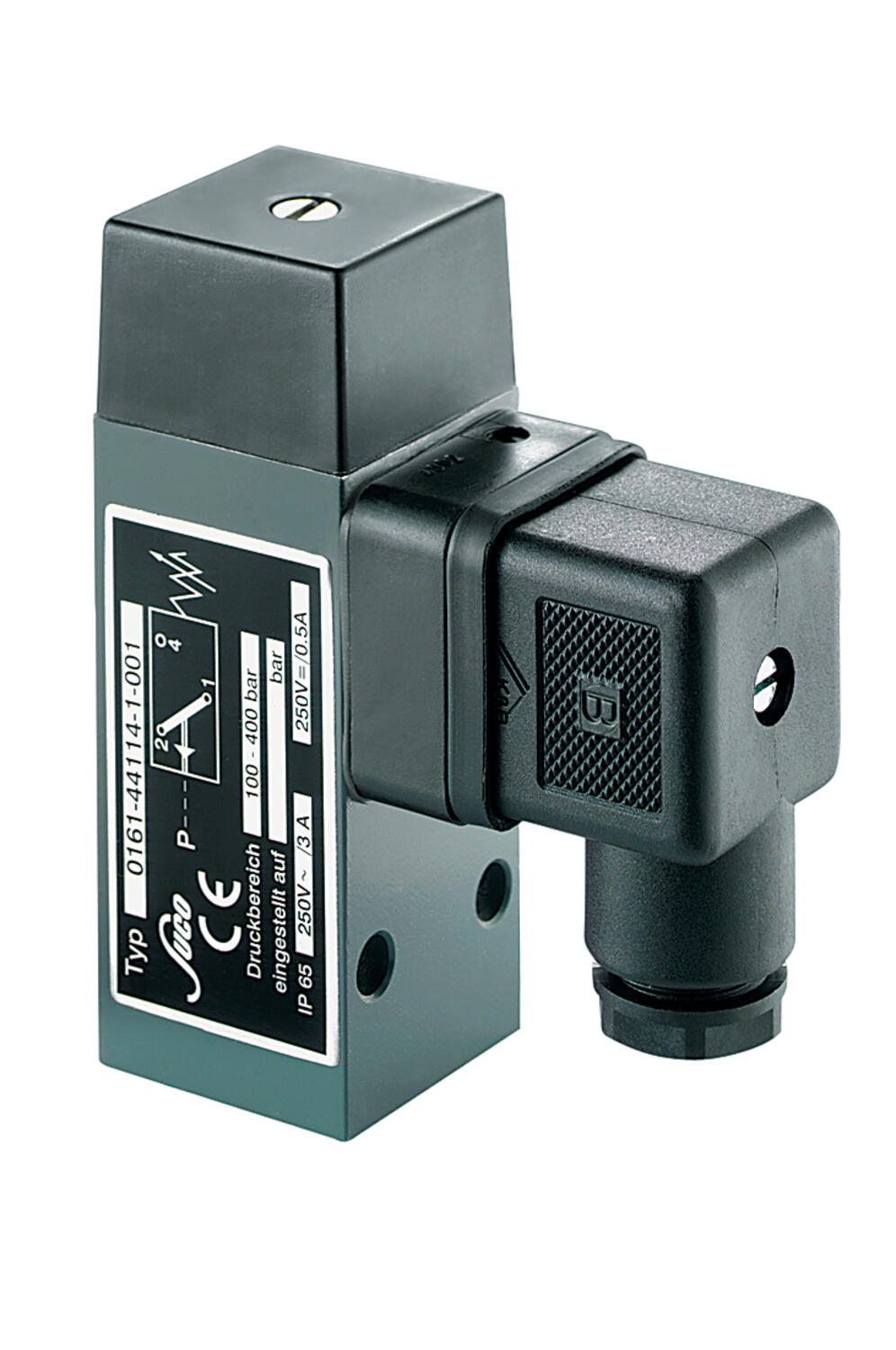

Suco - 0161 Heavy Duty Pressure Switch

Aluminium body

The 0161 series pressure switch is part of the block style and wall mountable range from SUCO offering a rugged solution. Connector included and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F aluminium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications general hydraulics, power packs, high pressure systems and harsh environments.

  • Up to 250 V
  • Connector included (DIN 43650/Form A)
  • Six adjustment ranges from 0,5..1 bar to 100..400 bar
  • Changeover (SPDT)
  • Over pressure safety from 200 bar up to 600 bar

Selected variant

Avaible in several variants

Selected variant

Specifications

Adjustment range max 1
Adjustment range min 0,5
Approvals CE, RoHS II
Contact load max ac 5
Contact load max dc 3,5
Deviation max ±0,2
Electrical connection DIN EN 175301-803-A

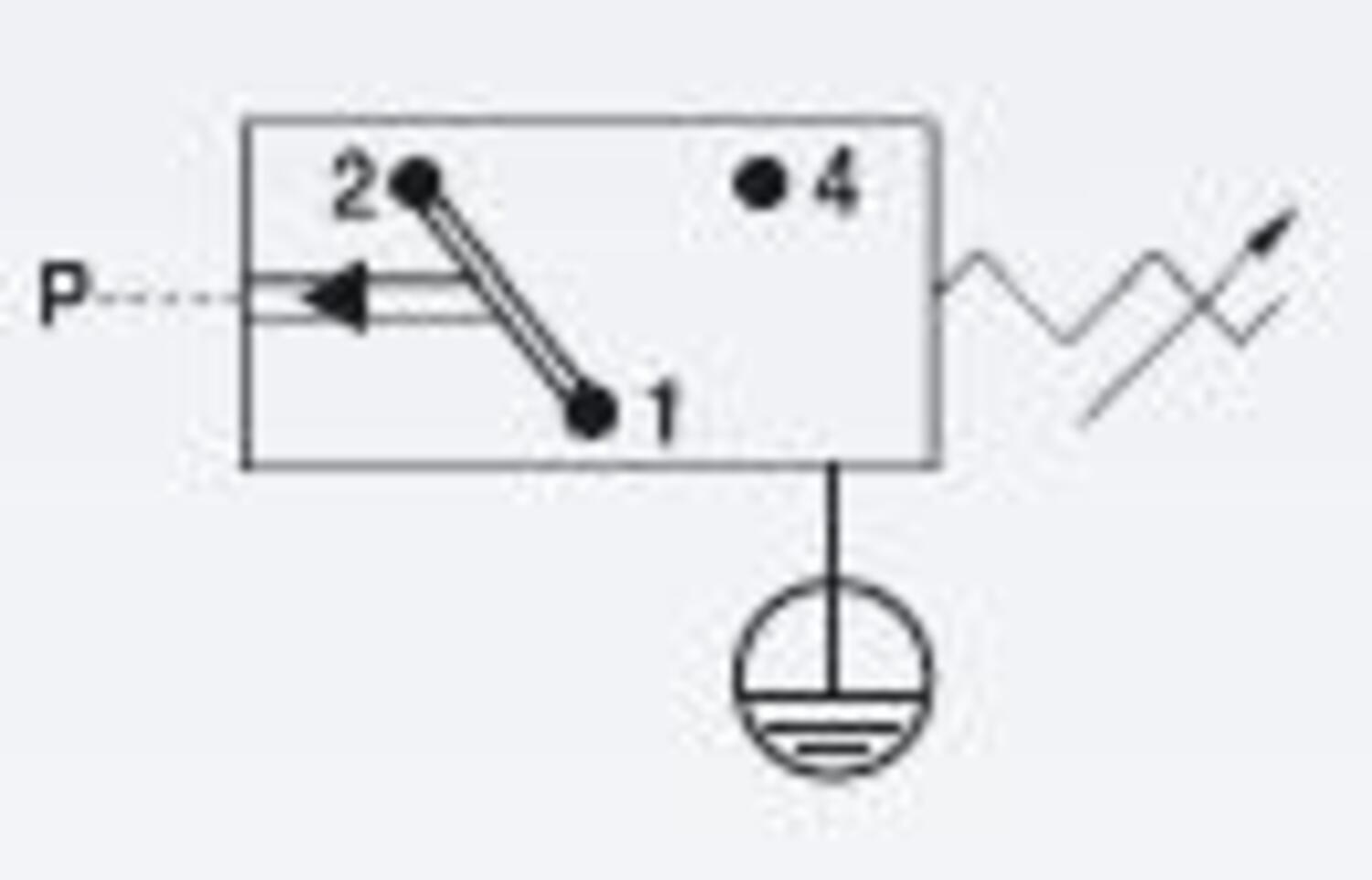

Function Changeover (SPDT)
IP Class IP65
Material of body Aluminium
Materials Wetted Parts Aluminium, NBR
Max switching frequency/min 200
Max. pressure 200
Membrane Material NBR
Pressure Range Max 1
Pressure Range Min 0,5
Process connection G1/4 female
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -40
Temperature range of media to 100
Type Pressure Switch block Installation
Weight 240
Voltage AC / DC Max 250

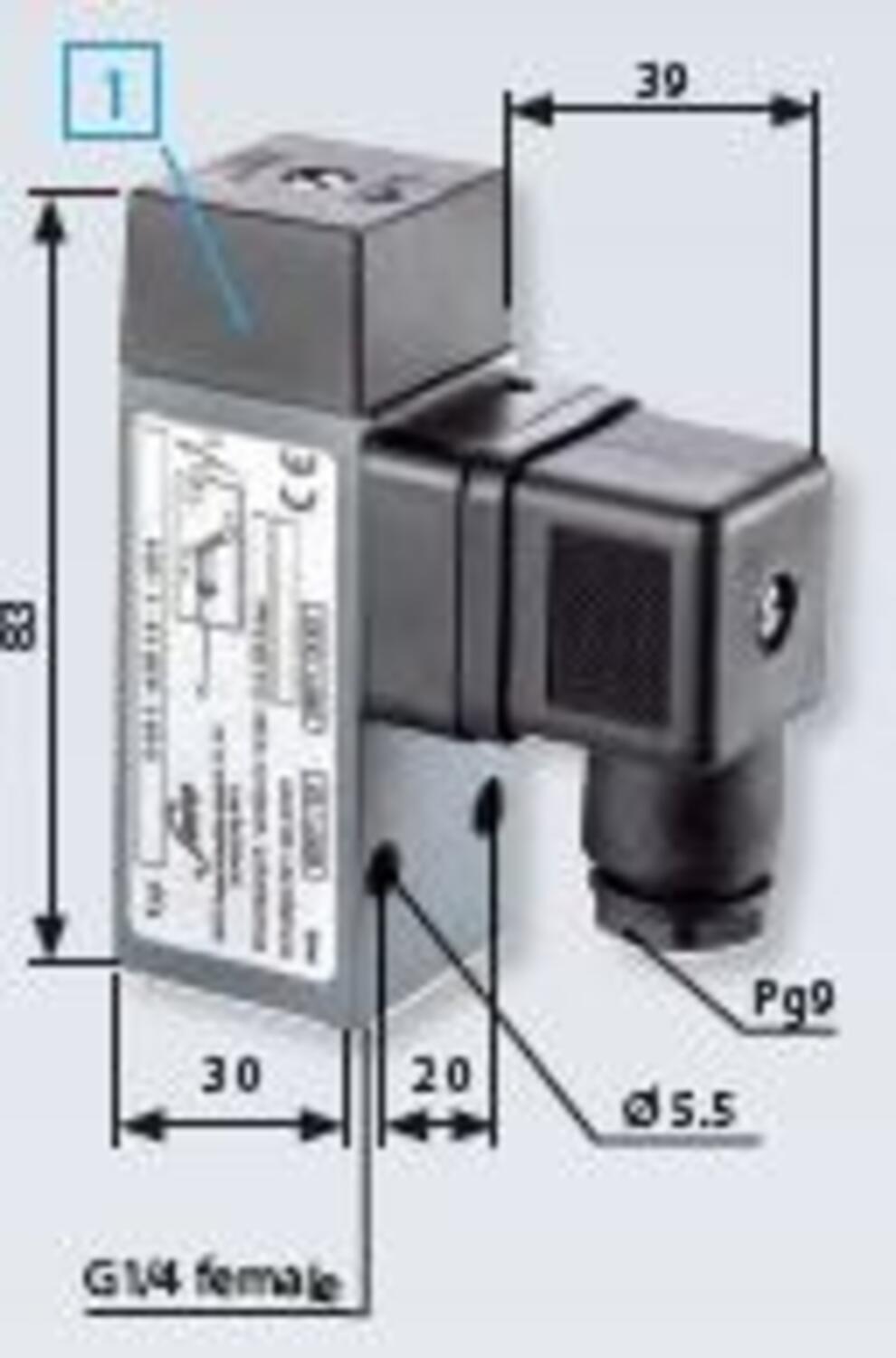

Measurements and connections

Product description

The 0161 series pressure switch is part of the block style and wall mountable range from SUCO offering a rugged solution. Connector included and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F aluminium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications general hydraulics, power packs, high pressure systems and harsh environments.

Accessories

My favourites Articles Adjustment range max Adjustment range min Deviation max Materials Wetted Parts Max. pressure Membrane Material Pressure Range Max Pressure Range Min Temperature range of media from Temperature range of media to Type Pressure Switch Price
1
0,5
±0,2
Aluminium, NBR
200
NBR
1
0,5
-40
100
block Installation
1
0,5
±0,2
Aluminium, EPDM
200
EPDM
-30
120
1
0,5
±0,2
Aluminium, FKM
200
FKM
-5
120
5
0,5
±0,2-0,5
Aluminium, NBR
200
NBR
5
0,5
-40
100
block Installation
5
0,5
±0,2-0,5
Aluminium, EPDM
200
EPDM
-30
120
5
0,5
±0,2-0,5
Aluminium, FKM
200
FKM
-5
120
10
1
±0,5
Aluminium, NBR
200
NBR
10
1
-40
100
block Installation
10
1
±0,5
Aluminium, EPDM
200
EPDM
-30
120
10
1
±0,5
Aluminium, FKM
200
FKM
-5
120
50
10
±3,0
Aluminium, NBR
200
NBR
50
10
-40
100
block Installation
50
10
±3,0
Aluminium, EPDM
200
EPDM
-30
120
block Installation
50
10
±3,0
Aluminium, FKM
200
FKM
-5
120
100
50
±3,0-5,0
Aluminium, NBR
200
NBR
100
50
-40
100
block Installation
100
50
±3,0-5,0
Aluminium, EPDM
200
EPDM
-30
120
100
50
±3,0-5,0
Aluminium, FKM
200
FKM
-5
120
400
100
±5,0-9,0
Aluminium, NBR
600
NBR
400
100
-40
100
block Installation
400
100
±5,0-9,0
Aluminium, EPDM
600
EPDM
-30
120
400
100
±5,0-9,0
Aluminium, FKM
600
FKM
-15
120
block Installation
