SUCO
The 0151 series vacuum switch is a brass bodied switch from SUCO for vacuum applicatiosn. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 brass body. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.
Common applications include water, medical, air and chemical.
Approvals | RoHS II |
---|---|
Contact Rating Max | 4 |
Deviation max | ±100mbar |

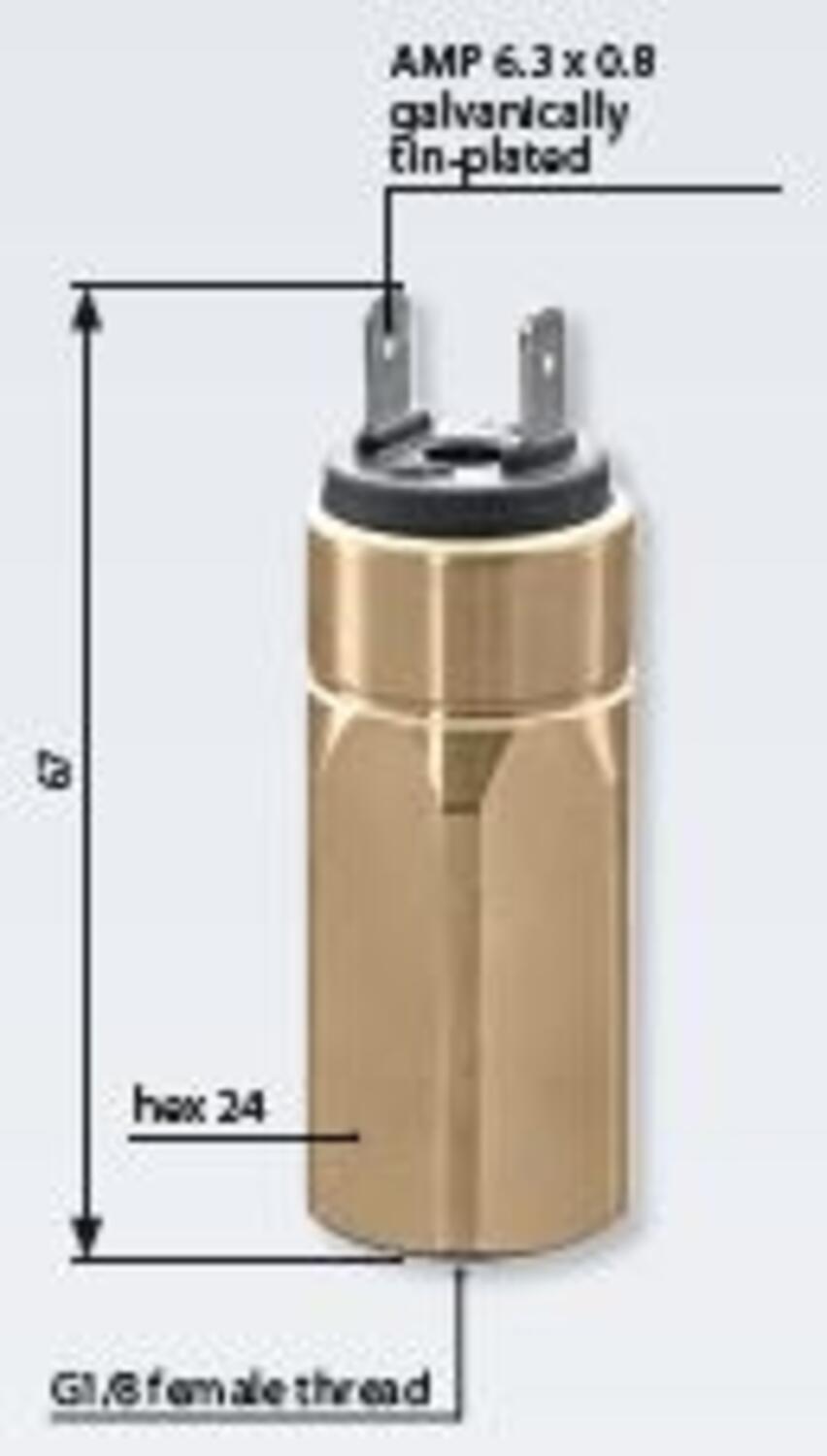

Electrical connection | Spade (AMP 6,3x0,8 mm) |
Function | Normally Closed (SPST) |
IP Class | IP00 |
Material of body | Brass |
Materials Wetted Parts | FKM, Brass |
Max switching frequency/min | 200 |
Membrane Material | FKM |
Operating range max | 950 |
Operating range min | 200 |
Pressure Range Max | 0,95 |
---|---|
Pressure Range Min | 0,2 |
Process connection | G1/8 female |
Temperature ambient from | -20 |
Temperature ambient to | 80 |
Temperature range of media from | -15 |
Temperature range of media to | 120 |
Weight | 140 |
Voltage AC / DC Max | 42 |
Voltage AC / DC Min | 10 |
The 0151 series vacuum switch is a brass bodied switch from SUCO for vacuum applicatiosn. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 brass body. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.
Common applications include water, medical, air and chemical.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Adjustment range max | Adjustment range min | Electrical connection | Function | Operating range max | Operating range min | Pressure Range Max | Pressure Range Min | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
![]()
-200..-950mbar, G1/8 female, Nc, FKM, Spade, Brass
Art:
0151455153001
Copied
|
|
|
Spade (AMP 6,3x0,8 mm)
|
Normally Closed (SPST)
|
950
|
200
|
0,95
|
0,2
|
| ||
![]()
-200..-950mbar, G1/8 female, No, FKM, Spade, Brass
Art:
0151454153001
Copied
|
|
|
Spade (AMP 6,3x0,8 mm)
|
Normally open (SPST)
|
950
|
200
|
0,95
|
0,2
|
| ||
![]()

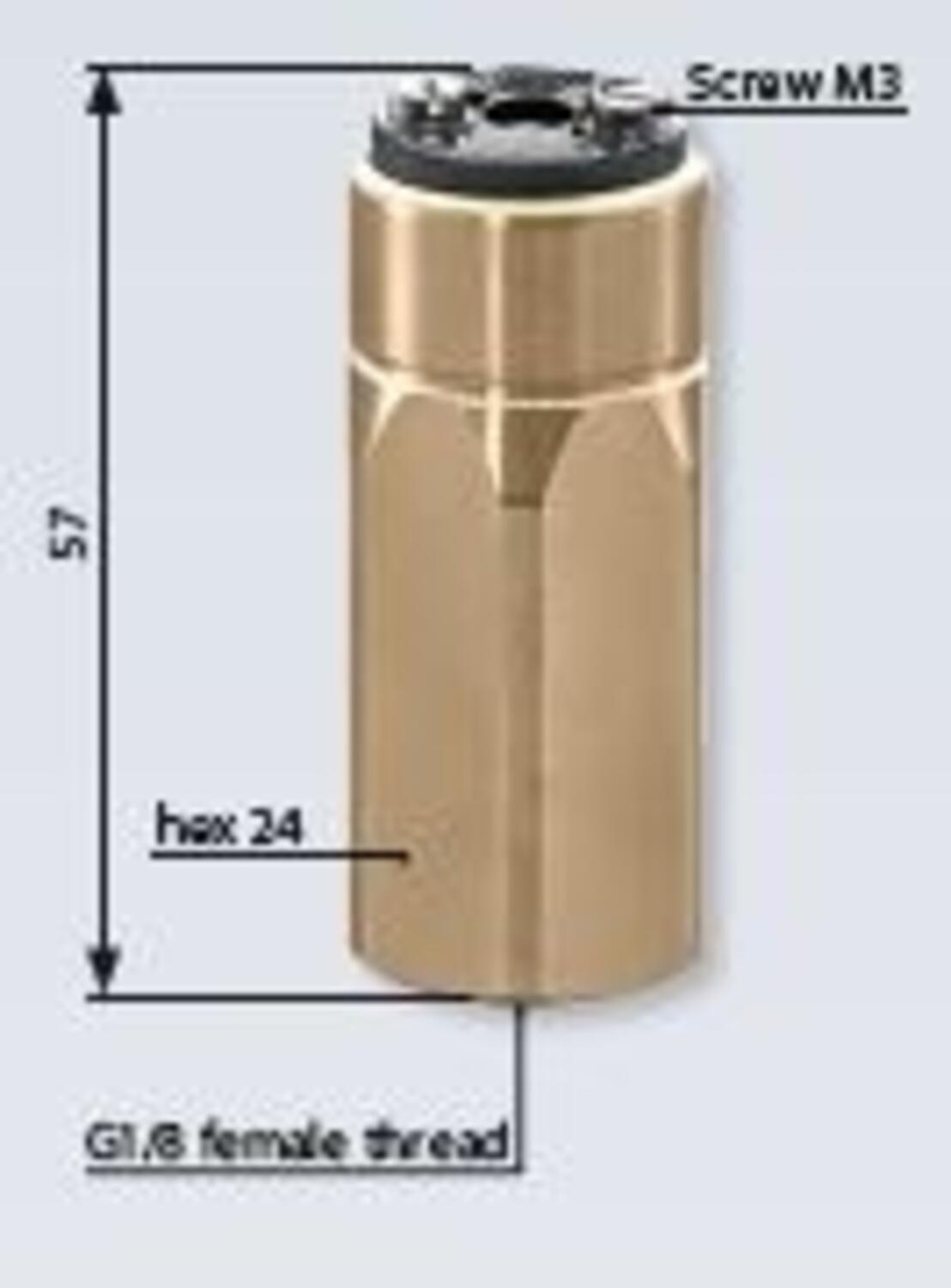

-200..-950mbar, G1/8 female, Nc, FKM, Screw, Brass
Art:
0151453153001
Copied
|
0,95
|
0,2
|
Screw (M3)
|
Normally Closed (SPST)
|
|
|
|
|
| ||
![]()
-200..-950mbar, G1/8 female, No, FKM, Screw, Brass
Art:
0151452153001
Copied
|
0,95
|
0,2
|
Screw (M3)
|
Normally open (SPST)
|
|
|
|
|
|
Select a variant in the list
