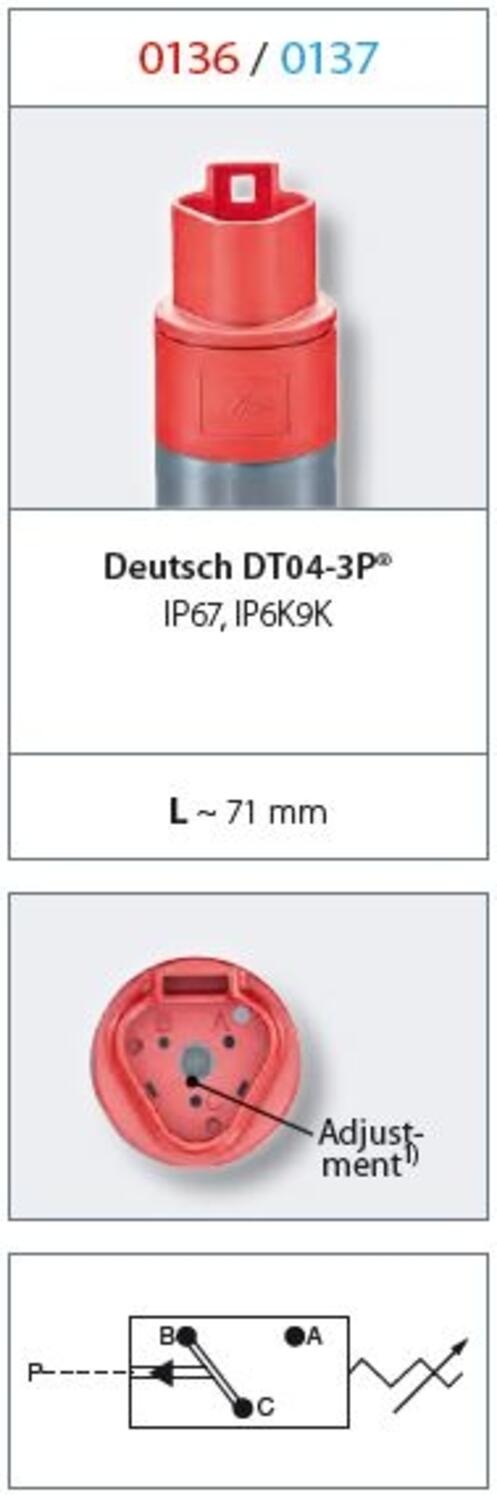

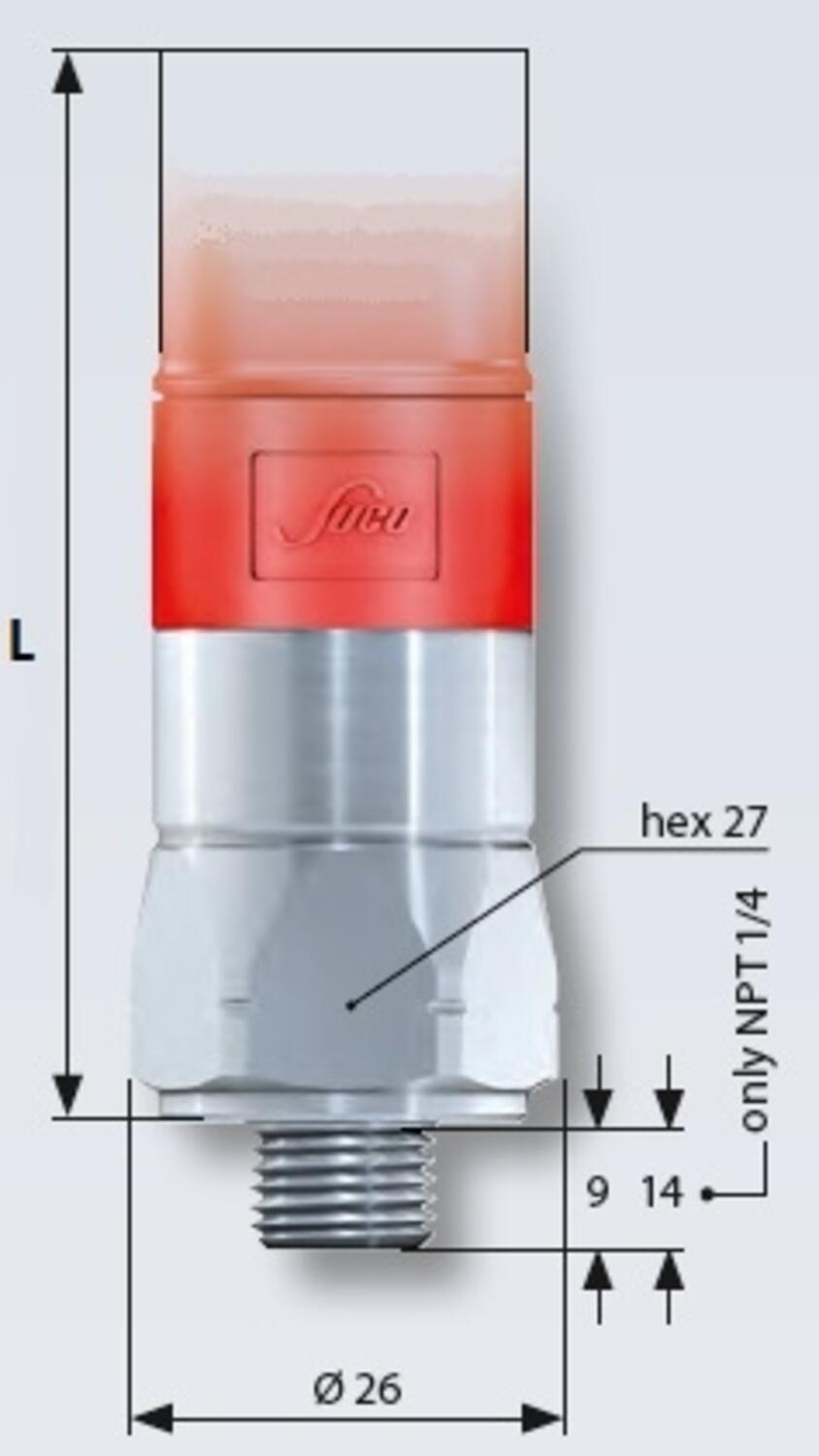

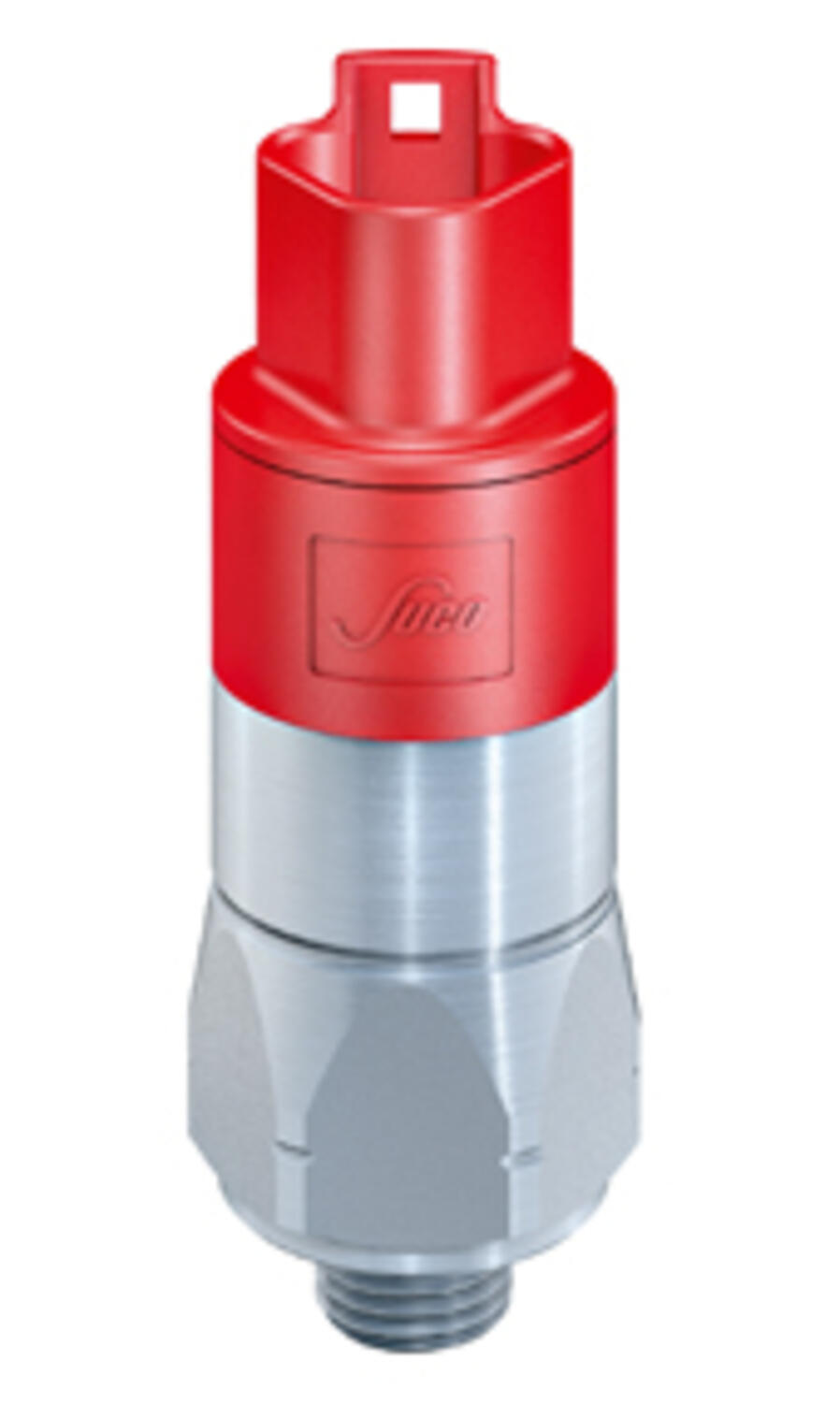

The 0136/0137 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated Deustch DT04-3® connector and a maximum voltage of 48 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
Adjustment range max | 1,5 |
---|---|
Adjustment range min | 0,3 |
Approvals | CSA US, RoHS II |
Contact Rating Max | 4 |
Deviation max | ±0,2 |
Electrical connection | Deutsch DT04-3P |
Function | Changeover (SPDT) |
Hysteresis | 10-30% depending on set value |
IP Class | IP67, IP6K9K |
Lifespan Mechanical | 1 million exchanges |
Material of body | Zinc-plated steel |
Materials Wetted Parts | Zinc-plated steel, NBR |
Max switching frequency/min | 200 |
Max. pressure | 100 |
Membrane Material | NBR |
---|---|
Pressure Range Max | 1,5 |
Pressure Range Min | 0,3 |
Process connection | 1/4 BSP |
Shock Resistance | 294m / s²; 14 ms half sinusoidal wave; DIN EN 60068-2-27 |
Temperature ambient from | -20 |
Temperature ambient to | 80 |
Temperature range of media from | -30 |
Temperature range of media to | 100 |
Type Pressure Switch | High accuracy |
Weight | 100 |
Vibration Resistance | 10g: 5..200 Hz sine wave, DIN EN 60068-2-6 |
Voltage AC / DC Max | 48 |
The 0136/0137 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated Deustch DT04-3® connector and a maximum voltage of 48 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Adjustment range max | Adjustment range min | Deviation max | Materials Wetted Parts | Max. pressure | Membrane Material | Pressure Range Max | Pressure Range Min | Temperature range of media from | Temperature range of media to | Type Pressure Switch | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
0,3..1,5 bar, G1/4, CO, NBR, Deutsch DT04-3P
Art:
0136457031003
Copied
|
1,5
|
0,3
|
±0,2
|
Zinc-plated steel, NBR
|
100
|
NBR
|
1,5
|
0,3
|
-30
|
100
|
High accuracy
|
| ||
![]()
0,3..1,5 bar, G1/4, CO, EPDM, Deutsch DT04-3P
Art:
0136457032003
Copied
|
1,5
|
0,3
|
±0,2
|
EPDM, Zinc-plated steel
|
100
|
EPDM
|
|
|
-30
|
120
|
|
| ||
![]()
0,3..1,5 bar, G1/4, CO, FKM, Deutsch DT04-3P
Art:
0136457033003
Copied
|
1,5
|
0,3
|
±0,2
|
FKM, Zinc-plated steel
|
100
|
FKM
|
|
|
-5
|
120
|
|
| ||
![]()
1..10 bar, G1/4, CO, NBR, Deutsch DT04-3P
Art:
0136458031042
Copied
|
10
|
1
|
±0,5
|
Zinc-plated steel, NBR
|
300
|
NBR
|
10
|
1
|
-40
|
100
|
High accuracy
|
| ||
![]()
1..10 bar, G1/4, CO, EPDM, Deutsch DT04-3P
Art:
0136458032042
Copied
|
10
|
1
|
±0,5
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
-30
|
120
|
|
| ||
![]()
1..10 bar, G1/4, CO, FKM, Deutsch DT04-3P
Art:
0136458033042
Copied
|
10
|
1
|
±0,5
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
-5
|
120
|
|
| ||
![]()
10..50 bar, G1/4, CO, NBR, Deutsch DT04-3P
Art:
0136459031009
Copied
|
50
|
10
|
±3,0
|
Zinc-plated steel, NBR
|
300
|
NBR
|
50
|
10
|
-40
|
100
|
High accuracy
|
| ||
![]()
10..50 bar, G1/4, CO, EPDM, Deutsch DT04-3P
Art:
0136459032009
Copied
|
50
|
10
|
±3,0
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
-30
|
120
|
|
| ||
![]()
10..50 bar, G1/4, CO, FKM, Deutsch DT04-3P
Art:
0136459033009
Copied
|
50
|
10
|
±3,0
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
-5
|
120
|
|
| ||
![]()
10..100 bar, G1/4, CO, NBR, Deutsch DT04-3P
Art:
0136461031012
Copied
|
100
|
10
|
±3,0-5,0
|
Zinc-plated steel, NBR
|
300
|
NBR
|
100
|
10
|
-40
|
100
|
High accuracy
|
| ||
![]()
10..100 bar, G1/4, CO, EPDM, Deutsch DT04-3P
Art:
0136461032012
Copied
|
100
|
10
|
±3,0-5,0
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
-30
|
120
|
|
| ||
![]()
10..100 bar, G1/4, CO, FKM, Deutsch DT04-3P
Art:
0136461033012
Copied
|
100
|
10
|
±3,0-5,0
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
-5
|
120
|
|
| ||
![]()
50..200 bar, G1/4, CO, NBR, Deutsch DT04-3P
Art:
0137460031003
Copied
|
200
|
50
|
±5,0
|
Zinc-plated steel, NBR
|
600
|
NBR
|
200
|
50
|
-40
|
100
|
High accuracy
|
| ||
![]()
50..200 bar, G1/4, CO, EPDM, Deutsch DT04-3P
Art:
0137460032003
Copied
|
200
|
50
|
±5,0
|
EPDM, Zinc-plated steel
|
600
|
EPDM
|
|
|
-30
|
120
|
|
| ||
![]()
50..200 bar, G1/4, CO, FKM, Deutsch DT04-3P
Art:
0137460033003
Copied
|
200
|
50
|
±5,0
|
FKM, Zinc-plated steel
|
600
|
FKM
|
|
|
-15
|
120
|
|
|
