Suco - 0118/0119 Pressure Switch

IP65, IPx4K

The 0118/0119 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated AMP Junior Timer® connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include automotive, mobile hydraulics, water applications and braking systems.



  • Up to 42 V
  • AMP Junior Timer® integrated connector
  • Six adjustment ranges from 0,1..1 bar to 50..150 bar
  • Normally open or normally closed
  • Overpressure saftey of 300 bar or 600 bar

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Adjustment range max 1
Adjustment range min 0,1
Approvals CSA US, RoHS II
Contact Rating Max 4
Deviation max ±0,2
Electrical connection AMP Junior Timer
Function Normally open (SPST)
IP Class IP65, IPx4k
Lifespan Mechanical 1 million exchanges
Material of body Zinc-plated steel
Materials Wetted Parts Zinc-plated steel, NBR
Max switching frequency/min 200
Max. pressure 300
Membrane Material NBR
Pressure Range Max 1
Pressure Range Min 0,1
Pressure type Relativt tryck
Process connection 1/4 BSP
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -40
Temperature range of media to 100
Type Pressure Switch High accuracy
Weight 90
Voltage AC / DC Max 42
Voltage AC / DC Min 10

Downloads

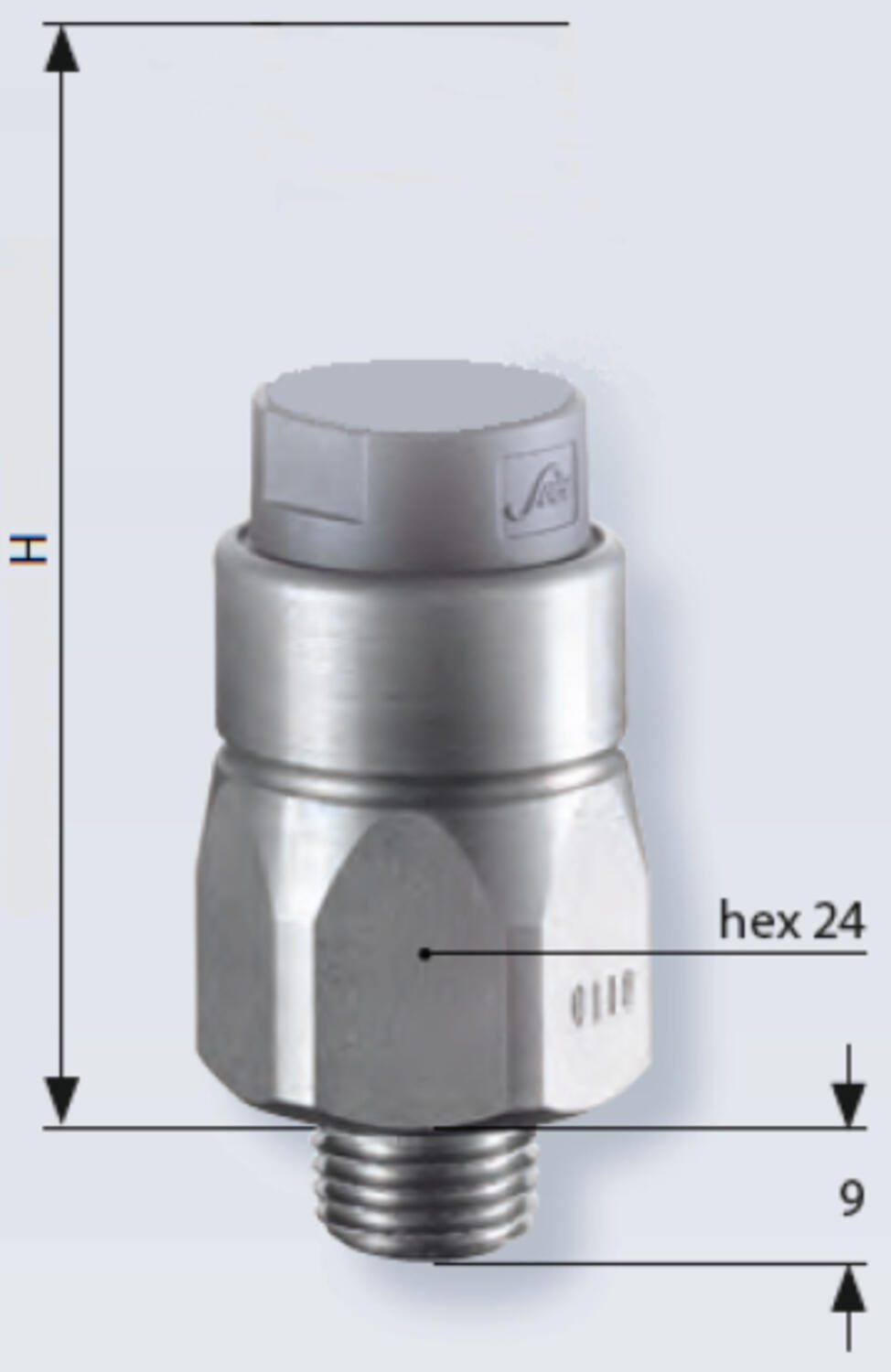

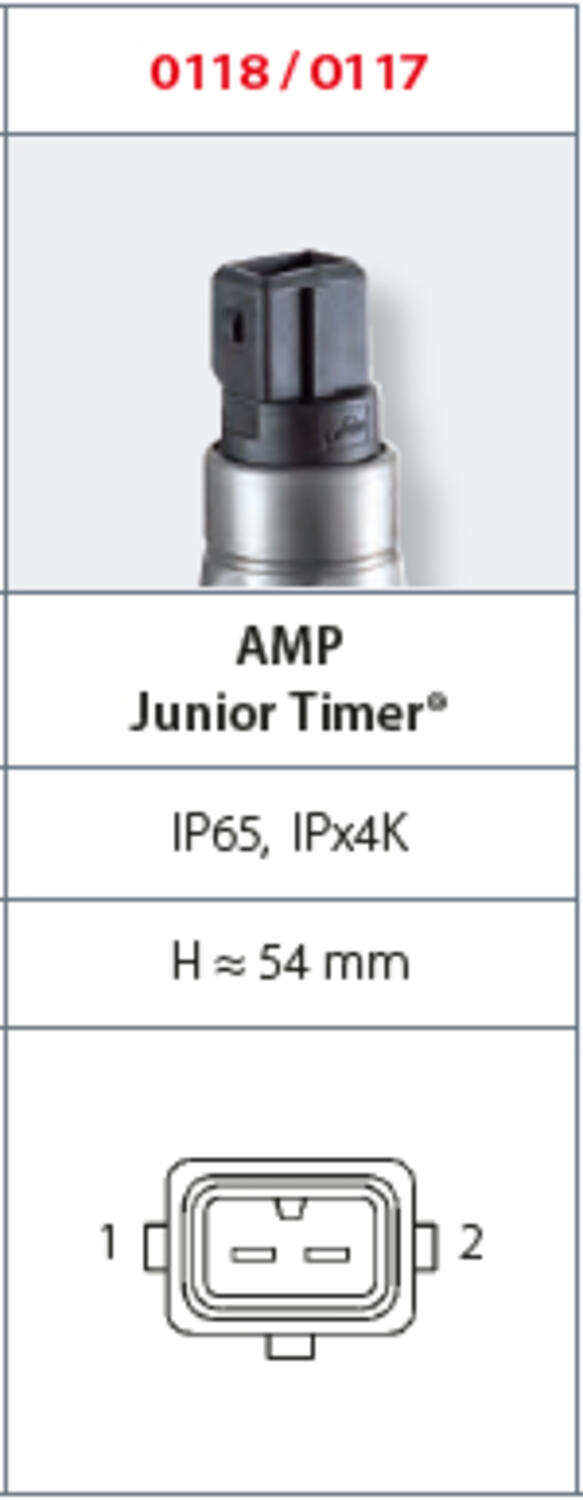

Measurements and connections

Product description

The 0118/0119 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated AMP Junior Timer® connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include automotive, mobile hydraulics, water applications and braking systems.



Accessories

My favourites Articles Adjustment range max Adjustment range min Deviation max Function Materials Wetted Parts Max. pressure Membrane Material Pressure Range Max Pressure Range Min Pressure type Process connection Temperature range of media from Temperature range of media to Type Pressure Switch Price

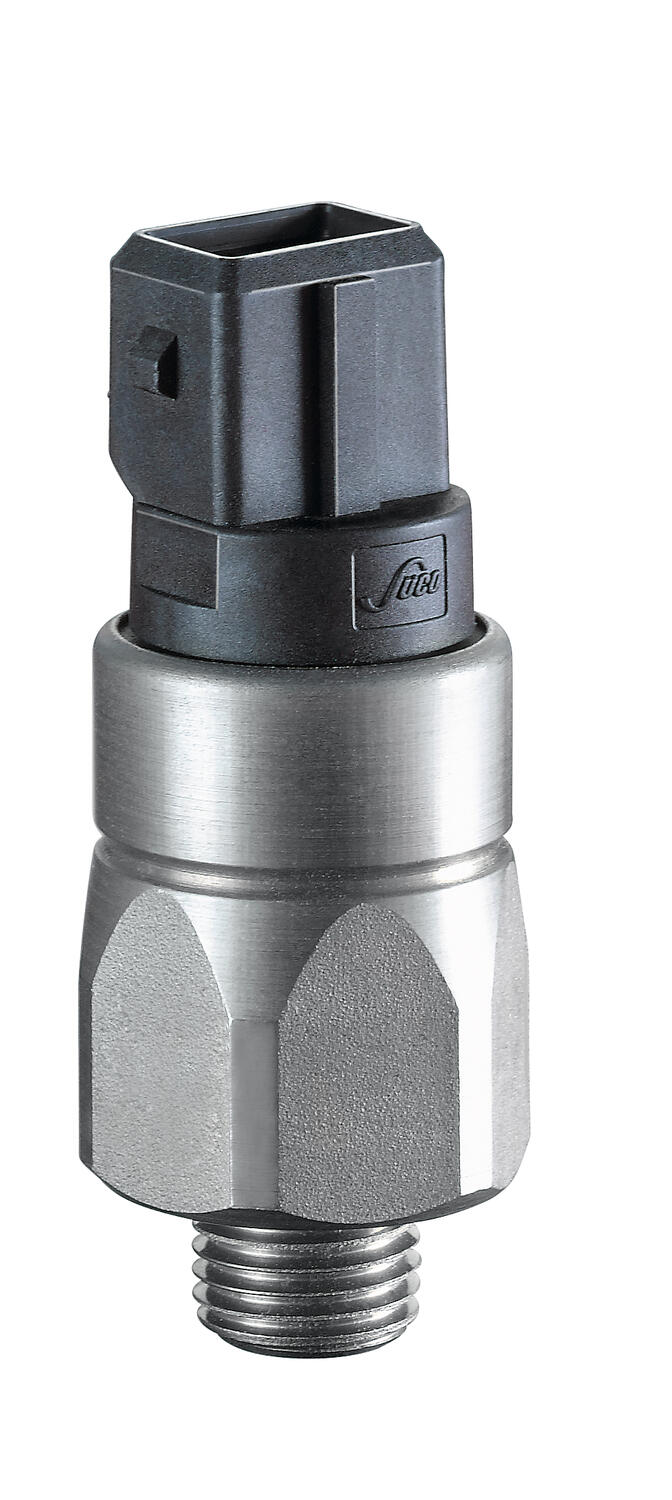

182250_812.tif
0,1..1 bar, G1/4, No, NBR, AMP Junior Timer®
Art:
0118403031011 Copied
1
0,1
±0,2
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
1
0,1
Relativt tryck
1/4 BSP
-40
100
High accuracy
182250_812.tif
0,1..1 bar, G1/4, No, EPDM, AMP Junior Timer®
Art:
0118403032011 Copied
1
0,1
±0,2
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
0,1..1 bar, G1/4, No, FKM, AMP Junior Timer®
Art:
0118403033011 Copied
1
0,1
±0,2
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
0,1..1 bar, G1/8, No, NBR, AMP Junior Timer®
Art:
0118403281603 Copied
1
0,1
±0,2
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
1
0,1
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
0,1..1 bar, G1/8, No, EPDM, AMP Junior Timer®
Art:
0118403282603 Copied
1
0,1
±0,2
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
0,1..1 bar, G1/8, No, FKM, AMP Junior Timer®
Art:
0118403283603 Copied
1
0,1
±0,2
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182250_812.tif
0,1..1 bar, G1/4, Nc, NBR, AMP Junior Timer®
Art:
0118404031015 Copied
1
0,1
±0,2
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
1
0,1
Relativt tryck
1/4 BSP
-40
100
182250_812.tif
0,1..1 bar, G1/4, Nc, EPDM, AMP Junior Timer®
Art:
0118404032015 Copied
1
0,1
±0,2
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
0,1..1 bar, G1/4, Nc, FKM, AMP Junior Timer®
Art:
0118404033015 Copied
1
0,1
±0,2
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
0,1..1 bar, G1/8, Nc, NBR, AMP Junior Timer®
Art:
0118404281604 Copied
1
0,1
±0,2
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
1
0,1
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
0,1..1 bar, G1/8, Nc, EPDM, AMP Junior Timer®
Art:
0118404282604 Copied
1
0,1
±0,2
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
0,1..1 bar, G1/8, Nc, FKM, AMP Junior Timer®
Art:
0118404283604 Copied
1
0,1
±0,2
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182250_812.tif
1..10 bar, G1/4, No, NBR, AMP Junior Timer®
Art:
0118407031027 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
10
1
Relativt tryck
1/4 BSP
-40
100
High accuracy
182250_812.tif
1..10 bar, G1/4, No, EPDM, AMP Junior Timer®
Art:
0118407032027 Copied
10
1
±0,5
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
1..10 bar, G1/4, No, FKM, AMP Junior Timer®
Art:
0118407033027 Copied
10
1
±0,5
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
1..10 bar, G1/8, No, NBR, AMP Junior Timer®
Art:
0118407281607 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
10
1
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
1..10 bar, G1/8, No, EPDM, AMP Junior Timer®
Art:
0118407282607 Copied
10
1
±0,5
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
1..10 bar, G1/8, No, FKM, AMP Junior Timer®
Art:
0118407283607 Copied
10
1
±0,5
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182250_812.tif
1..10 bar, G1/4, Nc, NBR, AMP Junior Timer®
Art:
0118408031031 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
10
1
Relativt tryck
1/4 BSP
-40
100
High accuracy
182250_812.tif
1..10 bar, G1/4, Nc, EPDM, AMP Junior Timer®
Art:
0118408032031 Copied
10
1
±0,5
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
1..10 bar, G1/4, Nc, FKM, AMP Junior Timer®
Art:
0118408033031 Copied
10
1
±0,5
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
1..10 bar, G1/8, Nc, NBR, AMP Junior Timer®
Art:
0118408281608 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
10
1
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
1..10 bar, G1/8, Nc, EPDM, AMP Junior Timer®
Art:
0118408282608 Copied
10
1
±0,5
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
1..10 bar, G1/8, Nc, FKM, AMP Junior Timer®
Art:
0118408283608 Copied
10
1
±0,5
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182250_812.tif
10..20 bar, G1/4, No, NBR, AMP Junior Timer®
Art:
0118411031043 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
20
10
Relativt tryck
1/4 BSP
-40
100
High accuracy
182250_812.tif
10..20 bar, G1/4, No, EPDM, AMP Junior Timer®
Art:
0118411032043 Copied
20
10
±1,0
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
10..20 bar, G1/4, No, FKM, AMP Junior Timer®
Art:
0118411033043 Copied
20
10
±1,0
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
10..20 bar, G1/8, No, NBR, AMP Junior Timer®
Art:
0118411281611 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
20
10
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
10..20 bar, G1/8, No, EPDM, AMP Junior Timer®
Art:
0118411282611 Copied
20
10
±1,0
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
10..20 bar, G1/8, No, FKM, AMP Junior Timer®
Art:
0118411283611 Copied
20
10
±1,0
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182250_812.tif
10..20 bar, G1/4, Nc, NBR, AMP Junior Timer®
Art:
0118412031047 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
20
10
Relativt tryck
1/4 BSP
-40
100
182250_812.tif
10..20 bar, G1/4, Nc, EPDM, AMP Junior Timer®
Art:
0118412032047 Copied
20
10
±1,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
10..20 bar, G1/4, Nc, FKM, AMP Junior Timer®
Art:
0118412033047 Copied
20
10
±1,0
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
10..20 bar, G1/8, Nc, NBR, AMP Junior Timer®
Art:
0118412281612 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
20
10
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
10..20 bar, G1/8, Nc, EPDM, AMP Junior Timer®
Art:
0118412282612 Copied
20
10
±1,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
10..20 bar, G1/8, Nc, FKM, AMP Junior Timer®
Art:
0118412283612 Copied
20
10
±1,0
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182250_812.tif
20..50 bar, G1/4, No, NBR, AMP Junior Timer®
Art:
0118415031059 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
50
20
Relativt tryck
1/4 BSP
-40
100
182250_812.tif
20..50 bar, G1/4, No, EPDM, AMP Junior Timer®
Art:
0118415032059 Copied
50
20
±2,0
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
20..50 bar, G1/4, No, FKM, AMP Junior Timer®
Art:
0118415033059 Copied
50
20
±2,0
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
20..50 bar, G1/8, No, NBR, AMP Junior Timer®
Art:
0118415281615 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel, NBR
300
NBR
50
20
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
20..50 bar, G1/8, No, EPDM, AMP Junior Timer®
Art:
0118415282615 Copied
50
20
±2,0
Normally open (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
20..50 bar, G1/8, No, FKM, AMP Junior Timer®
Art:
0118415283615 Copied
50
20
±2,0
Normally open (SPST)
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-30
100
182250_812.tif
20..50 bar, G1/4, Nc, NBR, AMP Junior Timer®
Art:
0118416031063 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
50
20
Relativt tryck
1/4 BSP
-40
100
182250_812.tif
20..50 bar, G1/4, Nc, EPDM, AMP Junior Timer®
Art:
0118416032063 Copied
50
20
±2,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182250_812.tif
20..50 bar, G1/4, Nc, FKM, AMP Junior Timer®
Art:
0118416033063 Copied
50
20
±2,0
Normally Closed (SPST)
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182250_812.tif
20..50 bar, G1/8, Nc, NBR, AMP Junior Timer®
Art:
0118416281616 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel, NBR
300
NBR
50
20
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
20..50 bar, G1/8, Nc, EPDM, AMP Junior Timer®
Art:
0118416282616 Copied
50
20
±2,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182250_812.tif
20..50 bar, G1/8, Nc, FKM, AMP Junior Timer®
Art:
0118416283616 Copied
50
20
±2,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-5
120
182250_812.tif
50..150 bar, G1/4, No, NBR, AMP Junior Timer®
Art:
0119419031011 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel, NBR
600
NBR
150
50
Relativt tryck
1/4 BSP
-40
100
182250_812.tif
50..150 bar, G1/4, No, EPDM, AMP Junior Timer®
Art:
0119419032011 Copied
150
50
±5,0
Normally open (SPST)
EPDM, Zinc-plated steel
600
EPDM
1/4 BSP
-30
120
182250_812.tif
50..150 bar, G1/4, No, FKM, AMP Junior Timer®
Art:
0119419033011 Copied
150
50
±5,0
Normally open (SPST)
FKM, Zinc-plated steel
600
FKM
1/4 BSP
-30
100
182250_812.tif
50..150 bar, G1/8, No, NBR, AMP Junior Timer®
Art:
0119419281603 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel, NBR
600
NBR
150
50
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
50..150 bar, G1/8, No, EPDM, AMP Junior Timer®
Art:
0119419282603 Copied
150
50
±5,0
Normally open (SPST)
EPDM, Zinc-plated steel
600
EPDM
1/8 BSP
-30
120
182250_812.tif
50..150 bar, G1/8, No, FKM, AMP Junior Timer®
Art:
0119419283603 Copied
150
50
±5,0
Normally open (SPST)
FKM, Zinc-plated steel
600
FKM
1/8 BSP
-15
120
182250_812.tif
50..150 bar, G1/4, Nc, NBR, AMP Junior Timer®
Art:
0119420031015 Copied
150
50
±5,0
Normally Closed (SPST)
Zinc-plated steel, NBR
600
NBR
150
50
Relativt tryck
1/4 BSP
-40
100
182250_812.tif
50..150 bar, G1/4, Nc, EPDM, AMP Junior Timer®
Art:
0119420032015 Copied
150
50
±5,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
600
EPDM
1/4 BSP
-30
120
182250_812.tif
50..150 bar, G1/4, Nc, FKM, AMP Junior Timer®
Art:
0119420033015 Copied
150
50
±5,0
Normally Closed (SPST)
FKM, Zinc-plated steel
600
FKM
1/4 BSP
-15
120
182250_812.tif
50..150 bar, G1/8, Nc, NBR, AMP Junior Timer®
Art:
0119420281604 Copied
150
50
±5,0
Normally Closed (SPST)
Zinc-plated steel, NBR
600
NBR
150
50
Relativt tryck
1/8 BSP
-40
100
182250_812.tif
50..150 bar, G1/8, Nc, EPDM, AMP Junior Timer®
Art:
0119420282604 Copied
150
50
±5,0
Normally Closed (SPST)
EPDM, Zinc-plated steel
600
EPDM
1/8 BSP
-15
120
182250_812.tif
50..150 bar, G1/8, Nc, FKM, AMP Junior Timer®
Art:
0119420283604 Copied
150
50
±5,0
Normally Closed (SPST)
FKM, Zinc-plated steel
600
FKM
1/8 BSP
-15
120

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
