SUCO
The SUCO 0705/0710/0720 high performance series pressure sensor is an advanced pressure monitoring solution with unrivalled attributes. Offering ten standard pressure ranges with options of six different electrical connectors a thread of G1/4 (eight available in total) and 0.5-4.5 V ratiomateric, 0-10V or 4-20mA outputs. The 07 series uses silicon-on-sapphire technology in a titanium all welded design offering outstanding overpressure protection, media compatibility and the highest repeatability.
Common applications include mobile hydraulics, off-shore/marine, high pressure systems and more.
Accuracy | ±0.5% FS |
---|---|
Burst Pressure | 80 |

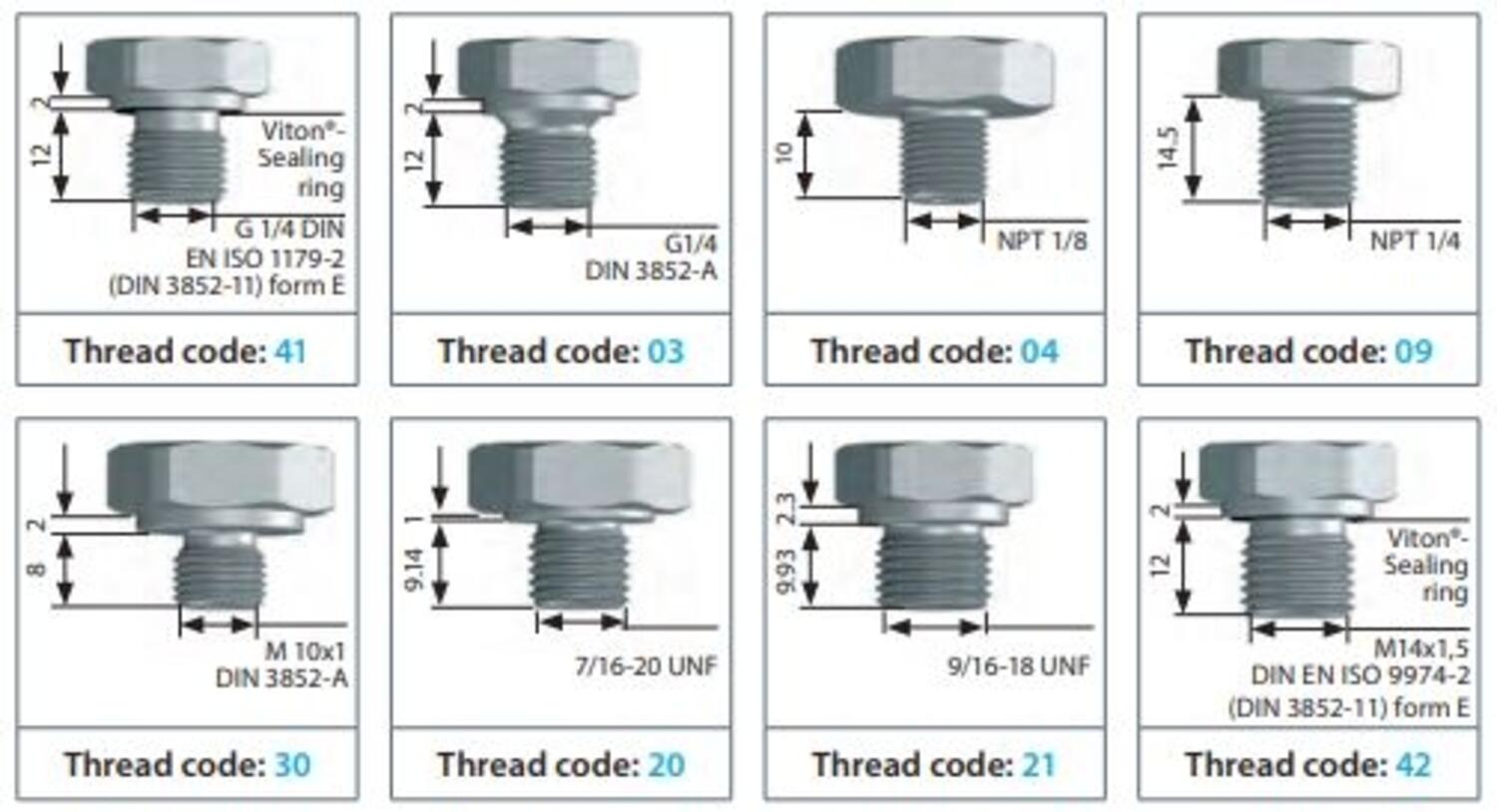

Connection Thread | G1/4-E |

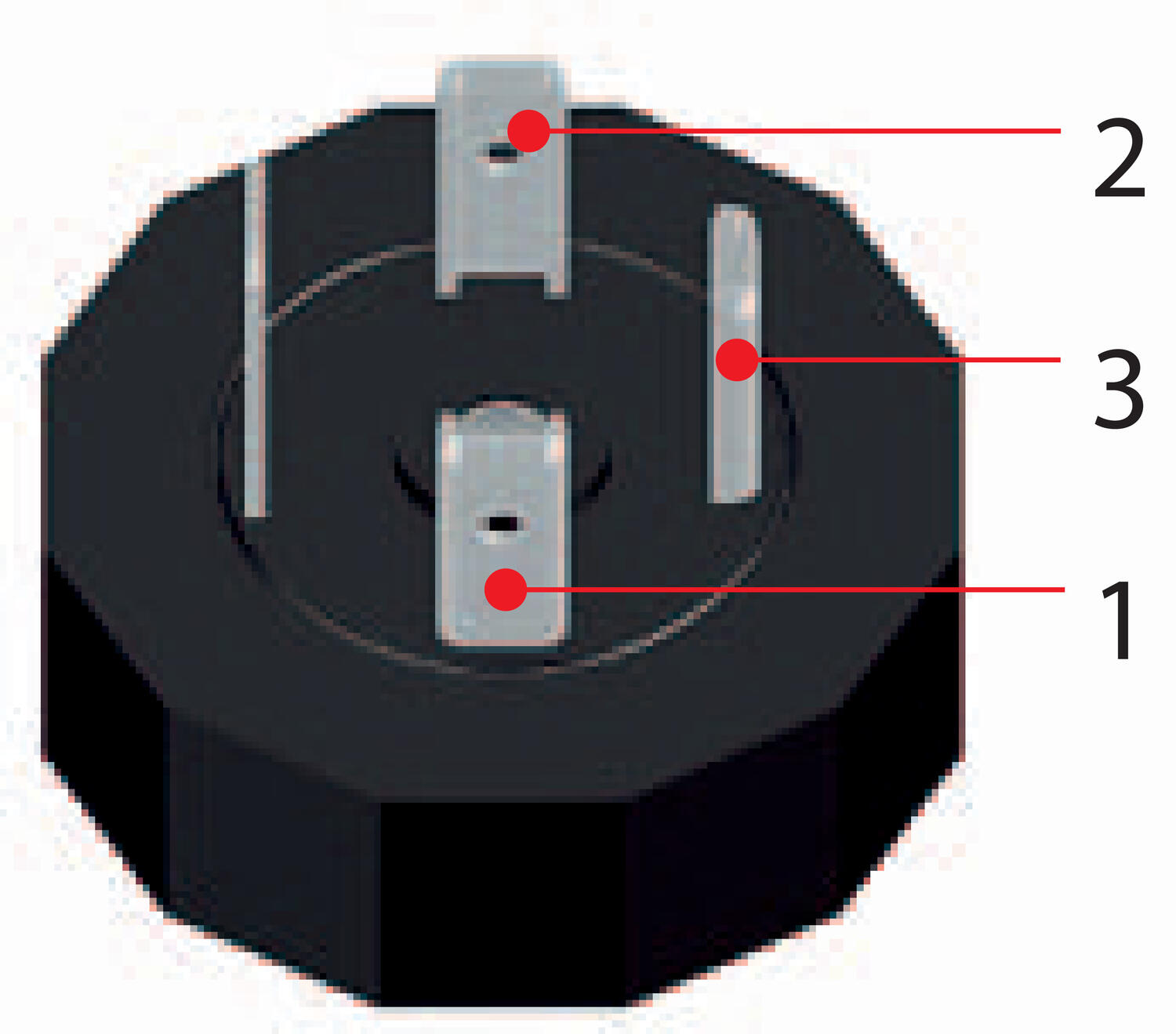

Electrical connection | DIN EN 175301-803-A |
IP Class | IP67 |
Long-Term Stability | ±0.1% FS p.a. |
Material of body | Stainless steel 1.4305 |
Materials Wetted Parts | Stainless steel 1.4305, Titanium |
Overpressure protection | 40 bar |
Pressure Range Max | 10 |
Pressure Range Min | 0 |
Pressure reference | Gauge |
Pressure rise | 5 bar/ms |
Repeatability & Reproducibility | ±0.1% FS |
Response Time | 2 |
---|---|
Shock Resistance | 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27 |
Signal type | 0.5-4.5 V ratiometric |
Supply Voltage DC Max | 6,5 |
Supply Voltage DC Min | 5 |
Temperature ambient from | -40 |
Temperature ambient to | 100 |
Temperature error | ±0.01% FS/°C |
Temperature range of media from | -40 |
Temperature range of media to | 125 |
Weight | 80 |
Vibration Resistance | 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6 |
The SUCO 0705/0710/0720 high performance series pressure sensor is an advanced pressure monitoring solution with unrivalled attributes. Offering ten standard pressure ranges with options of six different electrical connectors a thread of G1/4 (eight available in total) and 0.5-4.5 V ratiomateric, 0-10V or 4-20mA outputs. The 07 series uses silicon-on-sapphire technology in a titanium all welded design offering outstanding overpressure protection, media compatibility and the highest repeatability.
Common applications include mobile hydraulics, off-shore/marine, high pressure systems and more.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Burst Pressure | Electrical connection | IP Class | Overpressure protection | Pressure Range Max | Pressure type | Signal type | Supply Voltage DC Max | Supply Voltage DC Min | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

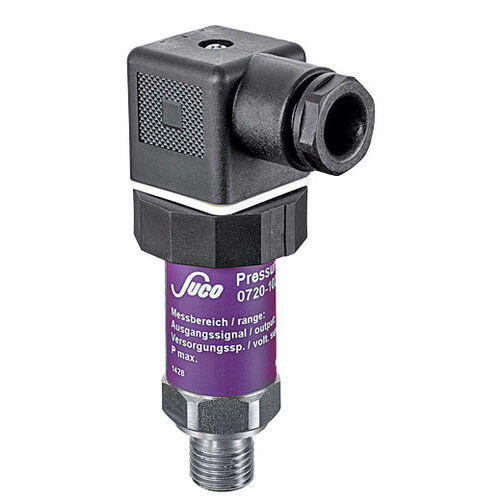

0.5-4.5V, 0..10 bar, G1/4-E, DIN
Art:
070510141B001
Copied
|
80
|
DIN EN 175301-803-A
|
IP67
|
40 bar
|
10
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..10 bar, G1/4-E, M12
Art:
070510141B002
Copied
|
80
|
M12x1 4-pole
|
IP67
|
40 bar
|
10
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()

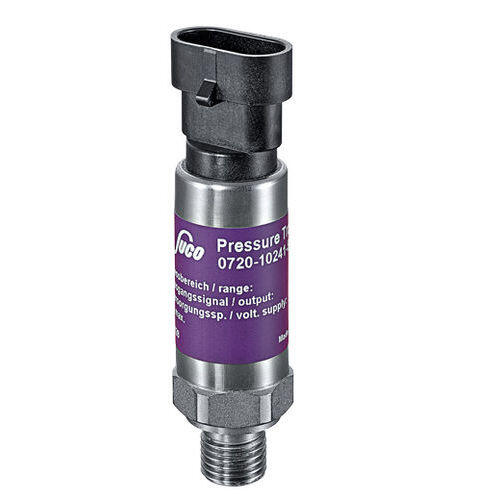

0.5-4.5V, 0..10 bar, G1/4-E, AMP Superseal 1.5®
Art:
070510141B007
Copied
|
80
|
AMP Superseal
|
IP67
|
40 bar
|
10
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()

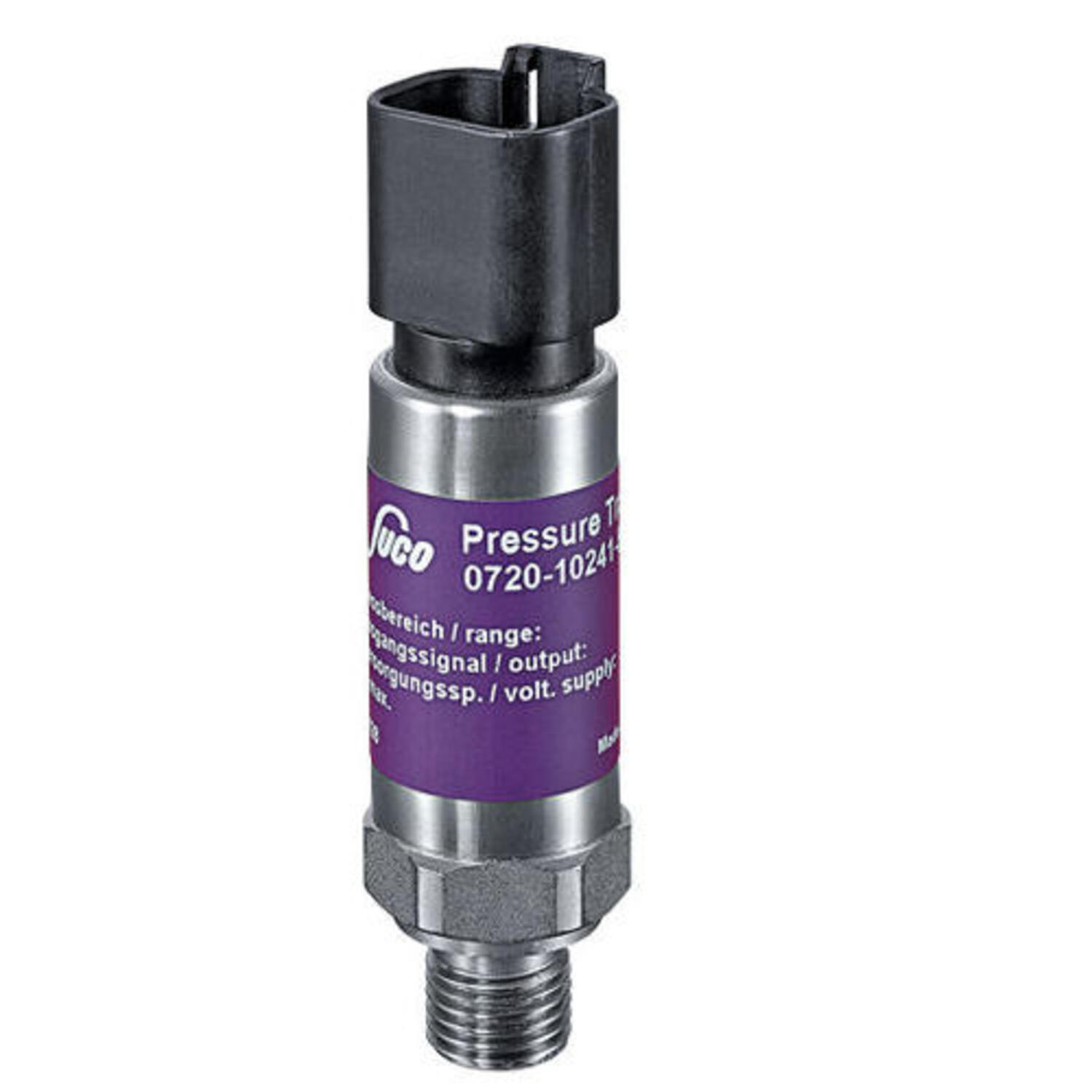

0.5-4.5V, 0..10 bar, G1/4-E, Deutsch DT04-4P
Art:
070510141B008
Copied
|
80
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
40 bar
|
10
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()

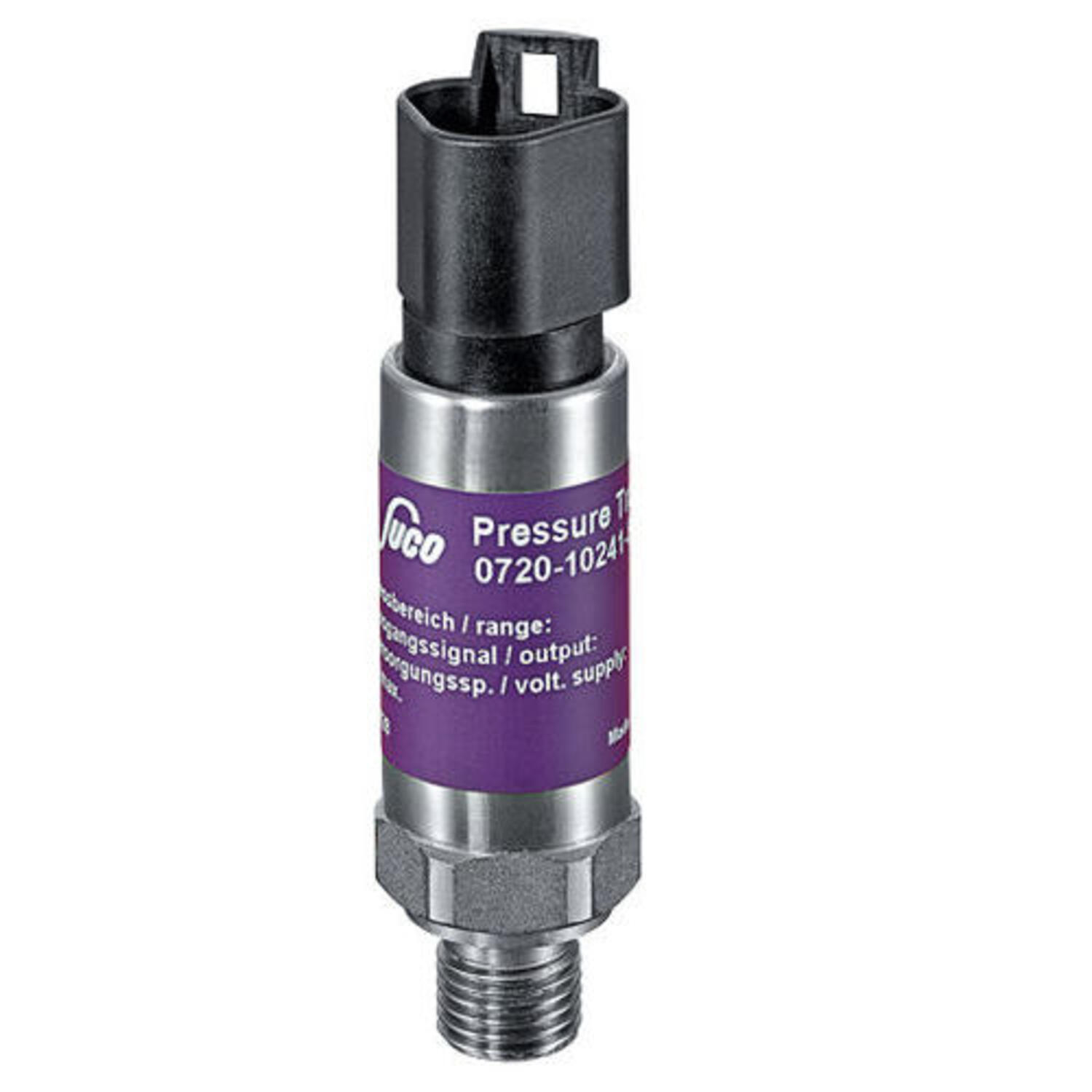

0.5-4.5V, 0..10 bar, G1/4-E, Deutsch DT04-3P
Art:
070510141B010
Copied
|
80
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
40 bar
|
10
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()

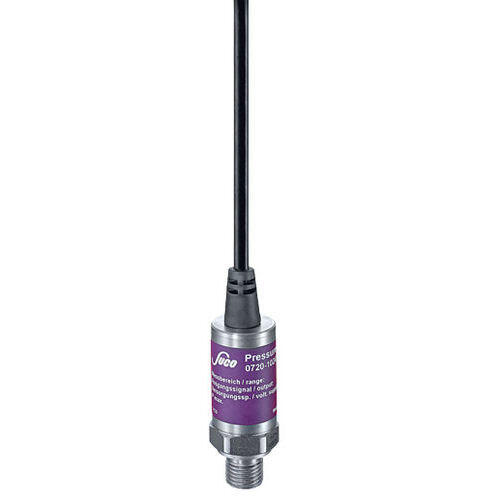

0.5-4.5V, 0..10 bar, G1/4-E, 2M cable
Art:
070510141B011
Copied
|
80
|
Embedded 2m cable
|
IP67
|
40 bar
|
10
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..10 bar, G1/4-E, DIN
Art:
071010141B001
Copied
|
80
|
DIN EN 175301-803-A
|
IP67
|
40 bar
|
10
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..10 bar, G1/4-E, M12
Art:
071010141B002
Copied
|
80
|
M12x1 4-pole
|
IP67
|
40 bar
|
10
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..10 bar, G1/4-E, AMP Superseal 1.5®
Art:
071010141B007
Copied
|
80
|
AMP Superseal
|
IP67
|
40 bar
|
10
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..10 bar, G1/4-E, Deutsch DT04-4P
Art:
071010141B008
Copied
|
80
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
40 bar
|
10
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..10 bar, G1/4-E, Deutsch DT04-3P
Art:
071010141B010
Copied
|
80
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
40 bar
|
10
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..10 bar, G1/4-E, 2M cable
Art:
071010141B011
Copied
|
80
|
Embedded 2m cable
|
IP67
|
40 bar
|
10
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..10 bar, G1/4-E, DIN
Art:
072010141B001
Copied
|
80
|
DIN EN 175301-803-A
|
IP67
|
40 bar
|
10
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..10 bar, G1/4-E, M12
Art:
072010141B002
Copied
|
80
|
M12x1 4-pole
|
IP67
|
40 bar
|
10
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..10 bar, G1/4-E, AMP Superseal 1.5®
Art:
072010141B007
Copied
|
80
|
AMP Superseal
|
IP67
|
40 bar
|
10
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..10 bar, G1/4-E, Deutsch DT04-4P
Art:
072010141B008
Copied
|
80
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
40 bar
|
10
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..10 bar, G1/4-E, Deutsch DT04-3P
Art:
072010141B010
Copied
|
80
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
40 bar
|
10
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..10 bar, G1/4-E, 2M cable
Art:
072010141B011
Copied
|
80
|
Embedded 2m cable
|
IP67
|
40 bar
|
10
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..16 bar, G1/4-E, DIN
Art:
070516141B001
Copied
|
128
|
DIN EN 175301-803-A
|
IP67
|
64 bar
|
16
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..16 bar, G1/4-E, M12
Art:
070516141B002
Copied
|
128
|
M12x1 4-pole
|
IP67
|
64 bar
|
16
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..16 bar, G1/4-E, AMP Superseal 1.5®
Art:
070516141B007
Copied
|
128
|
AMP Superseal
|
IP67
|
64 bar
|
16
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..16 bar, G1/4-E, Deutsch DT04-4P
Art:
070516141B008
Copied
|
128
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
64 bar
|
16
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..16 bar, G1/4-E, Deutsch DT04-3P
Art:
070516141B010
Copied
|
128
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
64 bar
|
16
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..16 bar, G1/4-E, 2M cable
Art:
070516141B011
Copied
|
128
|
Embedded 2m cable
|
IP67
|
64 bar
|
16
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..16 bar, G1/4-E, DIN
Art:
071016141B001
Copied
|
128
|
DIN EN 175301-803-A
|
IP67
|
64 bar
|
16
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..16 bar, G1/4-E, M12
Art:
071016141B002
Copied
|
128
|
M12x1 4-pole
|
IP67
|
64 bar
|
16
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..16 bar, G1/4-E, AMP Superseal 1.5®
Art:
071016141B007
Copied
|
128
|
AMP Superseal
|
IP67
|
64 bar
|
16
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..16 bar, G1/4-E, Deutsch DT04-4P
Art:
071016141B008
Copied
|
128
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
64 bar
|
16
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..16 bar, G1/4-E, Deutsch DT04-3P
Art:
071016141B010
Copied
|
128
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
64 bar
|
16
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..16 bar, G1/4-E, 2M cable
Art:
071016141B011
Copied
|
128
|
Embedded 2m cable
|
IP67
|
64 bar
|
16
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..16 bar, G1/4-E, DIN
Art:
072016141B001
Copied
|
128
|
DIN EN 175301-803-A
|
IP67
|
64 bar
|
16
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..16 bar, G1/4-E, M12
Art:
072016141B002
Copied
|
128
|
M12x1 4-pole
|
IP67
|
64 bar
|
16
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..16 bar, G1/4-E, AMP Superseal 1.5®
Art:
072016141B007
Copied
|
128
|
AMP Superseal
|
IP67
|
64 bar
|
16
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..16 bar, G1/4-E, Deutsch DT04-4P
Art:
072016141B008
Copied
|
128
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
64 bar
|
16
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..16 bar, G1/4-E, Deutsch DT04-3P
Art:
072016141B010
Copied
|
128
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
64 bar
|
16
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..16 bar, G1/4-E, 2M cable
Art:
072016141B011
Copied
|
128
|
Embedded 2m cable
|
IP67
|
64 bar
|
16
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..25 bar, G1/4-E, DIN
Art:
070525141B001
Copied
|
200
|
DIN EN 175301-803-A
|
IP67
|
100 bar
|
25
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..25 bar, G1/4-E, M12
Art:
070525141B002
Copied
|
200
|
M12x1 4-pole
|
IP67
|
100 bar
|
25
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..25 bar, G1/4-E, AMP Superseal 1.5®
Art:
070525141B007
Copied
|
200
|
AMP Superseal
|
IP67
|
100 bar
|
25
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..25 bar, G1/4-E, Deutsch DT04-4P
Art:
070525141B008
Copied
|
200
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
100 bar
|
25
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..25 bar, G1/4-E, Deutsch DT04-3P
Art:
070525141B010
Copied
|
200
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
100 bar
|
25
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..25 bar, G1/4-E, 2M cable
Art:
070525141B011
Copied
|
200
|
Embedded 2m cable
|
IP67
|
100 bar
|
25
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..25 bar, G1/4-E, DIN
Art:
071025141B001
Copied
|
200
|
DIN EN 175301-803-A
|
IP67
|
100 bar
|
25
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..25 bar, G1/4-E, M12
Art:
071025141B002
Copied
|
200
|
M12x1 4-pole
|
IP67
|
100 bar
|
25
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..25 bar, G1/4-E, AMP Superseal 1.5®
Art:
071025141B007
Copied
|
200
|
AMP Superseal
|
IP67
|
100 bar
|
25
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..25 bar, G1/4-E, Deutsch DT04-4P
Art:
071025141B008
Copied
|
200
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
100 bar
|
25
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..25 bar, G1/4-E, Deutsch DT04-3P
Art:
071025141B010
Copied
|
200
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
100 bar
|
25
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..25 bar, G1/4-E, 2M cable
Art:
071025141B011
Copied
|
200
|
Embedded 2m cable
|
IP67
|
100 bar
|
25
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..25 bar, G1/4-E, DIN
Art:
072025141B001
Copied
|
200
|
DIN EN 175301-803-A
|
IP67
|
100 bar
|
25
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..25 bar, G1/4-E, M12
Art:
072025141B002
Copied
|
200
|
M12x1 4-pole
|
IP67
|
100 bar
|
25
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..25 bar, G1/4-E, AMP Superseal 1.5®
Art:
072025141B007
Copied
|
200
|
AMP Superseal
|
IP67
|
100 bar
|
25
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..25 bar, G1/4-E, Deutsch DT04-4P
Art:
072025141B008
Copied
|
200
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
100 bar
|
25
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..25 bar, G1/4-E, Deutsch DT04-3P
Art:
072025141B010
Copied
|
200
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
100 bar
|
25
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..25 bar, G1/4-E, 2M cable
Art:
072025141B011
Copied
|
200
|
Embedded 2m cable
|
IP67
|
100 bar
|
25
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..40 bar, G1/4-E, DIN
Art:
070540141B001
Copied
|
320
|
DIN EN 175301-803-A
|
IP67
|
160 bar
|
40
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..40 bar, G1/4-E, M12
Art:
070540141B002
Copied
|
320
|
M12x1 4-pole
|
IP67
|
160 bar
|
40
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..40 bar, G1/4-E, AMP Superseal 1.5®
Art:
070540141B007
Copied
|
320
|
AMP Superseal
|
IP67
|
160 bar
|
40
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..40 bar, G1/4-E, Deutsch DT04-4P
Art:
070540141B008
Copied
|
320
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
160 bar
|
40
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..40 bar, G1/4-E, Deutsch DT04-3P
Art:
070540141B010
Copied
|
320
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
160 bar
|
40
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..40 bar, G1/4-E, 2M cable
Art:
070540141B011
Copied
|
320
|
Embedded 2m cable
|
IP67
|
160 bar
|
40
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..40 bar, G1/4-E, DIN
Art:
071040141B001
Copied
|
320
|
DIN EN 175301-803-A
|
IP67
|
160 bar
|
40
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..40 bar, G1/4-E, M12
Art:
071040141B002
Copied
|
320
|
M12x1 4-pole
|
IP67
|
160 bar
|
40
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..40 bar, G1/4-E, AMP Superseal 1.5®
Art:
071040141B007
Copied
|
320
|
AMP Superseal
|
IP67
|
160 bar
|
40
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..40 bar, G1/4-E, Deutsch DT04-4P
Art:
071040141B008
Copied
|
320
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
160 bar
|
40
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..40 bar, G1/4-E, Deutsch DT04-3P
Art:
071040141B010
Copied
|
320
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
160 bar
|
40
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..40 bar, G1/4-E, 2M cable
Art:
071040141B011
Copied
|
320
|
Embedded 2m cable
|
IP67
|
160 bar
|
40
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..40 bar, G1/4-E, DIN
Art:
072040141B001
Copied
|
320
|
DIN EN 175301-803-A
|
IP67
|
160 bar
|
40
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..40 bar, G1/4-E, M12
Art:
072040141B002
Copied
|
320
|
M12x1 4-pole
|
IP67
|
160 bar
|
40
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..40 bar, G1/4-E, AMP Superseal 1.5®
Art:
072040141B007
Copied
|
320
|
AMP Superseal
|
IP67
|
160 bar
|
40
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..40 bar, G1/4-E, Deutsch DT04-4P
Art:
072040141B008
Copied
|
320
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
160 bar
|
40
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..40 bar, G1/4-E, Deutsch DT04-3P
Art:
072040141B010
Copied
|
320
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
160 bar
|
40
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..40 bar, G1/4-E, 2M cable
Art:
072040141B011
Copied
|
320
|
Embedded 2m cable
|
IP67
|
160 bar
|
40
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..60 bar, G1/4-E, DIN
Art:
070560141B001
Copied
|
480
|
DIN EN 175301-803-A
|
IP67
|
240 bar
|
60
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..60 bar, G1/4-E, M12
Art:
070560141B002
Copied
|
480
|
M12x1 4-pole
|
IP67
|
240 bar
|
60
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..60 bar, G1/4-E, AMP Superseal 1.5®
Art:
070560141B007
Copied
|
480
|
AMP Superseal
|
IP67
|
240 bar
|
60
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..60 bar, G1/4-E, Deutsch DT04-4P
Art:
070560141B008
Copied
|
480
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
240 bar
|
60
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..60 bar, G1/4-E, Deutsch DT04-3P
Art:
070560141B010
Copied
|
480
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
240 bar
|
60
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..60 bar, G1/4-E, 2M cable
Art:
070560141B011
Copied
|
480
|
Embedded 2m cable
|
IP67
|
240 bar
|
60
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..600 bar, G1/4-E, DIN
Art:
070560241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1650 bar
|
600
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..600 bar, G1/4-E, M12
Art:
070560241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1650 bar
|
600
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..600 bar, G1/4-E, AMP Superseal 1.5®
Art:
070560241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1650 bar
|
600
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..600 bar, G1/4-E, Deutsch DT04-4P
Art:
070560241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1650 bar
|
600
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..600 bar, G1/4-E, Deutsch DT04-3P
Art:
070560241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1650 bar
|
600
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..600 bar, G1/4-E, 2M cable
Art:
070560241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1650 bar
|
600
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..60 bar, G1/4-E, DIN
Art:
071060141B001
Copied
|
480
|
DIN EN 175301-803-A
|
IP67
|
240 bar
|
60
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..60 bar, G1/4-E, M12
Art:
071060141B002
Copied
|
480
|
M12x1 4-pole
|
IP67
|
240 bar
|
60
|
Relative
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..60 bar, G1/4-E, AMP Superseal 1.5®
Art:
071060141B007
Copied
|
480
|
AMP Superseal
|
IP67
|
240 bar
|
60
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..60 bar, G1/4-E, Deutsch DT04-4P
Art:
071060141B008
Copied
|
480
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
240 bar
|
60
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..60 bar, G1/4-E, Deutsch DT04-3P
Art:
071060141B010
Copied
|
480
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
240 bar
|
60
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..60 bar, G1/4-E, 2M cable
Art:
071060141B011
Copied
|
480
|
Embedded 2m cable
|
IP67
|
240 bar
|
60
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..60 bar, G1/4-E, DIN
Art:
072060141B001
Copied
|
480
|
DIN EN 175301-803-A
|
IP67
|
240 bar
|
60
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..60 bar, G1/4-E, M12
Art:
072060141B002
Copied
|
480
|
M12x1 4-pole
|
IP67
|
240 bar
|
60
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..60 bar, G1/4-E, AMP Superseal 1.5®
Art:
072060141B007
Copied
|
480
|
AMP Superseal
|
IP67
|
240 bar
|
60
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..60 bar, G1/4-E, Deutsch DT04-4P
Art:
072060141B008
Copied
|
480
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
240 bar
|
60
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..60 bar, G1/4-E, Deutsch DT04-3P
Art:
072060141B010
Copied
|
480
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
240 bar
|
60
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..60 bar, G1/4-E, 2M cable
Art:
072060141B011
Copied
|
480
|
Embedded 2m cable
|
IP67
|
240 bar
|
60
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..100 bar, G1/4-E, DIN
Art:
070510241B001
Copied
|
800
|
DIN EN 175301-803-A
|
IP67
|
400 bar
|
100
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..100 bar, G1/4-E, M12
Art:
070510241B002
Copied
|
800
|
M12x1 4-pole
|
IP67
|
400 bar
|
100
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..100 bar, G1/4-E, AMP Superseal 1.5®
Art:
070510241B007
Copied
|
800
|
AMP Superseal
|
IP67
|
400 bar
|
100
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..100 bar, G1/4-E, Deutsch DT04-4P
Art:
070510241B008
Copied
|
800
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
400 bar
|
100
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..100 bar, G1/4-E, Deutsch DT04-3P
Art:
070510241B010
Copied
|
800
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
400 bar
|
100
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..100 bar, G1/4-E, 2M cable
Art:
070510241B011
Copied
|
800
|
Embedded 2m cable
|
IP67
|
400 bar
|
100
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..100 bar, G1/4-E, DIN
Art:
071010241B001
Copied
|
800
|
DIN EN 175301-803-A
|
IP67
|
400 bar
|
100
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..100 bar, G1/4-E, M12
Art:
071010241B002
Copied
|
800
|
M12x1 4-pole
|
IP67
|
400 bar
|
100
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..100 bar, G1/4-E, AMP Superseal 1.5®
Art:
071010241B007
Copied
|
800
|
AMP Superseal
|
IP67
|
400 bar
|
100
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..100 bar, G1/4-E, Deutsch DT04-4P
Art:
071010241B008
Copied
|
800
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
400 bar
|
100
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..100 bar, G1/4-E, Deutsch DT04-3P
Art:
071010241B010
Copied
|
800
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
400 bar
|
100
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..100 bar, G1/4-E, 2M cable
Art:
071010241B011
Copied
|
800
|
Embedded 2m cable
|
IP67
|
400 bar
|
100
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..100 bar, G1/4-E, DIN
Art:
072010241B001
Copied
|
800
|
DIN EN 175301-803-A
|
IP67
|
400 bar
|
100
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..100 bar, G1/4-E, M12
Art:
072010241B002
Copied
|
800
|
M12x1 4-pole
|
IP67
|
400 bar
|
100
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..100 bar, G1/4-E, AMP Superseal 1.5®
Art:
072010241B007
Copied
|
800
|
AMP Superseal
|
IP67
|
400 bar
|
100
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..100 bar, G1/4-E, Deutsch DT04-4P
Art:
072010241B008
Copied
|
800
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
400 bar
|
100
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..100 bar, G1/4-E, Deutsch DT04-3P
Art:
072010241B010
Copied
|
800
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
400 bar
|
100
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..100 bar, G1/4-E, 2M cable
Art:
072010241B011
Copied
|
800
|
Embedded 2m cable
|
IP67
|
400 bar
|
100
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..160 bar, G1/4-E, DIN
Art:
070516241B001
Copied
|
1280
|
DIN EN 175301-803-A
|
IP67
|
640 bar
|
160
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..160 bar, G1/4-E, M12
Art:
070516241B002
Copied
|
1280
|
M12x1 4-pole
|
IP67
|
640 bar
|
160
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..160 bar, G1/4-E, AMP Superseal 1.5®
Art:
070516241B007
Copied
|
1280
|
AMP Superseal
|
IP67
|
640 bar
|
160
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..160 bar, G1/4-E, Deutsch DT04-4P
Art:
070516241B008
Copied
|
1280
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
640 bar
|
160
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..160 bar, G1/4-E, Deutsch DT04-3P
Art:
070516241B010
Copied
|
1280
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
640 bar
|
160
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..160 bar, G1/4-E, 2M cable
Art:
070516241B011
Copied
|
1280
|
Embedded 2m cable
|
IP67
|
640 bar
|
160
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..160 bar, G1/4-E, DIN
Art:
071016241B001
Copied
|
1280
|
DIN EN 175301-803-A
|
IP67
|
640 bar
|
160
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..160 bar, G1/4-E, M12
Art:
071016241B002
Copied
|
1280
|
M12x1 4-pole
|
IP67
|
640 bar
|
160
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..160 bar, G1/4-E, AMP Superseal 1.5®
Art:
071016241B007
Copied
|
1280
|
AMP Superseal
|
IP67
|
640 bar
|
160
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..160 bar, G1/4-E, Deutsch DT04-4P
Art:
071016241B008
Copied
|
1280
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
640 bar
|
160
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..160 bar, G1/4-E, Deutsch DT04-3P
Art:
071016241B010
Copied
|
1280
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
640 bar
|
160
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..160 bar, G1/4-E, 2M cable
Art:
071016241B011
Copied
|
1280
|
Embedded 2m cable
|
IP67
|
640 bar
|
160
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..160 bar, G1/4-E, DIN
Art:
072016241B001
Copied
|
1280
|
DIN EN 175301-803-A
|
IP67
|
640 bar
|
160
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..160 bar, G1/4-E, M12
Art:
072016241B002
Copied
|
1280
|
M12x1 4-pole
|
IP67
|
640 bar
|
160
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..160 bar, G1/4-E, AMP Superseal 1.5®
Art:
072016241B007
Copied
|
1280
|
AMP Superseal
|
IP67
|
640 bar
|
160
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..160 bar, G1/4-E, Deutsch DT04-4P
Art:
072016241B008
Copied
|
1280
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
640 bar
|
160
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..160 bar, G1/4-E, Deutsch DT04-3P
Art:
072016241B010
Copied
|
1280
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
640 bar
|
160
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..160 bar, G1/4-E, 2M cable
Art:
072016241B011
Copied
|
1280
|
Embedded 2m cable
|
IP67
|
640 bar
|
160
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..250 bar, G1/4-E, DIN
Art:
070525241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1000 bar
|
250
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..250 bar, G1/4-E, M12
Art:
070525241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1000 bar
|
250
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..250 bar, G1/4-E, AMP Superseal 1.5®
Art:
070525241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1000 bar
|
250
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..250 bar, G1/4-E, Deutsch DT04-4P
Art:
070525241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1000 bar
|
250
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..250 bar, G1/4-E, Deutsch DT04-3P
Art:
070525241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1000 bar
|
250
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..250 bar, G1/4-E, 2M cable
Art:
070525241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1000 bar
|
250
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..250 bar, G1/4-E, DIN
Art:
071025241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1000 bar
|
250
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..250 bar, G1/4-E, M12
Art:
071025241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
240 bar
|
250
|
Relative
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..250 bar, G1/4-E, AMP Superseal 1.5®
Art:
071025241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1000 bar
|
250
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..250 bar, G1/4-E, Deutsch DT04-4P
Art:
071025241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1000 bar
|
250
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..250 bar, G1/4-E, Deutsch DT04-3P
Art:
071025241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1000 bar
|
250
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..250 bar, G1/4-E, 2M cable
Art:
071025241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1000 bar
|
250
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..250 bar, G1/4-E, DIN
Art:
072025241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1000 bar
|
250
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..250 bar, G1/4-E, M12
Art:
072025241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1000 bar
|
250
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..250 bar, G1/4-E, AMP Superseal 1.5®
Art:
072025241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1000 bar
|
250
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..250 bar, G1/4-E, Deutsch DT04-4P
Art:
072025241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1000 bar
|
250
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..250 bar, G1/4-E, Deutsch DT04-3P
Art:
072025241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1000 bar
|
250
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0-250 BAR,4-20mA,G1/4E, Cable connection
Art:
072025241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1000 bar
|
250
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
0.5-4.5V, 0..400 bar, G1/4-E, DIN
Art:
070540241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1600 bar
|
400
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..400 bar, G1/4-E, M12
Art:
070540241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1600 bar
|
400
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..400 bar, G1/4-E, AMP Superseal 1.5®
Art:
070540241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1600 bar
|
400
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..400 bar, G1/4-E, Deutsch DT04-4P
Art:
070540241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1600 bar
|
400
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..400 bar, G1/4-E, Deutsch DT04-3P
Art:
070540241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1600 bar
|
400
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0.5-4.5V, 0..400 bar, G1/4-E, 2M cable
Art:
070540241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1600 bar
|
400
|
|
0.5-4.5 V ratiometric
|
6,5
|
5
|
| ||
![]()
0-10V, 0..400 bar, G1/4-E, DIN
Art:
071040241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1600 bar
|
400
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..400 bar, G1/4-E, M12
Art:
071040241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1600 bar
|
400
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..400 bar, G1/4-E, AMP Superseal 1.5®
Art:
071040241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1600 bar
|
400
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..400 bar, G1/4-E, Deutsch DT04-4P
Art:
071040241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1600 bar
|
400
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..400 bar, G1/4-E, Deutsch DT04-3P
Art:
071040241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1600 bar
|
400
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..400 bar, G1/4-E, 2M cable
Art:
071040241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1600 bar
|
400
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..400 bar, G1/4-E, DIN
Art:
072040241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1600 bar
|
400
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..400 bar, G1/4-E, AMP Superseal 1.5®
Art:
072040241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1600 bar
|
400
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..400 bar, G1/4-E, Deutsch DT04-4P
Art:
072040241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1600 bar
|
400
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..400 bar, G1/4-E, Deutsch DT04-3P
Art:
072040241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1600 bar
|
400
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..400 bar, G1/4-E, 2M cable
Art:
072040241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1600 bar
|
400
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..400 bar, G1/4-E, M12
Art:
072040241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1600 bar
|
400
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
0-10V, 0..600 bar, G1/4-E, DIN
Art:
071060241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1650 bar
|
600
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..600 bar, G1/4-E, M12
Art:
071060241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1650 bar
|
600
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..600 bar, G1/4-E, AMP Superseal 1.5®
Art:
071060241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1650 bar
|
600
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..600 bar, G1/4-E, Deutsch DT04-4P
Art:
071060241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1650 bar
|
600
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..600 bar, G1/4-E, Deutsch DT04-3P
Art:
071060241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1650 bar
|
600
|
|
0-10 V
|
32
|
12
|
| ||
![]()
0-10V, 0..600 bar, G1/4-E, 2M cable
Art:
071060241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1650 bar
|
600
|
|
0-10 V
|
32
|
12
|
| ||
![]()
4-20mA, 0..600 bar, G1/4-E, DIN
Art:
072060241B001
Copied
|
2000
|
DIN EN 175301-803-A
|
IP67
|
1650 bar
|
600
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..600 bar, G1/4-E, M12
Art:
072060241B002
Copied
|
2000
|
M12x1 4-pole
|
IP67
|
1650 bar
|
600
|
Relative
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..600 bar, G1/4-E, AMP Superseal 1.5®
Art:
072060241B007
Copied
|
2000
|
AMP Superseal
|
IP67
|
1650 bar
|
600
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..600 bar, G1/4-E, Deutsch DT04-4P
Art:
072060241B008
Copied
|
2000
|
Deutsch DT04-4P
|
IP67, IP6K9K
|
1650 bar
|
600
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..600 bar, G1/4-E, Deutsch DT04-3P
Art:
072060241B010
Copied
|
2000
|
Deutsch DT04-3P
|
IP67, IP6K9K
|
1650 bar
|
600
|
|
4-20 mA
|
32
|
10
|
| ||
![]()
4-20mA, 0..600 bar, G1/4-E, 2M cable
Art:
072060241B011
Copied
|
2000
|
Embedded 2m cable
|
IP67
|
1650 bar
|
600
|
|
4-20 mA
|
32
|
10
|
|
Select a variant in the list
