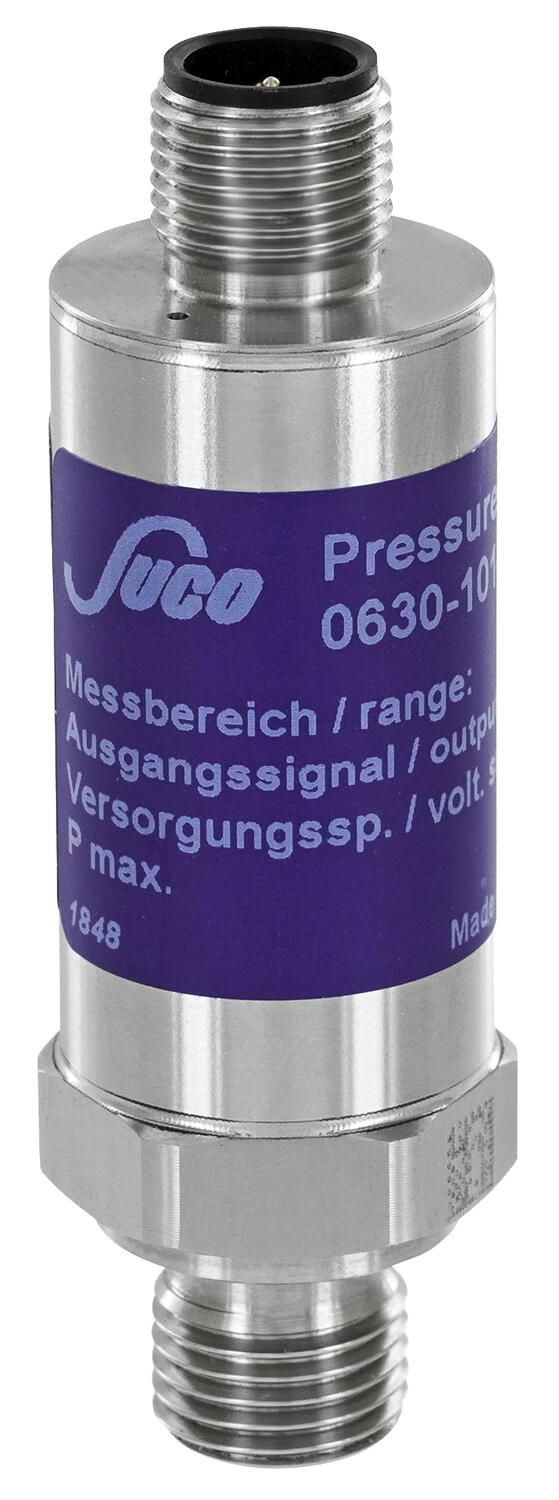

Suco - 0630/0631 Pressure Sensor

CANopen/CAN J1939 Series

Initially developed for automotive purposes CAN is a serial bus protocol which allows components such as sensors to communicate over a single or dual wired network to a vehicles system. This vastly reduces the amount of cable used, wiring time and connections used in standard wiring looms whilst still communicating data at high speeds.



Housed in a robust stainless steel case this sensor meets the high demands of harsh environments whilst still offering excellent accuracy and reliability. Pressure ranges start from 0..1 bar and go all the way up to 0..600 bar covering most application requirements.



Wide range of applications such as agricultural, rail, off-highway and construction vehicles etc.

  • Type 0630: CANopen protocol according to CiA DS-301, Device profile according to CiA DS-404
  • Type 0631: CAN J1939 protocol according to SAE J1939
  • 14 Standard pressure ranges from 0..1 bar up to 0..600 bar
  • M12 electrical connector

Selected variant

Avaible in several variants

Selected variant

Specifications

Accuracy ±0.5% FS
Burst Pressure 9
Connection Thread G1/4-E
Electrical connection M12x1
IP Class IP67
Lifespan Mechanical 10 Million cycles
Long-Term Stability <±0.1% of full scale per year
Material of body Stainless Steel 1.4301
Materials Wetted Parts Stainless steel 1.4542
Overpressure protection 6 Bar
Pressure Range Max 1
Pressure Range Min 0
Pressure reference Gauge
Pressure rise ≤ 1 bar/ms
Repeatability & Reproducibility ±0.1% FS
Response Time 1
Shock Resistance 1000g according to IEC68-2-32
Signal type CANopen, CAN 2.0 A
Supply Voltage DC Max 32
Supply Voltage DC Min 10
Temperature ambient from -40
Temperature ambient to 105
Temperature error 1.5% FS
Temperature range of media from -40
Temperature range of media to 100
Weight 90
Vibration Resistance 20g according to IEC 68-2-6 and IEC 68-2-36

Product description

Initially developed for automotive purposes CAN is a serial bus protocol which allows components such as sensors to communicate over a single or dual wired network to a vehicles system. This vastly reduces the amount of cable used, wiring time and connections used in standard wiring looms whilst still communicating data at high speeds.



Housed in a robust stainless steel case this sensor meets the high demands of harsh environments whilst still offering excellent accuracy and reliability. Pressure ranges start from 0..1 bar and go all the way up to 0..600 bar covering most application requirements.



Wide range of applications such as agricultural, rail, off-highway and construction vehicles etc.

Accessories

Related products

My favourites Articles Burst Pressure Overpressure protection Pressure Range Max Signal type Price
9
6 Bar
1
CANopen, CAN 2.0 A
30
20 Bar
10
CANopen, CAN 2.0 A
300
200 Bar
100
CANopen, CAN 2.0 A
60
40 Bar
16
CANopen, CAN 2.0 A
600
400 Bar
160
CANopen, CAN 2.0 A
9
6 Bar
2,5
CANopen, CAN 2.0 A
150
100 Bar
25
CANopen, CAN 2.0 A
1000
750 Bar
250
CANopen, CAN 2.0 A
15
10 Bar
4
CANopen, CAN 2.0 A
150
100 Bar
40
CANopen, CAN 2.0 A
1000
750 Bar
400
CANopen, CAN 2.0 A
30
20 Bar
6
CANopen, CAN 2.0 A
300
200 Bar
60
CANopen, CAN 2.0 A
1050
840 Bar
600
CANopen, CAN 2.0 A
9
6 Bar
1
CAN J1939, CAN 2.0 B
30
20 Bar
10
CAN J1939, CAN 2.0 B
300
200 Bar
100
CAN J1939, CAN 2.0 B
60
40 Bar
16
CAN J1939, CAN 2.0 B
600
400 Bar
160
CAN J1939, CAN 2.0 B
9
6 Bar
2,5
CAN J1939, CAN 2.0 B
150
100 Bar
25
CAN J1939, CAN 2.0 B
1000
750 Bar
250
CAN J1939, CAN 2.0 B
15
10 Bar
4
CAN J1939, CAN 2.0 B
150
100 Bar
40
CAN J1939, CAN 2.0 B
1000
750 Bar
400
CAN J1939, CAN 2.0 B
30
20 Bar
6
CAN J1939, CAN 2.0 B
300
200 Bar
60
CAN J1939, CAN 2.0 B
1050
840 Bar
600
CAN J1939, CAN 2.0 B
