Suco - 0601/0602 Pressure Sensor

Performance series

The SUCO 0601/0602 performance series pressure sensor is a small, compact and cost effective pressure monitoring solution. Offering six standard pressure ranges with options of four different electrical connectors a thread of G1/4 and 0-10V or 4-20mA outputs. The 06 series uses a ceramic sensor in thick film technology which is housed in a stainless steel body.



Common applications include mobile hydraulics and power packs.

  • Measuring range up to 100 bar
  • Ceramic sensor
  • Small and compact
  • Stainless steel housing

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Accuracy ±1% FS
Burst Pressure 8

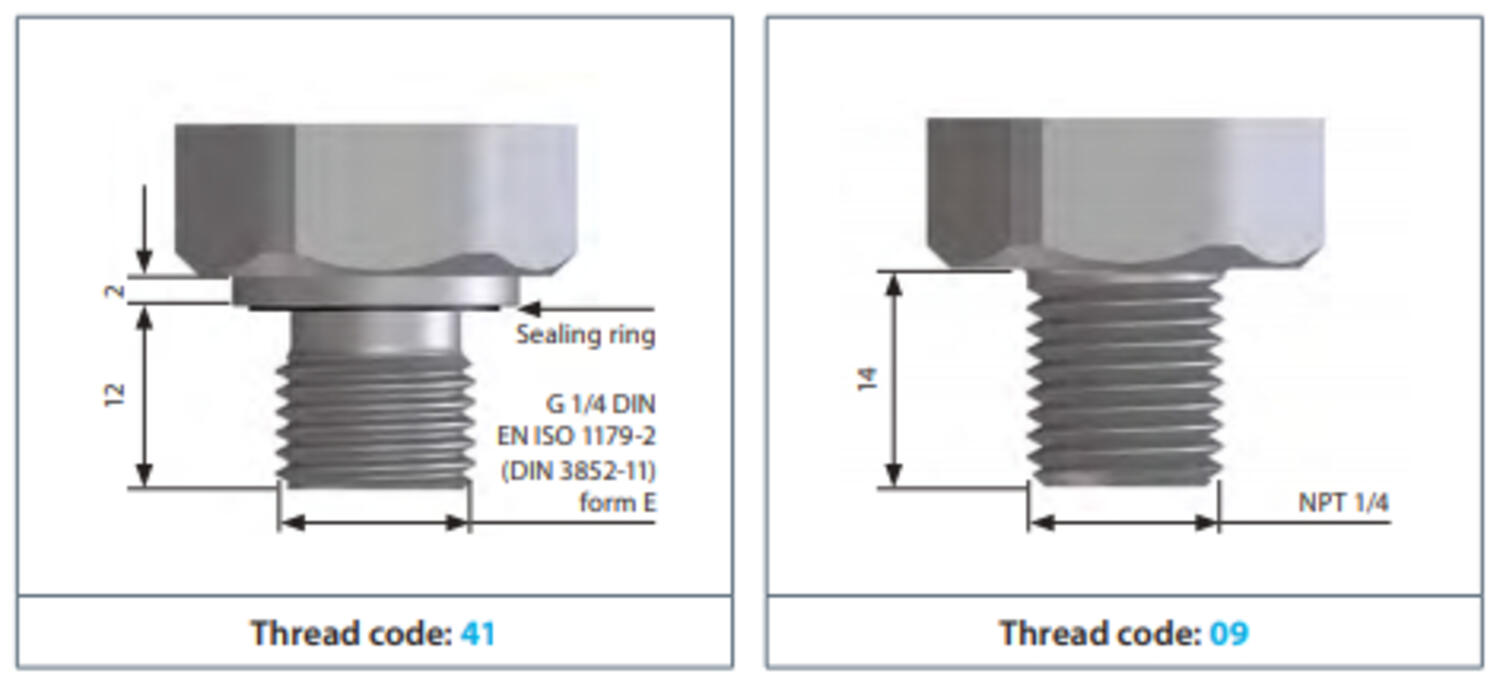

Connection Thread G1/4-E
Electrical connection M12x1 4-pole
IP Class IP67
Lifespan Mechanical 5 million cycles
Long-Term Stability ±0.3% FS p.a.
Material of body Stainless steel 1.4305
Materials Wetted Parts Stainless steel 1.4305, Ceramic, NBR
Overpressure protection 4 bar
Pressure Range Max 2
Pressure Range Min 0
Pressure reference Gauge
Pressure rise 1 bar/ms
Repeatability & Reproducibility ±0.1% FS
Response Time 2
Shock Resistance 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27
Signal type 0-10 V
Supply Voltage DC Max 32
Supply Voltage DC Min 11
Temperature ambient from -30
Temperature ambient to 100
Temperature error ±0.04% FS/°C
Temperature range of media from -30
Temperature range of media to 100
Weight 80
Vibration Resistance 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6

Downloads

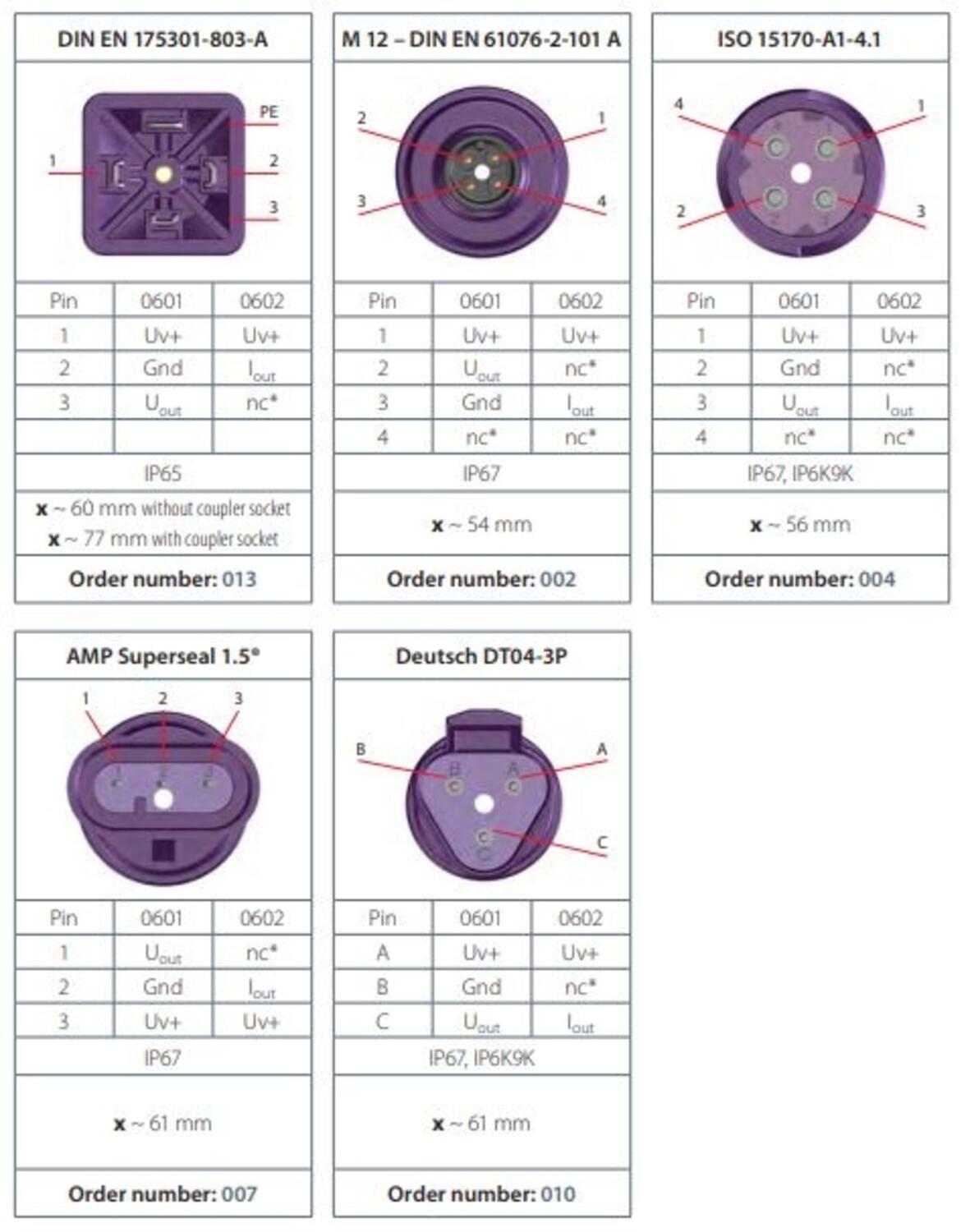

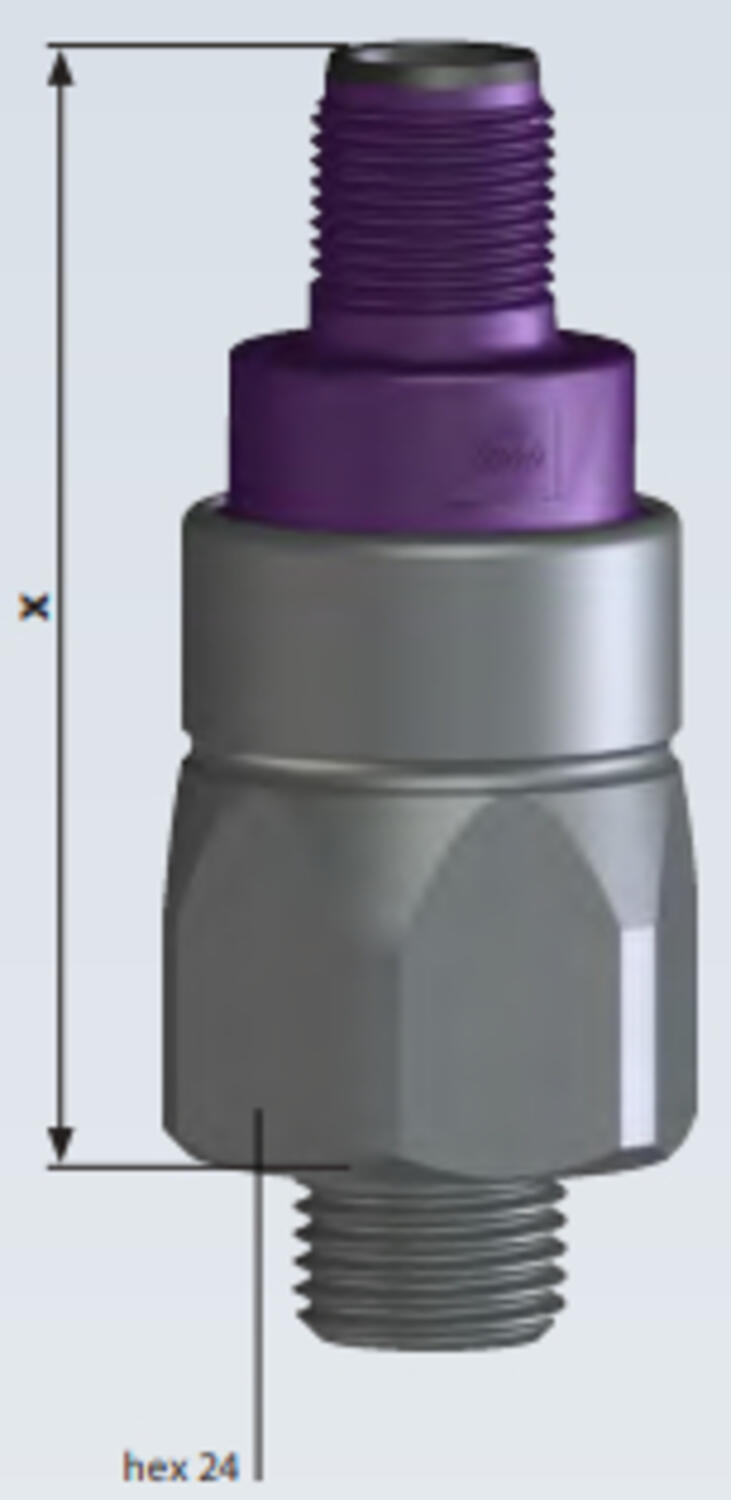

Measurements and connections

Product description

The SUCO 0601/0602 performance series pressure sensor is a small, compact and cost effective pressure monitoring solution. Offering six standard pressure ranges with options of four different electrical connectors a thread of G1/4 and 0-10V or 4-20mA outputs. The 06 series uses a ceramic sensor in thick film technology which is housed in a stainless steel body.



Common applications include mobile hydraulics and power packs.

Accessories

My favourites Articles Burst Pressure Electrical connection IP Class Materials Wetted Parts Overpressure protection Pressure Range Max Signal type Supply Voltage DC Min Temperature range of media from Temperature range of media to Weight Price
SUCO 06xx M12.jpg
0-10V, 0..2 bar, G1/4-E, NBR, M12
Art:
0601200411002 Copied
8
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..2 bar, G1/4-E, NBR, DIN
Art:
0601200411013 Copied
8
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..2 bar, G1/4-E, NBR, M12
Art:
0602200411002 Copied
8
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..2 bar, G1/4-E, NBR, DIN
Art:
0602200411013 Copied
8
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..4 bar, G1/4-E, NBR, M12
Art:
0601400411002 Copied
20
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..4 bar, G1/4-E, NBR, DIN
Art:
0601400411013 Copied
20
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..4 bar, G1/4-E, NBR, M12
Art:
0602400411002 Copied
20
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..4 bar, G1/4-E, NBR, DIN
Art:
0602400411013 Copied
20
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..10 bar, G1/4-E, NBR, M12
Art:
0601101411002 Copied
35
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..10 bar, G1/4-E, NBR, DIN
Art:
0601101411013 Copied
35
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..10 bar, G1/4-E, NBR, M12
Art:
0602101411002 Copied
35
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..10 bar, G1/4-E, NBR, DIN
Art:
0602101411013 Copied
35
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
4-20 mA
9,6
-30
100
110
SUCO 06xx DIN.jpg
4-20mA, 0..16 bar, G1/4-E, NBR, DIN
Art:
0602161411013 Copied
60
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..16 bar, G1/4-E, NBR, M12
Art:
0602161411002 Copied
60
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..16 bar, G1/4-E, NBR, M12
Art:
0601161411002 Copied
60
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..16 bar, G1/4-E, NBR, DIN
Art:
0601161411013 Copied
60
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..40 bar, G1/4-E, NBR, M12
Art:
0601401411002 Copied
140
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..40 bar, G1/4-E, NBR, DIN
Art:
0601401411013 Copied
140
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..40 bar, G1/4-E, NBR, M12
Art:
0602401411002 Copied
140
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..40 bar, G1/4-E, NBR, DIN
Art:
0602401411013 Copied
140
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..100 bar, G1/4-E, NBR, M12
Art:
0601102411002 Copied
300
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..100 bar, G1/4-E, NBR, DIN
Art:
0601102411013 Copied
300
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..100 bar, G1/4-E, NBR, M12
Art:
0602102411002 Copied
300
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..100 bar, G1/4-E, NBR, DIN
Art:
0602102411013 Copied
300
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
4-20 mA
9,6
-30
100
110

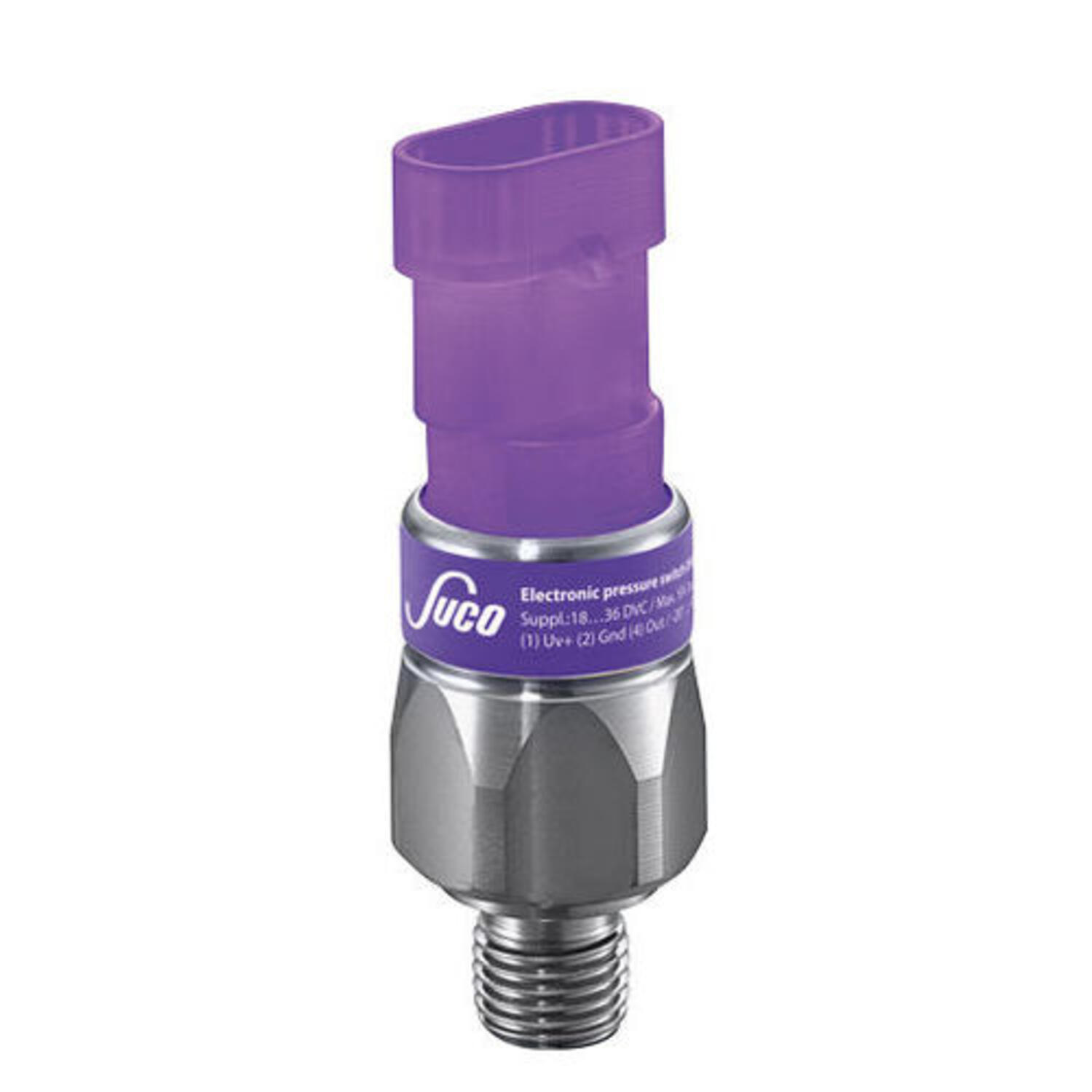

SUCO 06xx AMP.jpg
0-10V, 0..10 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0601101411007 Copied
35
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
0-10 V
11
-30
100
80

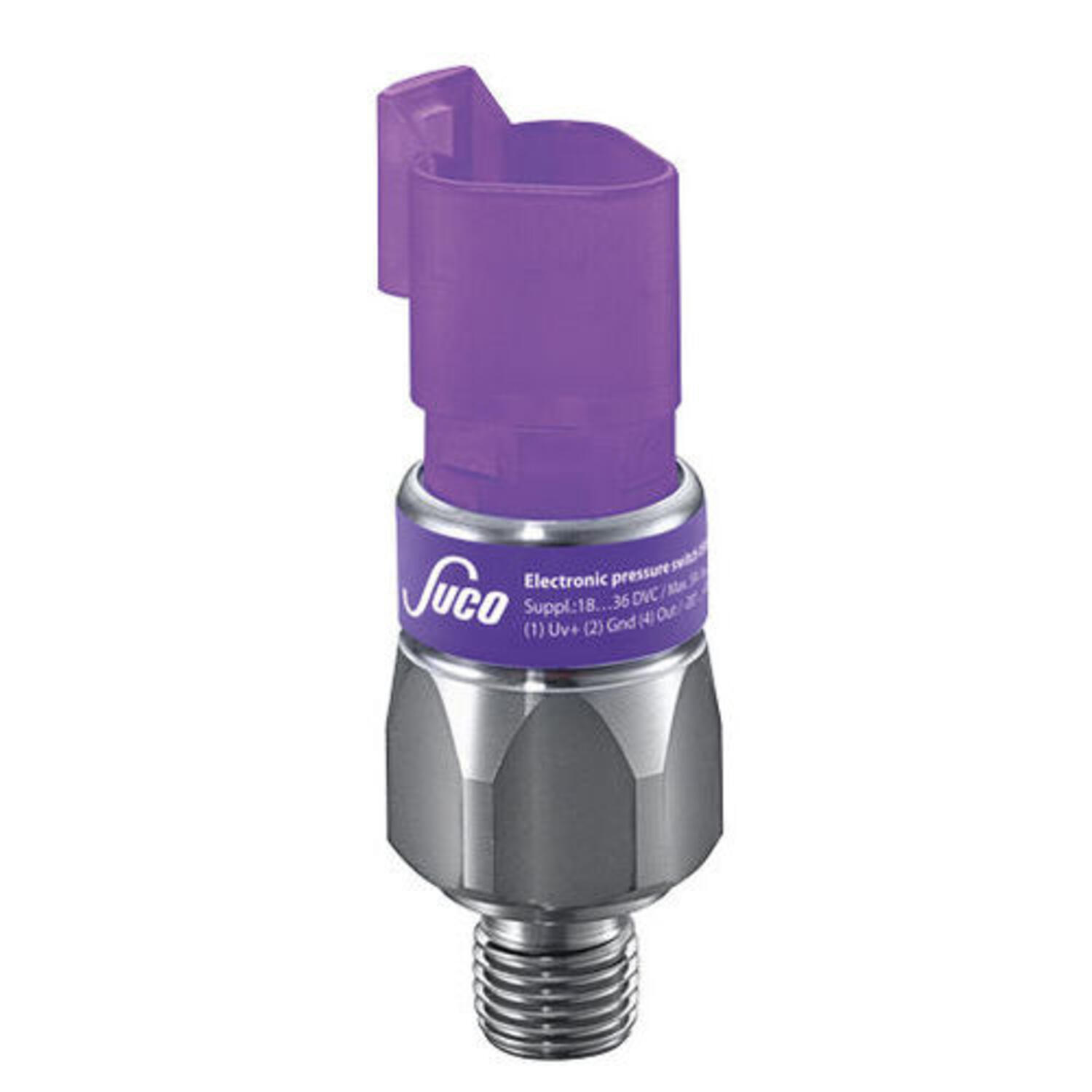

SUCO 06xx DT04-3P.jpg
0-10V, 0..10 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0601101411010 Copied
35
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
0-10 V
11
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..10 bar, G1/4-E, EPDM, M12
Art:
0601101412002 Copied
35
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
0-10 V
11
-30
100
80
SUCO 06xx AMP.jpg
0-10V, 0..10 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0601101412007 Copied
35
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..10 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0601101412010 Copied
35
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..10 bar, G1/4-E, EPDM, DIN
Art:
0601101412013 Copied
35
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..10 bar, G1/4-E, FKM, M12
Art:
0601101413002 Copied
35
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
0-10 V
11
-20
125
80
SUCO 06xx AMP.jpg
0-10V, 0..10 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0601101413007 Copied
35
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
0-10 V
11
-20
125
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..10 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0601101413010 Copied
35
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
0-10 V
11
-20
125
80
SUCO 06xx DIN.jpg
0-10V, 0..10 bar, G1/4-E, FKM, DIN
Art:
0601101413013 Copied
35
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
0-10 V
11
-20
125
110
SUCO 06xx AMP.jpg
0-10V, 0..100 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0601102411007 Copied
300
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..100 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0601102411010 Copied
300
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
0-10 V
11
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..100 bar, G1/4-E, EPDM, M12
Art:
0601102412002 Copied
300
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
0-10 V
11
-30
100
80
SUCO 06xx AMP.jpg
0-10V, 0..100 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0601102412007 Copied
300
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..100 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0601102412010 Copied
300
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..100 bar, G1/4-E, EPDM, DIN
Art:
0601102412013 Copied
300
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..100 bar, G1/4-E, FKM, M12
Art:
0601102413002 Copied
300
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
0-10 V
11
-20
125
80
SUCO 06xx AMP.jpg
0-10V, 0..100 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0601102413007 Copied
300
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
0-10 V
11
-20
125
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..100 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0601102413010 Copied
300
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
0-10 V
11
-20
125
80
SUCO 06xx DIN.jpg
0-10V, 0..100 bar, G1/4-E, FKM, DIN
Art:
0601102413013 Copied
300
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
0-10 V
11
-20
125
110
SUCO 06xx AMP.jpg
0-10V, 0..16 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0601161411007 Copied
60
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..16 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0601161411010 Copied
60
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
0-10 V
11
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..16 bar, G1/4-E, EPDM, M12
Art:
0601161412002 Copied
60
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
0-10 V
11
-30
100
80
SUCO 06xx AMP.jpg
0-10V, 0..16 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0601161412007 Copied
60
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..16 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0601161412010 Copied
60
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..16 bar, G1/4-E, EPDM, DIN
Art:
0601161412013 Copied
60
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..16 bar, G1/4-E, FKM, M12
Art:
0601161413002 Copied
60
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
0-10 V
11
-20
125
80
SUCO 06xx AMP.jpg
0-10V, 0..16 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0601161413007 Copied
60
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
0-10 V
11
-20
125
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..16 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0601161413010 Copied
60
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
0-10 V
11
-20
125
80
SUCO 06xx DIN.jpg
0-10V, 0..16 bar, G1/4-E, FKM, DIN
Art:
0601161413013 Copied
60
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
0-10 V
11
-20
125
110
SUCO 06xx AMP.jpg
0-10V, 0..2 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0601200411007 Copied
8
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..2 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0601200411010 Copied
8
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
0-10 V
11
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..2 bar, G1/4-E, EPDM, M12
Art:
0601200412002 Copied
8
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
0-10 V
11
-30
100
80
SUCO 06xx AMP.jpg
0-10V, 0..2 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0601200412007 Copied
8
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..2 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0601200412010 Copied
8
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..2 bar, G1/4-E, EPDM, DIN
Art:
0601200412013 Copied
8
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..2 bar, G1/4-E, FKM, M12
Art:
0601200413002 Copied
8
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
0-10 V
11
-20
125
80
SUCO 06xx AMP.jpg
0-10V, 0..2 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0601200413007 Copied
8
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
0-10 V
11
-20
125
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..2 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0601200413010 Copied
8
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
0-10 V
11
-20
125
80
SUCO 06xx DIN.jpg
0-10V, 0..2 bar, G1/4-E, FKM, DIN
Art:
0601200413013 Copied
8
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
0-10 V
11
-20
125
110
SUCO 06xx AMP.jpg
0-10V, 0..4 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0601400411007 Copied
20
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..4 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0601400411010 Copied
20
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
0-10 V
11
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..4 bar, G1/4-E, EPDM, M12
Art:
0601400412002 Copied
20
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
0-10 V
11
-30
100
80
SUCO 06xx AMP.jpg
0-10V, 0..4 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0601400412007 Copied
20
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..4 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0601400412010 Copied
20
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..4 bar, G1/4-E, EPDM, DIN
Art:
0601400412013 Copied
20
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..4 bar, G1/4-E, FKM, M12
Art:
0601400413002 Copied
20
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
0-10 V
11
-20
125
80
SUCO 06xx AMP.jpg
0-10V, 0..4 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0601400413007 Copied
20
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
0-10 V
11
-20
125
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..4 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0601400413010 Copied
20
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
0-10 V
11
-20
125
80
SUCO 06xx DIN.jpg
0-10V, 0..4 bar, G1/4-E, FKM, DIN
Art:
0601400413013 Copied
20
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
0-10 V
11
-20
125
110
SUCO 06xx AMP.jpg
0-10V, 0..40 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0601401411007 Copied
140
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..40 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0601401411010 Copied
140
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
0-10 V
11
-30
100
80
SUCO 06xx M12.jpg
0-10V, 0..40 bar, G1/4-E, EPDM, M12
Art:
0601401412002 Copied
140
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
0-10 V
11
-30
100
80
SUCO 06xx AMP.jpg
0-10V, 0..40 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0601401412007 Copied
140
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
0-10 V
11
-30
100
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..40 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0601401412010 Copied
140
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
0-10 V
11
-30
100
80
SUCO 06xx DIN.jpg
0-10V, 0..40 bar, G1/4-E, EPDM, DIN
Art:
0601401412013 Copied
140
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
0-10 V
11
-30
100
110
SUCO 06xx M12.jpg
0-10V, 0..40 bar, G1/4-E, FKM, M12
Art:
0601401413002 Copied
140
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
0-10 V
11
-20
125
80
SUCO 06xx AMP.jpg
0-10V, 0..40 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0601401413007 Copied
140
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
0-10 V
11
-20
125
80
SUCO 06xx DT04-3P.jpg
0-10V, 0..40 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0601401413010 Copied
140
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
0-10 V
11
-20
125
80
SUCO 06xx DIN.jpg
0-10V, 0..40 bar, G1/4-E, FKM, DIN
Art:
0601401413013 Copied
140
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
0-10 V
11
-20
125
110
SUCO 06xx AMP.jpg
4-20mA, 0..10 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0602101411007 Copied
35
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..10 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0602101411010 Copied
35
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
20 bar
10
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
4-20mA, 0..10 bar, G1/4-E, EPDM, M12
Art:
0602101412002 Copied
35
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
4-20 mA
9,6
-30
100
80
SUCO 06xx AMP.jpg
4-20mA, 0..10 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0602101412007 Copied
35
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..10 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0602101412010 Copied
35
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..10 bar, G1/4-E, EPDM, DIN
Art:
0602101412013 Copied
35
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
20 bar
10
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..10 bar, G1/4-E, FKM, M12
Art:
0602101413002 Copied
35
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
4-20 mA
9,6
-20
125
80
SUCO 06xx AMP.jpg
4-20mA, 0..10 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0602101413007 Copied
35
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
4-20 mA
9,6
-20
125
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..10 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0602101413010 Copied
35
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
4-20 mA
9,6
-20
125
80
SUCO 06xx DIN.jpg
4-20mA, 0..10 bar, G1/4-E, FKM, DIN
Art:
0602101413013 Copied
35
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
20 bar
10
4-20 mA
9,6
-20
125
110
SUCO 06xx AMP.jpg
4-20mA, 0..100 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0602102411007 Copied
300
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..100 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0602102411010 Copied
300
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
200 bar
100
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
4-20mA, 0..100 bar, G1/4-E, EPDM, M12
Art:
0602102412002 Copied
300
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
4-20 mA
9,6
-30
100
80
SUCO 06xx AMP.jpg
4-20mA, 0..100 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0602102412007 Copied
300
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..100 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0602102412010 Copied
300
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..100 bar, G1/4-E, EPDM, DIN
Art:
0602102412013 Copied
300
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
200 bar
100
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..100 bar, G1/4-E, FKM, M12
Art:
0602102413002 Copied
300
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
4-20 mA
9,6
-20
125
80
SUCO 06xx AMP.jpg
4-20mA, 0..100 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0602102413007 Copied
300
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
4-20 mA
9,6
-20
125
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..100 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0602102413010 Copied
300
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
4-20 mA
9,6
-20
125
80
SUCO 06xx DIN.jpg
4-20mA, 0..100 bar, G1/4-E, FKM, DIN
Art:
0602102413013 Copied
300
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
200 bar
100
4-20 mA
9,6
-20
125
110
SUCO 06xx AMP.jpg
4-20mA, 0..16 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0602161411007 Copied
60
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..16 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0602161411010 Copied
60
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
40 bar
16
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
4-20mA, 0..16 bar, G1/4-E, EPDM, M12
Art:
0602161412002 Copied
60
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
4-20 mA
9,6
-30
100
80
SUCO 06xx AMP.jpg
4-20mA, 0..16 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0602161412007 Copied
60
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..16 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0602161412010 Copied
60
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..16 bar, G1/4-E, EPDM, DIN
Art:
0602161412013 Copied
60
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
40 bar
16
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..16 bar, G1/4-E, FKM, M12
Art:
0602161413002 Copied
60
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
4-20 mA
9,6
-20
125
80
SUCO 06xx AMP.jpg
4-20mA, 0..16 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0602161413007 Copied
60
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
4-20 mA
9,6
-20
125
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..16 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0602161413010 Copied
60
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
4-20 mA
9,6
-20
125
80
SUCO 06xx DIN.jpg
4-20mA, 0..16 bar, G1/4-E, FKM, DIN
Art:
0602161413013 Copied
60
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
40 bar
16
4-20 mA
9,6
-20
125
110
SUCO 06xx AMP.jpg
4-20mA, 0..2 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0602200411007 Copied
8
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..2 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0602200411010 Copied
8
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
4 bar
2
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
4-20mA, 0..2 bar, G1/4-E, EPDM, M12
Art:
0602200412002 Copied
8
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
4-20 mA
9,6
-30
100
80
SUCO 06xx AMP.jpg
4-20mA, 0..2 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0602200412007 Copied
8
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..2 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0602200412010 Copied
8
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..2 bar, G1/4-E, EPDM, DIN
Art:
0602200412013 Copied
8
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
4 bar
2
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..2 bar, G1/4-E, FKM, M12
Art:
0602200413002 Copied
8
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
4-20 mA
9,6
-20
125
80
SUCO 06xx AMP.jpg
4-20mA, 0..2 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0602200413007 Copied
8
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
4-20 mA
9,6
-20
125
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..2 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0602200413010 Copied
8
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
4-20 mA
9,6
-20
125
80
SUCO 06xx DIN.jpg
4-20mA, 0..2 bar, G1/4-E, FKM, DIN
Art:
0602200413013 Copied
8
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
4 bar
2
4-20 mA
9,6
-20
125
110
SUCO 06xx AMP.jpg
4-20mA, 0..4 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0602400411007 Copied
20
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..4 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0602400411010 Copied
20
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
10 bar
4
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
4-20mA, 0..4 bar, G1/4-E, EPDM, M12
Art:
0602400412002 Copied
20
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
4-20 mA
9,6
-30
100
80
SUCO 06xx AMP.jpg
4-20mA, 0..4 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0602400412007 Copied
20
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..4 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0602400412010 Copied
20
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..4 bar, G1/4-E, EPDM, DIN
Art:
0602400412013 Copied
20
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
10 bar
4
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..4 bar, G1/4-E, FKM, M12
Art:
0602400413002 Copied
20
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
4-20 mA
9,6
-20
125
80
SUCO 06xx AMP.jpg
4-20mA, 0..4 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0602400413007 Copied
20
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
4-20 mA
9,6
-20
125
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..4 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0602400413010 Copied
20
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
4-20 mA
9,6
-20
125
80
SUCO 06xx DIN.jpg
4-20mA, 0..4 bar, G1/4-E, FKM, DIN
Art:
0602400413013 Copied
20
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
10 bar
4
4-20 mA
9,6
-20
125
110
SUCO 06xx AMP.jpg
4-20mA, 0..40 bar, G1/4-E, NBR, AMP Superseal 1.5®
Art:
0602401411007 Copied
140
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..40 bar, G1/4-E, NBR, Deutsch DT04-3P
Art:
0602401411010 Copied
140
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, NBR
100 bar
40
4-20 mA
9,6
-30
100
80
SUCO 06xx M12.jpg
4-20mA, 0..40 bar, G1/4-E, EPDM, M12
Art:
0602401412002 Copied
140
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
4-20 mA
9,6
-30
100
80
SUCO 06xx AMP.jpg
4-20mA, 0..40 bar, G1/4-E, EPDM, AMP Superseal 1.5®
Art:
0602401412007 Copied
140
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
4-20 mA
9,6
-30
100
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..40 bar, G1/4-E, EPDM, Deutsch DT04-3P
Art:
0602401412010 Copied
140
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
4-20 mA
9,6
-30
100
80
SUCO 06xx DIN.jpg
4-20mA, 0..40 bar, G1/4-E, EPDM, DIN
Art:
0602401412013 Copied
140
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, EPDM
100 bar
40
4-20 mA
9,6
-30
100
110
SUCO 06xx M12.jpg
4-20mA, 0..40 bar, G1/4-E, FKM, M12
Art:
0602401413002 Copied
140
M12x1 4-pole
IP67
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
4-20 mA
9,6
-20
125
80
SUCO 06xx AMP.jpg
4-20mA, 0..40 bar, G1/4-E, FKM, AMP Superseal 1.5®
Art:
0602401413007 Copied
140
AMP Superseal
IP67
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
4-20 mA
9,6
-20
125
80
SUCO 06xx DT04-3P.jpg
4-20mA, 0..40 bar, G1/4-E, FKM, Deutsch DT04-3P
Art:
0602401413010 Copied
140
Deutsch DT04-3P
IP67, IP6K9K
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
4-20 mA
9,6
-20
125
80
SUCO 06xx DIN.jpg
4-20mA, 0..40 bar, G1/4-E, FKM, DIN
Art:
0602401413013 Copied
140
DIN EN 175301-803-A
IP65
Stainless steel 1.4305, Ceramic, FKM
100 bar
40
4-20 mA
9,6
-20
125
110

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
