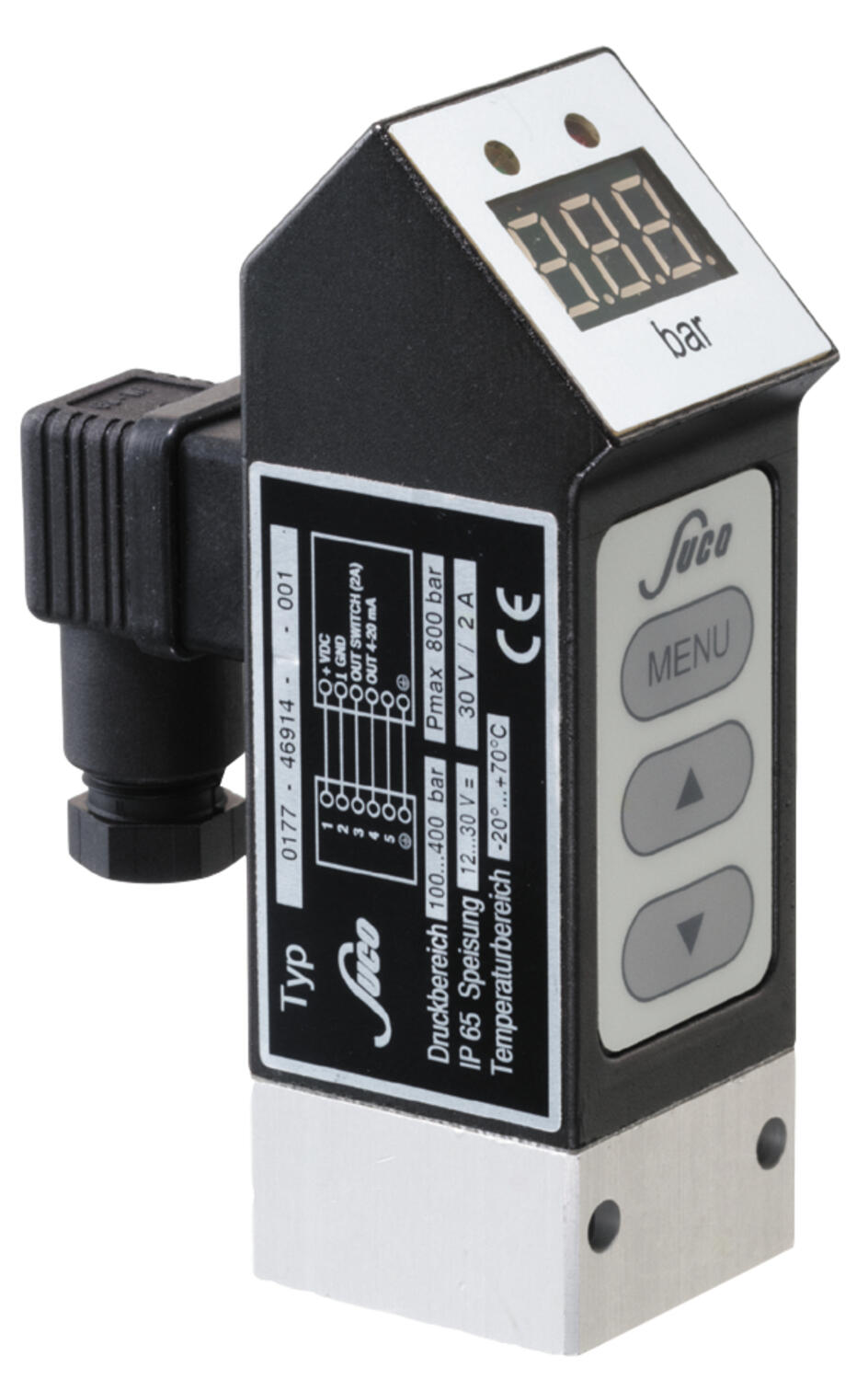

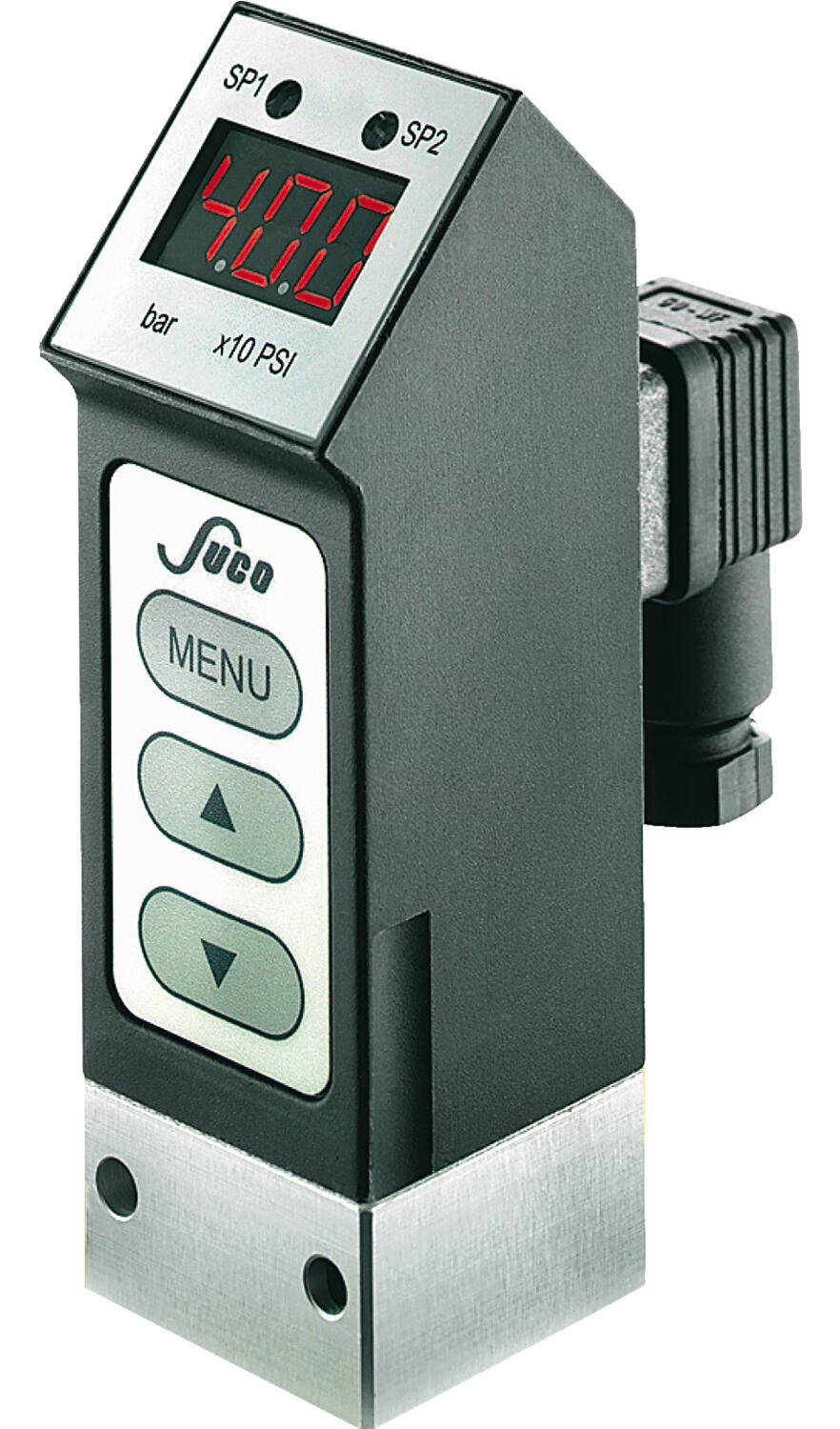

Suco - 0570 Electronic Pressure Switch/Sensor

Dual output with display

The SUCO 0570 is a menu controlled electonic pressure switch with a built in 4-20mA output and simple to program through the touch keypad. There are two switch points available and either can be programmed to normally open or normally closed along with switching time delay, zero point reset, peak value memory an switch point counter. The current pressure is displayed on the LED display and and both switch points have an active indication light.



Common applications include factory monitoring, air systems, hydraulics and more.

  • Programmable using keypad
  • Three adjustment ranges from 0..10 bar to 0..400 bar
  • 2 PNP + 4-20 mA output
  • LED Display

Selected variant

Avaible in several variants

Selected variant

Specifications

Accuracy ±0.5% FS
Adjustment range max 10
Adjustment range min 0
Approvals CE, RoHS II
Burst Pressure 25
Display Yes
Electrical connection GO 51 FAV M
Hysteresis 1-99% FS
IP Class IP65
Lifespan Mechanical 5 million cycles
Material of body Anodised aluminum
Materials Wetted Parts Anodised aluminum, Ceramic, NBR
Max. pressure 20
Measuring Principle Ceramic cell in thick-film technology
Membrane Material NBR
Output 2 x PNP + 4-20mA
Pressure Range Max 10
Pressure Range Min 0
Pressure reference Gauge
Process connection G1/4 female
Shock Resistance 294m / s²; 11 ms half sinusoidal wave; DIN EN 60068-2-27
Supply Voltage DC Max 30
Supply Voltage DC Min 12
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -20
Temperature range of media to 80
Type Pressure Switch Electronic
Weight 340

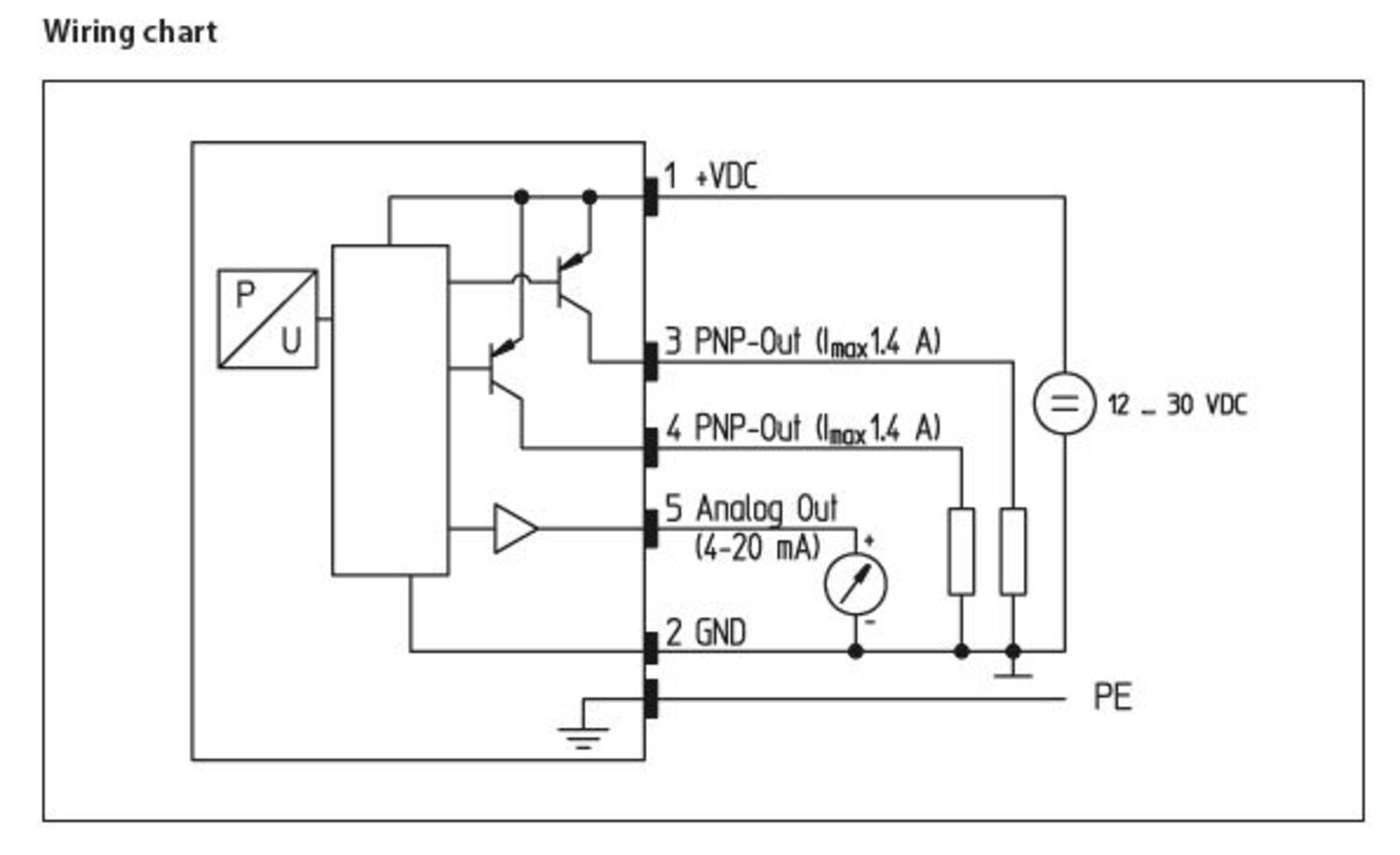

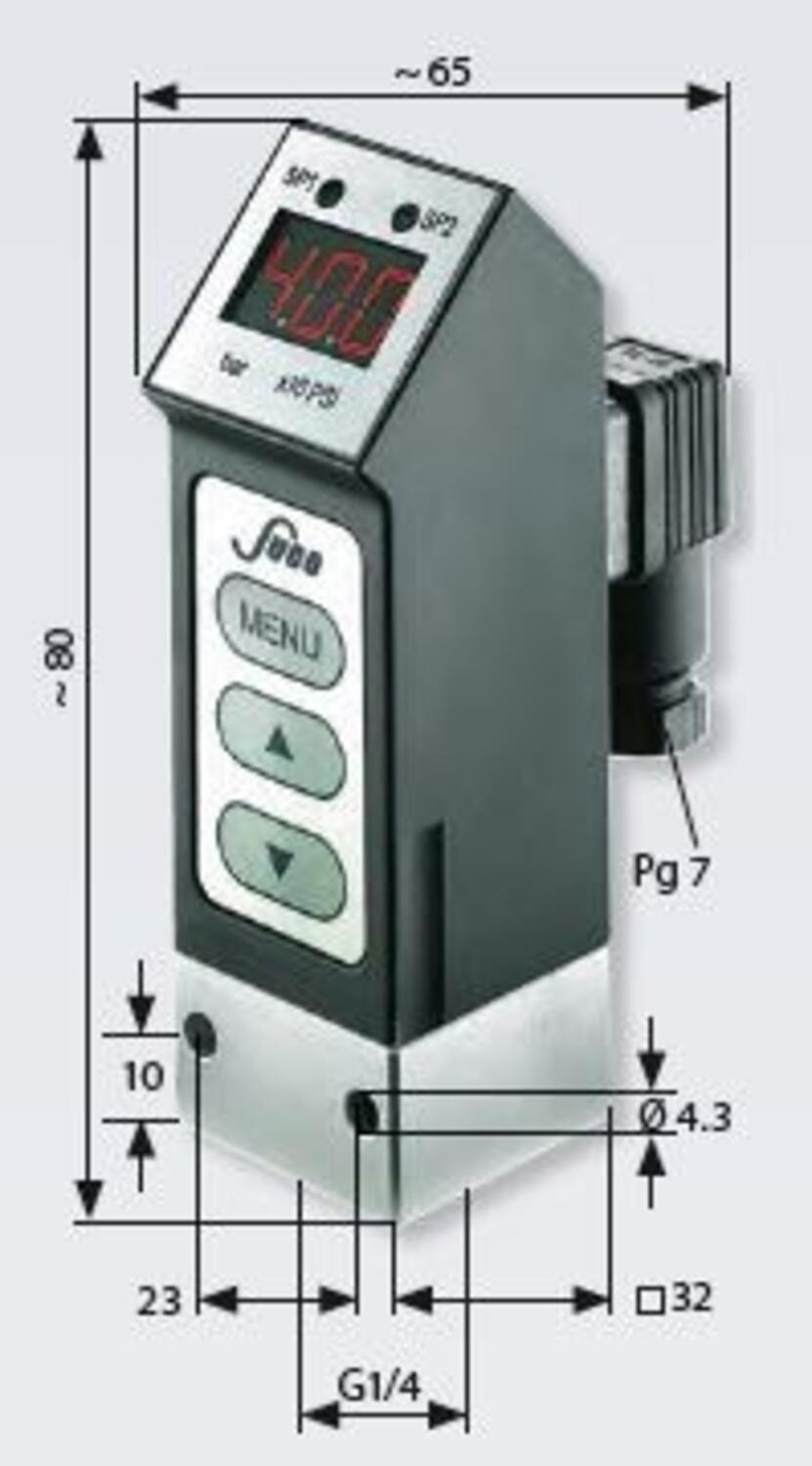

Measurements and connections

Product description

The SUCO 0570 is a menu controlled electonic pressure switch with a built in 4-20mA output and simple to program through the touch keypad. There are two switch points available and either can be programmed to normally open or normally closed along with switching time delay, zero point reset, peak value memory an switch point counter. The current pressure is displayed on the LED display and and both switch points have an active indication light.



Common applications include factory monitoring, air systems, hydraulics and more.

Accessories

Related products
