ESI - HI2200 & HI2300 - High Temperature Pressure Sensor

The ESI Technology HI2200 & HI2300 high temperature pressure sensor series is designed to operate in applications with high demands on media and ambient temperature effects.





The unique Silicon-on-Sapphire (SOS) sensor technology provides outstanding insulating properties which means this pressure sensor can still give great performance and excellent stability over such a wide temperature range of 200°C. The sensor starts from 0 - 1 bar up to 0 - 1500 bar with a total of nine standard pressure ranges, two options of output (10-20 mV/V or 10 mV/V) and also two different electrical connections (1 meter PTFE insulated flying lead or MIL-C-26482 6 pin bayonet).



Application examples



  • Furnaces
  • Process
  • Tanks
  • Thermal chambers
  • Silicon-on-sapphire sensor technology
  • Media temperature up to 200°C
  • Ambient tempertaure up to 200°C
  • Good chemical compatibility for a range of applications

Selected variant

Avaible in several variants

Selected variant

Specifications

Ambient temperature -40..200°C
Approvals CE, IEC
Electrical connection 1m PFTE insulated flying lead
EMC EN61000-6-4, EN61000-6-2
Linearity ≤±0.1% BSFL
Materials Wetted Parts Titanium alloy
Media temperature -50..200°C
Output 10-20mV/V
Overpressure protection 2 bar
Pressure Range Max 1
Pressure Range Min 0
Pressure reference Gauge
Process connection G1/4
Sensor technology Silicon-on-Sapphire
Storage temperature 5..40°C
Supply voltage 10 V DC (5-15 V)

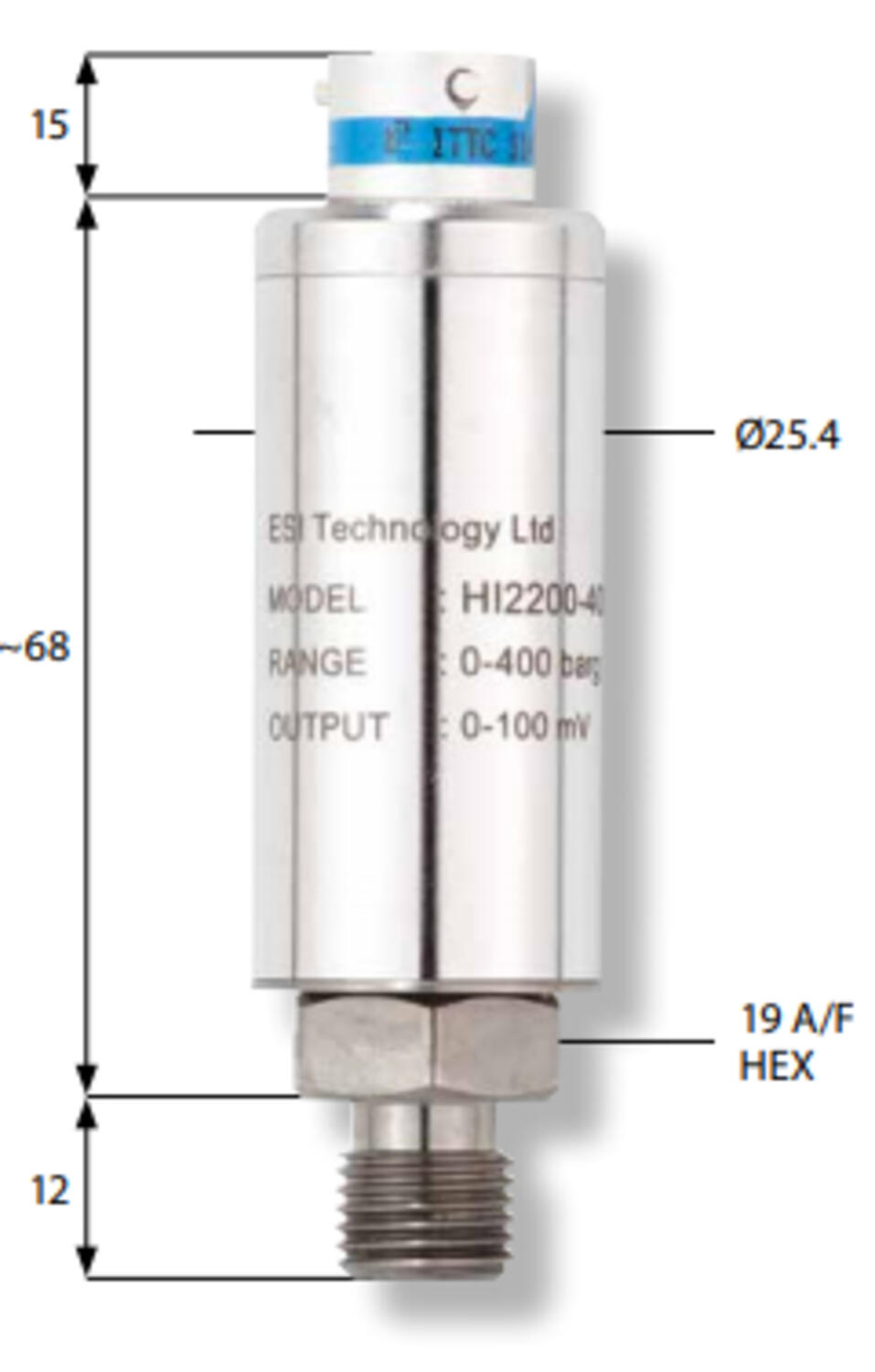

Measurements and connections

Product description

The ESI Technology HI2200 & HI2300 high temperature pressure sensor series is designed to operate in applications with high demands on media and ambient temperature effects.





The unique Silicon-on-Sapphire (SOS) sensor technology provides outstanding insulating properties which means this pressure sensor can still give great performance and excellent stability over such a wide temperature range of 200°C. The sensor starts from 0 - 1 bar up to 0 - 1500 bar with a total of nine standard pressure ranges, two options of output (10-20 mV/V or 10 mV/V) and also two different electrical connections (1 meter PTFE insulated flying lead or MIL-C-26482 6 pin bayonet).



Application examples



  • Furnaces
  • Process
  • Tanks
  • Thermal chambers

Accessories

Related products

My favourites Articles Electrical connection Output Overpressure protection Pressure Range Max Price
1m PFTE insulated flying lead
10-20mV/V
2 bar
1
1m PFTE insulated flying lead
10-20mV/V
20 bar
10
1m PFTE insulated flying lead
10-20mV/V
50 bar
25
1m PFTE insulated flying lead
10-20mV/V
200 bar
100
1m PFTE insulated flying lead
10-20mV/V
500 bar
250
1m PFTE insulated flying lead
10-20mV/V
1,650 bar
1500
MIL-C-26482 6 pin bayonet
10-20mV/V
2 bar
1
MIL-C-26482 6 pin bayonet
10-20mV/V
20 bar
10
MIL-C-26482 6 pin bayonet
10-20mV/V
50 bar
25
MIL-C-26482 6 pin bayonet
10-20mV/V
200 bar
100
MIL-C-26482 6 pin bayonet
10-20mV/V
500 bar
250
MIL-C-26482 6 pin bayonet
10-20mV/V
1,650 bar
1500
1m PFTE insulated flying lead
0-10mV/V
2 bar
1
1m PFTE insulated flying lead
0-10mV/V
20 bar
10
1m PFTE insulated flying lead
0-10mV/V
50 bar
25
1m PFTE insulated flying lead
0-10mV/V
100 bar
100
1m PFTE insulated flying lead
0-10mV/V
500 bar
250
1m PFTE insulated flying lead
0-10mV/V
1,650 bar
1500
MIL-C-26482 6 pin bayonet
0-10mV/V
2 bar
1
MIL-C-26482 6 pin bayonet
0-10mV/V
20 bar
10
MIL-C-26482 6 pin bayonet
0-10mV/V
50 bar
25
MIL-C-26482 6 pin bayonet
0-10mV/V
200 bar
100
MIL-C-26482 6 pin bayonet
0-10mV/V
500 bar
250
MIL-C-26482 6 pin bayonet
0-10mV/V
1,650 bar
1500
