APLISENS

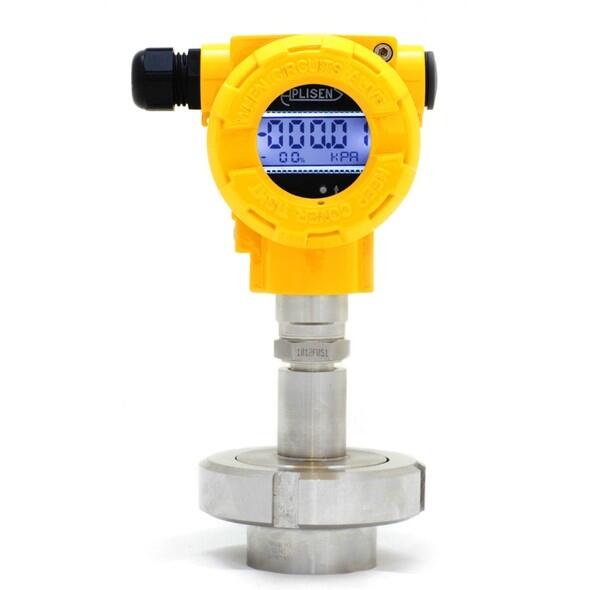

The Aplisens APC-2000ALW Smart pressure transmitter is applicable to the measurment of the pressure, underpressure and absolute pressure of gases, vapours and liquids.
This pressure sensor comes with many extra options such as PED, MID, SIL 2, ATEX, DNV marine certificate, housing options, thread connections and materials making this sensor very versatile.
Through the data interchange (HART) with the sensor you can:
Measurement units and the values of the start and end points of the range
Damping time constant
Conversion characteristic (inversion, user's non-linear characteristics)

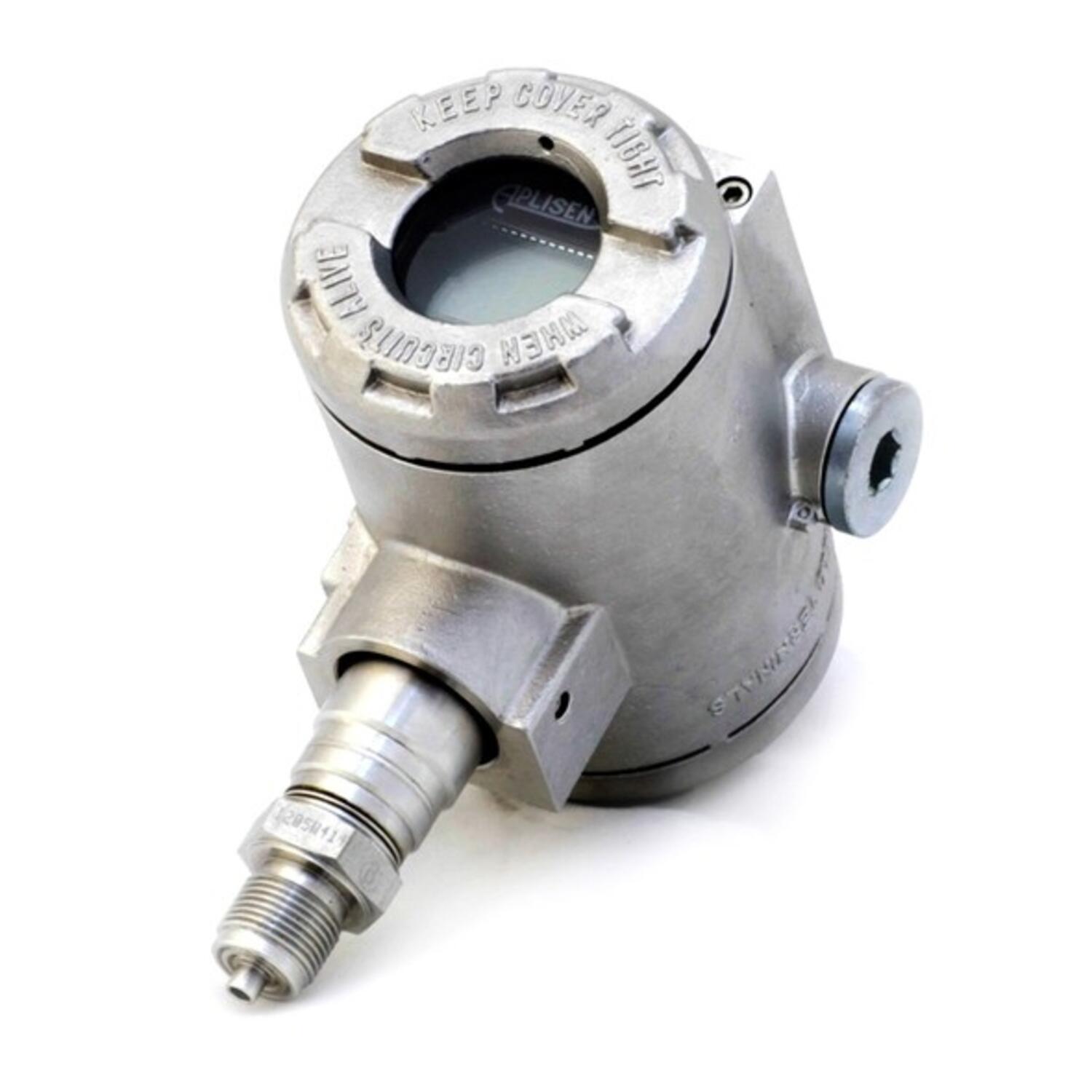

The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type manometric liquid. The casing is made of aluminium alloy cast or SS316, degree of protection IP66/IP67. The design of the casing enables the use of a local display, rotation of the display by 90°, rotation of the casing by 0-355° relative to the sensor, and a choice of cable direction.
Application examples:
Connection Thread | G1/2 |
---|---|
Deviation max | 0,075 % |
Electrical connection | M20x1,5 |
IP Class | IP66 |
Manufacturer Part No | APC-2000/ALW/-1÷25 bar/-1-9bar/G1/2'' |
Material of body | Aluminium |
Materials Wetted Parts | Stainless steel 316L |
Pressure Range Max | 9 |
Pressure Range Min | -1 |
Pressure type | Relative |
---|---|
Signal type | 4-20 mA / Hart |
Supply Voltage DC Max | 55 |
Supply Voltage DC Min | 12 |
Temperature ambient from | -40 |
Temperature ambient to | 85 |
Temperature range of media from | -40 |
Temperature range of media to | 120 |
The Aplisens APC-2000ALW Smart pressure transmitter is applicable to the measurment of the pressure, underpressure and absolute pressure of gases, vapours and liquids.
This pressure sensor comes with many extra options such as PED, MID, SIL 2, ATEX, DNV marine certificate, housing options, thread connections and materials making this sensor very versatile.
Through the data interchange (HART) with the sensor you can:
Measurement units and the values of the start and end points of the range
Damping time constant
Conversion characteristic (inversion, user's non-linear characteristics)
The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type manometric liquid. The casing is made of aluminium alloy cast or SS316, degree of protection IP66/IP67. The design of the casing enables the use of a local display, rotation of the display by 90°, rotation of the casing by 0-355° relative to the sensor, and a choice of cable direction.
Application examples:
Please refer to the image below for ordering information.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Approvals | Connection Thread | Manufacturer Part No | Materials Wetted Parts | Pressure Range Max | Pressure Range Min | Supply Voltage DC Max | Supply Voltage DC Min | Temperature ambient to | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Art:
APCV0009.000
Copied
|
|
G1/2
|
APC-2000/ALW/-1÷25 bar/-1-9bar/G1/2''
|
Stainless steel 316L
|
9
|
-1
|
55
|
12
|
85
|
| ||
![]()
ALW 0..1Bar 4-20mA/Hart G1/2"
Art:
APCG0001.000
Copied
|
|
G1/2
|
APC-2000/ALW/0÷1 bar/0-1bar/G1/2''
|
Stainless steel 316L
|
1
|
0
|
55
|
12
|
85
|
| ||
![]()
Art:
APCG0009.000
Copied
|
|
G1/2
|
APC-2000/ALW/0÷25 bar/0-9bar/G1/2''
|
Stainless steel 316L
|
9
|
0
|
55
|
12
|
85
|
| ||
![]()
Art:
APCG0016.001
Copied
|
|
G1/2
|
APC-2000/ALW/0÷25 bar/0-16bar/GP(Hastelloy)
|
Hastelloy C
|
16
|
0
|
55
|
12
|
85
|
| ||
![]()
Art:
APCG0016.X01
Copied
|
Ex-d
|
G1/2
|
APC-2000/ALW/Exd/0÷25 bar/0-16bar/GP(Hastelloy)
|
Hastelloy C
|
16
|
0
|
45
|
13,5
|
75
|
| ||
![]()
Art:
APCG0160.X01
Copied
|
Ex-ia
|
1/2 NPT
|
APC-2000/ALW/Exia/0÷160 bar/0-160bar/1/2''NPTM
|
Stainless steel 316L
|
160
|
0
|
28
|
10,5
|
80
|
| ||
![]()
Art:
APCG1000.X01
Copied
|
Ex-ia
|
M20x1.5
|
APC-2000/ALW/Exia/0÷1000 bar/0-1000bar/M
|
Stainless steel 316L
|
1000
|
0
|
28
|
10,5
|
80
|
|
Select a variant in the list
