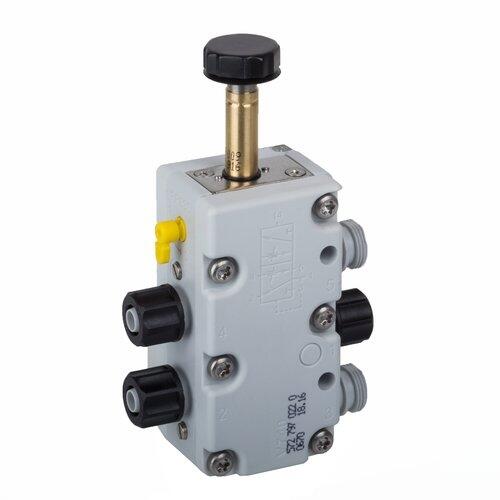

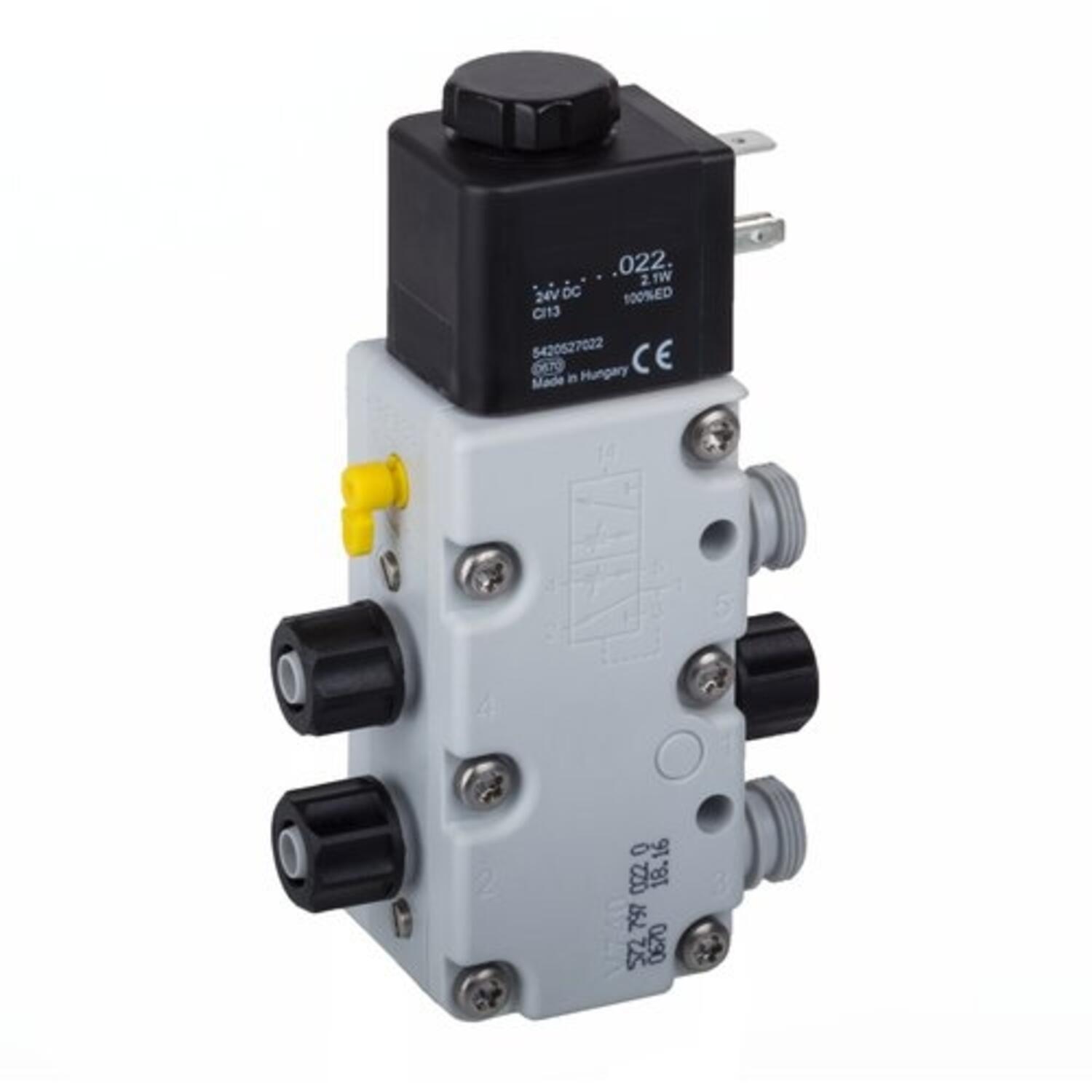

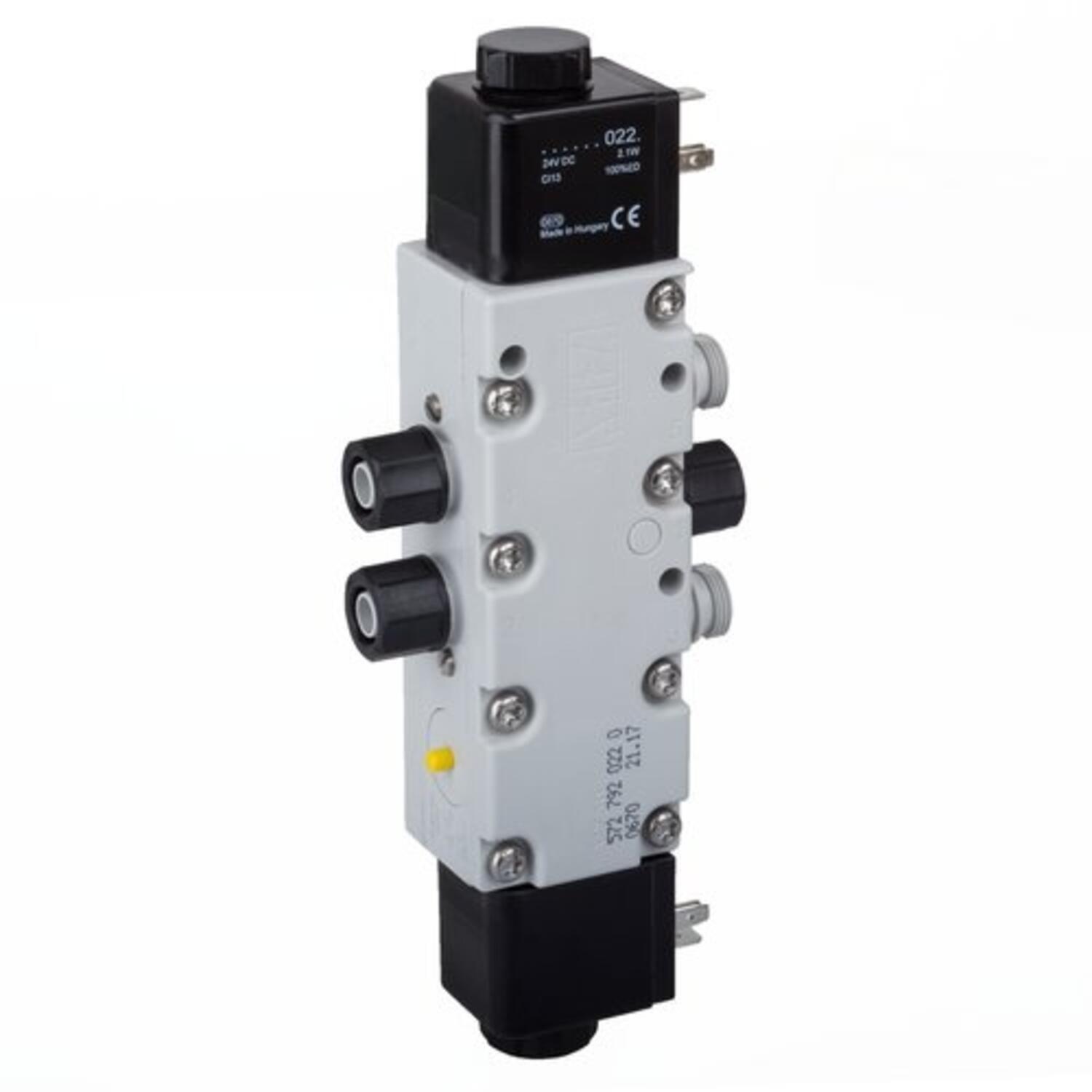

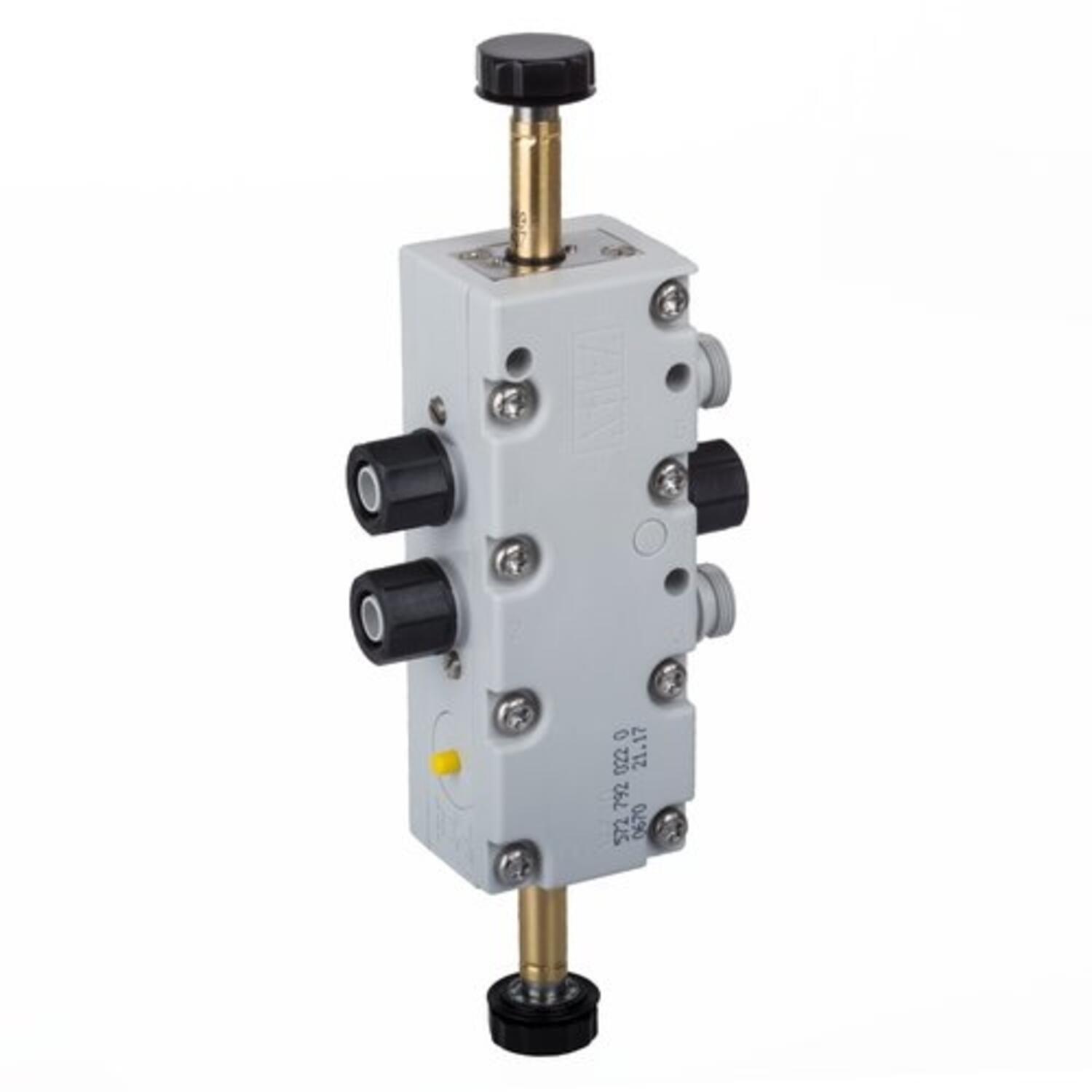

740 series diaphragm seat valve
Plastic diaphragm seat valve for pneumatic applications from our manufacturer Aventics.
The body and connections are made of plastic, which means that the 740 series has a low weight and is corrosion-resistant.
High flow capacity, fast response time, and built-in flow adjustment as standard, which makes it a flexible alternative in automation.
Series 740 can be selected with ATEX rated coil.
As standard, it is for independent installation, but can also be built on a specially adapted base plate with quick connections.
- Connection Plug, EN 175301-803, form A
- Flow capacity 1100l / min
- Temperature range -25 to +50 °C
- ATEX available on request
- Selectable with ATEX coil
Selected variant
Selected variant
Specifications
| Connection Air | Ø 8x1 |
|---|---|

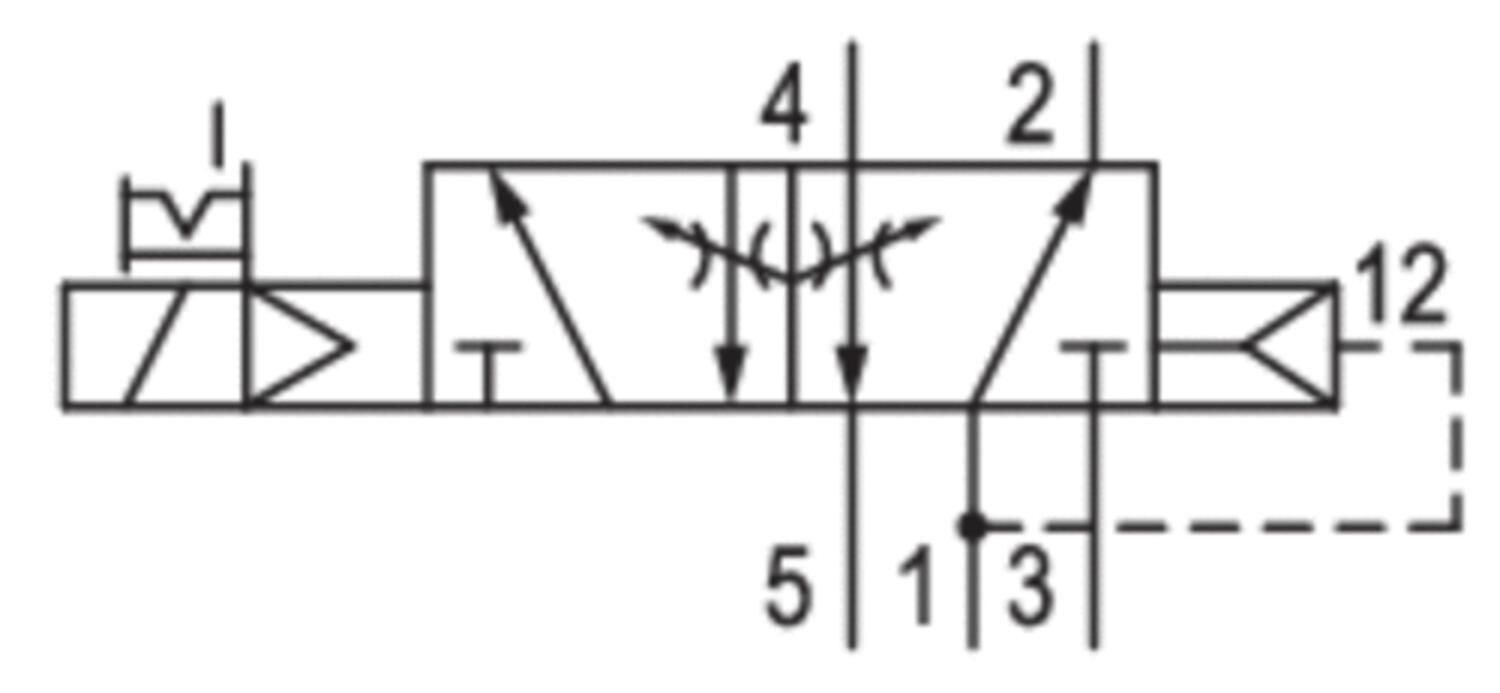

| Function | 5/2, Single solenoid |
| IP Class | IP65 |
| Material of seals | NBR |
| Nominal flow | 700 |
| Oil content max | 5 |
| Particle size max | 50 |
| Power Consumption | 2,1 |
| Response From Stroke | 24 |
|---|---|
| Temperature range from | -25 |
| Temperature range to | 50 |
| Weight | 0,339 |
| Voltage DC | 24 |
| Working Pressure Max | 10 |
| Working Pressure Min | 1,5 |
Product description
Plastic diaphragm seat valve for pneumatic applications from our manufacturer Aventics.
The body and connections are made of plastic, which means that the 740 series has a low weight and is corrosion-resistant.
High flow capacity, fast response time, and built-in flow adjustment as standard, which makes it a flexible alternative in automation.
Series 740 can be selected with ATEX rated coil.
As standard, it is for independent installation, but can also be built on a specially adapted base plate with quick connections.
