Valco - Standard float technology - S1. B/V/F/S

A wide range of standard units that, for variety of materials and dimensions, offers to the user a simple and economical solution for the control of liquid levels. The units are available with connection cable in lengths of 1.5 m and 3.0 m, other lengths are available on request. The cable is sealed together with the contact inside the rod with epoxy resin and polymerization is performed in a controlled temperature oven. The principle of operation of these instruments is based by actuation of a reed contact, located inside of the measuring rod, by a magnetic float. The only moving element is the float, that moves as a result of hydrostatic thrust, this gives extreme ruggedness and limited need of maintenance to the system.

  • Materials, Brass, ST. Steel, PVC, PPL, PVDF
  • 1/8″-3/8″ process connection
  • Max pressure up to 50 bar (see data sheet)
  • Max temperature 130°C (see data sheet)
  • Reed switch SPST or SPDT

Selected variant

Avaible in several variants

Selected variant

Specifications

Current 0.5AC/0.7DC
Electrical connection Pre-cabled 1.5m
Function N/O & N/C
IP Class IP65
Manufacturer Part No S1.B20.3.0040.B.06.G.B.C1.L.D.I2.20
Material of connection Nickel plated brass
Material of float SPANSIL
Max. pressure 20
Mounting Vertical
Process connection 1/8 BSP
Specific gravity 0.4
Temperature range to 105
Voltage 300AC/350DC

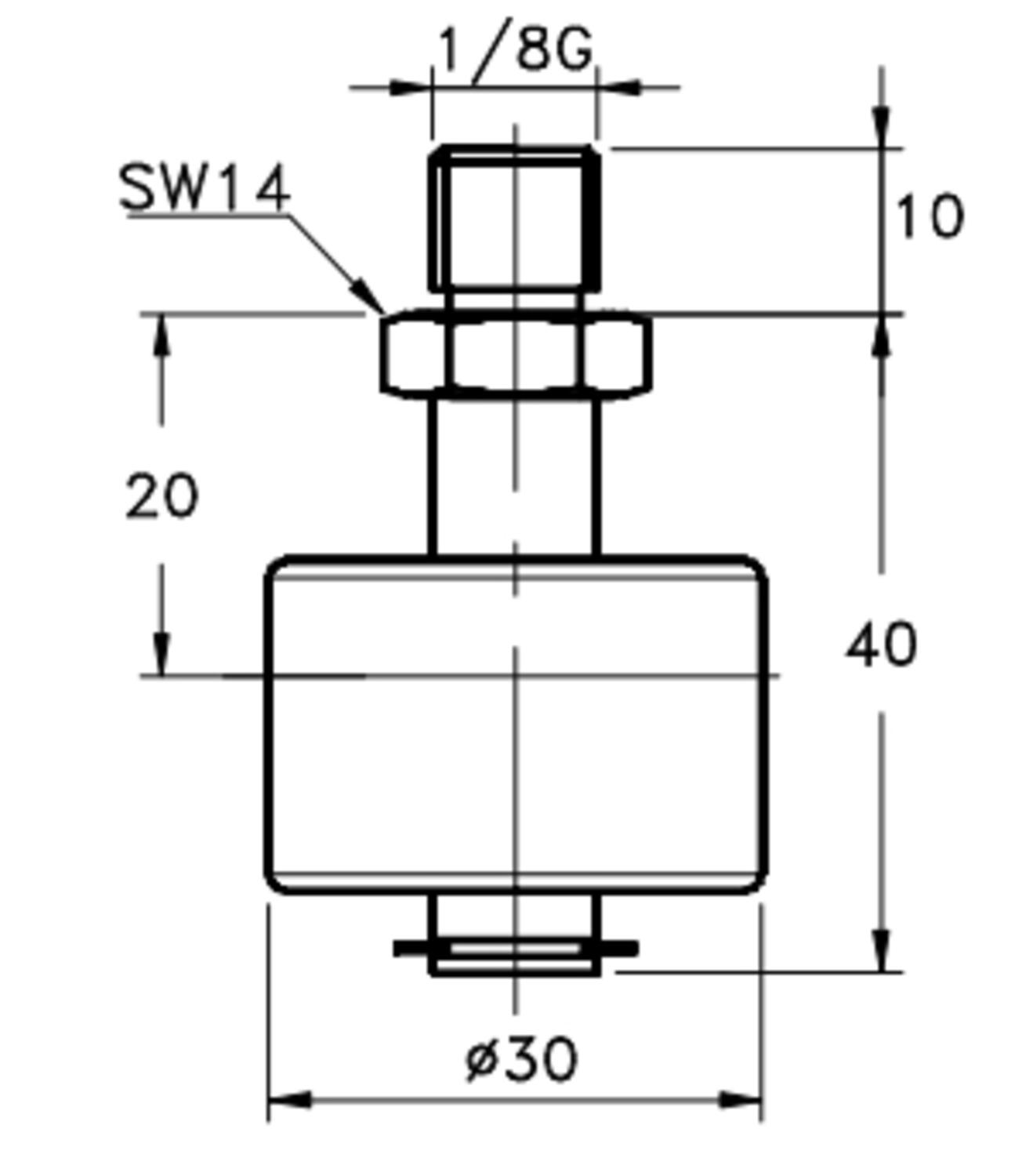

Measurements and connections

Product description

A wide range of standard units that, for variety of materials and dimensions, offers to the user a simple and economical solution for the control of liquid levels. The units are available with connection cable in lengths of 1.5 m and 3.0 m, other lengths are available on request. The cable is sealed together with the contact inside the rod with epoxy resin and polymerization is performed in a controlled temperature oven. The principle of operation of these instruments is based by actuation of a reed contact, located inside of the measuring rod, by a magnetic float. The only moving element is the float, that moves as a result of hydrostatic thrust, this gives extreme ruggedness and limited need of maintenance to the system.

Accessories

My favourites Articles Current Electrical connection Manufacturer Part No Material of connection Material of float Max. pressure Process connection Specific gravity Temperature range to Voltage Price
0.5AC/0.7DC
Pre-cabled 1.5m
S1.B20.3.0040.B.06.G.B.C1.L.D.I2.20
Nickel plated brass
SPANSIL
20
1/8 BSP
0.4
105
300AC/350DC
0.5AC/0.7DC
Pre-cabled 3m
S1.B20.3.0040.B.06.G.B.C2.L.D.I2.20
Nickel plated brass
SPANSIL
20
1/8 BSP
0.4
105
300AC/350DC
0.5AC/0.5DC
Pre-cabled 1.5m
S1.B20.7D.0040.B.06.G.B.C1.L.D.I3.20
Nickel plated brass
SPANSIL
20
1/8 BSP
0.4
105
150AC/150DC
0.5AC/0.5DC
Pre-cabled 3m
S1.B20.7D.0040.B.06.G.B.C2.L.D.I3.20
Nickel plated brass
SPANSIL
20
1/8 BSP
0.4
105
150AC/150DC
1.3AC/1.3DC
Pre-cabled 1.5m
S1.B45.4.0077.B.06.G.B.C1.L.D.I2.40
Nickel plated brass
SPANSIL
20
1/8 BSP
0.35
105
250AC/250DC
1.3AC/1.3DC
Pre-cabled 3m
S1.B45.4.0077.B.06.G.B.C2.L.D.I2.40
Nickel plated brass
SPANSIL
20
1/8 BSP
0.35
105
250AC/250DC
1AC/1DC
Pre-cabled 1.5m
S1.B45.7.0077.B.06.G.B.C1.L.D.I3.40
Nickel plated brass
SPANSIL
20
1/8 BSP
0.35
105
230AC/230DC
1AC/1DC
Pre-cabled 3m
S1.B45.7.0077.B.06.G.B.C2.L.D.I3.40
Nickel plated brass
SPANSIL
20
1/8 BSP
0.35
105
230AC/230DC
1.3AC/1.3DC
Pre-cabled 1.5m
S1.V49.4.0089.V.10.G.V.C1.B.D.I2.42
PVC
PVC
6
G3/8
0.7
60
250AC/250DC
1.3AC/1.3DC
Pre-cabled 3m
S1.V49.4.0089.V.10.G.V.C2.B.D.I2.42
PVC
PVC
6
G3/8
0.7
60
250AC/250DC
1AC/1DC
Pre-cabled 1.5m
S1.V49.7.0089.V.10.G.V.C1.B.D.I3.42
PVC
PVC
6
G3/8
0.7
60
230AC/230DC
1AC/1DC
Pre-cabled 3m
S1.V49.7.0089.V.10.G.V.C2.B.D.I3.42
PVC
PVC
6
G3/8
0.7
60
230AC/230DC
0.5AC/0.7DC
Pre-cabled 1.5m
S1.F25.3.0049.F.06.G.F.C1.N.D.I2.25
PVDF
PVDF
6
1/8 BSP
0.65
130
300AC/350DC
0.5AC/0.7DC
Pre-cabled 3m
S1.F25.3.0049.F.06.G.F.C2.N.D.I2.25
PVDF
PVDF
6
1/8 BSP
0.65
130
300AC/350DC
0.5AC/0.7DC
Pre-cabled 1.5m
S1.S29.3.0050.S.06.G.S.C1.L.D.I2.25
Stainless steel 316
Stainless steel 316
30
1/8 BSP
0.75
105
300AC/350DC
0.5AC/0.7DC
Pre-cabled 3m
S1.S29.3.0050.S.06.G.S.C2.L.D.I2.25
Stainless steel 316
Stainless steel 316
30
1/8 BSP
0.75
105
300AC/350DC
0.5AC/0.5DC
Pre-cabled 1.5m
S1.S29.7D.0050.S.06.G.S.C1.L.D.I3.25
Stainless steel 316
Stainless steel 316
30
1/8 BSP
0.75
105
150AC/150DC
0.5AC/0.5DC
Pre-cabled 3m
S1.S29.7D.0050.S.06.G.S.C2.L.D.I3.25
Stainless steel 316
Stainless steel 316
30
1/8 BSP
0.75
105
150AC/150DC
1.3AC/1.3DC
Pre-cabled 1.5m
S1.S52.4.0080.S.08.G.S.C1.L.D.I2.40
Stainless steel 316
Stainless steel 316
50
1/4 BSP
0.7
105
250AC/250DC
1.3AC/1.3DC
Pre-cabled 3m
S1.S52.4.0080.S.08.G.S.C2.L.D.I2.40
Stainless steel 316
Stainless steel 316
50
1/4 BSP
0.7
105
250AC/250DC
1AC/1DC
Pre-cabled 1.5m
S1.S52.7.0080.S.08.G.S.C1.L.D.I3.40
Stainless steel 316
Stainless steel 316
50
1/4 BSP
0.7
105
230AC/230DC
1AC/1DC
Pre-cabled 3m
S1.S52.7.0080.S.08.G.S.C2.L.D.I3.40
Stainless steel 316
Stainless steel 316
50
1/4 BSP
0.7
105
230AC/230DC
